FETs, MOSFETs
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | FET Type | Technology | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Drive Voltage (Max Rds On, Min Rds On) | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Vgs (Max) | Input Capacitance (Ciss) (Max) @ Vds | FET Feature | Power Dissipation (Max) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FDP8441_F085MOSFET N-CH 40V 23A/80A TO220-3 |
6,743 |
|
Datasheet |
PowerTrench® | TO-220-3 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 40 V | 23A (Ta), 80A (Tc) | 10V | 2.7mOhm @ 80A, 10V | 4V @ 250µA | 280 nC @ 10 V | ±20V | 15000 pF @ 25 V | - | 300W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Through Hole | TO-220-3 |
|
FDP8870-F085MOSFET N-CH 30V 19A/156A TO220-3 |
4,662 |
|
Datasheet |
PowerTrench® | TO-220-3 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 19A (Ta), 156A (Tc) | 4.5V, 10V | 4.1mOhm @ 35A, 10V | 2.5V @ 250µA | 132 nC @ 10 V | ±20V | 5200 pF @ 15 V | - | 160W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-220-3 |
|
|
FDP8876MOSFET N-CH 30V 70A TO220-3 |
9,080 |
|
Datasheet |
PowerTrench® | TO-220-3 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 70A (Tc) | 4.5V, 10V | 8.7mOhm @ 40A, 10V | 2.5V @ 250µA | 45 nC @ 10 V | ±20V | 1700 pF @ 15 V | - | 70W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-220-3 |
|
FDPF15N65YDTUMOSFET N-CH 650V 15A TO220F-3 |
5,415 |
|
Datasheet |
UniFET™ | TO-220-3 Full Pack, Formed Leads | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 650 V | 15A (Tc) | 10V | 440mOhm @ 7.5A, 10V | 5V @ 250µA | 63 nC @ 10 V | ±30V | 3095 pF @ 25 V | - | 38.5W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-220F-3 (Y-Forming) |
|
FDPF7N50FMOSFET N-CH 500V 6A TO220F |
5,837 |
|
Datasheet |
UniFET™ | TO-220-3 Full Pack | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 500 V | 6A (Tc) | 10V | 1.15Ohm @ 3A, 10V | 5V @ 250µA | 20 nC @ 10 V | ±30V | 960 pF @ 25 V | - | 38.5W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-220F-3 |
|
FDS6680SMOSFET N-CH 30V 11.5A 8SOIC |
2,939 |
|
Datasheet |
PowerTrench® | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 11.5A (Ta) | 4.5V, 10V | 11mOhm @ 11.5A, 10V | 3V @ 250µA | 24 nC @ 5 V | ±20V | 2010 pF @ 15 V | - | 2.5W (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SOIC |
|
|
FDS6694MOSFET N-CH 30V 12A 8SOIC |
3,187 |
|
Datasheet |
PowerTrench® | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 12A (Ta) | 4.5V, 10V | 11mOhm @ 12A, 10V | 3V @ 250µA | 19 nC @ 5 V | ±20V | 1293 pF @ 15 V | - | 2.5W (Ta) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | 8-SOIC |
|
|
FDS7788MOSFET N-CH 30V 18A 8SOIC |
5,117 |
|
Datasheet |
PowerTrench® | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 18A (Ta) | 4.5V, 10V | 4mOhm @ 18A, 10V | 3V @ 250µA | 48 nC @ 5 V | ±20V | 3845 pF @ 15 V | - | 2.5W (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SOIC |
|
|
FDS9412AMOSFET N-CH 30V 8A 8SOIC |
6,023 |
|
Datasheet |
PowerTrench® | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 8A (Ta) | 4.5V, 10V | 21mOhm @ 8A, 10V | 2.5V @ 250µA | 20 nC @ 10 V | ±20V | 985 pF @ 15 V | - | 2.5W (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SOIC |
|
FDU6N50TUMOSFET N-CH 500V 6A IPAK |
4,765 |
|
Datasheet |
UniFET™ | TO-251-3 Short Leads, IPAK, TO-251AA | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 500 V | 6A (Tc) | 10V | 900mOhm @ 3A, 10V | 5V @ 250µA | 16.6 nC @ 10 V | ±30V | 940 pF @ 25 V | - | 89W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | IPAK |
|
FQA10N80C-F109MOSFET N-CH 800V 10A TO3P |
3,759 |
|
Datasheet |
QFET® | TO-3P-3, SC-65-3 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 800 V | 10A (Tc) | 10V | 1.1Ohm @ 5A, 10V | 5V @ 250µA | 58 nC @ 10 V | ±30V | 2800 pF @ 25 V | - | 240W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-3P |
|
|
FQA10N80_F109MOSFET N-CH 800V 9.8A TO3P |
2,498 |
|
Datasheet |
QFET® | TO-3P-3, SC-65-3 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 800 V | 9.8A (Tc) | 10V | 1.05Ohm @ 4.9A, 10V | 5V @ 250µA | 71 nC @ 10 V | ±30V | 2700 pF @ 25 V | - | 240W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-3P |
|

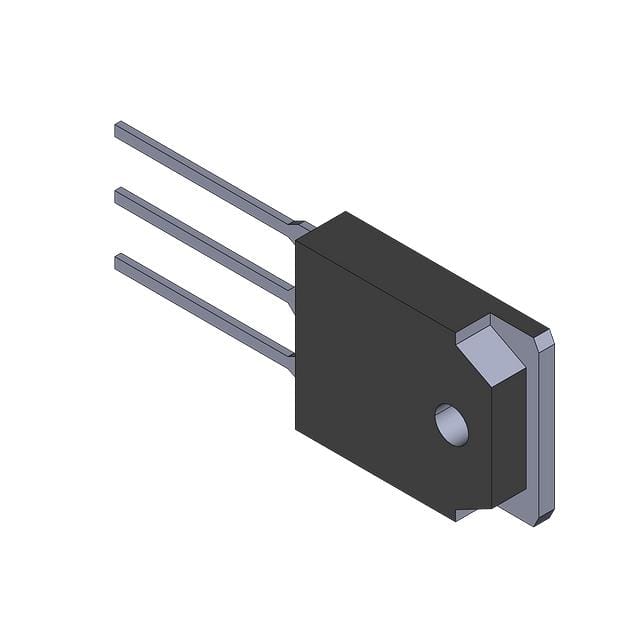

FQA11N90C-F109MOSFET N-CH 900V 11A TO3P |
7,213 |
|
Datasheet |
QFET® | TO-3P-3, SC-65-3 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 900 V | 11A (Tc) | 10V | 1.1Ohm @ 5.5A, 10V | 5V @ 250µA | 80 nC @ 10 V | ±30V | 3290 pF @ 25 V | - | 300W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-3P |
|
FQA11N90-F109MOSFET N-CH 900V 11.4A TO3PN |
2,573 |
|
Datasheet |
QFET® | TO-3P-3, SC-65-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 900 V | 11.4A (Tc) | 10V | 960mOhm @ 5.7A, 10V | 5V @ 250µA | 94 nC @ 10 V | ±30V | 3500 pF @ 25 V | - | 300W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-3PN |
|
|
FQA13N50CF_F109MOSFET N-CH 500V 15A TO3PN |
5,225 |
|
Datasheet |
FRFET® | TO-3P-3, SC-65-3 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 500 V | 15A (Tc) | 10V | 480mOhm @ 7.5A, 10V | 4V @ 250µA | 56 nC @ 10 V | ±30V | 2055 pF @ 25 V | - | 218W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-3PN |
|
|
FQA5N90_F109MOSFET N-CH 900V 5.8A TO3P |
8,407 |
|
Datasheet |
QFET® | TO-3P-3, SC-65-3 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 900 V | 5.8A (Tc) | 10V | 2.3Ohm @ 2.9A, 10V | 5V @ 250µA | 40 nC @ 10 V | ±30V | 1550 pF @ 25 V | - | 185W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-3P |
|
|
FQA6N90C-F109MOSFET N-CH 900V 6A TO3PN |
8,359 |
|
Datasheet |
QFET® | TO-3P-3, SC-65-3 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 900 V | 6A (Tc) | 10V | 2.3Ohm @ 3A, 10V | 5V @ 250µA | 40 nC @ 10 V | ±30V | 1770 pF @ 25 V | - | 198W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-3PN |
|
FQB8N60CFTMMOSFET N-CH 600V 6.26A D2PAK |
6,576 |
|
Datasheet |
FRFET® | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 600 V | 6.26A (Tc) | 10V | 1.5Ohm @ 3.13A, 10V | 4V @ 250µA | 36 nC @ 10 V | ±30V | 1255 pF @ 25 V | - | 147W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | TO-263 (D2PAK) |
|
FQD3N50CTMMOSFET N-CH 500V 2.5A DPAK |
5,804 |
|
Datasheet |
QFET® | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 500 V | 2.5A (Tc) | 10V | 2.5Ohm @ 1.25A, 10V | 4V @ 250µA | 13 nC @ 10 V | ±30V | 365 pF @ 25 V | - | 35W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | TO-252AA |
|
FQI34P10TUMOSFET P-CH 100V 33.5A I2PAK |
7,291 |
|
- |
QFET® | TO-262-3 Long Leads, I2PAK, TO-262AA | Tube | Obsolete | P-Channel | MOSFET (Metal Oxide) | 100 V | 33.5A (Tc) | 10V | 60mOhm @ 16.75A, 10V | 4V @ 250µA | 110 nC @ 10 V | ±25V | 2910 pF @ 25 V | - | 3.75W (Ta), 155W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-262 (I2PAK) |
