FETs, MOSFETs
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | FET Type | Technology | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Drive Voltage (Max Rds On, Min Rds On) | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Vgs (Max) | Input Capacitance (Ciss) (Max) @ Vds | FET Feature | Power Dissipation (Max) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SI4833ADY-T1-E3MOSFET P-CH 30V 4.6A 8SO |
8,812 |
|
Datasheet |
LITTLE FOOT® | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | P-Channel | MOSFET (Metal Oxide) | 30 V | 4.6A (Tc) | 4.5V, 10V | 72mOhm @ 3.6A, 10V | 2.5V @ 250µA | 15 nC @ 10 V | ±20V | 750 pF @ 15 V | Schottky Diode (Isolated) | 1.93W (Ta), 2.75W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SOIC |
|
SI5445BDC-T1-E3MOSFET P-CH 8V 5.2A 1206-8 |
3,997 |
|
Datasheet |
TrenchFET® | 8-SMD, Flat Leads | Tape & Reel (TR) | Obsolete | P-Channel | MOSFET (Metal Oxide) | 8 V | 5.2A (Ta) | 1.8V, 4.5V | 33mOhm @ 5.2A, 4.5V | 1V @ 250µA | 21 nC @ 4.5 V | ±8V | - | - | 1.3W (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 1206-8 ChipFET™ |
|

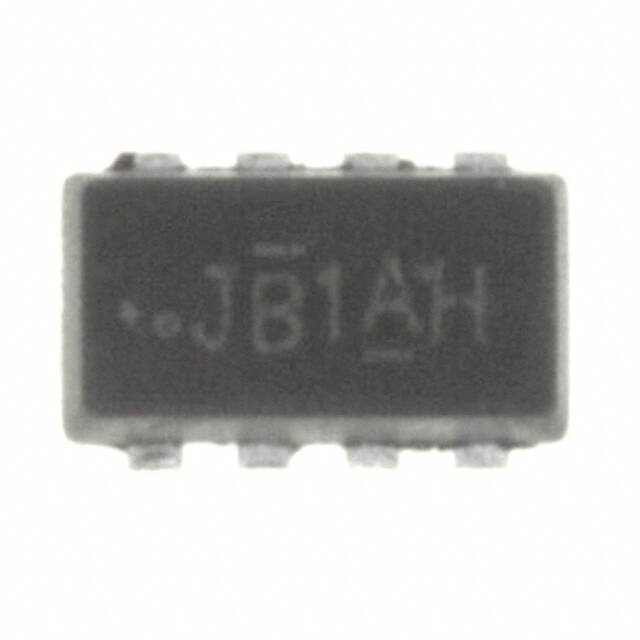

SI5855DC-T1-E3MOSFET P-CH 20V 2.7A 1206-8 |
7,548 |
|
- |
TrenchFET® | 8-SMD, Flat Leads | Tape & Reel (TR) | Obsolete | P-Channel | MOSFET (Metal Oxide) | 20 V | 2.7A (Ta) | 1.8V, 4.5V | 110mOhm @ 2.7A, 4.5V | 1V @ 250µA | 7.7 nC @ 4.5 V | ±8V | - | Schottky Diode (Isolated) | 1.1W (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 1206-8 ChipFET™ |
|
SI7100DN-T1-E3MOSFET N-CH 8V 35A PPAK1212-8 |
7,752 |
|
Datasheet |
TrenchFET® | PowerPAK® 1212-8 | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 8 V | 35A (Tc) | 2.5V, 4.5V | 3.5mOhm @ 15A, 4.5V | 1V @ 250µA | 105 nC @ 8 V | ±8V | 3810 pF @ 4 V | - | 3.8W (Ta), 52W (Tc) | -50°C ~ 150°C (TJ) | - | - | Surface Mount | PowerPAK® 1212-8 |
|
SI7136DP-T1-E3MOSFET N-CH 20V 30A PPAK SO-8 |
6,117 |
|
Datasheet |
TrenchFET® | PowerPAK® SO-8 | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 20 V | 30A (Tc) | 4.5V, 10V | 3.2mOhm @ 20A, 10V | 3V @ 250µA | 78 nC @ 10 V | ±20V | 3380 pF @ 10 V | - | 5W (Ta), 39W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | PowerPAK® SO-8 |
|
|
SI7382DP-T1-E3MOSFET N-CH 30V 14A PPAK SO-8 |
5,329 |
|
Datasheet |
TrenchFET® | PowerPAK® SO-8 | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 14A (Ta) | 4.5V, 10V | 4.7mOhm @ 24A, 10V | 3V @ 250µA | 40 nC @ 4.5 V | ±20V | - | - | 1.8W (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | PowerPAK® SO-8 |
|
|
SI7384DP-T1-E3MOSFET N-CH 30V 11A PPAK SO-8 |
6,292 |
|
Datasheet |
TrenchFET® | PowerPAK® SO-8 | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 11A (Ta) | 4.5V, 10V | 8.5mOhm @ 18A, 10V | 3V @ 250µA | 18 nC @ 4.5 V | ±20V | - | - | 1.8W (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | PowerPAK® SO-8 |
|
|
SI7485DP-T1-E3MOSFET P-CH 20V 12.5A PPAK SO-8 |
5,476 |
|
- |
- | PowerPAK® SO-8 | Cut Tape (CT) | Obsolete | P-Channel | MOSFET (Metal Oxide) | 20 V | 12.5A (Ta) | - | 7.3mOhm @ 20A, 4.5V | 900mV @ 1mA | 150 nC @ 5 V | - | - | - | - | - | - | - | Surface Mount | PowerPAK® SO-8 |
|
|
SI7703EDN-T1-E3MOSFET P-CH 20V 4.3A PPAK1212-8 |
6,506 |
|
- |
TrenchFET® | PowerPAK® 1212-8 | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 20 V | 4.3A (Ta) | 1.8V, 4.5V | 48mOhm @ 6.3A, 4.5V | 1V @ 800µA | 18 nC @ 4.5 V | ±12V | - | Schottky Diode (Isolated) | 1.3W (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | PowerPAK® 1212-8 |
|
|
SI7858ADP-T1-E3MOSFET N-CH 12V 20A PPAK SO-8 |
6,100 |
|
Datasheet |
TrenchFET® | PowerPAK® SO-8 | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 12 V | 20A (Ta) | 2.5V, 4.5V | 2.6mOhm @ 29A, 4.5V | 1.5V @ 250µA | 80 nC @ 4.5 V | ±8V | 5700 pF @ 6 V | - | 1.9W (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | PowerPAK® SO-8 |
|
SI8402DB-T1-E1MOSFET N-CH 20V 5.3A 2X2 4-MFP |
8,984 |
|
- |
- | 4-XFBGA, CSPBGA | Cut Tape (CT) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 20 V | 5.3A (Ta) | - | 37mOhm @ 1A, 4.5V | 1V @ 250µA | 26 nC @ 4.5 V | - | - | - | - | - | - | - | Surface Mount | 4-Microfoot |
|
SUM110N04-03P-E3MOSFET N-CH 40V 110A TO263 |
8,621 |
|
- |
TrenchFET® | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 110A (Tc) | 10V | 3.1mOhm @ 30A, 10V | 4V @ 250µA | 150 nC @ 10 V | ±20V | 6500 pF @ 25 V | - | 3.75W (Ta), 375W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | TO-263 (D2PAK) |
|
|
SUM110N04-04-E3MOSFET N-CH 40V 110A TO263 |
6,153 |
|
Datasheet |
TrenchFET® | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 110A (Tc) | 10V | 3.5mOhm @ 30A, 10V | 4V @ 250µA | 200 nC @ 10 V | ±20V | 6800 pF @ 25 V | - | 3.75W (Ta), 250W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | TO-263 (D2PAK) |
|
|
SUM110N04-2M3L-E3MOSFET N-CH 40V 110A TO263 |
2,902 |
|
- |
TrenchFET® | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 40 V | 110A (Tc) | 4.5V, 10V | 2.3mOhm @ 30A, 10V | 3V @ 250µA | 360 nC @ 10 V | ±20V | 13600 pF @ 25 V | - | 3.75W (Ta), 375W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | TO-263 (D2PAK) |
|
|
SUM52N20-39P-E3MOSFET N-CH 200V 52A TO263 |
2,053 |
|
- |
TrenchFET® | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 200 V | 52A (Tc) | 10V, 15V | 38mOhm @ 20A, 15V | 4.5V @ 250µA | 185 nC @ 15 V | ±25V | 4220 pF @ 25 V | - | 3.12W (Ta), 250W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | TO-263 (D2PAK) |
|
2SK2719(F)MOSFET N-CH 900V 3A TO3P |
7,557 |
|
Datasheet |
- | TO-3P-3, SC-65-3 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 900 V | 3A (Ta) | 10V | 4.3Ohm @ 1.5A, 10V | 4V @ 1mA | 25 nC @ 10 V | ±30V | 750 pF @ 25 V | - | 125W (Tc) | 150°C (TJ) | - | - | Through Hole | TO-3P(N) |
|
|
2SK2847(F)MOSFET N-CH 900V 8A TO3PIS |
5,627 |
|
Datasheet |
- | TO-3P-3, SC-65-3 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 900 V | 8A (Ta) | 10V | 1.4Ohm @ 4A, 10V | 4V @ 1mA | 58 nC @ 10 V | ±30V | 2040 pF @ 25 V | - | 85W (Tc) | 150°C (TJ) | - | - | Through Hole | TO-3P(N)IS |
|
|
2SK2917(F)MOSFET N-CH 500V 18A TO3PIS |
3,466 |
|
Datasheet |
- | TO-3P-3, SC-65-3 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 500 V | 18A (Ta) | 10V | 270mOhm @ 10A, 10V | 4V @ 1mA | 80 nC @ 10 V | ±30V | 3720 pF @ 10 V | - | 90W (Tc) | 150°C (TJ) | - | - | Through Hole | TO-3P(N)IS |
|
|
2SK2967(F)MOSFET N-CH 250V 30A TO3P |
6,449 |
|
Datasheet |
- | TO-3P-3, SC-65-3 | Tray | Obsolete | N-Channel | MOSFET (Metal Oxide) | 250 V | 30A (Ta) | 10V | 68mOhm @ 15A, 10V | 3.5V @ 1mA | 132 nC @ 10 V | ±20V | 5400 pF @ 10 V | - | 150W (Tc) | 150°C (TJ) | - | - | Through Hole | TO-3P(N) |
|
2SK2993(TE24L,Q)MOSFET N-CH 250V 20A TO220SM |
3,849 |
|
Datasheet |
- | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 250 V | 20A (Ta) | 10V | 105mOhm @ 10A, 10V | 3.5V @ 1mA | 100 nC @ 10 V | ±20V | 4000 pF @ 10 V | - | 100W (Tc) | 150°C (TJ) | - | - | Surface Mount | TO-220SM |
FETs, MOSFETs Electronic Components
Explore FETs, MOSFETs electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
