FETs, MOSFETs
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | FET Type | Technology | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Drive Voltage (Max Rds On, Min Rds On) | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Vgs (Max) | Input Capacitance (Ciss) (Max) @ Vds | FET Feature | Power Dissipation (Max) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FDG329NMOSFET N-CH 20V 1.5A SC88 |
7,512 |
|
Datasheet |
PowerTrench® | 6-TSSOP, SC-88, SOT-363 | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 20 V | 1.5A (Ta) | 2.5V, 4.5V | 90mOhm @ 1.5A, 4.5V | 1.5V @ 250µA | 4.6 nC @ 4.5 V | ±12V | 324 pF @ 10 V | - | 420mW (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SC-88 (SC-70-6) |
|
|
FDG330PMOSFET P-CH 12V 2A SC88 |
3,505 |
|
Datasheet |
PowerTrench® | 6-TSSOP, SC-88, SOT-363 | Tape & Reel (TR) | Obsolete | P-Channel | MOSFET (Metal Oxide) | 12 V | 2A (Ta) | 1.8V, 4.5V | 110mOhm @ 2A, 4.5V | 1.5V @ 250µA | 7 nC @ 4.5 V | ±8V | 477 pF @ 6 V | - | 750mW (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SC-88 (SC-70-6) |
|
FDP6030BLMOSFET N-CH 30V 40A TO220-3 |
8,986 |
|
Datasheet |
PowerTrench® | TO-220-3 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 40A (Tc) | 4.5V, 10V | 18mOhm @ 20A, 10V | 3V @ 250µA | 17 nC @ 5 V | ±20V | 1160 pF @ 15 V | - | 60W (Tc) | -65°C ~ 175°C (TJ) | - | - | Through Hole | TO-220-3 |
|
FDA70N20MOSFET N-CH 200V 70A TO3PN |
8,418 |
|
Datasheet |
UniFET™ | TO-3P-3, SC-65-3 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 200 V | 70A (Tc) | 10V | 35mOhm @ 35A, 10V | 5V @ 250µA | 86 nC @ 10 V | ±30V | 3970 pF @ 25 V | - | 417W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-3PN |
|
FDB24AN06LA0MOSFET N-CH 60V 7.8A/40A TO263AB |
5,130 |
|
Datasheet |
PowerTrench® | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 60 V | 7.8A (Ta), 40A (Tc) | 5V, 10V | 19mOhm @ 40A, 10V | 3V @ 250µA | 21 nC @ 5 V | ±20V | 1850 pF @ 25 V | - | 75W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | TO-263 (D2PAK) |
|
FDD20AN06A0MOSFET N-CH 60V 8A/45A TO252AA |
6,400 |
|
Datasheet |
PowerTrench® | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 60 V | 8A (Ta), 45A (Tc) | 10V | 20mOhm @ 45A, 10V | 4V @ 250µA | 19 nC @ 10 V | ±20V | 950 pF @ 25 V | - | 90W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | TO-252AA |
|
|
FDD24AN06LA0MOSFET N-CH 60V 7.1A/40A TO252AA |
6,607 |
|
Datasheet |
PowerTrench® | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 60 V | 7.1A (Ta), 40A (Tc) | 5V, 10V | 19mOhm @ 40A, 10V | 2V @ 250µA | 21 nC @ 5 V | ±20V | 1850 pF @ 25 V | - | 75W (Tc) | -55°C ~ 155°C (TJ) | - | - | Surface Mount | TO-252AA |
|
|
FDD26AN06A0MOSFET N-CH 60V 7A/36A TO252AA |
3,838 |
|
Datasheet |
PowerTrench® | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 60 V | 7A (Ta), 36A (Tc) | 10V | 26mOhm @ 36A, 10V | 4V @ 250µA | 17 nC @ 10 V | ±20V | 800 pF @ 25 V | - | 75W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | TO-252AA |
|
FDP20AN06A0MOSFET N-CH 60V 9A/45A TO220-3 |
5,369 |
|
Datasheet |
PowerTrench® | TO-220-3 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 60 V | 9A (Ta), 45A (Tc) | 10V | 20mOhm @ 45A, 10V | 4V @ 250µA | 19 nC @ 10 V | ±20V | 950 pF @ 25 V | - | 90W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-220-3 |
|
|
FDP24AN06LA0MOSFET N-CH 60V 7.8A/40A TO220-3 |
5,331 |
|
Datasheet |
PowerTrench® | TO-220-3 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 60 V | 7.8A (Ta), 40A (Tc) | 5V, 10V | 19mOhm @ 40A, 10V | 3V @ 250µA | 21 nC @ 5 V | ±20V | 1850 pF @ 25 V | - | 75W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-220-3 |
|
BSS84_D87ZMOSFET P-CH 50V 130MA SOT23-3 |
8,547 |
|
Datasheet |
- | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Obsolete | P-Channel | MOSFET (Metal Oxide) | 50 V | 130mA (Ta) | 5V | 10Ohm @ 100mA, 5V | 2V @ 1mA | 1.3 nC @ 5 V | ±20V | 73 pF @ 25 V | - | 360mW (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-23-3 |
|
|
FDG326PMOSFET P-CH 20V 1.5A SC88 |
8,744 |
|
Datasheet |
PowerTrench® | 6-TSSOP, SC-88, SOT-363 | Tape & Reel (TR) | Obsolete | P-Channel | MOSFET (Metal Oxide) | 20 V | 1.5A (Ta) | 1.8V, 4.5V | 140mOhm @ 1.5A, 4.5V | 1.5V @ 250µA | 7 nC @ 4.5 V | ±8V | 467 pF @ 10 V | - | 750mW (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SC-88 (SC-70-6) |
|

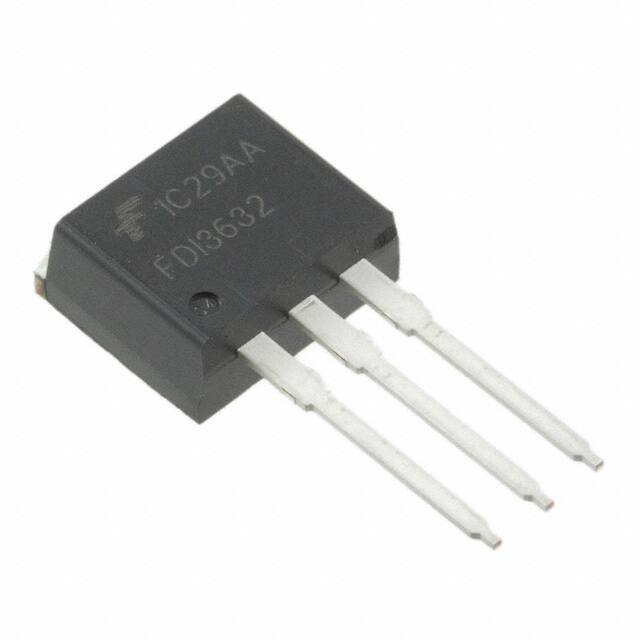

FDI3632MOSFET N-CH 100V 12A/80A I2PAK |
8,077 |
|
Datasheet |
PowerTrench® | TO-262-3 Long Leads, I2PAK, TO-262AA | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 100 V | 12A (Ta), 80A (Tc) | 6V, 10V | 9mOhm @ 80A, 10V | 4V @ 250µA | 110 nC @ 10 V | ±20V | 6000 pF @ 25 V | - | 310W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-262 (I2PAK) |
|
|
FDP13AN06A0MOSFET N-CH 60V 10.9A/62A TO220 |
4,157 |
|
Datasheet |
PowerTrench® | TO-220-3 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 60 V | 10.9A (Ta), 62A (Tc) | 6V, 10V | 13.5mOhm @ 62A, 10V | 4V @ 250µA | 29 nC @ 10 V | ±20V | 1350 pF @ 25 V | - | 115W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-220-3 |
|
FDS6688MOSFET N-CH 30V 16A 8SOIC |
2,554 |
|
Datasheet |
PowerTrench® | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 16A (Ta) | 4.5V, 10V | 6mOhm @ 16A, 10V | 3V @ 250µA | 56 nC @ 5 V | ±20V | 3888 pF @ 15 V | - | 2.5W (Ta) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | 8-SOIC |
|
FDS7296N3MOSFET N-CH 30V 15A 8SO |
6,300 |
|
Datasheet |
PowerTrench® | 8-SOIC (0.154", 3.90mm Width) Exposed Pad | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 15A (Ta) | 4.5V, 10V | 8mOhm @ 15A, 10V | 3V @ 250µA | 32 nC @ 10 V | ±20V | 1540 pF @ 15 V | - | 3W (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SO FLMP |
|
|
FDS6679ZMOSFET P-CH 30V 13A 8SOIC |
5,836 |
|
Datasheet |
PowerTrench® | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | P-Channel | MOSFET (Metal Oxide) | 30 V | 13A (Ta) | 4.5V, 10V | 9mOhm @ 13A, 10V | 3V @ 250µA | 94 nC @ 10 V | +20V, -25V | 3803 pF @ 15 V | - | 2.5W (Ta) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | 8-SOIC |
|
FDJ127PMOSFET P-CH 20V 4.1A SC75-6 FLMP |
8,281 |
|
Datasheet |
PowerTrench® | SC-75-6 FLMP | Tape & Reel (TR) | Obsolete | P-Channel | MOSFET (Metal Oxide) | 20 V | 4.1A (Ta) | 1.8V, 4.5V | 60mOhm @ 4.1A, 4.5V | 1.5V @ 250µA | 10 nC @ 4.5 V | ±8V | 780 pF @ 10 V | - | 1.6W (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SC75-6 FLMP |
|
FDR6580MOSFET N-CH 20V 11.2A SUPERSOT8 |
5,896 |
|
Datasheet |
PowerTrench® | 8-LSOP (0.130", 3.30mm Width) | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 20 V | 11.2A (Ta) | 2.5V, 4.5V | 9mOhm @ 11.2A, 4.5V | 1.5V @ 250µA | 48 nC @ 4.5 V | ±8V | 3829 pF @ 10 V | - | 1.8W (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SuperSOT™-8 |
|
FDC636PMOSFET P-CH 20V 2.8A SUPERSOT6 |
2,640 |
|
Datasheet |
- | SOT-23-6 Thin, TSOT-23-6 | Tape & Reel (TR) | Obsolete | P-Channel | MOSFET (Metal Oxide) | 20 V | 2.8A (Ta) | 2.5V, 4.5V | 130mOhm @ 2.8A, 4.5V | 1V @ 250µA | 8.5 nC @ 4.5 V | ±8V | 390 pF @ 10 V | - | 1.6W (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SuperSOT™-6 |
