FETs, MOSFETs
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | FET Type | Technology | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Drive Voltage (Max Rds On, Min Rds On) | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Vgs (Max) | Input Capacitance (Ciss) (Max) @ Vds | FET Feature | Power Dissipation (Max) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IRF3709ZSPBFMOSFET N-CH 30V 87A D2PAK |
7,670 |
|
Datasheet |
HEXFET® | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 87A (Tc) | 4.5V, 10V | 6.3mOhm @ 21A, 10V | 2.25V @ 250µA | 26 nC @ 4.5 V | ±20V | 2130 pF @ 15 V | - | 79W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | D2PAK |
|
IRF644NPBFMOSFET N-CH 250V 14A TO220AB |
6,237 |
|
Datasheet |
- | TO-220-3 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 250 V | 14A (Tc) | 10V | 240mOhm @ 8.4A, 10V | 4V @ 250µA | 54 nC @ 10 V | ±20V | 1060 pF @ 25 V | - | 150W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-220AB |
|
|
IRL5602SPBFMOSFET P-CH 20V 24A D2PAK |
6,177 |
|
Datasheet |
HEXFET® | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tube | Obsolete | P-Channel | MOSFET (Metal Oxide) | 20 V | 24A (Tc) | 2.5V, 4.5V | 42mOhm @ 12A, 4.5V | 1V @ 250µA | 44 nC @ 4.5 V | ±8V | 1460 pF @ 15 V | - | 75W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | D2PAK |
|
|
IRF6215SPBFMOSFET P-CH 150V 13A D2PAK |
2,175 |
|
Datasheet |
HEXFET® | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tube | Discontinued at Digi-Key | P-Channel | MOSFET (Metal Oxide) | 150 V | 13A (Tc) | 10V | 290mOhm @ 6.6A, 10V | 4V @ 250µA | 66 nC @ 10 V | ±20V | 860 pF @ 25 V | - | 3.8W (Ta), 110W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | D2PAK |
|
IRF644NSPBFMOSFET N-CH 250V 14A D2PAK |
6,343 |
|
Datasheet |
- | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 250 V | 14A (Tc) | 10V | 240mOhm @ 8.4A, 10V | 4V @ 250µA | 54 nC @ 10 V | ±20V | 1060 pF @ 25 V | - | 150W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | TO-263 (D2PAK) |
|
IRF630NLPBFMOSFET N-CH 200V 9.3A TO262 |
7,191 |
|
Datasheet |
HEXFET® | TO-262-3 Long Leads, I2PAK, TO-262AA | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 200 V | 9.3A (Tc) | 10V | 300mOhm @ 5.4A, 10V | 4V @ 250µA | 35 nC @ 10 V | ±20V | 575 pF @ 25 V | - | 82W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-262 |
|
IRLIB9343PBFMOSFET P-CH 55V 14A TO220AB FP |
6,925 |
|
Datasheet |
HEXFET® | TO-220-3 Full Pack | Tube | Obsolete | P-Channel | MOSFET (Metal Oxide) | 55 V | 14A (Tc) | 4.5V, 10V | 105mOhm @ 3.4A, 10V | 1V @ 250µA | 47 nC @ 10 V | ±20V | 660 pF @ 50 V | - | 33W (Tc) | -40°C ~ 175°C (TJ) | - | - | Through Hole | TO-220AB Full-Pak |
|
|
IRL3705ZLPBFMOSFET N-CH 55V 75A TO262 |
3,052 |
|
Datasheet |
HEXFET® | TO-262-3 Long Leads, I2PAK, TO-262AA | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 55 V | 75A (Tc) | 4.5V, 10V | 8mOhm @ 52A, 10V | 3V @ 250µA | 60 nC @ 5 V | ±16V | 2880 pF @ 25 V | - | 130W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-262 |
|
|
IRF9530NSPBFMOSFET P-CH 100V 14A D2PAK |
8,487 |
|
Datasheet |
HEXFET® | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tube | Discontinued at Digi-Key | P-Channel | MOSFET (Metal Oxide) | 100 V | 14A (Tc) | 10V | 200mOhm @ 8.4A, 10V | 4V @ 250µA | 58 nC @ 10 V | ±20V | 760 pF @ 25 V | - | 3.8W (Ta), 79W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | D2PAK |
|
|
IRF5305SPBFMOSFET P-CH 55V 31A D2PAK |
7,277 |
|
Datasheet |
HEXFET® | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tube | Discontinued at Digi-Key | P-Channel | MOSFET (Metal Oxide) | 55 V | 31A (Tc) | 10V | 60mOhm @ 16A, 10V | 4V @ 250µA | 63 nC @ 10 V | ±20V | 1200 pF @ 25 V | - | 3.8W (Ta), 110W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | D2PAK |
|
|
IRL7833SPBFMOSFET N-CH 30V 150A D2PAK |
8,926 |
|
Datasheet |
HEXFET® | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tube | Discontinued at Digi-Key | N-Channel | MOSFET (Metal Oxide) | 30 V | 150A (Tc) | 4.5V, 10V | 3.8mOhm @ 38A, 10V | 2.3V @ 250µA | 47 nC @ 4.5 V | ±20V | 4170 pF @ 15 V | - | 140W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | D2PAK |
|
IRF9Z34NLPBFMOSFET P-CH 55V 19A TO262 |
4,801 |
|
Datasheet |
HEXFET® | TO-262-3 Long Leads, I2PAK, TO-262AA | Tube | Obsolete | P-Channel | MOSFET (Metal Oxide) | 55 V | 19A (Tc) | 10V | 100mOhm @ 10A, 10V | 4V @ 250µA | 35 nC @ 10 V | ±20V | 620 pF @ 25 V | - | 3.8W (Ta), 68W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-262 |
|
|
IRF9Z34NSPBFMOSFET P-CH 55V 19A D2PAK |
3,228 |
|
Datasheet |
HEXFET® | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tube | Discontinued at Digi-Key | P-Channel | MOSFET (Metal Oxide) | 55 V | 19A (Tc) | 10V | 100mOhm @ 10A, 10V | 4V @ 250µA | 35 nC @ 10 V | ±20V | 620 pF @ 25 V | - | 3.8W (Ta), 68W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | D2PAK |
|
IRF3305PBFMOSFET N-CH 55V 75A TO220AB |
7,736 |
|
Datasheet |
HEXFET® | TO-220-3 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 55 V | 75A (Tc) | 10V | 8mOhm @ 75A, 10V | 4V @ 250µA | 150 nC @ 10 V | ±20V | 3650 pF @ 25 V | - | 330W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-220AB |
|
|
IRFB4215PBFMOSFET N-CH 60V 115A TO220AB |
2,995 |
|
Datasheet |
HEXFET® | TO-220-3 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 60 V | 115A (Tc) | 10V | 9mOhm @ 54A, 10V | 4V @ 250µA | 170 nC @ 10 V | ±20V | 4080 pF @ 25 V | - | 270W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-220AB |
|
|
IRF3315SPBFMOSFET N-CH 150V 21A D2PAK |
5,770 |
|
Datasheet |
HEXFET® | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tube | Discontinued at Digi-Key | N-Channel | MOSFET (Metal Oxide) | 150 V | 21A (Tc) | 10V | 82mOhm @ 12A, 10V | 4V @ 250µA | 95 nC @ 10 V | ±20V | 1300 pF @ 25 V | - | 3.8W (Ta), 94W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | D2PAK |
|
|
IRL3502SPBFMOSFET N-CH 20V 110A D2PAK |
9,865 |
|
Datasheet |
HEXFET® | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 20 V | 110A (Tc) | 4.5V, 7V | 7mOhm @ 64A, 7V | 700mV @ 250µA (Min) | 110 nC @ 4.5 V | ±10V | 4700 pF @ 15 V | - | 140W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | D2PAK |
|
|
64-2092PBFMOSFET N-CH 55V 75A D2PAK |
6,013 |
|
Datasheet |
HEXFET® | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 55 V | 75A (Tc) | 10V | 6.5mOhm @ 66A, 10V | 4V @ 250µA | 110 nC @ 10 V | ±20V | 3450 pF @ 25 V | - | 170W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | D2PAK |
|
|
IRF2807SPBFMOSFET N-CH 75V 82A D2PAK |
6,473 |
|
Datasheet |
HEXFET® | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tube | Discontinued at Digi-Key | N-Channel | MOSFET (Metal Oxide) | 75 V | 82A (Tc) | 10V | 13mOhm @ 43A, 10V | 4V @ 250µA | 160 nC @ 10 V | ±20V | 3820 pF @ 25 V | - | 230W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | D2PAK |
|

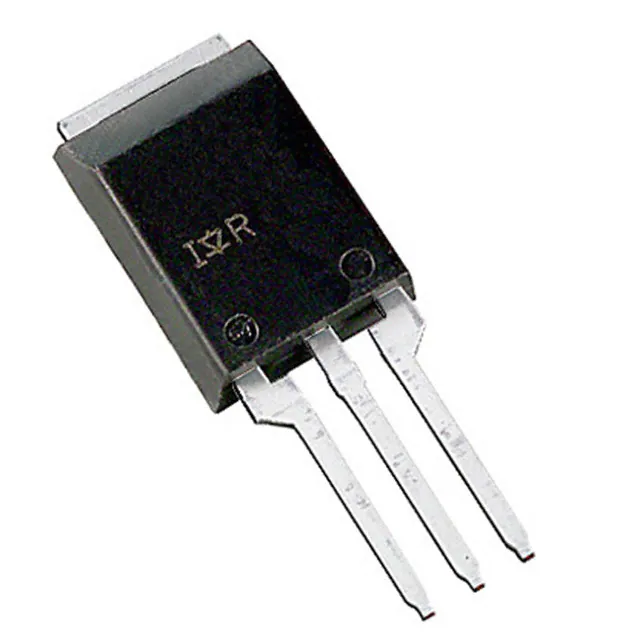

IRLBA1304PPBFMOSFET N-CH 40V 185A SUPER-220 |
4,324 |
|
Datasheet |
HEXFET® | TO-273AA | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 40 V | 185A (Tc) | 4.5V, 10V | 4mOhm @ 110A, 10V | 1V @ 250µA | 140 nC @ 4.5 V | ±16V | 7660 pF @ 25 V | - | 300W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | SUPER-220™ (TO-273AA) |
