FETs, MOSFETs
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | FET Type | Technology | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Drive Voltage (Max Rds On, Min Rds On) | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Vgs (Max) | Input Capacitance (Ciss) (Max) @ Vds | FET Feature | Power Dissipation (Max) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IRFU320PBFMOSFET N-CH 400V 3.1A TO251AA |
2,342 |
|
Datasheet |
- | TO-251-3 Short Leads, IPAK, TO-251AA | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 400 V | 3.1A (Tc) | 10V | 1.8Ohm @ 1.9A, 10V | 4V @ 250µA | 20 nC @ 10 V | ±20V | 350 pF @ 25 V | - | 2.5W (Ta), 42W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-251AA |
|
NVMFS5C468NLWFAFT1GMOSFET N-CH 40V 37A 5DFN |
1,205 |
|
Datasheet |
- | 8-PowerTDFN, 5 Leads | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 37A (Tc) | 4.5V, 10V | 10.3mOhm @ 20A, 10V | 2V @ 250µA | 7.3 nC @ 10 V | ±20V | 570 pF @ 25 V | - | 28W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount, Wettable Flank | 5-DFNW (4.9x5.9) (8-SOFL-WF) |
|
R6509ENXC7G650V 9A TO-220FM, LOW-NOISE POWE |
974 |
|
Datasheet |
- | TO-220-3 Full Pack | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 9A (Ta) | 10V | 585mOhm @ 2.8A, 10V | 4V @ 230µA | 24 nC @ 10 V | ±20V | 430 pF @ 25 V | - | 48W (Tc) | 150°C (TJ) | - | - | Through Hole | TO-220FM |
|
IPA50R280CEXKSA2MOSFET N-CH 500V 7.5A TO220 |
450 |
|
Datasheet |
CoolMOS™ CE | TO-220-3 Full Pack | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 500 V | 7.5A (Tc) | 13V | 280mOhm @ 4.2A, 13V | 3.5V @ 350µA | 32.6 nC @ 10 V | ±20V | 773 pF @ 100 V | - | 30.4W (Tc) | -40°C ~ 150°C (TJ) | - | - | Through Hole | PG-TO220-3-FP |
|
STU5N62K3MOSFET N-CH 620V 4.2A IPAK |
3,000 |
|
Datasheet |
SuperMESH3™ | TO-251-3 Short Leads, IPAK, TO-251AA | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 620 V | 4.2A (Tc) | 10V | 1.6Ohm @ 2.1A, 10V | 4.5V @ 50µA | 26 nC @ 10 V | ±30V | 680 pF @ 50 V | - | 70W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-251 (IPAK) |
|
SISS02DN-T1-GE3MOSFET N-CH 25V 51A/80A PPAK |
2,988 |
|
Datasheet |
TrenchFET® Gen IV | PowerPAK® 1212-8S | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 25 V | 51A (Ta), 80A (Tc) | 4.5V, 10V | 1.2mOhm @ 15A, 10V | 2.2V @ 250µA | 83 nC @ 10 V | +16V, -12V | 4450 pF @ 10 V | - | 5W (Ta), 65.7W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | PowerPAK® 1212-8S |
|
|
SQJ140EP-T1_GE3MOSFET N-CH 40V 266A PPAK SO-8 |
2,945 |
|
Datasheet |
TrenchFET® Gen IV | PowerPAK® SO-8 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 266A (Tc) | 10V | 2.1mOhm @ 15A, 10V | 3.5V @ 250µA | 64 nC @ 10 V | ±20V | 3855 pF @ 25 V | - | 263W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | PowerPAK® SO-8 |
|
PSMN5R0-40MSHXMOSFET N-CH 40V 85A LFPAK33 |
2,661 |
|
Datasheet |
TrenchMOS™ | SOT-1210, 8-LFPAK33 (5-Lead) | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 85A (Tc) | 10V | 5mOhm @ 20A, 10V | 3.6V @ 1mA | 29 nC @ 10 V | ±20V | 2010 pF @ 20 V | - | 83W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | LFPAK33 |
|
SIHP5N80AE-GE3E SERIES POWER MOSFET TO-220AB, |
988 |
|
Datasheet |
E | TO-220-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 800 V | 4.4A (Tc) | 10V | 1.35Ohm @ 1.5A, 10V | 4V @ 250µA | 16.5 nC @ 10 V | ±30V | 321 pF @ 100 V | - | 62.5W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-220AB |
|
SQ4410EY-T1_BE3MOSFET N-CH 30V 15A 8SOIC |
4,728 |
|
Datasheet |
TrenchFET® | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 15A (Tc) | 4.5V, 10V | 12mOhm @ 10A, 10V | 2.5V @ 250µA | 53 nC @ 10 V | ±20V | 2385 pF @ 25 V | - | 5W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | 8-SOIC |
|
IRFR9014TRLPBFMOSFET P-CH 60V 5.1A DPAK |
2,555 |
|
Datasheet |
- | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 60 V | 5.1A (Tc) | 10V | 500mOhm @ 3.1A, 10V | 4V @ 250µA | 12 nC @ 10 V | ±20V | 270 pF @ 25 V | - | 2.5W (Ta), 25W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DPAK |
|
|
IRFU9010PBFMOSFET P-CH 50V 5.3A TO251AA |
527 |
|
Datasheet |
- | TO-251-3 Short Leads, IPAK, TO-251AA | Tube | Active | P-Channel | MOSFET (Metal Oxide) | 50 V | 5.3A (Tc) | 10V | 500mOhm @ 2.8A, 10V | 4V @ 250µA | 9.1 nC @ 10 V | ±20V | 240 pF @ 25 V | - | 25W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-251AA |
|
IXFA4N85XMOSFET N-CH 850V 3.5A TO263 |
300 |
|
Datasheet |
HiPerFET™, Ultra X | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 850 V | 3.5A (Tc) | 10V | 2.5Ohm @ 2A, 10V | 5.5V @ 250µA | 7 nC @ 10 V | ±30V | 247 pF @ 25 V | - | 150W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | TO-263 (IXFA) |
|

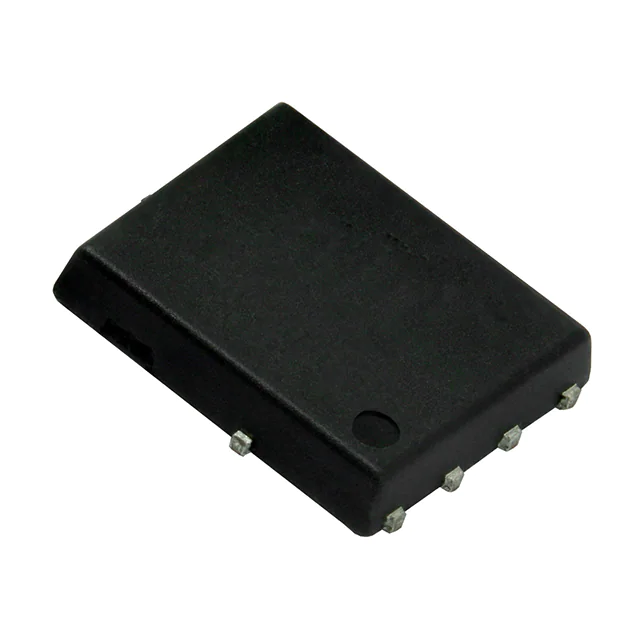

SIR184LDP-T1-RE3N-CHANNEL 60 V (D-S) MOSFET POWE |
5,288 |
|
Datasheet |
TrenchFET® | PowerPAK® SO-8 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 21.5A (Ta), 73A (Tc) | 4.5V, 10V | 5.4mOhm @ 10A, 10V | 3V @ 250µA | 41 nC @ 10 V | ±20V | 1950 pF @ 30 V | - | 5W (Ta), 56.8W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | PowerPAK® SO-8 |
.jpg)
|
RXH100N03TB14V DRIVE NCH MOSFET: MOSFETS ARE |
2,442 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 10A (Ta) | 4V, 10V | 13mOhm @ 10A, 10V | 2.5V @ 1mA | 11 nC @ 5 V | ±20V | 800 pF @ 10 V | - | 2W (Ta) | 150°C | - | - | Surface Mount | 8-SOP |
|
|
TSM60NC390CH C5G600V, 11A, SINGLE N-CHANNEL POWE |
12,986 |
|
- |
- | TO-251-3 Short Leads, IPAK, TO-251AA | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 11A (Tc) | 10V | 390mOhm @ 3.8A, 10V | 5V @ 1mA | 21.4 nC @ 10 V | ±20V | 818 pF @ 100 V | - | 125W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-251 (IPAK) |
|
STF5N60M2MOSFET N-CH 600V 3.7A TO220FP |
1,959 |
|
Datasheet |
MDmesh™ II Plus | TO-220-3 Full Pack | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 3.7A (Tc) | 10V | 1.4Ohm @ 1.85A, 10V | 4V @ 250µA | 4.5 nC @ 10 V | ±25V | 165 pF @ 100 V | - | 20W (Tc) | 150°C (TJ) | - | - | Through Hole | TO-220FP |
|
|
IRFU9020PBFMOSFET P-CH 50V 9.9A TO251AA |
8,140 |
|
Datasheet |
- | TO-251-3 Short Leads, IPAK, TO-251AA | Tube | Active | P-Channel | MOSFET (Metal Oxide) | 50 V | 9.9A (Tc) | 10V | 280mOhm @ 5.7A, 10V | 4V @ 250µA | 14 nC @ 10 V | ±20V | 490 pF @ 25 V | - | 42W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-251AA |
|
|
SI4686DY-T1-GE3MOSFET N-CH 30V 18.2A 8SO |
6,271 |
|
Datasheet |
TrenchFET®, WFET® | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 18.2A (Tc) | 4.5V, 10V | 9.5mOhm @ 13.8A, 10V | 3V @ 250µA | 26 nC @ 10 V | ±20V | 1220 pF @ 15 V | - | 3W (Ta), 5.2W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SOIC |
|
SIR450DP-T1-RE3N-CHANNEL 45 V (D-S) MOSFET POWE |
5,629 |
|
Datasheet |
TrenchFET® Gen IV | PowerPAK® SO-8 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 45 V | 36A (Ta), 113A (Tc) | 4.5V, 10V | 1.8mOhm @ 10A, 10V | 2.3V @ 250µA | 114 nC @ 10 V | +20V, -16V | 5920 pF @ 20 V | - | 4.8W (Ta), 48W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | PowerPAK® SO-8 |
FETs, MOSFETs Electronic Components
Explore FETs, MOSFETs electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
