FETs, MOSFETs
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | FET Type | Technology | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Drive Voltage (Max Rds On, Min Rds On) | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Vgs (Max) | Input Capacitance (Ciss) (Max) @ Vds | FET Feature | Power Dissipation (Max) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IXFP16N85XMIXFP16N85XM |
4,124 |
|
- |
HiPerFET™, Ultra X | - | Tube | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
SIHG32N50D-GE3MOSFET N-CH 500V 30A TO247AC |
5,419 |
|
Datasheet |
- | TO-247-3 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 500 V | 30A (Tc) | 10V | 150mOhm @ 16A, 10V | 5V @ 250µA | 96 nC @ 10 V | ±30V | 2550 pF @ 100 V | - | 390W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-247AC |
|
|
STWA67N60DM6DISCRETE |
4,722 |
|
- |
- | TO-247-3 | Bulk | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 58A (Tc) | 10V | 54mOhm @ 23.5A, 10V | 4.75V @ 250µA | 72.5 nC @ 10 V | ±25V | 3400 pF @ 100 V | - | 431W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-247 Long Leads |
|
HUFA75652G3MOSFET N-CH 100V 75A TO247-3 |
5,352 |
|
Datasheet |
UltraFET™ | TO-247-3 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 100 V | 75A (Tc) | 10V | 8mOhm @ 75A, 10V | 4V @ 250µA | 475 nC @ 20 V | ±20V | 7585 pF @ 25 V | - | 515W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-247-3 |
|
|
GS-065-030-6-LL-TRGAN POWER TRANSISTOR |
2,596 |
|
- |
- | 8-PowerSFN | Tape & Reel (TR) | Active | N-Channel | GaNFET (Gallium Nitride) | 700 V | 40A (Tc) | 6V | 58mOhm @ 5.5A, 6V | 2.6V @ 7.5mA | 6.7 nC @ 6 V | +7V, -10V | 235 pF @ 400 V | - | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | TOLL |
.jpg)
|
IXTH460P2MOSFET N-CH 500V 24A TO247 |
2,926 |
|
Datasheet |
PolarP2™ | TO-247-3 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 500 V | 24A (Tc) | 10V | 270mOhm @ 12A, 10V | 4.5V @ 250µA | 48 nC @ 10 V | ±30V | 2890 pF @ 25 V | - | 480W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-247 (IXTH) |
|
IXTA2N100MOSFET N-CH 1000V 2A TO263 |
4,843 |
|
Datasheet |
- | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 1000 V | 2A (Tc) | 10V | 7Ohm @ 1A, 10V | 4.5V @ 250µA | 18 nC @ 10 V | ±20V | 825 pF @ 25 V | - | 100W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | TO-263AA |
|
|
IXTA6N100D2-TRLMOSFET N-CH 1000V 6A TO263 |
5,435 |
|
Datasheet |
Depletion | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Active | N-Channel, Depletion Mode | MOSFET (Metal Oxide) | 1000 V | 6A (Tj) | 0V | 2.2Ohm @ 3A, 0V | 4.5V @ 250µA | 95 nC @ 5 V | ±20V | 2650 pF @ 25 V | - | 300W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | TO-263 (D2PAK) |
|
BUK761R6-40E,118MOSFET N-CH 40V 120A D2PAK |
2,649 |
|
Datasheet |
TrenchMOS™ | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 120A (Tc) | 10V | 1.6mOhm @ 25A, 10V | 4V @ 1mA | 145 nC @ 10 V | ±20V | 11340 pF @ 25 V | - | 349W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | D2PAK |
|

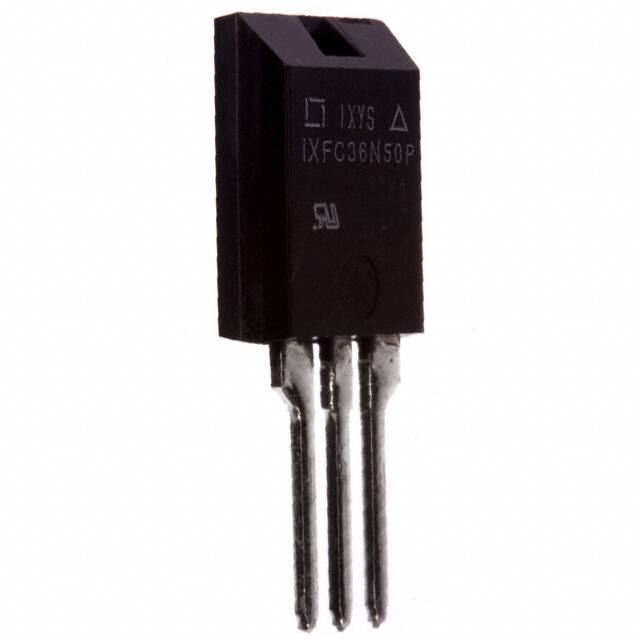

IXFC36N50PMOSFET N-CH 500V 19A ISOPLUS220 |
2,940 |
|
Datasheet |
HiPerFET™, PolarHT™ | ISOPLUS220™ | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 500 V | 19A (Tc) | 10V | 190mOhm @ 18A, 10V | 5V @ 4mA | 93 nC @ 10 V | ±30V | 5500 pF @ 25 V | - | 156W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | ISOPLUS220™ |
|
FCI25N60NMOSFET N-CH 600V 25A I2PAK |
4,751 |
|
Datasheet |
SupreMOS™ | TO-262-3 Long Leads, I2PAK, TO-262AA | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 600 V | 25A (Tc) | 10V | 125mOhm @ 12.5A, 10V | 4V @ 250µA | 74 nC @ 10 V | ±30V | 3352 pF @ 100 V | - | 216W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-262 (I2PAK) |
|
FCP25N60NMOSFET N-CH 600V 25A TO220-3 |
4,937 |
|
Datasheet |
SupreMOS™ | TO-220-3 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 600 V | 25A (Tc) | 10V | 125mOhm @ 12.5A, 10V | 4V @ 250µA | 74 nC @ 10 V | ±30V | 3352 pF @ 100 V | - | 216W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-220-3 |
|
|
IXTH5N100AMOSFET N-CH 1000V 5A TO247 |
8,433 |
|
Datasheet |
- | TO-247-3 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 1000 V | 5A (Tc) | 10V | 2Ohm @ 2.5A, 10V | 4.5V @ 250µA | 130 nC @ 10 V | ±20V | 2600 pF @ 25 V | - | 180W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-247 (IXTH) |
|
|
SIHG47N60AEL-GE3MOSFET N-CH 600V 47A TO247AC |
9,352 |
|
Datasheet |
EL | TO-247-3 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 600 V | 47A (Tc) | 10V | 65mOhm @ 23.5A, 10V | 4V @ 250µA | 222 nC @ 10 V | ±30V | 4600 pF @ 100 V | - | 379W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-247AC |
|
|
WNSCM160120WQWNSCM160120W/TO-247/STANDARD MAR |
3,465 |
|
Datasheet |
- | TO-247-3 | Bulk | Active | N-Channel | MOSFET (Metal Oxide) | 1200 V | 24A (Ta) | 20V | 196mOhm @ 10A, 20V | 4.5V @ 3mA | 35 nC @ 20 V | +25V, -10V | 736 pF @ 1000 V | - | 155W (Ta) | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-247-3 |
|
|
IXTH05N250P3HVMOSFET N-CH 2200V 600MA TO247HV |
3,267 |
|
- |
- | TO-247-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 2500 V | 500mA (Tc) | 10V | 110Ohm @ 250mA, 10V | 4V @ 250µA | 10.5 nC @ 10 V | ±20V | 303 pF @ 25 V | - | 104W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-247 (IXTH) |
|
|
ISC025N08NM5LFATMA1OPTIMOSTM5LINEARFET80V |
3,940 |
|
- |
OptiMOS™ 5 | 8-PowerTDFN | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 80 V | 23A (Ta), 198A (Tc) | 10V | 2.55mOhm @ 50A, 10V | 3.9V @ 115µA | 96 nC @ 10 V | ±20V | 6800 pF @ 40 V | - | 3W (Ta), 217W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | PG-TDSON-8 FL |
|
|
IXKP24N60C5MOSFET N-CH 600V 24A TO220AB |
7,902 |
|
Datasheet |
CoolMOS™ | TO-220-3 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 600 V | 24A (Tc) | 10V | 165mOhm @ 12A, 10V | 3.5V @ 790µA | 52 nC @ 10 V | ±20V | 2000 pF @ 100 V | - | - | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-220-3 |
|
IRFPS30N60KPBFMOSFET N-CH 600V 30A SUPER247 |
9,691 |
|
Datasheet |
- | TO-274AA | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 600 V | 30A (Tc) | 10V | 190mOhm @ 18A, 10V | 5V @ 250µA | 220 nC @ 10 V | ±30V | 5870 pF @ 25 V | - | 450W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | SUPER-247™ (TO-274AA) |
|
IRF6635TRPBFMOSFET N-CH 30V 32A DIRECTFET |
6,747 |
|
Datasheet |
HEXFET® | DirectFET™ Isometric MX | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 32A (Ta), 180A (Tc) | 4.5V, 10V | 1.8mOhm @ 32A, 10V | 2.35V @ 250µA | 71 nC @ 4.5 V | ±20V | 5970 pF @ 15 V | - | 2.8W (Ta), 89W (Tc) | -40°C ~ 150°C (TJ) | - | - | Surface Mount | DIRECTFET™ MX |
FETs, MOSFETs Electronic Components
Explore FETs, MOSFETs electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
Frequently Asked Questions
Q1: What products are included in FETs, MOSFETs?
This category includes related FETs, MOSFETs subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for FETs, MOSFETs components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for FETs, MOSFETs and other electronic components.
