FETs, MOSFETs
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | FET Type | Technology | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Drive Voltage (Max Rds On, Min Rds On) | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Vgs (Max) | Input Capacitance (Ciss) (Max) @ Vds | FET Feature | Power Dissipation (Max) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

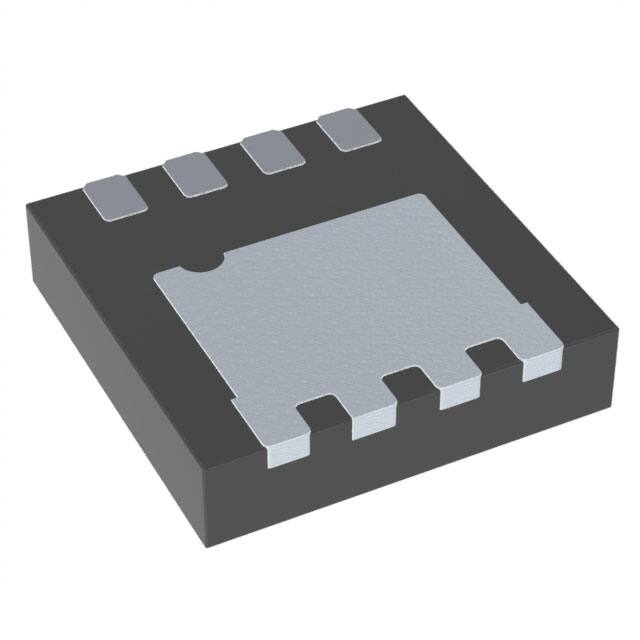

FDMC3612-L701POWER TRENCH MOSFET N-CHANNEL 10 |
990 |
|
Datasheet |
PowerTrench® | 8-PowerWDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 3.3A (Ta), 16A (Tc) | 6V, 10V | 110mOhm @ 3.3A, 10V | 4V @ 250µA | 21 nC @ 10 V | ±20V | 880 pF @ 50 V | - | 2.3W (Ta), 35W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-WDFN (3.3x3.3) |
|
ISC046N04NM5ATMA140V 4.6M OPTIMOS MOSFET SUPERSO8 |
14,250 |
|
Datasheet |
OptiMOS™ 5 | 8-PowerTDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 19A (Ta), 77A (Tc) | 7V, 10V | 4.6mOhm @ 35A, 10V | 3.4V @ 17µA | 21 nC @ 10 V | ±20V | 1400 pF @ 20 V | - | 3W (Ta), 50W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | PG-TDSON-8 FL |
.JPG)
|
TSM070NB04CR RLGMOSFET N-CH 40V 15A/75A 8PDFN |
7,315 |
|
Datasheet |
- | 8-PowerLDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 15A (Ta), 75A (Tc) | 10V | 7mOhm @ 15A, 10V | 4V @ 250µA | 40 nC @ 10 V | ±20V | 2403 pF @ 20 V | - | 3.1W (Ta), 83W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | 8-PDFN (5.2x5.75) |
|
TQM300NB06CR RLGMOSFET N-CH 60V 6A/27A 8PDFNU |
4,996 |
|
Datasheet |
- | 8-PowerTDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 6A (Ta), 27A (Tc) | 7V, 10V | 30mOhm @ 6A, 10V | 3.8V @ 250µA | 20 nC @ 10 V | ±20V | 1009 pF @ 30 V | - | 3.1W (Ta), 56W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount, Wettable Flank | 8-PDFNU (5x6) |
|
SQJ152EP-T1_GE3AUTOMOTIVE N-CHANNEL 40 V (D-S) |
3,000 |
|
Datasheet |
TrenchFET® Gen IV | PowerPAK® SO-8 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 114A (Tc) | 10V | 5.1mOhm @ 15A, 10V | 3.5V @ 250µA | 27 nC @ 10 V | ±20V | 1450 pF @ 25 V | - | 136W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | PowerPAK® SO-8 |
|
CMS45N10H8-HFMOSFET N-CH 100V 45A PPAK |
2,936 |
|
Datasheet |
- | 8-PowerTDFN | Bulk | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 45A (Tc) | 4.5V, 10V | 20mOhm @ 10A, 10V | 2.5V @ 250µA | 16.2 nC @ 10 V | ±20V | 1003.9 pF @ 50 V | - | 94.7W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | P-PAK (5x6) |
|
SISHA04DN-T1-GE3MOSFET N-CH 30V 30.9A/40A PPAK |
5,801 |
|
Datasheet |
TrenchFET® Gen IV | PowerPAK® 1212-8SH | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 30.9A (Ta), 40A (Tc) | 4.5V, 10V | 2.15mOhm @ 15A, 10V | 2.2V @ 250µA | 77 nC @ 10 V | +20V, -16V | 3595 pF @ 15 V | - | 3.7W (Ta), 52W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | PowerPAK® 1212-8SH |
|
BUK7Y53-100B,115MOSFET N-CH 100V 24.8A LFPAK56 |
2,457 |
|
Datasheet |
TrenchMOS™ | SC-100, SOT-669 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 24.8A (Tc) | 10V | 53mOhm @ 10A, 10V | 4V @ 1mA | 22 nC @ 10 V | ±20V | 1467 pF @ 25 V | - | 85W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | LFPAK56, Power-SO8 |
|
BSZ035N03MSGATMA1MOSFET N-CH 30V 18A/40A 8TSDSON |
11,581 |
|
Datasheet |
OptiMOS™ | 8-PowerTDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 18A (Ta), 40A (Tc) | 4.5V, 10V | 3.5mOhm @ 20A, 10V | 2V @ 250µA | 74 nC @ 10 V | ±20V | 5700 pF @ 15 V | - | 2.1W (Ta), 69W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | PG-TSDSON-8 |
|
SQJA86EP-T1_BE3N-CHANNEL 80-V (D-S) 175C MOSFET |
5,297 |
|
Datasheet |
- | PowerPAK® SO-8 Dual | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 80 V | 30A (Tc) | 4.5V, 10V | 19mOhm @ 8A, 10V | 2.5V @ 250µA | 32 nC @ 10 V | ±20V | 1400 pF @ 25 V | - | 48W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | PowerPAK® SO-8 Dual |
|
|
BUK7Y13-40B,115MOSFET N-CH 40V 58A LFPAK56 |
3,570 |
|
Datasheet |
TrenchMOS™ | SC-100, SOT-669 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 58A (Tc) | 10V | 13mOhm @ 25A, 10V | 4V @ 1mA | 19 nC @ 10 V | ±20V | 1311 pF @ 25 V | - | 85W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | LFPAK56, Power-SO8 |
|
BUK7M12-60EXMOSFET N-CH 60V 53A LFPAK33 |
2,807 |
|
Datasheet |
- | SOT-1210, 8-LFPAK33 (5-Lead) | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 53A (Tc) | 10V | 12mOhm @ 15A, 10V | 4V @ 1mA | 24.8 nC @ 10 V | ±20V | 1625 pF @ 25 V | - | 75W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | LFPAK33 |
|
CXDM6053N TR PBFREEMOSFET N-CH 60V 5.3A SOT-89 |
5,536 |
|
Datasheet |
- | TO-243AA | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 5.3A (Ta) | 4.5V, 10V | 41mOhm @ 5.3A, 10V | 3V @ 250µA | 8.8 nC @ 5 V | 20V | 920 pF @ 30 V | - | 1.2W (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-89 |
|
NVTFS6H854NWFTAGMOSFET N-CH 80V 9.5A/44A 8WDFN |
917 |
|
Datasheet |
- | 8-PowerWDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 80 V | 9.5A (Ta), 44A (Tc) | 10V | 14.5mOhm @ 10A, 10V | 4V @ 45µA | 13 nC @ 10 V | ±20V | 770 pF @ 40 V | - | 3.2W (Ta), 68W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | 8-WDFN (3.3x3.3) |
|
|
NVTFS6H854NTAGMOSFET N-CH 80V 9.5A/44A 8WDFN |
330 |
|
Datasheet |
- | 8-PowerWDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 80 V | 9.5A (Ta), 44A (Tc) | 10V | 14.5mOhm @ 10A, 10V | 4V @ 45µA | 13 nC @ 10 V | ±20V | 770 pF @ 40 V | - | 3.2W (Ta), 68W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | 8-WDFN (3.3x3.3) |
|
|
BUK9M8R5-40HXMOSFET N-CH 40V 40A LFPAK33 |
16,488 |
|
Datasheet |
- | SOT-1210, 8-LFPAK33 (5-Lead) | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 40A (Tc) | 4.5V, 10V | 8.5mOhm @ 15A, 10V | 2.15V @ 1mA | 28 nC @ 10 V | ±16V | 1800 pF @ 25 V | - | 59W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | LFPAK33 |
|
|
SQJ868EP-T1_BE3N-CHANNEL 40-V (D-S) 175C MOSFET |
5,988 |
|
Datasheet |
TrenchFET® | PowerPAK® SO-8 Dual | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 58A (Tc) | 10V | 7.35mOhm @ 14A, 10V | 3.5V @ 250µA | 55 nC @ 10 V | ±20V | 2450 pF @ 20 V | - | 48W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | PowerPAK® SO-8 Dual |
|
DMNH4011SPSQ-13MOSFET N-CH 40V PWRDI5060 |
4,975 |
|
Datasheet |
- | 8-PowerTDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 12.9A (Ta), 100A (Tc) | 10V | 10mOhm @ 50A, 10V | 4V @ 250µA | 25.5 nC @ 10 V | ±20V | 1405 pF @ 20 V | - | 2.5W (Ta), 150W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | PowerDI5060-8 |
|
|
DMNH6042SPDQ-13MOSFET NCH 60V 5.7A POWERDI |
2,135 |
|
Datasheet |
- | 8-PowerTDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 5.7A (Ta), 24A (Tc) | 4.5V, 10V | 50mOhm @ 5.1A, 10V | 3V @ 250µA | 8.8 nC @ 10 V | ±20V | 584 pF @ 25 V | - | 1.2W (Ta) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | PowerDI5060-8 |
|
DMN3009SFGQ-7MOSFET N-CH 30V 16A PWRDI3333 |
710 |
|
Datasheet |
- | 8-PowerVDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 16A (Ta), 45A (Tc) | 4.5V, 10V | 5.5mOhm @ 20A, 10V | 2.5V @ 250µA | 42 nC @ 10 V | ±20V | 2000 pF @ 15 V | - | 900mW (Ta) | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | POWERDI3333-8 |
