FETs, MOSFETs
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | FET Type | Technology | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Drive Voltage (Max Rds On, Min Rds On) | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Vgs (Max) | Input Capacitance (Ciss) (Max) @ Vds | FET Feature | Power Dissipation (Max) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IXTA16N50PMOSFET N-CH 500V 16A TO263 |
9,014 |
|
Datasheet |
Polar | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 500 V | 16A (Tc) | 10V | 400mOhm @ 8A, 10V | 5.5V @ 250µA | 43 nC @ 10 V | ±30V | 2250 pF @ 25 V | - | 300W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | TO-263AA |
|
TSM60NB380CF600V, 11A, SINGLE N-CHANNEL POWE |
5,077 |
|
- |
- | TO-220-3 Full Pack | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 11A (Tc) | 10V | 380mOhm @ 2.7A, 10V | 4V @ 250µA | 21 nC @ 10 V | ±30V | 810 pF @ 100 V | - | 62.5W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | ITO-220S |
|
BUK9217-75B,118MOSFET N-CH 75V 64A DPAK |
4,347 |
|
Datasheet |
TrenchMOS™ | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 75 V | 64A (Tc) | 5V, 10V | 15mOhm @ 25A, 10V | 2V @ 1mA | 35 nC @ 5 V | ±15V | 4029 pF @ 25 V | - | 167W (Tc) | -55°C ~ 185°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DPAK |
|
|
SIPC06N60C3MOSFET COOL MOS 600V SAWED WAFER |
4,502 |
|
Datasheet |
* | - | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
SI4418DY-T1-E3MOSFET N-CH 200V 2.3A 8SO |
7,470 |
|
Datasheet |
TrenchFET® | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 200 V | 2.3A (Ta) | 6V, 10V | 130mOhm @ 3A, 10V | 4V @ 250µA | 30 nC @ 10 V | ±20V | - | - | 1.5W (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SOIC |
|
FDMS2510SDCMOSFET N-CH 25V 28A/49A DLCOOL56 |
5,846 |
|
Datasheet |
Dual Cool™, PowerTrench®, SyncFET™ | 8-PowerTDFN | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 25 V | 28A (Ta), 49A (Tc) | 4.5V, 10V | 2.9mOhm @ 23A, 10V | 3V @ 1mA | 45 nC @ 10 V | ±20V | 2780 pF @ 13 V | - | 3.3W (Ta), 60W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-PQFN (5x6) |
|
TPH1110ENH,L1QMOSFET N-CH 200V 7.2A 8SOP |
4,819 |
|
Datasheet |
U-MOSVIII-H | 8-PowerVDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 200 V | 7.2A (Ta) | 10V | 114mOhm @ 3.6A, 10V | 4V @ 200µA | 7 nC @ 10 V | ±20V | 600 pF @ 100 V | - | 1.6W (Ta), 42W (Tc) | 150°C (TJ) | - | - | Surface Mount | 8-SOP Advance (5x5) |
.JPG)
|
TSM130NB06LCRMOSFET N-CH 60V 10A/51A 8PDFN |
4,559 |
|
Datasheet |
- | 8-PowerLDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 10A (Ta), 51A (Tc) | 4.5V, 10V | 13mOhm @ 10A, 10V | 2.5V @ 250µA | 37 nC @ 10 V | ±20V | 2175 pF @ 30 V | - | 3.1W (Ta), 83W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | 8-PDFN (5.2x5.75) |
;;3.jpg)
|
IRFU3710ZMOSFET N-CH 100V 42A IPAK |
6,338 |
|
Datasheet |
HEXFET® | TO-251-3 Short Leads, IPAK, TO-251AA | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 100 V | 42A (Tc) | 10V | 18mOhm @ 33A, 10V | 4V @ 250µA | 100 nC @ 10 V | ±20V | 2930 pF @ 25 V | - | 140W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | IPAK (TO-251AA) |
|

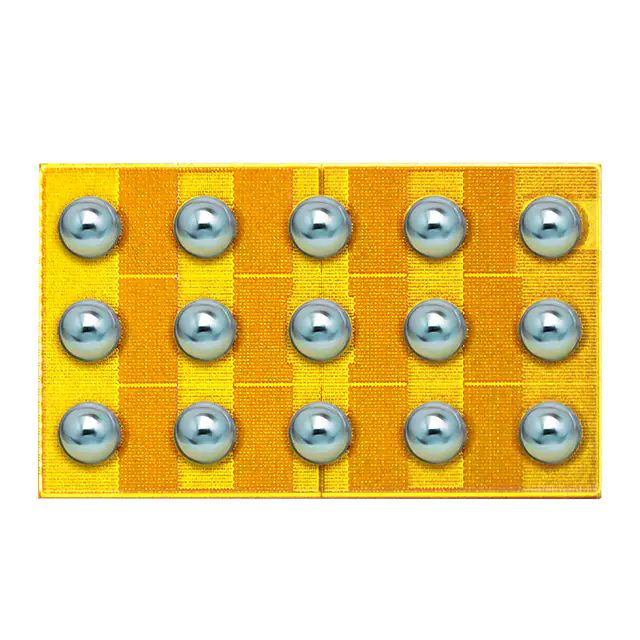

EPC2049ENGRTGANFET N-CH 40V 16A DIE |
8,014 |
|
- |
eGaN® | Die | Tape & Reel (TR) | Obsolete | N-Channel | GaNFET (Gallium Nitride) | 40 V | 16A (Ta) | 5V | 5mOhm @ 15A, 5V | 2.5V @ 6mA | 7.6 nC @ 5 V | +6V, -4V | 805 pF @ 20 V | - | - | -40°C ~ 150°C (TJ) | - | - | Surface Mount | Die |
|
IRF1010NSTRRMOSFET N-CH 55V 85A D2PAK |
3,056 |
|
Datasheet |
HEXFET® | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 55 V | 85A (Tc) | 10V | 11mOhm @ 43A, 10V | 4V @ 250µA | 120 nC @ 10 V | ±20V | 3210 pF @ 25 V | - | 180W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | D2PAK |
|
STW13NK60ZMOSFET N-CH 600V 13A TO247-3 |
5,238 |
|
Datasheet |
SuperMESH™ | TO-247-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 13A (Tc) | 10V | 550mOhm @ 4.5A, 10V | 4.5V @ 100µA | 92 nC @ 10 V | ±30V | 2030 pF @ 25 V | - | 150W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-247-3 |
|
RSY160P05TLMOSFET P-CH 45V 16A TCPT3 |
11 |
|
Datasheet |
- | 3-SMD, Flat Leads | Tape & Reel (TR) | Obsolete | P-Channel | MOSFET (Metal Oxide) | 45 V | 16A (Ta) | 4V, 10V | 50mOhm @ 16A, 10V | 2.5V @ 1mA | 25.5 nC @ 5 V | ±20V | 2150 pF @ 10 V | - | 20W (Tc) | 150°C (TJ) | - | - | Surface Mount | TCPT3 |
|
IRFSL23N20DMOSFET N-CH 200V 24A TO262 |
7,022 |
|
Datasheet |
HEXFET® | TO-262-3 Long Leads, I2PAK, TO-262AA | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 200 V | 24A (Tc) | 10V | 100mOhm @ 14A, 10V | 5.5V @ 250µA | 86 nC @ 10 V | ±30V | 1960 pF @ 25 V | - | 3.8W (Ta), 170W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-262 |
|
STB70NF03LT4MOSFET N-CH 30V 70A D2PAK |
9,396 |
|
Datasheet |
STripFET™ II | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 70A (Tc) | 5V, 10V | 9.5mOhm @ 35A, 10V | 1V @ 250µA | 30 nC @ 5 V | ±18V | 1440 pF @ 25 V | - | 100W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | D2PAK |
|
IRFR1N60ATRLPBFMOSFET N-CH 600V 1.4A DPAK |
7,914 |
|
Datasheet |
- | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 1.4A (Tc) | 10V | 7Ohm @ 840mA, 10V | 4V @ 250µA | 14 nC @ 10 V | ±30V | 229 pF @ 25 V | - | 36W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DPAK |
|
|
NP80N04PUG-E1B-AYMOSFET N-CH 40V 80A TO263 |
9,385 |
|
Datasheet |
- | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 40 V | 80A (Tc) | 10V | 4.5mOhm @ 40A, 10V | 4V @ 250µA | 135 nC @ 10 V | ±20V | 7350 pF @ 25 V | - | 1.8W (Ta), 115W (Tc) | 175°C (TJ) | - | - | Surface Mount | TO-263 |
|
SISS42DN-T1-GE3MOSFET N-CH 100V 11.8/40.5A PPAK |
5,182 |
|
Datasheet |
TrenchFET® Gen IV | PowerPAK® 1212-8S | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 11.8A (Ta), 40.5A (Tc) | 7.5V, 10V | 14.4mOhm @ 15A, 10V | 3.4V @ 250µA | 38 nC @ 10 V | ±20V | 1850 pF @ 50 V | - | 4.8W (Ta), 57W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | PowerPAK® 1212-8S |
.jpg)
|
IRFR224TRPBF-BE3N-CHANNEL 250V |
3,758 |
|
Datasheet |
- | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 250 V | 3.8A (Tc) | 10V | 1.1Ohm @ 2.3A, 10V | 4V @ 250µA | 14 nC @ 10 V | ±20V | 260 pF @ 25 V | - | 2.5W (Ta), 42W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | TO-252AA |
|
|
IXTA05N100MOSFET N-CH 1000V 750MA TO263 |
9,241 |
|
Datasheet |
- | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 1000 V | 750mA (Tc) | 10V | 17Ohm @ 375mA, 10V | 4.5V @ 250µA | 7.8 nC @ 10 V | ±30V | 260 pF @ 25 V | - | 40W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | TO-263AA |
FETs, MOSFETs Electronic Components
Explore FETs, MOSFETs electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
Frequently Asked Questions
Q1: What products are included in FETs, MOSFETs?
This category includes related FETs, MOSFETs subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for FETs, MOSFETs components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for FETs, MOSFETs and other electronic components.
