FETs, MOSFETs
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | FET Type | Technology | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Drive Voltage (Max Rds On, Min Rds On) | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Vgs (Max) | Input Capacitance (Ciss) (Max) @ Vds | FET Feature | Power Dissipation (Max) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
.jpg)
|
FBG30N04CCGAN FET HEMT 300V4A COTS 4FSMD-C |
165 |
|
Datasheet |
- | 4-SMD, No Lead | Bulk | Active | N-Channel | GaNFET (Gallium Nitride) | 300 V | 4A (Tc) | 5V | 404mOhm @ 4A, 5V | 2.8V @ 600µA | 2.6 nC @ 5 V | +6V, -4V | 450 pF @ 150 V | - | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 4-SMD |
|
FBG20N18BSHGAN FET HEMT 200V 18A 4FSMD-B |
47 |
|
Datasheet |
e-GaN® | 4-SMD, No Lead | Bulk | Active | N-Channel | GaNFET (Gallium Nitride) | 200 V | 18A (Tc) | 5V | 28mOhm @ 18A, 5V | 2.5V @ 3mA | 7 nC @ 5 V | +6V, -4V | 900 pF @ 100 V | - | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 4-SMD |
|
|
FBG10N30BSHGAN FET HEMT 100V 30A 4FSMD-B |
40 |
|
Datasheet |
eGaN® | 4-SMD, No Lead | Bulk | Active | N-Channel | GaNFET (Gallium Nitride) | 100 V | 30A (Tc) | 5V | 12mOhm @ 30A, 5V | 2.5V @ 5mA | 11 nC @ 5 V | +6V, -4V | 1000 pF @ 50 V | - | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 4-SMD |
|
|
PMN30XPEAXSMALL SIGNAL MOSFET FOR AUTOMOTI |
6,000 |
|
Datasheet |
TrenchMOS™ | SC-74, SOT-457 | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 20 V | 5.4A (Ta) | 2.5V, 8V | 33mOhm @ 5.4A, 8V | 1.3V @ 250µA | 16 nC @ 4.5 V | ±12V | 1025 pF @ 10 V | - | 660mW (Ta), 7.5W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | 6-TSOP |
|
MCQ16N03-TPMOSFET N-CH 30V 8-SOP |
4,000 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 16A | 4.5V, 10V | 12mOhm @ 10A, 10V | 3V @ 250µA | 13 nC @ 5 V | ±20V | 1550 pF @ 15 V | - | 2.5W | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SOP |
|
SSM3K37CT,L3FMOSFET N-CH 20V 200MA CST3 |
8,794 |
|
Datasheet |
U-MOSIII | SC-101, SOT-883 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 20 V | 200mA (Ta) | 1.5V, 4.5V | 2.2Ohm @ 100mA, 4.5V | 1V @ 1mA | - | ±10V | 12 pF @ 10 V | - | 100mW (Ta) | 150°C (TJ) | - | - | Surface Mount | CST3 |
|
|
SSM3K35CT,L3FMOSFET N-CH 20V 180MA CST3 |
32,987 |
|
Datasheet |
- | SC-101, SOT-883 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 20 V | 180mA (Ta) | 1.2V, 4V | 3Ohm @ 50mA, 4V | 1V @ 1mA | - | ±10V | 9.5 pF @ 3 V | - | 100mW (Ta) | 150°C | - | - | Surface Mount | CST3 |
|
|
DMN3732UFB4Q-7BMOSFET BVDSS: 25V~30V X2-DFN1006 |
6,232 |
|
Datasheet |
- | 3-XFDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 1.3A (Ta) | 1.8V, 4.5V | 460mOhm @ 200mA, 4.5V | 950mV @ 250µA | 0.9 nC @ 4.5 V | ±8V | 40.8 pF @ 25 V | - | 490mW (Ta) | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | X2-DFN1006-3 |
|
|
SSM3J35CT,L3FMOSFET P-CHANNEL 20V 100MA CST3 |
6,186 |
|
Datasheet |
π-MOSVI | SC-101, SOT-883 | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 20 V | 100mA (Ta) | 1.2V, 4V | 8Ohm @ 50mA, 4V | 1V @ 1mA | - | ±10V | 12.2 pF @ 3 V | - | 100mW (Ta) | 150°C | - | - | Surface Mount | CST3 |
|
|
2N7002KWHE3-TPN-CHANNEL MOSFET SOT-323 |
2,800 |
|
Datasheet |
- | SC-70, SOT-323 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 340mA | 4.5V, 10V | 2.5Ohm @ 300mA, 10V | 2V @ 1mA | - | ±20V | 40 pF @ 10 V | - | 330mW | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOT-323 |
|
|
2N7002KWA-TPN-CHANNEL MOSFET SOT-323 |
2,570 |
|
Datasheet |
- | SC-70, SOT-323 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 340mA | 4.5V, 10V | 5Ohm @ 500mA, 10V | 2V @ 250µA | - | ±20V | 40 pF @ 10 V | - | 330mW | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-323 |
|
DMN2991UT-7MOSFET BVDSS: 8V~24V SOT523 T&R |
2,024 |
|
Datasheet |
- | SOT-523 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 20 V | 300mA (Ta) | 1.5V, 4.5V | 3Ohm @ 100mA, 4.5V | 1V @ 250µA | 0.35 nC @ 4.5 V | ±10V | 21.5 pF @ 15 V | - | 280mW (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-523 |
|
SSM3K7002KF,LXHFSMOS NCH I: 0.4A, V: 60V, P: 270 |
17,109 |
|
Datasheet |
- | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 400mA (Ta) | 4.5V, 10V | 1.5Ohm @ 100mA, 10V | 2.1V @ 250µA | 0.6 nC @ 4.5 V | ±20V | 40 pF @ 10 V | - | 270mW (Ta) | 150°C | Automotive | AEC-Q101 | Surface Mount | S-Mini |
|
DMN62D1LFD-13MOSFET N-CH 60V 400MA 3DFN |
9,911 |
|
Datasheet |
- | 3-UDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 400mA (Ta) | 1.8V, 4V | 2Ohm @ 100mA, 4V | 1V @ 250µA | 0.55 nC @ 4.5 V | ±20V | 36 pF @ 25 V | - | 500mW (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | X1-DFN1212-3 |
|
|
SI3139KE-TPMOSFET P-CH 20V 660MA SOT523 |
2,945 |
|
Datasheet |
- | SOT-523 | Tape & Reel (TR) | Not For New Designs | P-Channel | MOSFET (Metal Oxide) | 20 V | 660mA (Tj) | 4.5V | 700mOhm @ 600mA, 4.5V | 1.1V @ 250µA | - | ±12V | 170 pF @ 6 V | - | 150mW | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-523 |
|
PMZB950UPEYLMOSFET P-CH 20V 500MA DFN1006B-3 |
8,320 |
|
Datasheet |
- | 3-XFDFN | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 20 V | 500mA (Ta) | 1.2V, 4.5V | 1.4Ohm @ 500mA, 4.5V | 950mV @ 250µA | 2.1 nC @ 4.5 V | ±8V | 43 pF @ 10 V | - | 360mW (Ta), 2.7W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DFN1006B-3 |
|
PMN230ENEAXMOSFET N-CH 60V 1.8A 6TSOP |
7,478 |
|
Datasheet |
- | SC-74, SOT-457 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 1.8A (Ta) | 4.5V, 10V | 222mOhm @ 1.8A, 10V | 2.7V @ 250µA | 3.8 nC @ 10 V | ±20V | 110 pF @ 30 V | - | 625mW (Ta), 5.4W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | 6-TSOP |
|
PJC138L_R1_0000160V P-CHANNEL ENHANCEMENT MODE M |
2,256 |
|
Datasheet |
- | SC-70, SOT-323 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 200mA (Ta) | 1.8V, 10V | 4.2Ohm @ 200mA, 10V | 1.5V @ 250µA | 0.7 nC @ 4.5 V | ±20V | 15 pF @ 15 V | - | 350mW (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-323 |
|

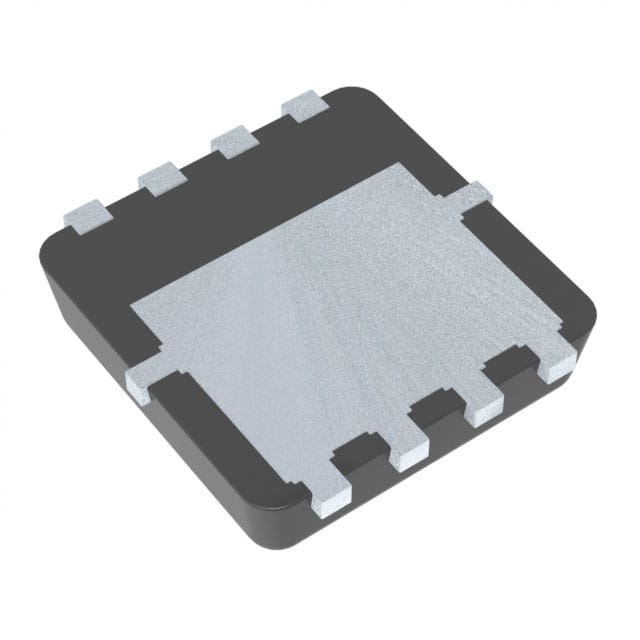

PXN9R0-30QLJPXN9R0-30QL/SOT8002/MLPAK33 |
4,681 |
|
Datasheet |
- | 8-PowerVDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 11.4A (Ta), 41.8A (Tc) | 4.5V, 10V | 9.1mOhm @ 11.4A, 10V | 2.5V @ 250µA | 20.7 nC @ 10 V | ±20V | 865 pF @ 15 V | - | 1.9W (Ta), 26W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | MLPAK33 |
|
BSD316SNH6327XTSA1MOSFET N-CH 30V 1.4A SOT363-6 |
5,735 |
|
Datasheet |
OptiMOS™ | 6-VSSOP, SC-88, SOT-363 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 1.4A (Ta) | 4.5V, 10V | 160mOhm @ 1.4A, 10V | 2V @ 3.7µA | 0.6 nC @ 5 V | ±20V | 94 pF @ 15 V | - | 500mW (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | PG-SOT363-PO |
