FETs, MOSFETs
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | FET Type | Technology | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Drive Voltage (Max Rds On, Min Rds On) | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Vgs (Max) | Input Capacitance (Ciss) (Max) @ Vds | FET Feature | Power Dissipation (Max) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
GP2T080A120USIC MOSFET 1200V 80M TO-247-3L |
1,149 |
|
Datasheet |
- | TO-247-3 | Tube | Active | N-Channel | SiCFET (Silicon Carbide) | 1200 V | 35A (Tc) | 20V | 100mOhm @ 20A, 20V | 4V @ 10mA | 58 nC @ 20 V | +25V, -10V | 1377 pF @ 1000 V | - | 188W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-247-3 |
|
NTHL065N65S3FMOSFET N-CH 650V 46A TO247-3 |
6,586 |
|
Datasheet |
- | TO-247-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 46A (Tc) | 10V | 65mOhm @ 23A, 10V | 5V @ 4.6mA | 98 nC @ 10 V | ±30V | 4075 pF @ 400 V | - | 337W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-247-3 |
|
SCT2450KEHRC111200V, 10A, THD, SILICON-CARBIDE |
427 |
|
Datasheet |
- | TO-247-3 | Tube | Active | N-Channel | SiCFET (Silicon Carbide) | 1200 V | 10A (Tc) | 18V | 585mOhm @ 3A, 18V | 4V @ 900µA | 27 nC @ 18 V | +22V, -6V | 463 pF @ 800 V | - | 85W (Tc) | 175°C (TJ) | Automotive | AEC-Q101 | Through Hole | TO-247N |
|
STH12N120K5-2MOSFET N-CH 1200V 12A H2PAK-2 |
2,999 |
|
Datasheet |
MDmesh™ K5 | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 1200 V | 12A (Tc) | 10V | 690mOhm @ 6A, 10V | 5V @ 100µA | 44.2 nC @ 10 V | ±30V | 1370 pF @ 100 V | - | 250W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | H2PAK-2 |
|
IXFH180N20X3MOSFET N-CH 200V 180A TO247 |
542 |
|
Datasheet |
HiPerFET™, Ultra X3 | TO-247-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 200 V | 180A (Tc) | 10V | 7.5mOhm @ 90A, 10V | 4.5V @ 4mA | 154 nC @ 10 V | ±20V | 10300 pF @ 25 V | - | 780W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-247 (IXTH) |
|
|
NTBL045N065SC1SILICON CARBIDE (SIC) MOSFET - 3 |
1,688 |
|
Datasheet |
- | 8-PowerSFN | Tape & Reel (TR) | Active | N-Channel | SiCFET (Silicon Carbide) | 650 V | 73A (Tc) | 15V, 18V | 50mOhm @ 25A, 18V | 4.3V @ 8mA | 105 nC @ 18 V | +22.6V, -8V | 1870 pF @ 325 V | - | 348W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | 8-HPSOF |
|
IXTK150N15PMOSFET N-CH 150V 150A TO264 |
305 |
|
Datasheet |
Polar | TO-264-3, TO-264AA | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 150 V | 150A (Tc) | 10V | 13mOhm @ 500mA, 10V | 5V @ 250µA | 190 nC @ 10 V | ±20V | 5800 pF @ 25 V | - | 714W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-264 (IXTK) |
|
IPW65R029CFD7XKSA1MOSFET N-CH 650V 69A TO247-3 |
154 |
|
Datasheet |
CoolMOS™ | TO-247-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 69A (Tc) | - | 29mOhm @ 35.8A, 10V | 4.5V @ 1.79mA | 145 nC @ 10 V | ±20V | 7149 pF @ 400 V | - | 305W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | PG-TO247-3 |
|
|
IXFH50N85XMOSFET N-CH 850V 50A TO247 |
1,058 |
|
Datasheet |
HiPerFET™, Ultra X | TO-247-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 850 V | 50A (Tc) | 10V | 105mOhm @ 500mA, 10V | 5.5V @ 4mA | 152 nC @ 10 V | ±30V | 4480 pF @ 25 V | - | 890W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-247 (IXTH) |
|
IPW65R041CFDFKSA2MOSFET N-CH 650V 68.5A TO247-3 |
611 |
|
Datasheet |
CoolMOS™ CFD2 | TO-247-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 68.5A (Tc) | 10V | 41mOhm @ 33.1A, 10V | 4.5V @ 3.3mA | 300 nC @ 10 V | ±20V | 8400 pF @ 100 V | - | 500W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | PG-TO247-3 |
|

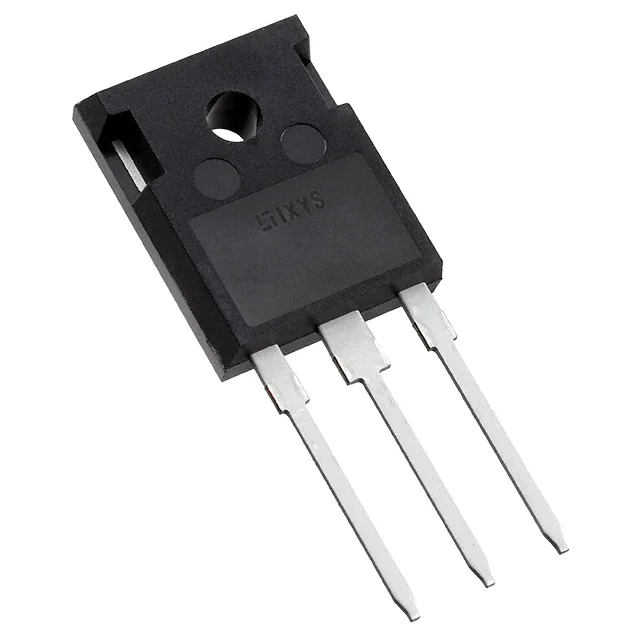

IXFH120N25X3MOSFET N-CH 250V 120A TO247 |
165 |
|
Datasheet |
HiPerFET™, Ultra X3 | TO-247-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 250 V | 120A (Tc) | 10V | 12mOhm @ 60A, 10V | 4.5V @ 4mA | 122 nC @ 10 V | ±20V | 7870 pF @ 25 V | - | 520W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-247 (IXTH) |
.jpg)
|
IXFX360N10TMOSFET N-CH 100V 360A PLUS247-3 |
298 |
|
Datasheet |
HiPerFET™, Trench | TO-247-3 Variant | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 360A (Tc) | 10V | 2.9mOhm @ 100A, 10V | 5V @ 3mA | 525 nC @ 10 V | ±20V | 33000 pF @ 25 V | - | 1250W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | PLUS247™-3 |
|
NTBG080N120SC1SICFET N-CH 1200V 30A D2PAK-7 |
1,035 |
|
Datasheet |
- | TO-263-8, D2PAK (7 Leads + Tab), TO-263CA | Tape & Reel (TR) | Active | N-Channel | SiCFET (Silicon Carbide) | 1200 V | 30A (Tc) | 20V | 110mOhm @ 20A, 20V | 4.3V @ 5mA | 56 nC @ 20 V | +25, -15V | 1154 pF @ 800 V | - | 179W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | D2PAK-7 |
|
IXTA86N20X4MOSFET 200V 86A N-CH ULTRA TO263 |
597 |
|
Datasheet |
Ultra X4 | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 200 V | 86A (Tc) | 10V | 13mOhm @ 43A, 10V | 4.5V @ 250µA | 70 nC @ 10 V | ±20V | 2250 pF @ 25 V | - | 300W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | TO-263 (D2PAK) |
|
|
IXTA15N50L2MOSFET N-CH 500V 15A TO263 |
134 |
|
Datasheet |
Linear L2™ | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 500 V | 15A (Tc) | 10V | 480mOhm @ 7.5A, 10V | 4.5V @ 250µA | 123 nC @ 10 V | ±20V | 4080 pF @ 25 V | - | 300W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | TO-263AA |
|
|
NVBG075N065SC1SIC MOS D2PAK-7L 650V |
3,116 |
|
Datasheet |
- | TO-263-8, D2PAK (7 Leads + Tab), TO-263CA | Tape & Reel (TR) | Active | N-Channel | SiCFET (Silicon Carbide) | 650 V | 37A (Tc) | 15V, 18V | 85mOhm @ 15A, 18V | 4.3V @ 5mA | 59 nC @ 18 V | - | 1191 pF @ 325 V | - | 139W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | D2PAK-7 |
|
|
IXFH40N85XMOSFET N-CH 850V 40A TO247 |
368 |
|
Datasheet |
HiPerFET™, Ultra X | TO-247-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 850 V | 40A (Tc) | 10V | 145mOhm @ 500mA, 10V | 5.5V @ 4mA | 98 nC @ 10 V | ±30V | 3700 pF @ 25 V | - | 860W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-247 |
|
UF3C120080K3SSICFET N-CH 1200V 33A TO247-3 |
16,414 |
|
Datasheet |
- | TO-247-3 | Tube | Active | N-Channel | SiCFET (Cascode SiCJFET) | 1200 V | 33A (Tc) | 12V | 100mOhm @ 20A, 12V | 6V @ 10mA | 51 nC @ 15 V | ±25V | 1500 pF @ 100 V | - | 254.2W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-247-3 |
|
UF3C120080K4SSICFET N-CH 1200V 33A TO247-4 |
16,390 |
|
Datasheet |
- | TO-247-4 | Tube | Active | N-Channel | SiCFET (Cascode SiCJFET) | 1200 V | 33A (Tc) | 12V | 100mOhm @ 20A, 12V | 6V @ 10mA | 43 nC @ 12 V | ±25V | 1500 pF @ 100 V | - | 254.2W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-247-4 |
|
APT30M70BVRGMOSFET N-CH 300V 48A TO247 |
101 |
|
Datasheet |
POWER MOS V® | TO-247-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 300 V | 48A (Tc) | 10V | 70mOhm @ 500mA, 10V | 4V @ 1mA | 225 nC @ 10 V | ±30V | 5870 pF @ 25 V | - | 370W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-247 [B] |
FETs, MOSFETs Electronic Components
Explore FETs, MOSFETs electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
