FET, MOSFET Arrays
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Configuration | FET Feature | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Input Capacitance (Ciss) (Max) @ Vds | Power - Max | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

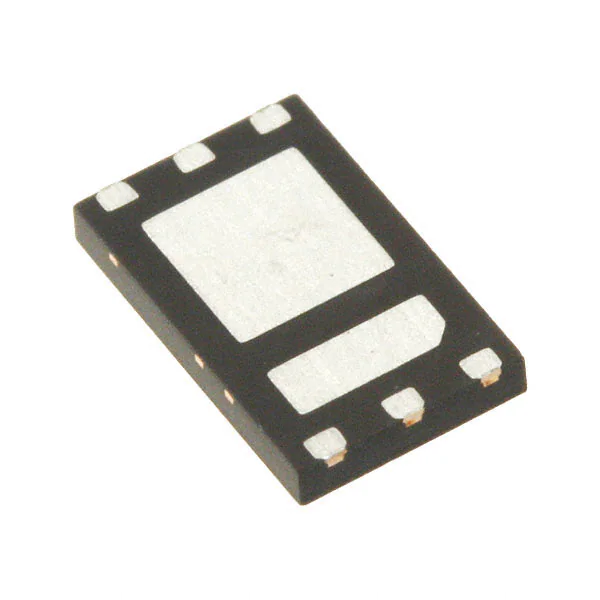

SIZ790DT-T1-GE3MOSFET 2N-CH 30V 16A 6POWERPAIR |
8,794 |
|
Datasheet |
SkyFET®, TrenchFET® | 6-PowerPair™ | Tape & Reel (TR) | Obsolete | MOSFET (Metal Oxide) | 2 N-Channel (Half Bridge) | Logic Level Gate | 30V | 16A, 35A | 9.3mOhm @ 15A, 10V | 2.2V @ 250µA | 24nC @ 10V | 830pF @ 15V | 27W, 48W | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 6-PowerPair™ |
|
SIZ916DT-T1-GE3MOSFET 2N-CH 30V 16A 8POWERPAIR |
4,787 |
|
Datasheet |
TrenchFET® | 8-PowerWDFN | Tape & Reel (TR) | Obsolete | MOSFET (Metal Oxide) | 2 N-Channel (Half Bridge) | - | 30V | 16A, 40A | 6.4mOhm @ 19A, 10V | 2.4V @ 250µA | 26nC @ 10V | 1208pF @ 15V | 22.7W, 100W | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-PowerPair® (6x5) |
|
AON6973AMOSFET 2N-CH 30V 22A/30A 8DFN |
3,552 |
|
Datasheet |
SRFET™ | 8-PowerVDFN | Tape & Reel (TR) | Obsolete | MOSFET (Metal Oxide) | 2 N-Channel (Dual) Asymmetrical | Logic Level Gate | 30V | 22A, 30A | 5.2mOhm @ 20A, 10V | 2.2V @ 250µA | 22nC @ 10V | 1037pF @ 15V | 3.6W, 4.3W | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-DFN (5x6) |
|
FC6546010RMOSFET 2N-CH 60V 0.1A SMINI6 |
9,399 |
|
- |
- | 6-SMD, Flat Leads | Tape & Reel (TR) | Obsolete | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | Logic Level Gate | 60V | 100mA | 12Ohm @ 10mA, 4V | 1.5V @ 1µA | - | 12pF @ 3V | 150mW | 150°C (TJ) | - | - | Surface Mount | SMini6-F3-B |
|
FC8V33030LMOSFET 2N-CH 33V 6.5A WMINI8-F1 |
2,341 |
|
Datasheet |
- | 8-SMD, Flat Leads | Tape & Reel (TR) | Obsolete | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | Logic Level Gate | 33V | 6.5A | 20mOhm @ 3.3A, 10V | 2.5V @ 480µA | 3.8nC @ 4.5V | 360pF @ 10V | 1W | 150°C (TJ) | - | - | Surface Mount | WMini8-F1 |
|
SI5999EDU-T1-GE3MOSFET 2P-CH 20V 6A PPAK CHIPFET |
5,507 |
|
Datasheet |
TrenchFET® | PowerPAK® ChipFET™ Dual | Tape & Reel (TR) | Obsolete | MOSFET (Metal Oxide) | 2 P-Channel (Dual) | Logic Level Gate | 20V | 6A | 59mOhm @ 3.5A, 4.5V | 1.5V @ 250µA | 20nC @ 10V | 496pF @ 10V | 10.4W | -55°C ~ 150°C (TJ) | - | - | Surface Mount | PowerPAK® ChipFet Dual |
|
FDMA3027PZMOSFET 2P-CH 30V 3.3A 6MICROFET |
2,513 |
|
Datasheet |
PowerTrench® | 6-VDFN Exposed Pad | Tape & Reel (TR) | Obsolete | MOSFET (Metal Oxide) | 2 P-Channel (Dual) | Logic Level Gate | 30V | 3.3A | 87mOhm @ 3.3A, 10V | 3V @ 250µA | 10nC @ 10V | 435pF @ 15V | 700mW | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 6-MicroFET (2x2) |
|
AON2802MOSFET 2N-CH 30V 2A 6DFN |
2,045 |
|
Datasheet |
- | 6-WDFN Exposed Pad | Tape & Reel (TR) | Obsolete | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | Logic Level Gate | 30V | 2A | 60mOhm @ 2A, 10V | 1.5V @ 250µA | 10nC @ 10V | 245pF @ 15V | 2.1W | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 6-DFN (2x2) |
|
|
AON2809MOSFET 2P-CH 12V 2A 6DFN |
8,687 |
|
Datasheet |
- | 6-WDFN Exposed Pad | Tape & Reel (TR) | Obsolete | MOSFET (Metal Oxide) | 2 P-Channel (Dual) | Logic Level Gate | 12V | 2A | 68mOhm @ 2A, 4.5V | 900mV @ 250µA | 4.4nC @ 4.5V | 415pF @ 6V | 2.1W | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 6-DFN (2x2) |
|
|
AON6928MOSFET 2N-CH 30V 17A/30A 8DFN |
3,301 |
|
Datasheet |
- | 8-PowerVDFN | Tape & Reel (TR) | Obsolete | MOSFET (Metal Oxide) | 2 N-Channel (Dual) Asymmetrical | Logic Level Gate | 30V | 17A, 30A | 8.2mOhm @ 20A, 10V | 2.5V @ 250µA | 24nC @ 10V | 1150pF @ 15V | 3.6W, 4.3W | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-DFN (5x6) |
|
|
AON6934AMOSFET 2N-CH 30V 22A/30A 8DFN |
4,444 |
|
Datasheet |
- | 8-PowerVDFN | Tape & Reel (TR) | Obsolete | MOSFET (Metal Oxide) | 2 N-Channel (Dual) Asymmetrical | Logic Level Gate | 30V | 22A, 30A | 5.2mOhm @ 20A, 10V | 2.2V @ 250µA | 22nC @ 10V | 1037pF @ 15V | 3.6W, 4.3W | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-DFN (5x6) |
|
AON6970MOSFET 2N-CH 30V 24A/42A 8DFN |
2,319 |
|
Datasheet |
SRFET™ | 8-PowerWDFN | Tape & Reel (TR) | Obsolete | MOSFET (Metal Oxide) | 2 N-Channel (Dual) Asymmetrical | Logic Level Gate | 30V | 24A, 42A | 5.4mOhm @ 20A, 10V | 2.3V @ 250µA | 23nC @ 10V | 1171pF @ 15V | 5W, 4.1W | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-DFN (5x6) |
|
|
AON6974AMOSFET 2N-CH 30V 22A/30A 8DFN |
4,264 |
|
Datasheet |
SRFET™ | 8-PowerVDFN | Tape & Reel (TR) | Obsolete | MOSFET (Metal Oxide) | 2 N-Channel (Dual) Asymmetrical | Logic Level Gate | 30V | 22A, 30A | 5.2mOhm @ 20A, 10V | 2.2V @ 250µA | 22nC @ 10V | 1037pF @ 15V | 3.6W, 4.3W | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-DFN (5x6) |
|
DMC6070LFDH-7MOSFET N/P-CH 60V 3.1A 8VDFN |
4,364 |
|
Datasheet |
- | 8-VDFN | Tape & Reel (TR) | Obsolete | MOSFET (Metal Oxide) | N and P-Channel | Logic Level Gate | 60V | 3.1A, 2.4A | 85mOhm @ 1.5A, 10V | 3V @ 250µA | 11.5nC @ 10V | 731pF @ 20V | 1.4W | -55°C ~ 150°C (TJ) | - | - | Surface Mount | V-DFN3030-8 |
|
SP8M70TB1MOSFET N/P-CH 250V 3A/2.5A 8SOP |
7,026 |
|
- |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | MOSFET (Metal Oxide) | N and P-Channel | - | 250V | 3A, 2.5A | 1.63Ohm @ 1.5A, 10V | 4V @ 1mA | 5.2nC @ 10V | 180pF @ 25V | 650mW | 150°C (TJ) | - | - | Surface Mount | 8-SOP |
|
QS8J12TCRMOSFET 2P-CH 12V 4.5A TSMT8 |
4,039 |
|
Datasheet |
- | 8-SMD, Flat Leads | Tape & Reel (TR) | Active | MOSFET (Metal Oxide) | 2 P-Channel (Dual) | Logic Level Gate, 1.5V Drive | 12V | 4.5A | 29mOhm @ 4.5A, 4.5V | 1V @ 1mA | 40nC @ 4.5V | 4200pF @ 6V | 550mW | 150°C (TJ) | - | - | Surface Mount | TSMT8 |
|
AOC2800MOSFET 2N-CH 4WLCSP |
5,119 |
|
Datasheet |
- | 4-UFBGA, WLCSP | Tape & Reel (TR) | Obsolete | MOSFET (Metal Oxide) | 2 N-Channel (Dual) Common Drain | Logic Level Gate | - | - | - | - | 9.1nC @ 4.5V | - | 1.3W | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 4-WLCSP (1.57x1.57) |
|
|
UPA2670T1R-E2-AXMOSFET 2P-CH 20V 3A 6HUSON |
3,476 |
|
- |
- | 6-WFDFN Exposed Pad | Tape & Reel (TR) | Obsolete | MOSFET (Metal Oxide) | 2 P-Channel (Dual) | Logic Level Gate, 1.8V Drive | 20V | 3A | 79mOhm @ 1.5A, 4.5V | - | 5.1nC @ 4.5V | 473pF @ 10V | 2.3W | 150°C (TJ) | - | - | Surface Mount | 6-HUSON (2x2) |
|
IRFH4251DTRPBFMOSFET 2N-CH 25V 64A/188A TISON8 |
8,027 |
|
Datasheet |
FASTIRFET™ | 8-PowerVDFN | Tape & Reel (TR) | Obsolete | MOSFET (Metal Oxide) | 2 N-Channel (Dual), Schottky | Logic Level Gate | 25V | 64A, 188A | 3.2mOhm @ 30A, 10V | 2.1V @ 35µA | 15nC @ 4.5V | 1314pF @ 13V | 31W, 63W | -55°C ~ 150°C (TJ) | - | - | Surface Mount | PG-TISON-8 |
|
ZXMP3F37DN8TAMOSFET 2P-CH 30V 5.7A 8SO |
3,705 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | MOSFET (Metal Oxide) | 2 P-Channel (Dual) | Logic Level Gate | 30V | 5.7A | 25mOhm @ 7.1A, 10V | 3V @ 250µA | 31.6nC @ 10V | 1678pF @ 15V | 1.81W | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SO |
