FET, MOSFET Arrays
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Configuration | FET Feature | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Input Capacitance (Ciss) (Max) @ Vds | Power - Max | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ALD1108ESCLMOSFET 4N-CH 10V 16SOIC |
5,204 |
|
Datasheet |
EPAD® | 16-SOIC (0.154", 3.90mm Width) | Tube | Not For New Designs | MOSFET (Metal Oxide) | 4 N-Channel, Matched Pair | - | 10V | - | 500Ohm @ 5V | 1.01V @ 1µA | - | 25pF @ 5V | 600mW | 0°C ~ 70°C (TJ) | - | - | Surface Mount | 16-SOIC |
|
ALD110908SALMOSFET 2N-CH 10.6V 8SOIC |
6,783 |
|
Datasheet |
EPAD® | 8-SOIC (0.154", 3.90mm Width) | Tube | Active | MOSFET (Metal Oxide) | 2 N-Channel (Dual) Matched Pair | - | 10.6V | 12mA, 3mA | 500Ohm @ 4.8V | 820mV @ 1µA | - | 2.5pF @ 5V | 500mW | 0°C ~ 70°C (TJ) | - | - | Surface Mount | 8-SOIC |
|
|
ALD110914SALMOSFET 2N-CH 10.6V 8SOIC |
8,303 |
|
Datasheet |
EPAD® | 8-SOIC (0.154", 3.90mm Width) | Tube | Active | MOSFET (Metal Oxide) | 2 N-Channel (Dual) Matched Pair | - | 10.6V | 12mA, 3mA | 500Ohm @ 5.4V | 1.42V @ 1µA | - | 2.5pF @ 5V | 500mW | 0°C ~ 70°C (TJ) | - | - | Surface Mount | 8-SOIC |
|
SLA5212MOSFET 6N-CH 35V 8A 15ZIP |
3,169 |
|
Datasheet |
- | 15-SIP Exposed Tab, Formed Leads | Tube | Active | MOSFET (Metal Oxide) | 6 N-Channel (3-Phase Bridge) | - | 35V | 8A | - | - | - | - | - | - | - | - | Through Hole | 15-ZIP |
|
FDMS3604ASMOSFET 2N-CH 30V 13A/23A POWER56 |
4,937 |
|
Datasheet |
PowerTrench® | 8-PowerTDFN | Tape & Reel (TR) | Obsolete | MOSFET (Metal Oxide) | 2 N-Channel (Dual) Asymmetrical | Logic Level Gate | 30V | 13A, 23A | 8mOhm @ 13A, 10V | 2.7V @ 250µA | 29nC @ 10V | 1695pF @ 15V | 1W | -55°C ~ 150°C (TJ) | - | - | Surface Mount | Power56 |
|
|
ALD110808SCLMOSFET 4N-CH 10.6V 16SOIC |
5,177 |
|
Datasheet |
EPAD® | 16-SOIC (0.154", 3.90mm Width) | Tube | Active | MOSFET (Metal Oxide) | 4 N-Channel, Matched Pair | - | 10.6V | 12mA, 3mA | 500Ohm @ 4.8V | 820mV @ 1µA | - | 2.5pF @ 5V | 500mW | 0°C ~ 70°C (TJ) | - | - | Surface Mount | 16-SOIC |
|
SI7983DP-T1-E3MOSFET 2P-CH 20V 7.7A PPAK SO8 |
9,076 |
|
- |
TrenchFET® | PowerPAK® SO-8 Dual | Tape & Reel (TR) | Obsolete | MOSFET (Metal Oxide) | 2 P-Channel (Dual) | Logic Level Gate | 20V | 7.7A | 17mOhm @ 12A, 4.5V | 1V @ 600µA | 74nC @ 4.5V | - | 1.4W | -55°C ~ 150°C (TJ) | - | - | Surface Mount | PowerPAK® SO-8 Dual |
|
|
ALD114935SALMOSFET 2N-CH 10.6V 8SOIC |
3,849 |
|
Datasheet |
EPAD® | 8-SOIC (0.154", 3.90mm Width) | Tube | Active | MOSFET (Metal Oxide) | 2 N-Channel (Dual) Matched Pair | Depletion Mode | 10.6V | 12mA, 3mA | 540Ohm @ 0V | 3.45V @ 1µA | - | 2.5pF @ 5V | 500mW | 0°C ~ 70°C (TJ) | - | - | Surface Mount | 8-SOIC |
|
FDMS7700SMOSFET 2N-CH 30V 12A/22A POWER56 |
6,017 |
|
Datasheet |
PowerTrench® | 8-PowerWDFN | Tape & Reel (TR) | Obsolete | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | Logic Level Gate | 30V | 12A, 22A | 7.5mOhm @ 12A, 10V | 3V @ 250µA | 28nC @ 10V | 1750pF @ 15V | 1W | -55°C ~ 150°C (TJ) | - | - | Surface Mount | Power56 |
|

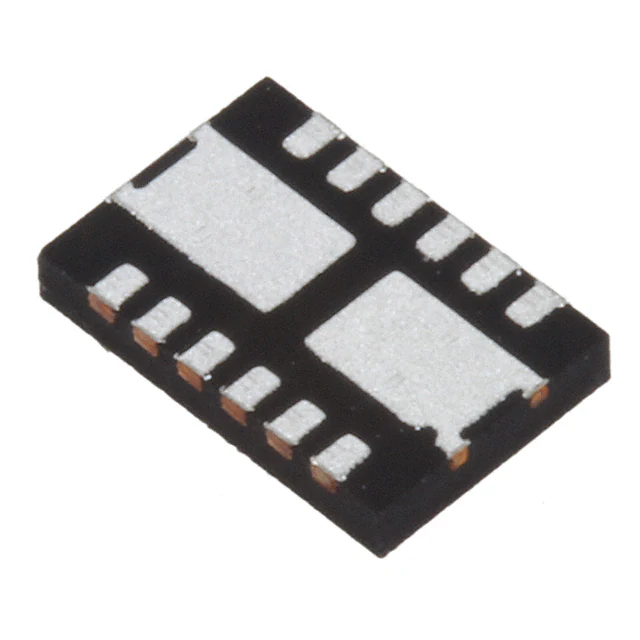

FDMD82100MOSFET 2N-CH 100V 7A 12POWER |
8,540 |
|
Datasheet |
PowerTrench® | 12-PowerWDFN | Tape & Reel (TR) | Obsolete | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | - | 100V | 7A | 19mOhm @ 7A, 10V | 4V @ 250µA | 17nC @ 10V | 1070pF @ 50V | 1W | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 12-Power3.3x5 |
|
WI62120MOSFET 650V 13A 14PQFN |
6,650 |
|
Datasheet |
WiseGan™ | 14-PowerLDFN | Tray | Active | GaNFET (Gallium Nitride) | - | - | 650V | 13A | - | 2.2V @ 10mA | 2.75nC @ 6V | 92.7pF @ 400V | - | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 14-PQFN (6x8) |
|
SIZF640DT-T1-GE3MOSFET 2N-CH 40V 41A PWRPAIR |
5,632 |
|
Datasheet |
TrenchFET® Gen IV | 8-PowerDFN | Tape & Reel (TR) | Active | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | - | 40V | 41A (Ta), 159A (Tc) | 1.37mOhm @ 15A, 10V | 2.4V @ 250µA | 106nC @ 10V | 5750pF @ 20V | 4.2W (Ta), 62.5W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | PowerPAIR® 6x5FS |
|
SMA5135MOSFET 3N/3P-CH 60V 6A 12SIP |
6,207 |
|
Datasheet |
- | 12-SIP | Tube | Active | MOSFET (Metal Oxide) | 3 N and 3 P-Channel (3 Phase Inverter) | - | 60V | 6A (Ta) | 220mOhm @ 3A, 4V, 220mOhm @ 3A, 10V | 2V @ 250µA | - | 320pF @ 10V, 790pF @ 10V | 4W (Ta), 29W (Tc) | 150°C | - | - | Through Hole | 12-SIP |
|
|
ALD212902SALMOSFET 2N-CH 10.6V 0.08A 8SOIC |
4,140 |
|
Datasheet |
EPAD®, Zero Threshold™ | 8-SOIC (0.154", 3.90mm Width) | Tube | Active | MOSFET (Metal Oxide) | 2 N-Channel (Dual) Matched Pair | Logic Level Gate | 10.6V | 80mA | - | 20mV @ 10µA | - | - | 500mW | 0°C ~ 70°C (TJ) | - | - | Surface Mount | 8-SOIC |
|
|
ALD212904SALMOSFET 2N-CH 10.6V 0.08A 8SOIC |
8,080 |
|
Datasheet |
EPAD®, Zero Threshold™ | 8-SOIC (0.154", 3.90mm Width) | Tube | Active | MOSFET (Metal Oxide) | 2 N-Channel (Dual) Matched Pair | Logic Level Gate | 10.6V | 80mA | - | 20mV @ 10µA | - | - | 500mW | 0°C ~ 70°C (TJ) | - | - | Surface Mount | 8-SOIC |
|
|
ALD212908SALMOSFET 2N-CH 10.6V 0.08A 8SOIC |
9,980 |
|
Datasheet |
EPAD®, Zero Threshold™ | 8-SOIC (0.154", 3.90mm Width) | Tube | Active | MOSFET (Metal Oxide) | 2 N-Channel (Dual) Matched Pair | Logic Level Gate | 10.6V | 80mA | - | 20mV @ 10µA | - | - | 500mW | 0°C ~ 70°C (TJ) | - | - | Surface Mount | 8-SOIC |
|
ALD110902PALMOSFET 2N-CH 10.6V 8PDIP |
7,660 |
|
Datasheet |
EPAD® | 8-DIP (0.300", 7.62mm) | Tube | Active | MOSFET (Metal Oxide) | 2 N-Channel (Dual) Matched Pair | - | 10.6V | - | 500Ohm @ 4.2V | 220mV @ 1µA | - | 2.5pF @ 5V | 500mW | 0°C ~ 70°C (TJ) | - | - | Through Hole | 8-PDIP |
|
|
ALD110904PALMOSFET 2N-CH 10.6V 8PDIP |
6,363 |
|
Datasheet |
EPAD® | 8-DIP (0.300", 7.62mm) | Tube | Active | MOSFET (Metal Oxide) | 2 N-Channel (Dual) Matched Pair | - | 10.6V | 12mA, 3mA | 500Ohm @ 4.4V | 420mV @ 1µA | - | 2.5pF @ 5V | 500mW | 0°C ~ 70°C (TJ) | - | - | Through Hole | 8-PDIP |
|
|
ALD111933PALMOSFET 2N-CH 10.6V 8PDIP |
6,835 |
|
Datasheet |
EPAD® | 8-DIP (0.300", 7.62mm) | Tube | Active | MOSFET (Metal Oxide) | 2 N-Channel (Dual) Matched Pair | - | 10.6V | - | 500Ohm @ 5.9V | 3.35V @ 1µA | - | 2.5pF @ 5V | 500mW | 0°C ~ 70°C (TJ) | - | - | Through Hole | 8-PDIP |
|
|
ALD114804SCLMOSFET 4N-CH 10.6V 16SOIC |
5,086 |
|
Datasheet |
EPAD® | 16-SOIC (0.154", 3.90mm Width) | Tube | Active | MOSFET (Metal Oxide) | 4 N-Channel, Matched Pair | Depletion Mode | 10.6V | 12mA, 3mA | 500Ohm @ 3.6V | 360mV @ 1µA | - | 2.5pF @ 5V | 500mW | 0°C ~ 70°C (TJ) | - | - | Surface Mount | 16-SOIC |
FET, MOSFET Arrays Electronic Components
Explore FET, MOSFET Arrays electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
