FET, MOSFET Arrays
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Configuration | FET Feature | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Input Capacitance (Ciss) (Max) @ Vds | Power - Max | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DMN21D1UDA-7BMOSFET 2N-CH 20V 0.455A 6DFN |
6,304 |
|
Datasheet |
- | 6-SMD, No Lead | Tape & Reel (TR) | Active | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | - | 20V | 455mA (Ta) | 990mOhm @ 100mA, 4.5V | 1V @ 250µA | 0.41nC @ 4.5V | 31pF @ 15V | 310mW | -55°C ~ 150°C (TJ) | - | - | Surface Mount | X2-DFN0806-6 |
|
|
DMP22D4UDA-7BMOSFET 2P-CH 20V 0.328A 6DFN |
6,915 |
|
Datasheet |
- | 6-SMD, No Lead | Tape & Reel (TR) | Active | MOSFET (Metal Oxide) | 2 P-Channel (Dual) | - | 20V | 328mA (Ta) | 1.9Ohm @ 100mA, 4.5V | 1V @ 250µA | 0.4nC @ 4.5V | 28.5pF @ 15V | 310mW | -55°C ~ 150°C (TJ) | - | - | Surface Mount | X2-DFN0806-6 |
|
|
DMN2046UVT-7MOSFET 2N-CH 20V 2.6A TSOT26 |
5,661 |
|
Datasheet |
- | SOT-23-6 Thin, TSOT-23-6 | Tape & Reel (TR) | Active | MOSFET (Metal Oxide) | 2 N-Channel | - | 20V | 2.6A (Ta) | 90mOhm @ 3.6A, 4.5V | 1.4V @ 250µA | 7.4nC @ 10V | 278pF @ 10V | 590mW | -55°C ~ 150°C (TJ) | - | - | Surface Mount | TSOT-26 |
|
PJS6830_S1_00001MOSFET 2N-CH 20V 2A SOT23-6 |
5,559 |
|
Datasheet |
- | SOT-23-6 | Tape & Reel (TR) | Not For New Designs | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | - | 20V | 2A (Ta) | 150mOhm @ 2A, 4.5V | 1V @ 250µA | 1.8nC @ 4.5V | 92pF @ 10V | 1.25W (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-23-6 |
|
|
DI2A8N03PWK2MOSFET 2N-CH 30V 2.8A 6QFN |
8,816 |
|
Datasheet |
- | 6-UDFN Exposed Pad | Bulk | Active | MOSFET (Metal Oxide) | 2 N-Channel | - | 30V | 2.8A (Ta) | 72mOhm @ 2A, 4.5V | 1.2V @ 250µA | 6.8nC @ 4.5V | 387pF @ 15V | 1W (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 6-QFN (2x2) |
|
NTZD3155CT1HMOSFET N/P-CH 20V 0.54A SOT563 |
9,403 |
|
Datasheet |
- | SOT-563, SOT-666 | Tape & Reel (TR) | Obsolete | MOSFET (Metal Oxide) | N and P-Channel | - | 20V | 540mA, 430mA | 550mOhm @ 540mA, 4.5V | 1V @ 250µA | 2.5nC @ 4.5V | 150pF @ 16V | 250mW | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-563 |
|

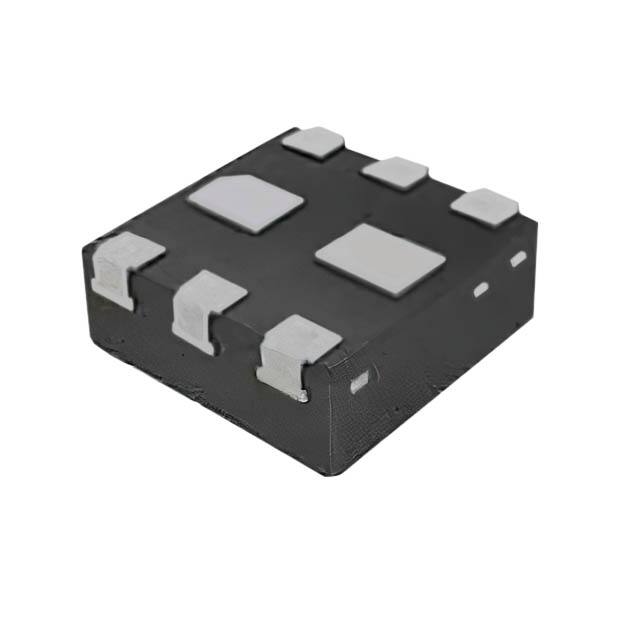

PJQ1820_R1_00001MOSFET 2N-CH 20V 0.8A 6DFN |
2,566 |
|
- |
- | 6-UFDFN | Tape & Reel (TR) | Not For New Designs | - | 2 N-Channel (Dual) | - | 20V | 800mA (Ta) | 300mOhm @ 500mA, 4.5V | 1V @ 250µA | 1.1nC @ 4.5V | 46pF @ 10V | 400mW (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DFN1010-6L |
|
|
DMC67D8UFDB-13MOSFET 41V-60V U-DFN2020-6 |
6,620 |
|
- |
- | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
DMC2025UFDB-13MOSFET N/P-CH 20V 6A 6UDFN |
7,406 |
|
Datasheet |
- | 6-UDFN Exposed Pad | Tape & Reel (TR) | Active | MOSFET (Metal Oxide) | N and P-Channel Complementary | - | 20V | 6A (Ta), 3.5A (Ta) | 25mOhm @ 4A, 4.5V, 75mOhm @ 2.9A, 4.5V | 1V @ 250µA, 1.4V @ 250µA | 12.3nC @ 10V, 15nC @ 8V | 486pF @ 10V, 642pF @ 10V | 700mW (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | U-DFN2020-6 (Type B) |
|
FDG6320C_D87ZMOSFET N/P-CH 25V 0.22A SC88 |
7,167 |
|
Datasheet |
- | 6-TSSOP, SC-88, SOT-363 | Tape & Reel (TR) | Obsolete | MOSFET (Metal Oxide) | N and P-Channel | Logic Level Gate | 25V | 220mA, 140mA | 4Ohm @ 220mA, 4.5V | 1.5V @ 250µA | 0.4nC @ 4.5V | 9.5pF @ 10V | 300mW | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SC-88 (SC-70-6) |
|
|
DMN52D0UVTQ-7MOSFET 2N-CH 50V 0.43A TSOT26 |
3,619 |
|
Datasheet |
- | SOT-23-6 Thin, TSOT-23-6 | Tape & Reel (TR) | Active | MOSFET (Metal Oxide) | 2 N-Channel | - | 50V | 430mA (Ta) | 2Ohm @ 50mA, 5V | 1V @ 250µA | 1.4nC @ 10V | 41pF @ 25V | 500mW (Ta) | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | TSOT-26 |
|
|
DMN62D2UVTQ-7MOSFET 2N-CH 60V 0.455A TSOT26 |
2,594 |
|
Datasheet |
- | SOT-23-6 Thin, TSOT-23-6 | Tape & Reel (TR) | Active | MOSFET (Metal Oxide) | 2 N-Channel | - | 60V | 455mA (Ta) | 2Ohm @ 50mA, 5V | 1V @ 250µA | 0.8nC @ 4.5V | 41pF @ 30V | 500mW (Ta) | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | TSOT-26 |
|
|
DMP2110UFDB-7MOSFET 2P-CH 20V 3.2A 6UDFN |
8,115 |
|
Datasheet |
- | 6-UDFN Exposed Pad | Tape & Reel (TR) | Active | MOSFET (Metal Oxide) | 2 P-Channel (Dual) | - | 20V | 3.2A (Ta) | 75mOhm @ 2.8A, 4.5V | 1V @ 250µA | 12.7nC @ 8V | 443pF @ 10V | 820mW (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | U-DFN2020-6 (Type B) |
|
|
DMC2053UFDB-7MOSFET N/P-CH 20V 4.6A 6UDFN |
6,793 |
|
Datasheet |
- | 6-UDFN Exposed Pad | Tape & Reel (TR) | Active | MOSFET (Metal Oxide) | N and P-Channel Complementary | - | 20V | 4.6A (Ta), 3.1A (Ta) | 35mOhm @ 5A, 4.5V, 75mOhm @ 3.5A, 4.5V | 1V @ 250µA | 7.7nC @ 10V, 12.7nC @ 8V | 369pF @ 10V, 440pF @ 10V | 820mW (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | U-DFN2020-6 (Type B) |
|
|
DMN2053UFDB-7MOSFET 2N-CH 20V 4.6A 6UDFN |
7,621 |
|
Datasheet |
- | 6-UDFN Exposed Pad | Tape & Reel (TR) | Active | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | - | 20V | 4.6A (Ta) | 35mOhm @ 5A, 4.5V | 1V @ 250µA | 7.7nC @ 10V | 369pF @ 10V | 820mW (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | U-DFN2020-6 (Type B) |
|
|
DMC2053UFDBQ-13MOSFET N/P-CH 20V 4.6A 6UDFN |
7,724 |
|
Datasheet |
- | 6-UDFN Exposed Pad | Tape & Reel (TR) | Active | MOSFET (Metal Oxide) | N and P-Channel | - | 20V | 4.6A (Ta), 3.1A (Ta) | 35mOhm @ 5A, 4.5V, 75mOhm @ 3.5A, 4.5V | 1V @ 250µA | 7.7nC @ 10V, 12.7nC @ 8V | 369pF @ 10V, 440pF @ 10V | 820mW (Ta) | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | U-DFN2020-6 (Type B) |
|
DMC3061SVT-13MOSFET N/P-CH 30V 3.4A TSOT23-6 |
5,759 |
|
- |
- | SOT-23-6 Thin, TSOT-23-6 | Tape & Reel (TR) | Obsolete | MOSFET (Metal Oxide) | N and P-Channel Complementary | - | 30V | 3.4A (Ta), 2.7A (Ta) | 60mOhm @ 3.1A, 10V, 95mOhm @ 2.7A, 10V | 1.8V @ 250µA, 2.2V @ 250µA | 6.6nC @ 10V, 6.8nC @ 10V | 278pF @ 15V, 287pF @ 15V | 880mW | -55°C ~ 150°C (TJ) | - | - | Surface Mount | TSOT-23-6 |
|
|
DMP2075UFDB-13MOSFET 2P-CH 20V 3.8A 6UDFN |
3,625 |
|
Datasheet |
- | 6-UDFN Exposed Pad | Tape & Reel (TR) | Active | MOSFET (Metal Oxide) | 2 P-Channel (Dual) | - | 20V | 3.8A (Ta) | 75mOhm @ 2.9A, 4.5V | 1.4V @ 250µA | 8.8nC @ 4.5V | 642pF @ 10V | 700mW (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | U-DFN2020-6 (Type B) |
|
|
DMC67D8UFDBQ-13MOSFET N/P-CH 60V/20V 6UDFN |
6,848 |
|
Datasheet |
- | 6-UDFN Exposed Pad | Tape & Reel (TR) | Active | MOSFET (Metal Oxide) | N and P-Channel Complementary | - | 60V, 20V | 390mA (Ta), 2.9A (Ta) | 4Ohm @ 500mA, 10V, 72mOhm @ 3.5A, 4.5V | 2.5V @ 250µA, 1.25V @ 250µA | 0.4pC @ 4.5V, 7.3nC @ 4.5V | 41pF @ 25V, 443pF @ 16V | 580mW (Ta) | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | U-DFN2020-6 (Type B) |
|
|
MCQD07N04-TPMOSFET 2N-CH 40V 7A 8SOP |
5,367 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | MOSFET (Metal Oxide) | 2 N-Channel | - | 40V | 7A (Ta) | 32mOhm @ 7A, 10V | 2.5V @ 250µA | 11nC @ 10V | 390pF @ 20V | 2.1W (Tj) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SOP |
FET, MOSFET Arrays Electronic Components
Explore FET, MOSFET Arrays electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
