FET, MOSFET Arrays
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Configuration | FET Feature | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Input Capacitance (Ciss) (Max) @ Vds | Power - Max | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AUIRF7316QTRMOSFET 2P-CH 30V 8SOIC |
298 |
|
Datasheet |
HEXFET® | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | MOSFET (Metal Oxide) | 2 P-Channel (Dual) | Logic Level Gate | 30V | - | 58mOhm @ 4.9A, 10V | 3V @ 250µA | 34nC @ 10V | 710pF @ 25V | 2W | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SOIC |
|
NTMFD4C85NT1GMOSFET 2N-CH 30V 15.4A 8DFN |
3,354 |
|
Datasheet |
- | 8-PowerTDFN | Tape & Reel (TR) | Obsolete | MOSFET (Metal Oxide) | 2 N-Channel (Dual) Asymmetrical | - | 30V | 15.4A, 29.7A | 3mOhm @ 20A, 10V | 2.1V @ 250µA | 32nC @ 10V | 1960pF @ 15V | 1.13W | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-DFN (5x6) |
.jpg)
|
FDMD8680MOSFET 2N-CH 80V 66A 8PWR 5X6 |
1,412 |
|
Datasheet |
- | 8-PowerWDFN | Tape & Reel (TR) | Obsolete | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | - | 80V | 66A (Tc) | 4.7mOhm @ 16A, 10V | 4V @ 250µA | 73nC @ 10V | 5330pF @ 40V | 39W | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-Power 5x6 |
|
FS50UMJ-3MOSFET N-CH 150V 50A |
845 |
|
Datasheet |
* | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
FDMD8560LMOSFET 2N-CH 60V 22A 8PWR 5X6 |
1,111 |
|
Datasheet |
PowerTrench® | 8-PowerWDFN | Tape & Reel (TR) | Obsolete | MOSFET (Metal Oxide) | 2 N-Channel (Half Bridge) | - | 60V | 22A, 93A | 3.2mOhm @ 22A, 10V | 3V @ 250µA | 128nC @ 10V | 11130pF @ 30V | 2.2W | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-Power 5x6 |
|
|
FDMD86100MOSFET 2N-CH 100V 10A 8PWR 5X6 |
486 |
|
Datasheet |
PowerTrench® | 8-PowerWDFN | Tape & Reel (TR) | Obsolete | MOSFET (Metal Oxide) | 2 N-Channel (Dual) Common Source | - | 100V | 10A | 10.5mOhm @ 10A, 10V | 4V @ 250µA | 30nC @ 10V | 2060pF @ 50V | 2.2W | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-Power 5x6 |
|
EFC4C002NLTDGMOSFET 2N-CH 8WLCSP |
4,750 |
|
Datasheet |
- | 8-XFBGA, WLCSP | Tape & Reel (TR) | Obsolete | MOSFET (Metal Oxide) | 2 N-Channel (Dual) Common Drain | Logic Level Gate | - | - | - | 2.2V @ 1mA | 45nC @ 4.5V | 6200pF @ 15V | 2.6W | 150°C (TJ) | - | - | Surface Mount | 8-WLCSP (6x2.5) |
|
FDMS8095ACMOSFET N/P-CH 150V 6.2A/1A 8MLP |
3,000 |
|
Datasheet |
PowerTrench® | 8-PowerWDFN | Tape & Reel (TR) | Active | MOSFET (Metal Oxide) | N and P-Channel | - | 150V | 6.2A, 1A | 30mOhm @ 6.2A, 10V | 4V @ 250µA | 30nC @ 10V | 2020pF @ 75V, 230pF @ 75V | 2.3W | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-MLP (5x6), Power56 |
|
SLA5065MOSFET 4N-CH 60V 7A 15ZIP |
722 |
|
Datasheet |
- | 15-SIP Exposed Tab, Formed Leads | Tube | Active | MOSFET (Metal Oxide) | 4 N-Channel | - | 60V | 7A | 100mOhm @ 3.5A, 10V | 2V @ 250µA | - | 660pF @ 10V | 4.8W | 150°C (TJ) | - | - | Through Hole | 15-ZIP |
|
FD6M045N06MOSFET 2N-CH 60V 60A EPM15 |
1,409 |
|
Datasheet |
Power-SPM™ | EPM15 | Tube | Obsolete | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | - | 60V | 60A | 4.5mOhm @ 40A, 10V | 4V @ 250µA | 87nC @ 10V | 3890pF @ 25V | - | -40°C ~ 150°C (TJ) | - | - | Through Hole | EPM15 |
|
|
NTMFD5C462NLT1GMOSFET 40V S08FL |
1,500 |
|
Datasheet |
- | - | Tape & Reel (TR) | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
SLA5068MOSFET 6N-CH 60V 7A 15ZIP |
352 |
|
Datasheet |
- | 15-SIP Exposed Tab, Formed Leads | Tube | Active | MOSFET (Metal Oxide) | 6 N-Channel (3-Phase Bridge) | - | 60V | 7A | 100mOhm @ 3.5A, 10V | 2V @ 250µA | - | 660pF @ 10V | 5W | 150°C (TJ) | - | - | Through Hole | 15-ZIP |
|
FD6M043N08MOSFET 2N-CH 75V 65A EPM15 |
1,404 |
|
Datasheet |
Power-SPM™ | EPM15 | Tube | Obsolete | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | - | 75V | 65A | 4.3mOhm @ 40A, 10V | 4V @ 250µA | 148nC @ 10V | 6180pF @ 25V | - | -40°C ~ 150°C (TJ) | - | - | Through Hole | EPM15 |
|
|
SD5401CY SOIC 14L ROHSMOSFET 4N-CH 10V 0.05A 14SOIC |
4,514 |
|
Datasheet |
SD5401 | 14-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | MOSFET (Metal Oxide) | 4 N-Channel | - | 10V | 50mA (Ta) | 75Ohm @ 1mA, 5V | 1.5V @ 1µA | - | - | 500mW (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 14-SOIC |
|
|
SD5400CY SOIC 14L ROHSMOSFET 4N-CH 20V 0.05A 14SOIC |
1,658 |
|
Datasheet |
SD5400 | 14-SOIC (0.154", 3.90mm Width) | Cut Tape (CT) | Active | MOSFET (Metal Oxide) | 4 N-Channel | - | 20V | 50mA (Ta) | 75Ohm @ 1mA, 5V | 1.5V @ 1µA | - | - | 500mW (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 14-SOIC |
|
FX50SMJ-2#B00MOSFET P-CH |
5,980 |
|
- |
* | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
SLA5064MOSFET 3N/3P-CH 60V 10A 12SIP |
972 |
|
Datasheet |
- | 12-SIP Exposed Tab | Bulk | Active | MOSFET (Metal Oxide) | 3 N and 3 P-Channel (3-Phase Bridge) | Logic Level Gate | 60V | 10A | 140mOhm @ 5A, 4V | - | - | 460pF @ 10V, 1200pF @ 10V | 5W | 150°C (TJ) | - | - | Through Hole | 12-SIP |
|
|
SCX6206TQM/V2/NOPBMOSFET |
1,319 |
|
- |
* | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
FAM65CR51XZ1MOSFET 2N-CH 650V 64A APMCA-A16 |
8,574 |
|
Datasheet |
- | 12-SSIP Exposed Pad, Formed Leads | Tube | Active | MOSFET (Metal Oxide) | 2 N-Channel | - | 650V | 64A (Tc) | 51mOhm @ 20A, 10V | 5V @ 3.3mA | 123nC @ 10V | 4864pF @ 400V | 463W (Tc) | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Through Hole | APMCA-A16 |
|

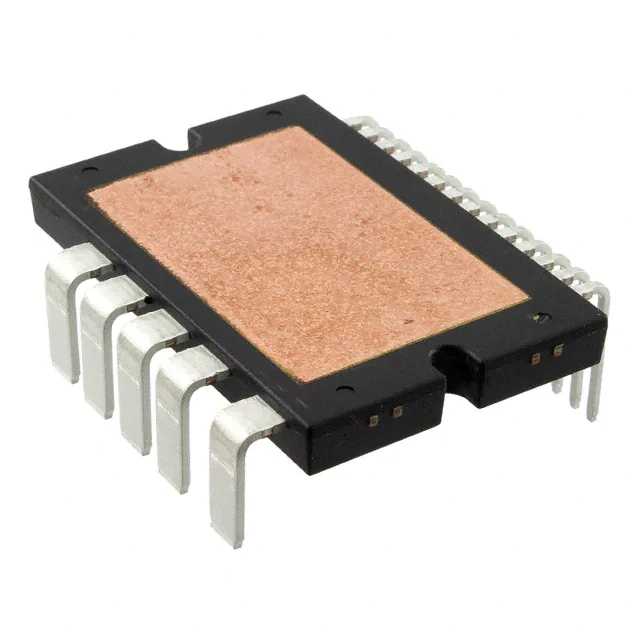

FTCO3V455A1MOSFET 6N-CH 40V 150A MODULE |
6,808 |
|
Datasheet |
SPM® | 19-PowerDIP Module | Tube | Obsolete | MOSFET (Metal Oxide) | 6 N-Channel (3-Phase Bridge) | Logic Level Gate | 40V | 150A | 1.66mOhm @ 80A, 10V | - | - | - | 115W | 175°C (TJ) | - | - | Through Hole | Module |
