FET, MOSFET Arrays
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Configuration | FET Feature | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Input Capacitance (Ciss) (Max) @ Vds | Power - Max | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SQJQ960EL-T1_GE3MOSFET 2N-CH 60V 63A PPAK8X8 |
1,362 |
|
Datasheet |
TrenchFET® | PowerPAK® 8 x 8 Dual | Tape & Reel (TR) | Active | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | - | 60V | 63A (Tc) | 9mOhm @ 10A, 10V | 2.5V @ 250µA | 24nC @ 10V | 1950pF @ 25V | 71W | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | PowerPAK® 8 x 8 Dual |
|
BSG0811NDATMA1MOSFET 2N-CH 25V 19A/41A TISON8 |
6,082 |
|
Datasheet |
OptiMOS™ | 8-PowerTDFN | Tape & Reel (TR) | Active | MOSFET (Metal Oxide) | 2 N-Channel (Dual) Asymmetrical | Logic Level Gate, 4.5V Drive | 25V | 19A, 41A | 3mOhm @ 20A, 10V | 2V @ 250µA | 8.4nC @ 4.5V | 1100pF @ 12V | 2.5W | -55°C ~ 150°C (TJ) | - | - | Surface Mount | PG-TISON-8 |
|
SQ3585EV-T1_GE3MOSFET N/P-CH 20V 3.57A 6TSOP |
6,894 |
|
Datasheet |
TrenchFET® | SOT-23-6 Thin, TSOT-23-6 | Tape & Reel (TR) | Active | MOSFET (Metal Oxide) | N and P-Channel | - | 20V | 3.57A (Tc), 2.5A (Tc) | 77mOhm @ 1A, 4.5V, 166mOhm @ 1A, 4.5V | 1.5V @ 250µA | 2.5nC @ 4.5V, 3.5nC @ 4.5V | - | 1.67W | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | 6-TSOP |
|
CSD86350Q5DMOSFET 2N-CH 25V 40A 8LSON |
4,190 |
|
Datasheet |
NexFET™ | 8-PowerLDFN | Tape & Reel (TR) | Active | MOSFET (Metal Oxide) | 2 N-Channel (Half Bridge) | Logic Level Gate | 25V | 40A | 6mOhm @ 20A, 8V | 2.1V @ 250µA | 10.7nC @ 4.5V | 1870pF @ 12.5V | 13W | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-LSON (5x6) |
|
FDS89141MOSFET 2N-CH 100V 3.5A 8SOIC |
21,070 |
|
Datasheet |
PowerTrench® | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | Logic Level Gate | 100V | 3.5A | 62mOhm @ 3.5A, 10V | 4V @ 250µA | 7.1nC @ 10V | 398pF @ 50V | 1.6W | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SOIC |
|
SI7234DP-T1-GE3MOSFET 2N-CH 12V 60A PPAK SO8 |
10,827 |
|
Datasheet |
TrenchFET® | PowerPAK® SO-8 Dual | Tape & Reel (TR) | Active | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | - | 12V | 60A | 3.4mOhm @ 20A, 4.5V | 1.5V @ 250µA | 120nC @ 10V | 5000pF @ 6V | 46W | -55°C ~ 150°C (TJ) | - | - | Surface Mount | PowerPAK® SO-8 Dual |
|
|
SI7956DP-T1-GE3MOSFET 2N-CH 150V 2.6A PPAK SO8 |
4,330 |
|
Datasheet |
TrenchFET® | PowerPAK® SO-8 Dual | Tape & Reel (TR) | Active | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | Logic Level Gate | 150V | 2.6A | 105mOhm @ 4.1A, 10V | 4V @ 250µA | 26nC @ 10V | - | 1.4W | -55°C ~ 150°C (TJ) | - | - | Surface Mount | PowerPAK® SO-8 Dual |
|
FDMQ86530LMOSFET 4N-CH 60V 8A 12MLP |
4,411 |
|
Datasheet |
GreenBridge™ PowerTrench® | 12-WDFN Exposed Pad | Tape & Reel (TR) | Active | MOSFET (Metal Oxide) | 4 N-Channel (Full Bridge) | Logic Level Gate | 60V | 8A | 17.5mOhm @ 8A, 10V | 3V @ 250µA | 33nC @ 10V | 2295pF @ 30V | 1.9W | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 12-MLP (5x4.5) |
|
CSD88584Q5DCMOSFET 2N-CH 40V 22VSON-CLIP |
1,308 |
|
Datasheet |
NexFET™ | 22-PowerTFDFN | Tape & Reel (TR) | Active | MOSFET (Metal Oxide) | 2 N-Channel (Half Bridge) | - | 40V | - | 0.95mOhm @ 30A, 10V | 2.3V @ 250µA | 88nC @ 4.5V | 12400pF @ 20V | 12W | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 22-VSON-CLIP (5x6) |
|
|
CSD88599Q5DCMOSFET 2N-CH 60V 22VSON-CLIP |
2,955 |
|
Datasheet |
NexFET™ | 22-PowerTFDFN | Tape & Reel (TR) | Active | MOSFET (Metal Oxide) | 2 N-Channel (Half Bridge) | - | 60V | - | 2.1mOhm @ 30A, 10V | 2.5V @ 250µA | 27nC @ 4.5V | 4840pF @ 30V | 12W | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 22-VSON-CLIP (5x6) |
|
NVMFD5C650NLWFT1GMOSFET 2N-CH 60V 21A 8DFN |
1,500 |
|
Datasheet |
- | 8-PowerTDFN | Tape & Reel (TR) | Active | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | - | 60V | 21A (Ta), 111A (Tc) | 4.2mOhm @ 20A, 10V | 2.2V @ 98µA | 16nC @ 4.5V | 2546pF @ 25V | 3.5W (Ta), 125W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | 8-DFN (5x6) Dual Flag (SO8FL-Dual) |
|
ALD1106SBLMOSFET 4N-CH 10.6V 14SOIC |
1,005 |
|
Datasheet |
- | 14-SOIC (0.154", 3.90mm Width) | Tube | Active | MOSFET (Metal Oxide) | 4 N-Channel, Matched Pair | - | 10.6V | - | 500Ohm @ 5V | 1V @ 1µA | - | 3pF @ 5V | 500mW | 0°C ~ 70°C (TJ) | - | - | Surface Mount | 14-SOIC |
|
FDMS8090MOSFET 2N-CH 100V 10A 8MLP |
1,042 |
|
Datasheet |
PowerTrench® | 8-PowerWDFN | Tape & Reel (TR) | Active | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | Logic Level Gate | 100V | 10A | 13mOhm @ 10A, 10V | 4V @ 250µA | 27nC @ 10V | 1800pF @ 50V | 2.2W | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-MLP (5x6), Power56 |
|
ALD1106PBLMOSFET 4N-CH 10.6V 14PDIP |
492 |
|
Datasheet |
- | 14-DIP (0.300", 7.62mm) | Tube | Active | MOSFET (Metal Oxide) | 4 N-Channel, Matched Pair | - | 10.6V | - | 500Ohm @ 5V | 1V @ 1µA | - | 3pF @ 5V | 500mW | 0°C ~ 70°C (TJ) | - | - | Through Hole | 14-PDIP |
|

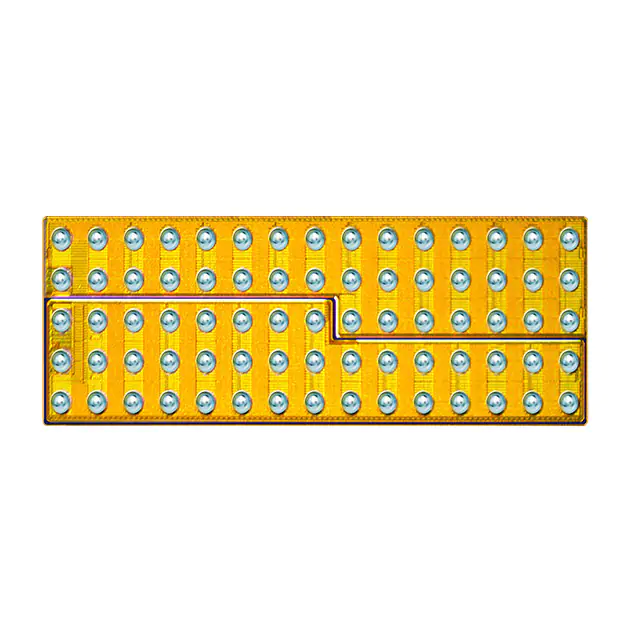

EPC2103MOSFET 2N-CH 80V 28A DIE |
5,410 |
|
Datasheet |
eGaN® | Die | Tape & Reel (TR) | Active | GaNFET (Gallium Nitride) | 2 N-Channel (Half Bridge) | - | 80V | 28A | 5.5mOhm @ 20A, 5V | 2.5V @ 7mA | 6.5nC @ 5V | 760pF @ 40V | - | -40°C ~ 150°C (TJ) | - | - | Surface Mount | Die |
|
NXH010P120MNF1PNGMOSFET 2N-CH 1200V 114A |
35 |
|
Datasheet |
- | Module | Tray | Active | Silicon Carbide (SiC) | 2 N-Channel (Dual) | - | 1200V (1.2kV) | 114A (Tc) | 14mOhm @ 100A, 20V | 4.3V @ 40mA | 454nC @ 20V | 4707pF @ 800V | 250W (Tj) | -40°C ~ 175°C (TJ) | - | - | Chassis Mount | - |
|
CAB016M12FM3MOSFET 2N-CH 1200V 78A |
7 |
|
Datasheet |
WolfPACK™ | Module | Tray | Active | Silicon Carbide (SiC) | 2 N-Channel (Half Bridge) | - | 1200V (1.2kV) | 78A | 21.3mOhm @ 80A, 15V | 3.6V @ 23mA | 236nC @ 15V | 6600pF @ 800V | - | -40°C ~ 150°C (TJ) | - | - | Chassis Mount | - |
|
|
CCB032M12FM3MOSFET 6N-CH 1200V 40A |
43 |
|
Datasheet |
WolfPACK™ | Module | Tray | Active | Silicon Carbide (SiC) | 6 N-Channel (3-Phase Bridge) | - | 1200V (1.2kV) | 40A | 42.6mOhm @ 30A, 15V | 3.6V @ 11.5mA | 118nC @ 15V | 3400pF @ 800V | - | -40°C ~ 150°C (TJ) | - | - | Chassis Mount | - |
|
|
CBB021M12FM3TMOSFET 4N-CH 1200V 50A |
32 |
|
Datasheet |
- | Module | Box | Active | Silicon Carbide (SiC) | 4 N-Channel (Full Bridge) | - | 1200V (1.2kV) | 50A (Tj) | 28.9mOhm @ 30A, 15V | 3.9V @ 17mA | 162nC @ 15V | 5400pF @ 1000V | - | -40°C ~ 150°C (TJ) | - | - | Chassis Mount | - |
|
|
NXH003P120M3F2PTHGMOSFET 2N-CH 1200V 350A 36PIM |
83 |
|
Datasheet |
- | Module | Tray | Active | Silicon Carbide (SiC) | 2 N-Channel (Half Bridge) | - | 1200V (1.2kV) | 350A (Tc) | 5mOhm @ 200A, 18V | 4.4V @ 160mA | 1195nC @ 20V | 20889pF @ 800V | 979W (Tc) | -40°C ~ 175°C (TJ) | - | - | Chassis Mount | 36-PIM (56.7x62.8) |
