Ferrite Beads and Chips
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Ratings | Operating Temperature | Mounting Type | Height (Max) | Size / Dimension | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
.jpg)
|
742792116FERRITE BEAD 500 OHM 1206 1LN |
12,364 |
|
Datasheet |
WE-CBF | 1206 (3216 Metric) | Tape & Reel (TR) | Active | Signal Line | 1 | 500 Ohms @ 100 MHz | 2.5A | 60mOhm | - | -55°C ~ 125°C | Surface Mount | 0.051" (1.30mm) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - |
|
|
742792141FERRITE BEAD 1K OHM 1206 1LN |
10,352 |
|
Datasheet |
WE-CBF | 1206 (3216 Metric) | Tape & Reel (TR) | Active | Signal Line | 1 | 1 kOhms @ 100 MHz | 1A | 300mOhm | - | -55°C ~ 125°C | Surface Mount | 0.051" (1.30mm) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - |
|
742792310FERRITE BEAD 30 OHM 1210 1LN |
10,282 |
|
Datasheet |
WE-CBF | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Signal Line | 1 | 30 Ohms @ 100 MHz | 3A | 50mOhm | - | -55°C ~ 125°C | Surface Mount | 0.059" (1.50mm) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - |
|
|
742843122FERRITE BEAD 220 OHM 0402 1LN |
9,350 |
|
Datasheet |
WE-CBF HF | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Signal Line | 1 | 220 Ohms @ 100 MHz | 500mA | 380mOhm | - | -55°C ~ 125°C | Surface Mount | 0.024" (0.60mm) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | - |
|
ABUP00201209121Y00FERRITE BEAD 120 OHM 0805 1LN |
7,266 |
|
Datasheet |
ABUP | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Power Line | 1 | 120 Ohms @ 100 MHz | 5A | 20mOhm | AEC-Q200 | -55°C ~ 125°C | Surface Mount | 0.043" (1.10mm) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | Automotive |
|
|
ABUP00201209101Y00FERRITE BEAD 100 OHM 0805 1LN |
5,810 |
|
Datasheet |
ABUP | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Power Line | 1 | 100 Ohms @ 100 MHz | 5A | 20mOhm | AEC-Q200 | -55°C ~ 125°C | Surface Mount | 0.043" (1.10mm) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | Automotive |
|
MAF1005PAD120CT000FERRITE BEAD 12 OHM 0402 1LN |
5,476 |
|
Datasheet |
MAF | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Power Line | 1 | 12 Ohms @ 900 MHz | 6A | 9mOhm | - | -55°C ~ 125°C | Surface Mount | 0.022" (0.55mm) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | - |
.JPG)
|
FBMJ3216HS480NTVFERRITE BEAD 48 OHM 1206 1LN |
5,373 |
|
- |
FB | 1206 (3216 Metric) | Tape & Reel (TR) | Active | Power Line | 1 | 48 Ohms @ 100 MHz | 6A | 5mOhm | AEC-Q200 | -40°C ~ 125°C | Surface Mount | 0.051" (1.30mm) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - |
|
|
742792111FERRITE BEAD 26 OHM 1206 1LN |
3,548 |
|
Datasheet |
WE-CBF | 1206 (3216 Metric) | Tape & Reel (TR) | Active | Signal Line | 1 | 26 Ohms @ 100 MHz | 3A | 40mOhm | AEC-Q200 | -55°C ~ 125°C | Surface Mount | 0.051" (1.30mm) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - |
|
|
742792312FERRITE BEAD 65 OHM 1210 1LN |
1,644 |
|
Datasheet |
WE-CBF | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Signal Line | 1 | 65 Ohms @ 100 MHz | 3A | 30mOhm | - | -55°C ~ 125°C | Surface Mount | 0.059" (1.50mm) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - |
.jpg)
|
BLM18EG471SN1DFERRITE BEAD 470 OHM 0603 1LN |
401,398 |
|
Datasheet |
EMIFIL®, BLM18 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | - | 1 | 470 Ohms @ 100 MHz | 500mA | 210mOhm | - | -55°C ~ 125°C | Surface Mount | 0.037" (0.95mm) | 0.063" L x 0.032" W (1.60mm x 0.80mm) | - |
|
MI1206K900R-10FERRITE BEAD 90 OHM 1206 1LN |
291,442 |
|
Datasheet |
1206 | 1206 (3216 Metric) | Tape & Reel (TR) | Active | Power, Signal Line | 1 | 90 Ohms @ 100 MHz | 1.5A | 80mOhm | - | -40°C ~ 125°C | Surface Mount | 0.043" (1.10mm) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - |
|
|
BLM18HE152SZ1DFERRITE BEAD 1.5K OHM 0603 1LN |
207,432 |
|
Datasheet |
EMIFIL®, BLM18 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Signal Line | 1 | 1.5 kOhms @ 100 MHz | 500mA | 500mOhm | AEC-Q200 | -55°C ~ 125°C | Surface Mount | 0.037" (0.95mm) | 0.063" L x 0.032" W (1.60mm x 0.80mm) | - |
|
|
MI1206L501R-10FERRITE BEAD 500 OHM 1206 1LN |
157,771 |
|
Datasheet |
1206 | 1206 (3216 Metric) | Tape & Reel (TR) | Active | Power, Signal Line | 1 | 500 Ohms @ 100 MHz | 2A | 60mOhm | - | -40°C ~ 125°C | Surface Mount | 0.043" (1.10mm) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - |
|
PE-1206PFB121STFERRITE BEAD 120 OHM 1206 1LN |
69,932 |
|
Datasheet |
PFB | 1206 (3216 Metric) | Tape & Reel (TR) | Active | Power Line | 1 | 120 Ohms @ 100 MHz | 3A | 30mOhm | - | -40°C ~ 105°C | Surface Mount | 0.033" (0.85mm) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - |
|
|
BLM18EG221TN1DFERRITE BEAD 220 OHM 0603 1LN |
58,188 |
|
Datasheet |
EMIFIL®, BLM18 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | - | 1 | 220 Ohms @ 100 MHz | 1A | 150mOhm | - | -55°C ~ 125°C | Surface Mount | 0.026" (0.65mm) | 0.063" L x 0.032" W (1.60mm x 0.80mm) | - |
|
28L0138-80R-10FERRITE BEAD 86 OHM AXIAL 1LN |
50,145 |
|
Datasheet |
28 | Axial | Tape & Reel (TR) | Active | - | 1 | 86 Ohms @ 100 MHz | 5A | 10mOhm | - | - | Through Hole | - | 0.138" Dia x 0.206" L (3.51mm x 5.23mm) | - |
|
|
HZ1206E152R-10FERRITE BEAD 950 OHM 1206 1LN |
44,403 |
|
Datasheet |
1206 | 1206 (3216 Metric) | Tape & Reel (TR) | Active | Power, Signal Line | 1 | 950 Ohms @ 100 MHz | 500mA | 300mOhm | - | -40°C ~ 125°C | Surface Mount | 0.043" (1.10mm) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - |
|
28L0138-10R-10FERRITE BEAD 75 OHM AXIAL 1LN |
40,872 |
|
Datasheet |
28L0138 | Axial | Tape & Reel (TR) | Active | - | 1 | 75 Ohms @ 100 MHz | 5A | 10mOhm | - | -40°C ~ 125°C | Through Hole | 0.175" (4.45mm) | 0.138" Dia x 2.323" L (3.51mm x 59.00mm) | - |
|

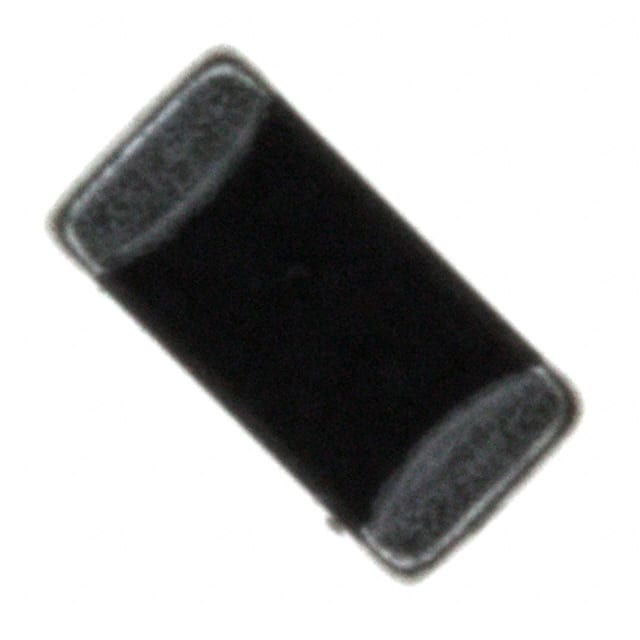

LF1206C202R-10FERRITE BEAD 915 OHM 1206 1LN |
40,646 |
|
Datasheet |
1206 | 1206 (3216 Metric) | Tape & Reel (TR) | Active | Power, Signal Line | 1 | 915 Ohms @ 100 MHz | 300mA | 500mOhm | - | -40°C ~ 125°C | Surface Mount | 0.043" (1.10mm) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - |
Ferrite Beads and Chips Electronic Components
Explore Ferrite Beads and Chips electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
