Ferrite Beads and Chips
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Ratings | Operating Temperature | Mounting Type | Height (Max) | Size / Dimension | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
NFZ5BBW970LZ10LFERRITE BEAD |
0 |
|
- |
* | - | Tape & Reel (TR) | Discontinued at Digi-Key | - | - | - | - | - | - | - | - | - | - | - |
|
|
NFZ5BBW7R6LZ10LFERRITE BEAD |
0 |
|
- |
* | - | Tape & Reel (TR) | Discontinued at Digi-Key | - | - | - | - | - | - | - | - | - | - | - |
|

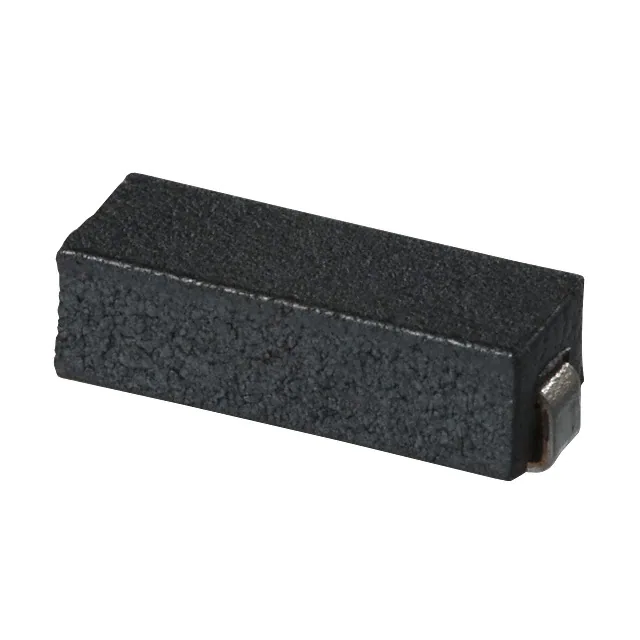

28F0121-1SRFERRITE BEAD 96 OHM 2SMD 1LN |
0 |
|
Datasheet |
28 | 2-SMD, J-Lead | Tape & Reel (TR) | Obsolete | Power Line | 1 | 96 Ohms @ 100 MHz | 10A | 1mOhm | - | -40°C ~ 125°C | Surface Mount | 0.120" (3.05mm) | 0.335" L x 0.120" W (8.51mm x 3.05mm) | - |
|
28F0121-0SRFERRITE BEAD 48 OHM 2SMD 1LN |
0 |
|
Datasheet |
28 | 2-SMD, J-Lead | Tape & Reel (TR) | Obsolete | Power Line | 1 | 48 Ohms @ 100 MHz | 10A | 0.75mOhm | - | -40°C ~ 125°C | Surface Mount | 0.120" (3.05mm) | 0.120" L x 0.100" W (3.05mm x 2.54mm) | - |
, Array, 8 PC Pad.jpg)
|
BK20104L220-TFERRITE BEAD 22 OHM 0804 4LN |
0 |
|
Datasheet |
BK | 0804 (2010 Metric), Array, 8 PC Pad | Tape & Reel (TR) | Obsolete | - | 4 | 22 Ohms @ 100 MHz | 100mA | 200mOhm | - | -55°C ~ 125°C | Surface Mount | 0.020" (0.50mm) | 0.079" L x 0.039" W (2.00mm x 1.00mm) | - |
|
|
BK20104M121-TFERRITE BEAD 120 OHM 0804 4LN |
0 |
|
Datasheet |
BK | 0804 (2010 Metric), Array, 8 PC Pad | Tape & Reel (TR) | Obsolete | - | 4 | 120 Ohms @ 100 MHz | 100mA | 300mOhm | - | -55°C ~ 125°C | Surface Mount | 0.020" (0.50mm) | 0.079" L x 0.039" W (2.00mm x 1.00mm) | - |
|
|
BK20104M601-TFERRITE BEAD 600 OHM 0804 4LN |
0 |
|
Datasheet |
BK | 0804 (2010 Metric), Array, 8 PC Pad | Tape & Reel (TR) | Obsolete | - | 4 | 600 Ohms @ 100 MHz | 100mA | 700mOhm | - | -55°C ~ 125°C | Surface Mount | 0.020" (0.50mm) | 0.079" L x 0.039" W (2.00mm x 1.00mm) | - |
|
|
BK20104W121-TFERRITE BEAD 120 OHM 0804 4LN |
0 |
|
Datasheet |
BK | 0804 (2010 Metric), Array, 8 PC Pad | Tape & Reel (TR) | Obsolete | - | 4 | 120 Ohms @ 100 MHz | 100mA | 400mOhm | - | -55°C ~ 125°C | Surface Mount | 0.020" (0.50mm) | 0.079" L x 0.039" W (2.00mm x 1.00mm) | - |
|
|
BK20104L181-TFERRITE BEAD 180 OHM 0804 4LN |
0 |
|
Datasheet |
BK | 0804 (2010 Metric), Array, 8 PC Pad | Tape & Reel (TR) | Obsolete | - | 4 | 180 Ohms @ 100 MHz | 100mA | 900mOhm | - | -55°C ~ 125°C | Surface Mount | 0.020" (0.50mm) | 0.079" L x 0.039" W (2.00mm x 1.00mm) | - |
|
|
BK20104S121-TFERRITE BEAD 120 OHM 0804 4LN |
0 |
|
Datasheet |
BK | 0804 (2010 Metric), Array, 8 PC Pad | Tape & Reel (TR) | Obsolete | - | 4 | 120 Ohms @ 100 MHz | 100mA | 300mOhm | - | -55°C ~ 125°C | Surface Mount | 0.020" (0.50mm) | 0.079" L x 0.039" W (2.00mm x 1.00mm) | - |
-0,60x0,30x0,33mm.jpg)
|
Z0201C601ASMSTFERRITE BEAD 600 OHM 0201 1LN |
0 |
|
Datasheet |
Z-SMS | 0201 (0603 Metric) | Tape & Reel (TR) | Obsolete | Signal Line | 1 | 600 Ohms @ 100 MHz | 150mA | 1.2Ohm | - | -55°C ~ 125°C | Surface Mount | 0.013" (0.33mm) | 0.024" L x 0.012" W (0.60mm x 0.30mm) | - |
.jpg)
|
Z0805C330BPWSTFERRITE BEAD 33 OHM 0805 1LN |
0 |
|
Datasheet |
Z-PWS | 0805 (2012 Metric) | Tape & Reel (TR) | Obsolete | Power Line | 1 | 33 Ohms @ 100 MHz | 4A | 8mOhm | - | -40°C ~ 125°C | Surface Mount | 0.041" (1.05mm) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - |
|
|
Z0201C121CSMSTFERRITE BEAD 120 OHM 0201 1LN |
0 |
|
Datasheet |
Z-SMS | 0201 (0603 Metric) | Tape & Reel (TR) | Obsolete | Signal Line | 1 | 120 Ohms @ 100 MHz | - | 1.5Ohm | - | -55°C ~ 125°C | Surface Mount | 0.013" (0.33mm) | 0.024" L x 0.012" W (0.60mm x 0.30mm) | - |
|
|
Z0201C100CSMSTFERRITE BEAD 10 OHM 0201 1LN |
0 |
|
Datasheet |
Z-SMS | 0201 (0603 Metric) | Tape & Reel (TR) | Obsolete | Signal Line | 1 | 10 Ohms @ 100 MHz | 200mA | 400mOhm | - | -55°C ~ 125°C | Surface Mount | 0.013" (0.33mm) | 0.024" L x 0.012" W (0.60mm x 0.30mm) | - |
|
HF50ACB453215-TFERRITE BEAD 125 OHM 1812 1LN |
50 |
|
Datasheet |
HF-ACB | 1812 (4532 Metric) | Tape & Reel (TR) | Obsolete | Signal Line | 1 | 125 Ohms @ 100 MHz | 300mA | 400mOhm | - | -40°C ~ 125°C | Surface Mount | 0.069" (1.75mm) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - |
|
HF70ACC322513-TFERRITE BEAD 52 OHM 1210 1LN |
0 |
|
Datasheet |
HF-ACC | 1210 (3225 Metric) | Tape & Reel (TR) | Obsolete | Signal Line | 1 | 52 Ohms @ 100 MHz | 1.5A | 50mOhm | - | -40°C ~ 125°C | Surface Mount | 0.059" (1.50mm) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - |
|
HF70ACC201209-TFERRITE BEAD 10 OHM 0805 1LN |
0 |
|
Datasheet |
HF-ACC | 0805 (2012 Metric) | Tape & Reel (TR) | Obsolete | Signal Line | 1 | 10 Ohms @ 100 MHz | 1.5A | 30mOhm | - | -40°C ~ 125°C | Surface Mount | 0.043" (1.10mm) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - |
|
HF70ACB322513-TFERRITE BEAD 52 OHM 1210 1LN |
0 |
|
Datasheet |
HF-ACB | 1210 (3225 Metric) | Tape & Reel (TR) | Obsolete | Signal Line | 1 | 52 Ohms @ 100 MHz | 400mA | 300mOhm | - | -40°C ~ 125°C | Surface Mount | 0.059" (1.50mm) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - |
|
HF70ACB201209-TFERRITE BEAD 10 OHM 0805 1LN |
0 |
|
Datasheet |
HF-ACB | 0805 (2012 Metric) | Tape & Reel (TR) | Obsolete | Signal Line | 1 | 10 Ohms @ 100 MHz | 600mA | 100mOhm | - | -40°C ~ 125°C | Surface Mount | 0.043" (1.10mm) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - |
|
|
HF50ACC322513-TFERRITE BEAD 60 OHM 1210 1LN |
0 |
|
Datasheet |
HF-ACC | 1210 (3225 Metric) | Tape & Reel (TR) | Obsolete | Signal Line | 1 | 60 Ohms @ 100 MHz | 1.5A | 50mOhm | - | -40°C ~ 125°C | Surface Mount | 0.059" (1.50mm) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - |
