Ferrite Beads and Chips
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Ratings | Operating Temperature | Mounting Type | Height (Max) | Size / Dimension | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BLM18KG260WH1DFERRITE BEAD 26 OHM 0603 1LN |
607 |
|
Datasheet |
BLM18KG | 0603 (1608 Metric) | Tape & Reel (TR) | Last Time Buy | Power Line | 1 | 26 Ohms @ 100 MHz | 2A | 32mOhm | AEC-Q200 | -55°C ~ 150°C | Surface Mount, Epoxy | 0.030" (0.75mm) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | - |
.jpg)
|
742792038FERRITE BEAD 240 OHM 0805 1LN |
330 |
|
Datasheet |
WE-CBF | 0805 (2012 Metric) | Tape & Reel (TR) | Obsolete | Signal Line | 1 | 240 Ohms @ 100 MHz | 200mA | 400mOhm | - | -55°C ~ 125°C | Surface Mount | 0.043" (1.10mm) | 0.079" L x 0.047" W (2.00mm x 1.20mm) | - |
|
CTCB0603F-121PFERRITE BEAD 120 OHM 0603 1LN |
434 |
|
Datasheet |
CTCBF | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Power Line | 1 | 120 Ohms @ 100 MHz | 2.5A | 50mOhm | - | -40°C ~ 125°C | Surface Mount | 0.039" (1.00mm) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | - |
|
NFZ18SM701SN10DFERRITE BEAD 700 OHM 0603 1LN |
771 |
|
Datasheet |
NFZ | 0603 (1608 Metric) | Tape & Reel (TR) | Active | - | 1 | 700 Ohms @ 100 MHz | 800mA | 290mOhm | - | -55°C ~ 125°C | Surface Mount | 0.037" (0.95mm) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | - |
|
HF70ACB321611-TFERRITE BEAD 26 OHM 1206 1LN |
200 |
|
Datasheet |
HF-ACB | 1206 (3216 Metric) | Tape & Reel (TR) | Obsolete | Signal Line | 1 | 26 Ohms @ 100 MHz | 500mA | 200mOhm | - | -40°C ~ 125°C | Surface Mount | 0.051" (1.30mm) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - |
.jpg)
|
Z0805C8R0GPWSTFERRITE BEAD 8 OHM 0805 1LN |
764 |
|
Datasheet |
Z-PWS | 0805 (2012 Metric) | Tape & Reel (TR) | Obsolete | Power Line | 1 | 8 Ohms @ 100 MHz | 2A | 10mOhm | - | -40°C ~ 125°C | Surface Mount | 0.041" (1.05mm) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - |
|
HF30ACC322513-TFERRITE BEAD 31 OHM 1210 1LN |
790 |
|
Datasheet |
HF-ACC | 1210 (3225 Metric) | Tape & Reel (TR) | Obsolete | Signal Line | 1 | 31 Ohms @ 100 MHz | 1.5A | 50mOhm | - | -40°C ~ 125°C | Surface Mount | 0.059" (1.50mm) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - |
|
Z1206C480APWSTFERRITE BEAD 48 OHM 1206 1LN |
569 |
|
Datasheet |
Z-PWS | 1206 (3216 Metric) | Tape & Reel (TR) | Obsolete | Power Line | 1 | 48 Ohms @ 100 MHz | 6A | 5mOhm | - | -40°C ~ 125°C | Surface Mount | 0.051" (1.30mm) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - |
|
|
BPH 403022R5-400T-G40 OHMS @ 100 MHZ 1 POWER LINE F |
453 |
|
Datasheet |
BPH | Nonstandard | Cut Tape (CT) | Active | Power Line | 1 | 40 Ohms @ 100 MHz | 20A | 0.7mOhm | - | -40°C ~ 125°C | Surface Mount | 0.087" (2.20mm) | 0.165" L x 0.118" W (4.20mm x 3.00mm) | - |
|
|
Z0805C331BPWZTFERRITE BEAD 330 OHM 0805 1LN |
801 |
|
Datasheet |
Z-PWZ | 0805 (2012 Metric) | Tape & Reel (TR) | Obsolete | Power Line | 1 | 330 Ohms @ 100 MHz | 1.8A | 80mOhm | - | -40°C ~ 125°C | Surface Mount | 0.041" (1.05mm) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - |
|
|
Z0805C121BPWZTFERRITE BEAD 120 OHM 0805 1LN |
998 |
|
Datasheet |
Z-PWZ | 0805 (2012 Metric) | Tape & Reel (TR) | Obsolete | Power Line | 1 | 120 Ohms @ 100 MHz | 2.5A | 32mOhm | - | -40°C ~ 125°C | Surface Mount | 0.041" (1.05mm) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - |
|
|
HFZ 3216PF-601T29600 OHMS @ 100 MHZ 1 POWER, SIGN |
218 |
|
Datasheet |
HFZ3216PF | 1206 (3216 Metric) | Cut Tape (CT) | Active | Power Line | 1 | 600 Ohms @ 100 MHz | 2.9A | 38mOhm | - | -55°C ~ 125°C | Surface Mount | 0.051" (1.30mm) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - |
|
FBH321611T-310Y-SFB HI 1206 31 OHM 3A .03DC |
1,000 |
|
Datasheet |
FBH | 1206 (3216 Metric) | Cut Tape (CT) | Active | Power Line | 1 | 31 Ohms @ 100 MHz | 3A | 30mOhm | - | - | Surface Mount | 0.051" (1.30mm) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - |
|
|
HF30ACC322513-TD25FERRITE BEAD 31 OHM 1210 1LN |
211 |
|
Datasheet |
HF-ACC | 1210 (3225 Metric) | Tape & Reel (TR) | Obsolete | Signal Line | 1 | 31 Ohms @ 100 MHz | 1.5A | 50mOhm | AEC-Q200 | -40°C ~ 125°C | Surface Mount | 0.059" (1.50mm) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - |
|

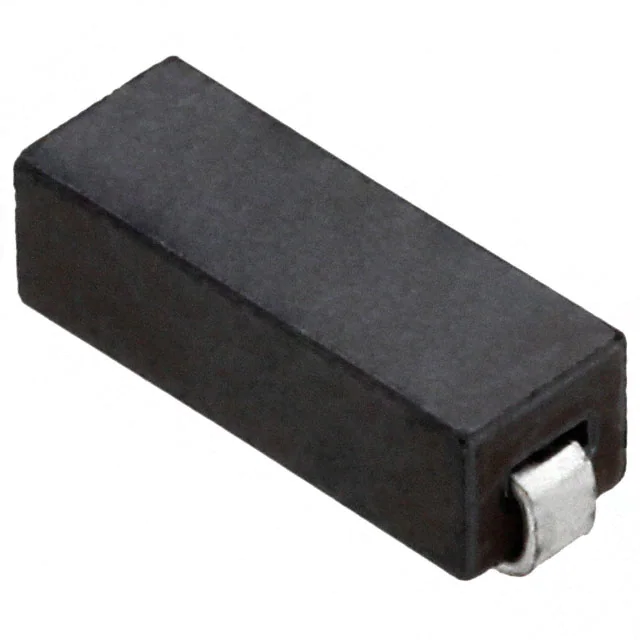

ACSB-02-TFERRITE BEAD 90 OHM 2SMD 1LN |
1,000 |
|
Datasheet |
ACSB | 2-SMD, J-Lead | Tape & Reel (TR) | Obsolete | - | 1 | 90 Ohms @ 100 MHz | 5A | 0.9mOhm | - | -40°C ~ 85°C | Surface Mount | 0.106" (2.70mm) | 0.335" L x 0.122" W (8.50mm x 3.10mm) | - |
|
|
HCB 4532KF-800T9080 OHMS @ 100 MHZ 1 POWER LINE F |
980 |
|
Datasheet |
HCB4532KF | 1812 (4532 Metric) | Cut Tape (CT) | Active | Power Line | 1 | 80 Ohms @ 100 MHz | 9A | 10mOhm | - | -55°C ~ 125°C | Surface Mount | 0.067" (1.70mm) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - |
|
|
CTCB1812F-121PFERRITE BEAD 120 OHM 1812 1LN |
800 |
|
Datasheet |
CTCBF | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Power Line | 1 | 120 Ohms @ 100 MHz | 4A | 30mOhm | - | -40°C ~ 125°C | Surface Mount | 0.067" (1.70mm) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - |
|
Z1806C720APWSTFERRITE BEAD 72 OHM 1806 1LN |
223 |
|
Datasheet |
Z-PWS | 1806 (4516 Metric) | Tape & Reel (TR) | Obsolete | Power Line | 1 | 72 Ohms @ 100 MHz | 6A | 7mOhm | - | -40°C ~ 125°C | Surface Mount | 0.051" (1.30mm) | 0.177" L x 0.063" W (4.50mm x 1.60mm) | - |
|
|
HCB 4532MF-681T40680 OHMS @ 100 MHZ 1 POWER LINE |
1,588 |
|
Datasheet |
HCB4532 | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Power Line | 1 | 680 Ohms @ 100 MHz | 4A | 30mOhm | - | -55°C ~ 125°C | Surface Mount | 0.067" (1.70mm) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - |
|
|
FB453215T-950Y-SFBEAD 1812 95 OHM .2DC 500MA |
1,000 |
|
Datasheet |
FB | 1812 (4532 Metric) | Tape & Reel (TR) | Active | - | 1 | 95 Ohms @ 100 MHz | 500mA | 200mOhm | - | - | Surface Mount | 0.067" (1.70mm) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - |
