Ferrite Beads and Chips
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Ratings | Operating Temperature | Mounting Type | Height (Max) | Size / Dimension | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
7427928251WE-CBF SMT EMI SUPPRESSION FERRI |
3,879 |
|
Datasheet |
WE-CBF | 2220 (5750 Metric) | Tape & Reel (TR) | Active | Signal Line | 1 | 250 Ohms @ 100 MHz | 4A | 12mOhm | AEC-Q200 | -55°C ~ 125°C | Surface Mount | 0.081" (2.05mm) | 0.220" L x 0.200" W (5.59mm x 5.08mm) | Automotive |
|
|
7427928551WE-CBF SMT EMI SUPPRESSION FERRI |
3,581 |
|
Datasheet |
WE-CBF | 2220 (5750 Metric) | Tape & Reel (TR) | Active | Signal Line | 1 | 550 Ohms @ 100 MHz | 4A | 35mOhm | AEC-Q200 | -55°C ~ 125°C | Surface Mount | 0.089" (2.25mm) | 0.220" L x 0.200" W (5.59mm x 5.08mm) | Automotive |
|
|
7427928161WE-CBF SMT EMI SUPPRESSION FERRI |
3,114 |
|
Datasheet |
WE-CBF | 2220 (5750 Metric) | Tape & Reel (TR) | Active | Signal Line | 1 | 160 Ohms @ 100 MHz | 5A | 10mOhm | AEC-Q200 | -55°C ~ 125°C | Surface Mount | 0.081" (2.05mm) | 0.220" L x 0.200" W (5.59mm x 5.08mm) | Automotive |
|
|
7427928101WE-CBF SMT EMI SUPPRESSION FERRI |
2,719 |
|
Datasheet |
WE-CBF | 2220 (5750 Metric) | Tape & Reel (TR) | Active | Signal Line | 1 | 100 Ohms @ 100 MHz | 7A | 5mOhm | AEC-Q200 | -55°C ~ 125°C | Surface Mount | 0.081" (2.05mm) | 0.220" L x 0.200" W (5.59mm x 5.08mm) | Automotive |
|
|
BLE32SN120SZ1LFERRITE BEAD 12 OHM 1210 1LN |
1,344 |
|
Datasheet |
EMIFIL®, BLE32 | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Power Line | 1 | 12 Ohms @ 100 MHz | 20A | 0.6mOhm | AEC-Q200 | -55°C ~ 125°C | Surface Mount | 0.087" (2.20mm) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | Automotive |
|

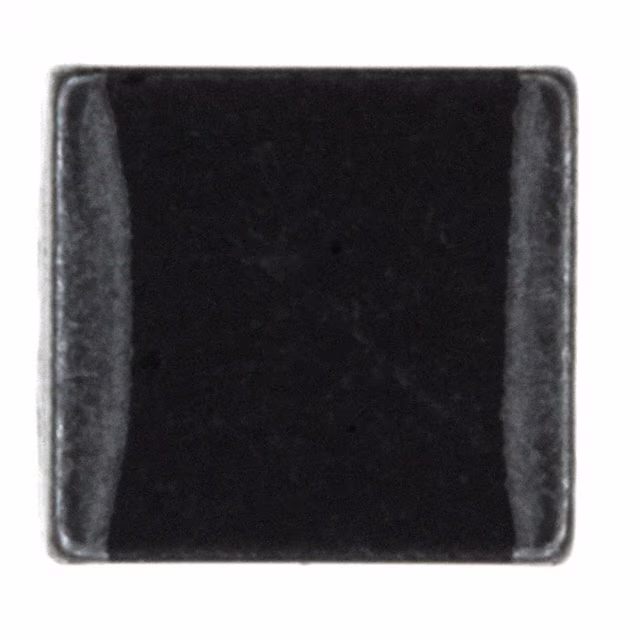

HI2220P271R-10FERRITE BEAD 270 OHM 2220 1LN |
9,900 |
|
Datasheet |
2220 | 2220 (5650 Metric) | Tape & Reel (TR) | Active | Power Line | 1 | 270 Ohms @ 100 MHz | 4A | 35mOhm | - | -40°C ~ 125°C | Surface Mount | 0.136" (3.45mm) | 0.220" L x 0.200" W (5.59mm x 5.08mm) | - |
|
LCMGA452525T162NGFERRITE BEAD 1.6K OHM 1810 1LN |
764 |
|
Datasheet |
LCMG | 1810 (4525 Metric) | Tape & Reel (TR) | Active | Power Line | 1 | 1.6 kOhms @ 100 MHz | 2A | 130mOhm | AEC-Q200 | -40°C ~ 125°C | Surface Mount | 0.110" (2.80mm) | 0.177" L x 0.098" W (4.50mm x 2.50mm) | Automotive |
|
|
EMI1206R-120FERRITE BEAD 120 OHM 1206 1LN |
3,975 |
|
Datasheet |
EMI1206R | 1206 (3216 Metric) | Tape & Reel (TR) | Active | - | 1 | 120 Ohms @ 100 MHz | 500mA | 150mOhm | - | -55°C ~ 125°C | Surface Mount | 0.051" (1.30mm) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - |
|
|
EMI1206R-600FERRITE BEAD 600 OHM 1206 1LN |
3,000 |
|
Datasheet |
EMI1206R | 1206 (3216 Metric) | Tape & Reel (TR) | Active | - | 1 | 600 Ohms @ 100 MHz | 500mA | 300mOhm | - | -55°C ~ 125°C | Surface Mount | 0.051" (1.30mm) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - |
|
|
4212R-7FERRITE BEAD 900 OHM RADIAL 1LN |
500 |
|
Datasheet |
4212R | Radial | Bulk | Active | - | 1 | 900 Ohms @ 100 MHz | - | - | - | - | Through Hole | - | - | - |
|
|
LB4X2X8FFERRITE BEAD AXIAL 1LN |
2,577 |
|
Datasheet |
Amobeads® | Axial Cylinder, Radial Bend | Bulk | Active | - | 1 | - | 8A (Typ) | - | - | - | Through Hole | - | 0.236" Dia x 0.472" L (6.00mm x 12.00mm) | - |
|
|
4221-3FERRITE BEAD 42 OHM 2SMD 1LN |
500 |
|
Datasheet |
4221 | 2-SMD, J-Lead | Tape & Reel (TR) | Active | - | 1 | 42 Ohms @ 100 MHz | 5A | 0.8mOhm (Typ) | - | -55°C ~ 125°C | Surface Mount | 0.146" (3.70mm) | 0.217" L x 0.117" W (5.50mm x 2.97mm) | - |
|
|
4221-2FERRITE BEAD 95 OHM 2SMD 1LN |
430 |
|
Datasheet |
4221 | 2-SMD, J-Lead | Tape & Reel (TR) | Active | - | 1 | 95 Ohms @ 100 MHz | 5A | 0.8mOhm (Typ) | - | -55°C ~ 125°C | Surface Mount | 0.128" (3.25mm) | 0.374" L x 0.120" W (9.50mm x 3.05mm) | - |
|
|
2944778102Ferrite bead through hole |
1,518 |
|
Datasheet |
- | 8-THD | Bulk | Active | - | 4 | 288 Ohms @ 100 MHz | - | - | - | -55°C ~ 125°C | Through Hole | 0.465" (11.80mm) | 0.441" L x 0.226" W (11.20mm x 5.75mm) | - |
|
DA1206E300R-10FERRITE BEAD 30 OHM 1206 4LN |
13,665 |
|
Datasheet |
1206 | 1206 (3216 Metric), Array, 8 PC Pad | Tape & Reel (TR) | Active | Power, Signal Line | 4 | 30 Ohms @ 100 MHz | 500mA | 300mOhm | - | -40°C ~ 125°C | Surface Mount | 0.043" (1.10mm) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - |
|
|
HR2220V701R-10FERRITE BEAD 700 OHM 2220 1LN |
3,749 |
|
Datasheet |
2220 | 2220 (5650 Metric) | Tape & Reel (TR) | Active | Power Line | 1 | 700 Ohms @ 100 MHz | 8A | 10mOhm | - | -40°C ~ 125°C | Surface Mount | 0.136" (3.45mm) | 0.220" L x 0.200" W (5.59mm x 5.08mm) | - |
|
29F0418-0SR-10FERRITE BEAD 80 OHM 8SMD 4LN |
8,644 |
|
Datasheet |
29 | 8-SMD, Flat Lead | Tape & Reel (TR) | Active | Power Line | 4 | 80 Ohms @ 100 MHz | 6A | 10mOhm | - | -40°C ~ 125°C | Surface Mount | 0.115" (2.92mm) | 0.240" L x 0.177" W (6.10mm x 4.50mm) | - |
|
29F0430-4SR-10FERRITE BEAD 290 OHM 8SMD 4LN |
1,348 |
|
Datasheet |
29 | 8-SMD, Flat Lead | Tape & Reel (TR) | Active | Power Line | 4 | 290 Ohms @ 100 MHz | 9A | 10mOhm | - | -40°C ~ 125°C | Surface Mount | 0.350" (8.90mm) | 0.428" L x 0.428" W (10.87mm x 10.87mm) | - |
|
|
FB060303T-241Y-SFERRITE BEAD 240 OHM 0201 1LN |
105,000 |
|
Datasheet |
FB | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Signal Line | 1 | 240 Ohms @ 100 MHz | 200mA | 800mOhm | - | -55°C ~ 125°C | Surface Mount | 0.013" (0.33mm) | 0.024" L x 0.012" W (0.60mm x 0.30mm) | - |
|
|
FBU201209T-310Y-SFERRITE BEAD 31 OHM 0805 1LN |
48,000 |
|
Datasheet |
FBU | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Power Line | 1 | 31 Ohms @ 100 MHz | 6A | 15mOhm | - | -55°C ~ 125°C | Surface Mount | 0.041" (1.05mm) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - |
Ferrite Beads and Chips Electronic Components
Explore Ferrite Beads and Chips electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
