Encoders
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Programmable | Encoder Type | Output Type | Pulses per Revolution | Voltage - Supply | Actuator Type | Detent | Built in Switch | Mounting Type | Orientation | Termination Style | Rotational Life (Cycles Min) | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
15S-19M1-1000NV1ROC-M001.5" DIA INCREMENTAL ENCODER 1/4 |
7 |
|
Datasheet |
15S | Box | Active | Not Verified | Incremental | Open Collector | 1000 | 5V ~ 28V | Shaft | No | No | Servo Mount | User Selectable | Cable | 12B | - | - |
|
15S-19M1-0500NV1ROC-M001.5" DIA INCREMENTAL ENCODER 1/4 |
5 |
|
Datasheet |
15S | Box | Active | Not Verified | Incremental | Open Collector | 500 | 5V ~ 28V | Shaft | No | No | Servo Mount | User Selectable | Cable | 12B | - | - |
|

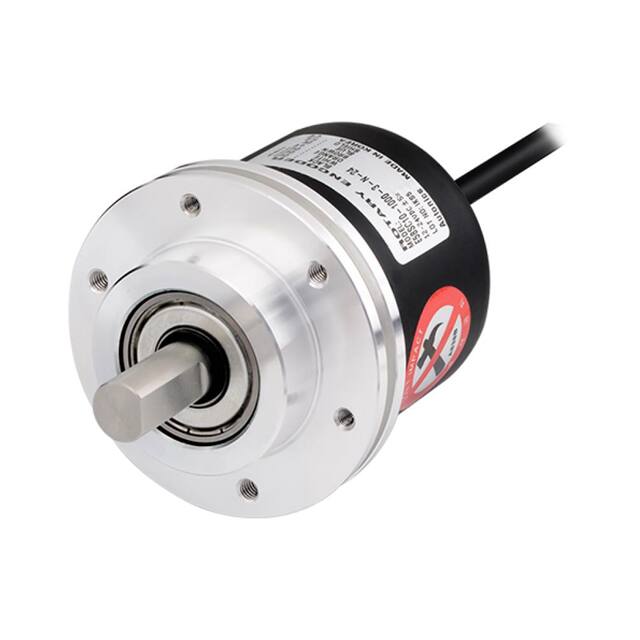

E58SC10-2000-3-V-24ENCODER 58MM 2000PPR 12-24VDC |
4 |
|
Datasheet |
E58 | Box | Active | Not Verified | Incremental | Voltage | 2000 | 12V ~ 24V | 10mm Dia Flatted End | No | No | Chassis Mount | User Selectable | Cable | - | - | - |
|
E40H10-5000-3-T-5ENCODER 40MM 5000PPR 5VDC |
20 |
|
Datasheet |
E40H | Retail Package | Active | Not Verified | Incremental | Totem Pole | 5000 | 5V | Hole for Shaft | No | No | Chassis Mount | User Selectable | Cable | - | - | - |
|
E40H12-2500-6-L-5ENCODER 40MM 2500PPR 5VDC |
14 |
|
Datasheet |
E40H | Box | Active | Not Verified | Incremental | Quadrature Line Driver with Index (Incremental) | 2500 | 5V | Hole for Shaft | No | No | Chassis Mount | User Selectable | Cable | - | - | - |
|
15T-01SA-4096NV1ROC-M001.5" DIA INCREMENTAL ENCODER 1/4 |
10 |
|
Datasheet |
15T | Box | Active | Not Verified | Incremental | Open Collector | 4096 | 5V ~ 28V | 10mm Open Center | No | No | Chassis Mount, Motors | User Selectable | Cable | - | - | - |
|
|
15T-04SA-2048NV1RHV-M001.5" DIA INCREMENTAL ENCODER 6MM |
10 |
|
Datasheet |
15T | Box | Active | Not Verified | Incremental | Quadrature Line Driver with Index (Incremental) | 2048 | 5V ~ 28V | 10mm Open Center | No | No | Chassis Mount, Motors | User Selectable | Cable | - | - | - |
|
|
15T-14SA-4096NV1ROC-M001.5" DIA INCREMENTAL ENCODER 8MM |
10 |
|
Datasheet |
15T | Box | Active | Not Verified | Incremental | Open Collector | 4096 | 5V ~ 28V | 10mm Open Center | No | No | Chassis Mount, Motors | User Selectable | Cable | - | - | - |
|
|
15T-14SA-2500NV1RHV-M001.5" DIA INCREMENTAL ENCODER 8MM |
10 |
|
Datasheet |
15T | Box | Active | Not Verified | Incremental | Quadrature Line Driver with Index (Incremental) | 2500 | 5V ~ 28V | 10mm Open Center | No | No | Chassis Mount, Motors | User Selectable | Cable | - | - | - |
|
15S-19M1-2048NV1ROC-M001.5" DIA INCREMENTAL ENCODER 1/4 |
10 |
|
Datasheet |
15S | Box | Active | Not Verified | Incremental | Open Collector | 2048 | 5V ~ 28V | Shaft | No | No | Servo Mount | User Selectable | Cable | 12B | - | - |
|
|
15T-02SA-2500NV1ROC-M001.5" DIA INCREMENTAL ENCODER 3/8 |
10 |
|
Datasheet |
15T | Box | Active | Not Verified | Incremental | Open Collector | 2500 | 5V ~ 28V | 10mm Open Center | No | No | Chassis Mount, Motors | User Selectable | Cable | - | - | - |
|
|
15T-14SA-2048NV1ROC-M001.5" DIA INCREMENTAL ENCODER 8MM |
10 |
|
Datasheet |
15T | Box | Active | Not Verified | Incremental | Open Collector | 2048 | 5V ~ 28V | 10mm Open Center | No | No | Chassis Mount, Motors | User Selectable | Cable | - | - | - |
|
|
15T-04SA-2500NV1RHV-M001.5" DIA INCREMENTAL ENCODER 6MM |
10 |
|
Datasheet |
15T | Box | Active | Not Verified | Incremental | Quadrature Line Driver with Index (Incremental) | 2500 | 5V ~ 28V | 10mm Open Center | No | No | Chassis Mount, Motors | User Selectable | Cable | - | - | - |
|
15S-20M6-2048NV1ROC-M001.5" DIA INCREMENTAL ENCODER 6MM |
10 |
|
Datasheet |
15S | Box | Active | Not Verified | Incremental | Open Collector | 2048 | 5V ~ 28V | Shaft | No | No | Servo Mount | User Selectable | Cable | 12B | - | - |
|
|
15S-20M6-2500NV1ROC-M001.5" DIA INCREMENTAL ENCODER 6MM |
10 |
|
Datasheet |
15S | Box | Active | Not Verified | Incremental | Open Collector | 2500 | 5V ~ 28V | Shaft | No | No | Servo Mount | User Selectable | Cable | 12B | - | - |
|
|
15S-20M6-3600NV1ROC-M001.5" DIA INCREMENTAL ENCODER 6MM |
10 |
|
Datasheet |
15S | Box | Active | Not Verified | Incremental | Open Collector | 3600 | 5V ~ 28V | Shaft | No | No | Servo Mount | User Selectable | Cable | 12B | - | - |
|

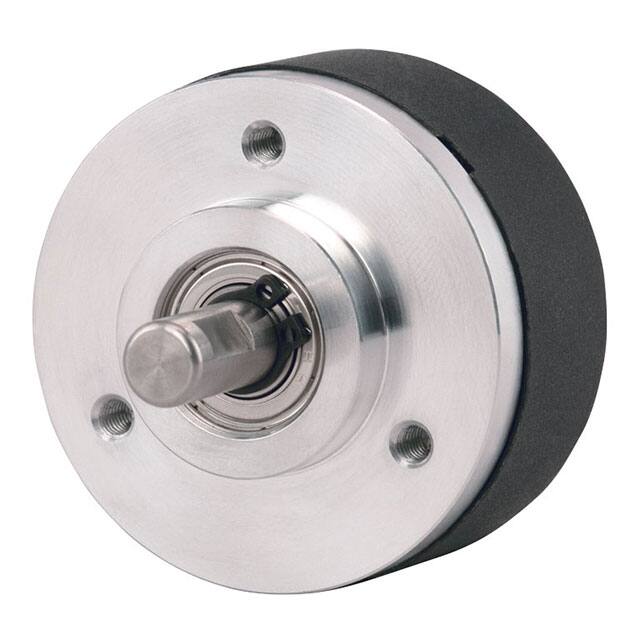

15S-19M1-3600NV1ROC-M001.5" DIA INCREMENTAL ENCODER 1/4 |
10 |
|
Datasheet |
15S | Box | Active | Not Verified | Incremental | Open Collector | 3600 | 5V ~ 28V | Shaft | No | No | Servo Mount | User Selectable | Cable | 12B | - | - |
|
15S-19M1-2500NV1ROC-M001.5" DIA INCREMENTAL ENCODER 1/4 |
10 |
|
Datasheet |
15S | Box | Active | Not Verified | Incremental | Open Collector | 2500 | 5V ~ 28V | Shaft | No | No | Servo Mount | User Selectable | Cable | 12B | - | - |
|
|
15T-01SA-2500NV1RHV-M001.5" DIA INCREMENTAL ENCODER 1/4 |
10 |
|
Datasheet |
15T | Box | Active | Not Verified | Incremental | Quadrature Line Driver with Index (Incremental) | 2500 | 5V ~ 28V | 10mm Open Center | No | No | Chassis Mount, Motors | User Selectable | Cable | - | - | - |
|
|
15T-04SA-2048NV1ROC-M001.5" DIA INCREMENTAL ENCODER 6MM |
10 |
|
Datasheet |
15T | Box | Active | Not Verified | Incremental | Open Collector | 2048 | 5V ~ 28V | 10mm Open Center | No | No | Chassis Mount, Motors | User Selectable | Cable | - | - | - |
Encoders Electronic Components
Explore Encoders electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
