Encoders
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Programmable | Encoder Type | Output Type | Pulses per Revolution | Voltage - Supply | Actuator Type | Detent | Built in Switch | Mounting Type | Orientation | Termination Style | Rotational Life (Cycles Min) | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RES20-50-200-ZROTARY ENCODER OPTICAL 50PPR |
29 |
|
Datasheet |
RE | Tray | Obsolete | Not Verified | Optical | Quadrature (Incremental) | 50 | 5V | Shaft | No | No | Panel Mount | User Selectable | PC Pin | - | - | - |
|
RMB28AC01SS96Rotary Encoder Module + AM4096 |
99 |
|
Datasheet |
RMB28 | Tape & Box (TB) | Active | - | Absolute, Magnetic | Quadrature (Incremental) | - | 5V | External Magnet, Not Included | No | No | Chassis Mount | User Selectable | Solder Tab | - | - | - |
|
|
513360-10ROTARY ENCODER MECHANICAL 10PPR |
0 |
|
Datasheet |
51 | Bulk | Active | Not Verified | Mechanical | BCD (Absolute) | 10 | - | 1/8" Dia Flatted End | Yes | No | Panel, PCB Through Hole | Vertical | PC Pin | 25K | - | - |
|
|
25BSP22-G-1-08ROTARY ENCODER MECHANICAL 16PPR |
0 |
|
Datasheet |
25 | Bulk | Active | Not Verified | Mechanical | Gray Code (Absolute) | 16 | - | 1/4" Dia Flatted End | No | No | PCB, Through Hole | Right Angle | PC Pin | 50K | - | - |
|
E4T-250-197-S-D-M-2E4T MINIATURE OPTICAL KIT ENCODE |
66 |
|
Datasheet |
- | Bulk | Active | Not Verified | Incremental | Quadrature (Incremental) | 250 | 4.5V ~ 5.5V | - | No | No | Surface Mount | Horizontal | Connector | - | - | - |
|
|
M-1024-4-A-A-E-B-A-KQM35 Optical Rotary Encoder |
95 |
|
Datasheet |
QM35 | Tray | Active | - | Incremental | Commutation, CCW, 4 Pole | 1024 | 5V | 8mm Open Center | No | No | Chassis Mount, Motors | User Selectable | Connector | - | - | - |
|

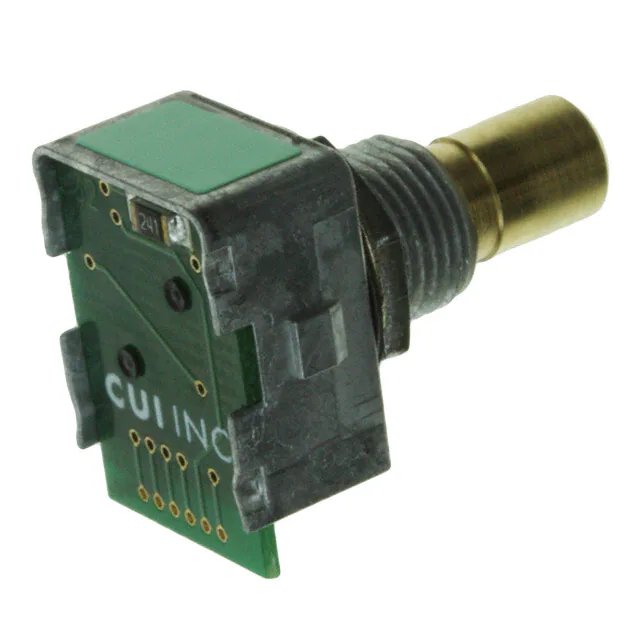

C14D32N-A3AENCODER OPT 32PPR IP65 SLD HOLE |
0 |
|
Datasheet |
C14 | Bulk | Active | Not Verified | Optical | Quadrature (Incremental) | 32 | 5V | 1/4" Dia Flatted End | Yes | No | Panel Mount | Right Angle | Solder Lug | 1M | - | - |
|
|
25BSR22-G-1-16CROTARY ENCODER MECHANICAL 16PPR |
21 |
|
Datasheet |
25 | Bulk | Active | Not Verified | Mechanical | Gray Code (Absolute) | 16 | - | 1/4" Dia Flatted End | No | No | PCB, Through Hole | Right Angle | PC Pin | 50K | - | - |
|
|
61B22-01-01ROTARY ENCODER OPTICAL 16PPR |
0 |
|
Datasheet |
61B | Bulk | Active | Not Verified | Optical | Quadrature (Incremental) | 16 | 5V | 1/4" Dia Flatted End | Yes | No | Panel Mount | Vertical | PC Pin | 1M | - | - |
|
|
62D11-02-PROTARY ENCODER OPTICAL 32PPR |
3 |
|
Datasheet |
62D | Bulk | Active | Not Verified | Optical | Quadrature (Incremental) | 32 | 5V | 1/4" Dia Flatted End | Yes | Yes | PCB, Through Hole | Vertical | PC Pin | 1M | - | - |
|
|
61B22-01-02ROTARY ENCODER OPTICAL 16PPR |
0 |
|
Datasheet |
61B | Bulk | Active | Not Verified | Optical | Quadrature (Incremental) | 16 | 5V | 1/4" Dia Flatted End | Yes | Yes | Panel Mount | Vertical | PC Pin | 1M | - | - |
|
|
TMCS-20-4-8K-AT-01OPTICAL ENCODER, 8192 PULSES, 20 |
15 |
|
Datasheet |
TMCS-20 | Box | Active | - | Incremental | TTL | 512 | 4.5V ~ 5.5V | Shaft | No | No | Chassis Mount | Vertical | Pin Header | - | - | - |
|
|
61KS256ROTARY ENCODER OPTICAL 256PPR |
0 |
|
Datasheet |
61K | Bulk | Active | Not Verified | Optical | Quadrature (Incremental) | 256 | 5V | 1/4" Dia Flatted End | No | No | Panel, PCB Through Hole | Vertical | PC Pin | 10M | - | - |
|
|
62F22-01-P-LROTARY ENCODER OPTICAL 16PPR |
3 |
|
Datasheet |
62F | Bulk | Active | Not Verified | Optical | Quadrature (Incremental) | 16 | 5V | 1/4" Dia Flatted End | Yes | No | PCB, Through Hole | Vertical | PC Pin | 1M | - | - |
|
|
25BP45-Q-2-08CROTARY ENCODER MECHANICAL 8PPR |
0 |
|
Datasheet |
25 | Bulk | Active | Not Verified | Mechanical | Quadrature (Incremental) | 8 | - | 1/4" Dia Flatted End | No | No | PCB, Through Hole | Right Angle | PC Pin | 50K | - | - |
|
E2-1000-197-IE-D-D-3E2 OPTICAL KIT ENCODER |
14 |
|
Datasheet |
- | Bulk | Active | Not Verified | Incremental | Quadrature with Index (Incremental) | 1000 | 4.5V ~ 5.5V | - | No | No | Surface Mount | Horizontal | Connector | - | - | - |
|
|
62N30-PROTARY ENCODER OPTICAL 12PPR |
0 |
|
Datasheet |
62N | Bulk | Obsolete | Not Verified | Optical | Quadrature (Incremental) | 12 | 5V | 1/4" Dia Flatted End | Yes | Yes | PCB, Through Hole | Vertical | PC Pin | 1M | - | - |
|
E30S4-100-3-V-5ENCODER 30MM 100PPR 5VDC |
15 |
|
Datasheet |
E30S | Box | Active | Not Verified | Incremental | Voltage | 100 | 5V | 4mm Dia Flatted End | No | No | Chassis Mount | User Selectable | Cable | - | - | - |
|
|
E30S4-500-3-T-24ENCODER 30MM 500PPR 12-24VDC |
13 |
|
Datasheet |
E30S | Box | Active | Not Verified | Incremental | Totem Pole | 500 | 12V ~ 24V | 4mm Dia Flatted End | No | No | Chassis Mount | User Selectable | Cable | - | - | - |
|
|
E30S4-360-3-T-24ENCODER 30MM 360PPR 12-24VDC |
4 |
|
Datasheet |
E30S | Box | Active | Not Verified | Incremental | Totem Pole | 360 | 12V ~ 24V | 4mm Dia Flatted End | No | No | Chassis Mount | User Selectable | Cable | - | - | - |
Encoders Electronic Components
Explore Encoders electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
