Encoders
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Programmable | Encoder Type | Output Type | Pulses per Revolution | Voltage - Supply | Actuator Type | Detent | Built in Switch | Mounting Type | Orientation | Termination Style | Rotational Life (Cycles Min) | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AMT113S-2048-6350-SAMT10, AXIAL, CAP, SINGLE ENDED, |
20 |
|
Datasheet |
AMT11 | Box | Active | - | Incremental | Quadrature with Index (Incremental) | 2048 | 4.5V ~ 5.5V | 1/4" Open Center | No | No | Chassis Mount, Motors | Right Angle | Terminal Pins | - | - | - |
|
|
AMT112S-0500-5000-SAMT10, RADIAL, CAP, SINGLE ENDED |
20 |
|
Datasheet |
AMT11 | Box | Active | - | Incremental | Quadrature with Index (Incremental) | 500 | 4.5V ~ 5.5V | 5mm Open Center | No | No | Chassis Mount, Motors | Vertical | Terminal Pins | - | - | - |
|
|
AMT112S-0400-5000-SAMT11, RADIAL, CAP, SINGLE ENDED |
20 |
|
Datasheet |
AMT11 | Box | Active | - | Incremental | Quadrature with Index (Incremental) | 400 | 4.5V ~ 5.5V | 5mm Open Center | No | No | Chassis Mount, Motors | Vertical | Terminal Pins | - | - | - |
|
|
AMT113S-0400-8000-SAMT11, AXIAL, CAP, SINGLE ENDED, |
20 |
|
Datasheet |
AMT11 | Box | Active | - | Incremental | Quadrature with Index (Incremental) | 400 | 4.5V ~ 5.5V | 8mm Open Center | No | No | Chassis Mount, Motors | Right Angle | Terminal Pins | - | - | - |
|
|
AMT113S-0400-5000-SAMT11, AXIAL, CAP, SINGLE ENDED, |
20 |
|
Datasheet |
AMT11 | Box | Active | - | Incremental | Quadrature with Index (Incremental) | 400 | 4.5V ~ 5.5V | 5mm Open Center | No | No | Chassis Mount, Motors | Right Angle | Terminal Pins | - | - | - |
|
|
AMT113S-2048-5000-SAMT10, AXIAL, CAP, SINGLE ENDED, |
20 |
|
Datasheet |
AMT11 | Box | Active | - | Incremental | Quadrature with Index (Incremental) | 2048 | 4.5V ~ 5.5V | 5mm Open Center | No | No | Chassis Mount, Motors | Right Angle | Terminal Pins | - | - | - |
|
|
AMT113S-0500-8000-SAMT10, AXIAL, CAP, SINGLE ENDED, |
20 |
|
Datasheet |
AMT11 | Box | Active | - | Incremental | Quadrature with Index (Incremental) | 500 | 4.5V ~ 5.5V | 8mm Open Center | No | No | Chassis Mount, Motors | Right Angle | Terminal Pins | - | - | - |
|
|
AMT112S-0500-6350-SAMT10, RADIAL, CAP, SINGLE ENDED |
20 |
|
Datasheet |
AMT11 | Box | Active | - | Incremental | Quadrature with Index (Incremental) | 500 | 4.5V ~ 5.5V | 1/4" Open Center | No | No | Chassis Mount, Motors | Vertical | Terminal Pins | - | - | - |
|
|
AMT113S-0500-5000-SAMT10, AXIAL, CAP, SINGLE ENDED, |
20 |
|
Datasheet |
AMT11 | Box | Active | - | Incremental | Quadrature with Index (Incremental) | 500 | 4.5V ~ 5.5V | 5mm Open Center | No | No | Chassis Mount, Motors | Right Angle | Terminal Pins | - | - | - |
|
|
AMT113S-4096-6350-SAMT10, AXIAL, CAP, SINGLE ENDED, |
20 |
|
Datasheet |
AMT11 | Box | Active | - | Incremental | Quadrature with Index (Incremental) | 4096 | 4.5V ~ 5.5V | 1/4" Open Center | No | No | Chassis Mount, Motors | Right Angle | Terminal Pins | - | - | - |
|
|
AMT112S-0500-8000-SAMT10, RADIAL, CAP, SINGLE ENDED |
19 |
|
Datasheet |
AMT11 | Box | Active | - | Incremental | Quadrature with Index (Incremental) | 500 | 4.5V ~ 5.5V | 8mm Open Center | No | No | Chassis Mount, Motors | Vertical | Terminal Pins | - | - | - |
|
|
AMT112S-4096-6000-SAMT10, RADIAL, CAP, SINGLE ENDED |
19 |
|
Datasheet |
AMT11 | Box | Active | - | Incremental | Quadrature with Index (Incremental) | 4096 | 4.5V ~ 5.5V | 6mm Open Center | No | No | Chassis Mount, Motors | Vertical | Terminal Pins | - | - | - |
|
RES20-100-200-ZROTARY ENCODER OPTICAL 100PPR |
14 |
|
Datasheet |
RE | Tray | Active | Not Verified | Optical | Quadrature (Incremental) | 100 | 5V | Shaft | No | No | Panel Mount | User Selectable | PC Pin | - | - | - |
|
|
MEOP19VGP24CM2F20.8PF3FOPTICAL ENCODER |
100 |
|
Datasheet |
MEOP 19 | Tray | Active | - | Optical | Pulse | 24 | 3.3V | 6mm Dia Flatted End | Yes | Yes | PCB, Through Hole | Vertical | PC Pin | 1M | - | - |
|
|
MEOP19VG24C2F14-MTF3FOPTICAL ENCODER, 18.6 X 20 MM, N |
100 |
|
- |
MEOP 19 | Tray | Active | - | Mechanical | Pulse | 24 | 3.135V ~ 3.465V | 6.35mm Dia Flatted End | Yes | Yes | PCB, Through Hole | User Selectable | Cable | - | - | - |
|
|
MEOP19VGP24CM2F22PF3FOPTICAL ENCODER |
100 |
|
Datasheet |
MEOP 19 | Tray | Active | - | Optical | Pulse | 24 | 3.3V | 6mm Dia Flatted End | Yes | Yes | PCB, Through Hole | Vertical | PC Pin | 1M | - | - |
|
|
MEOP19VGP24CM2F14.2PF3FOPTICAL ENCODER |
100 |
|
Datasheet |
MEOP 19 | Tray | Active | - | Optical | Pulse | 24 | 3.3V | 6mm Dia Flatted End | Yes | Yes | PCB, Through Hole | Vertical | PC Pin | 1M | - | - |
|

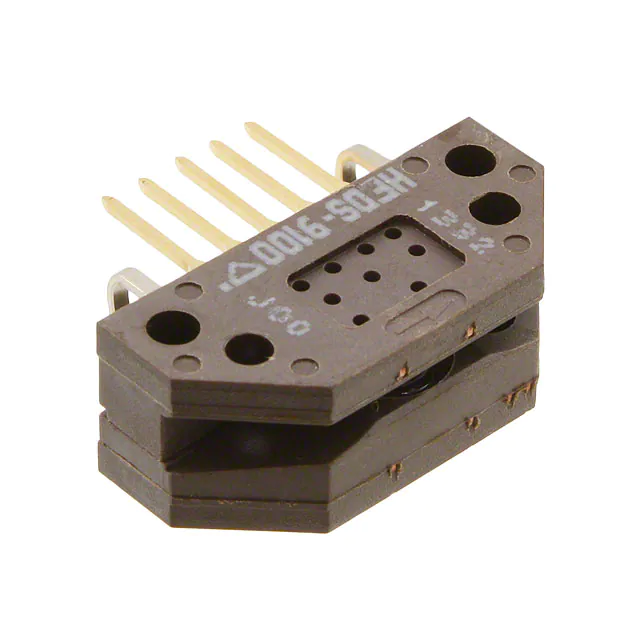

HEDS-9100#J00ROTARY ENCODER OPTICAL 1024PPR |
95 |
|
Datasheet |
HEDS | Bulk | Active | Not Verified | Optical | Quadrature (Incremental) | 1024 | 5V | Codewheel Not Included | No | No | Chassis Mount | Vertical | Terminal Pins | - | - | - |
|
|
AEDR-9830DP-102ENCODER DP 318LPI, REEL 100U |
30 |
|
Datasheet |
AEDR | Tray | Active | - | Incremental | Quadrature (Incremental) | - | 3.3V ~ 5V | External Magnet, Not Included | No | No | Surface Mount | Vertical | SMD (SMT) Tab | - | - | - |
|
|
AEDR-9930E-102REFLECTIVE ROTARY 397LPI ENCODER |
177 |
|
Datasheet |
AEDR | Tape & Reel (TR) | Active | - | Incremental | Digital | 397 LPI | 3.3V ~ 5V | Codewheel Not Included | No | No | Surface Mount | - | SMD (SMT) Tab | - | - | - |
Encoders Electronic Components
Explore Encoders electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
