Encoders
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Programmable | Encoder Type | Output Type | Pulses per Revolution | Voltage - Supply | Actuator Type | Detent | Built in Switch | Mounting Type | Orientation | Termination Style | Rotational Life (Cycles Min) | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EC50A0920404RING TYP ENCODERS |
120 |
|
Datasheet |
EC50A | Tray | Active | - | Mechanical | Quadrature (Incremental) | 9 | 5V | 50mm Open Center | Yes | No | PCB, Through Hole | Vertical | PC Pin | 40K | - | - |
|
|
AEAT-9933-Q2414BITS MAG ENC ON-OFF AXIS |
949 |
|
- |
- | Tube | Active | - | Magnetic | Commutation, PWM, SPI, Quadrature with index (Incremental) | 1024 | 4.5V ~ 5.5V | External Magnet, Not Included | No | Yes | Surface Mount | Vertical | SMD (SMT) Tab | - | - | - |
|
|
AEAT-9933-10214BITS MAG ENC ON-OFF AXIS TR 10 |
800 |
|
- |
- | Tape & Reel (TR) | Active | - | Magnetic | Commutation, PWM, SPI, Quadrature with index (Incremental) | 1024 | 4.5V ~ 5.5V | External Magnet, Not Included | No | Yes | Surface Mount | Vertical | SMD (SMT) Tab | - | - | - |
|
|
EC1110120201METAL SHAFT ENCODERS |
1,194 |
|
Datasheet |
EC111 | Tray | Active | - | Incremental | Quadrature (Incremental) | - | 5V | 4.5mm Dia Flatted End | No | Yes | PCB, Through Hole | Vertical | PC Pin | 15K | - | - |
|
|
EC1110120005METAL SHAFT ENCODERS |
1,197 |
|
Datasheet |
EC111 | Tray | Active | - | Incremental | Quadrature (Incremental) | - | 5V | 4.5mm Dia Flatted End | No | No | PCB, Through Hole | Vertical | PC Pin | 15K | - | - |
|
|
EC111012010HMETAL SHAFT ENCODERS |
1,198 |
|
Datasheet |
EC111 | Tray | Active | - | Incremental | Quadrature (Incremental) | - | 5V | 4.5mm Dia Flatted End | No | Yes | PCB, Through Hole | Vertical | PC Pin | 15K | - | - |
|

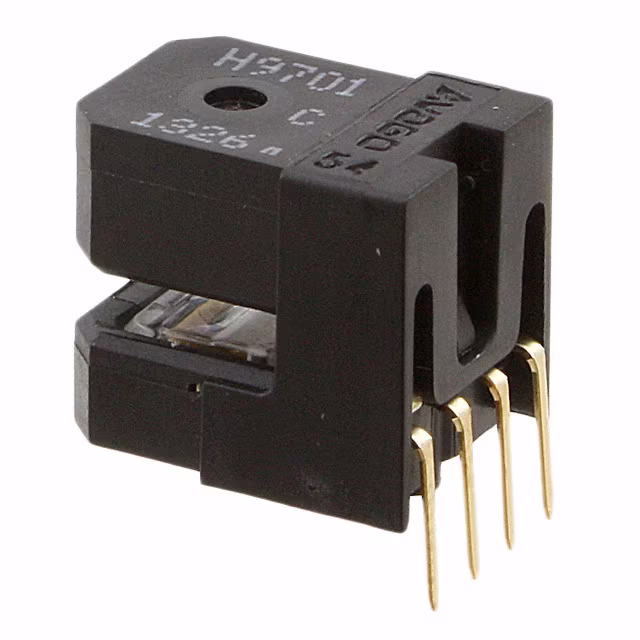

HEDS-9701#C54ROTARY ENCODER OPTICAL 100PPR |
408 |
|
Datasheet |
HEDS | Bulk | Active | Not Verified | Optical | Quadrature (Incremental) | 100 | 5V | Codewheel Not Included | No | No | Chassis Mount | Right Angle | Terminal Pins | - | - | - |
|
HEDS-9731#A50ROTARY ENCODER OPTICAL 500PPR |
238 |
|
Datasheet |
HEDS | Bulk | Active | Not Verified | Optical | Quadrature (Incremental) | 500 | 2.8V ~ 5.2V | Codewheel Not Included | No | No | Chassis Mount | Right Angle | Terminal Pins | - | - | - |
|
|
AEAT-9988M-104MAG ABS 23BITS SSI SPI RS485 TR |
300 |
|
- |
- | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
HEDS-9101#A00ROTARY ENCODER OPTICAL 500PPR |
168 |
|
Datasheet |
HEDS | Bulk | Active | Not Verified | Optical | Quadrature (Incremental) | 500 | 5V | Codewheel Not Included | No | No | Chassis Mount | Right Angle | Terminal Pins | - | - | - |
|
|
AEDR-9940-102198.4 LPI INCREMENTAL ENCODER 10 |
163 |
|
- |
AEDR | Tray | Active | - | Incremental | Quadrature (Incremental) | - | 3.3V ~ 5V | External Magnet, Not Included | No | No | Surface Mount | Vertical | SMD (SMT) Tab | - | - | - |
|
|
EM14R1A-R20-L008NROTARY ENCODER OPTICAL 8PPR |
104 |
|
Datasheet |
EM14 | Tray | Active | Not Verified | Optical | Quadrature (Incremental) | 8 | 5V | 6mm Dia Slotted End | Yes | No | Panel, PCB Through Hole | Right Angle | PC Pin | 1M | - | - |
|

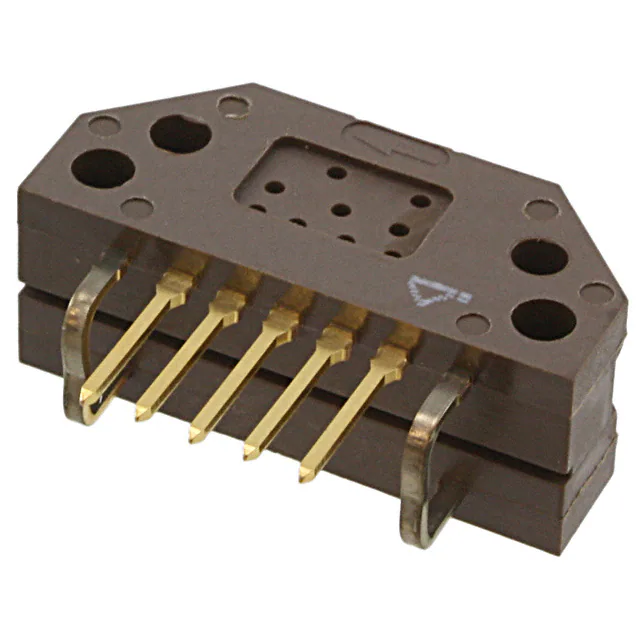

HEDS-9140#F00ROTARY ENCODER OPTICAL 256PPR |
102 |
|
Datasheet |
HEDS | Bulk | Active | Not Verified | Optical | Quadrature with Index (Incremental) | 256 | 5V | Codewheel Not Included | No | No | Chassis Mount | Vertical | Terminal Pins | - | - | - |
|
|
AEAT-9010-S06MAG ABS 10BITS SSI KIT 6MM SHAFT |
167 |
|
Datasheet |
- | Tray | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
HEDS-9200#300ROTARY ENCODR OPTICAL 300 LPI |
201 |
|
Datasheet |
HEDS | Bulk | Active | Not Verified | Optical | Quadrature (Incremental) | 300 LPI | 5V | Codestrip Not Included | No | No | Chassis Mount | Vertical | Terminal Pins | - | - | - |
|
|
HEDS-9140#I00ROTARY ENCODER OPTICAL 512PPR |
159 |
|
Datasheet |
HEDS | Tube | Active | Not Verified | Optical | Quadrature with Index (Incremental) | 512 | 5V | Codewheel Not Included | No | No | Chassis Mount | Vertical | Terminal Pins | - | - | - |
|
|
MEOP14DP16F10-MOPTICAL ENCODER, 14 X 17.4 MM, P |
180 |
|
- |
MEOP 14 | Box | Active | - | Mechanical | Pulse | 4 | 3.3V ~ 5V | 6.35mm Dia Round End | Yes | Yes | PCB, Through Hole | User Selectable | Cable | 1M | - | - |
|
|
MEOP14DP16F10-YOPTICAL ENCODER, 14 X 17.4 MM, P |
180 |
|
- |
MEOP 14 | Box | Active | - | Mechanical | Pulse | 4 | 3.3V ~ 5V | 6.35mm Dia Round End | Yes | Yes | PCB, Through Hole | User Selectable | Cable | 1M | - | - |
|
|
MEOP14DP16F10-MG2OPTICAL ENCODER, 14 X 17.4 MM, P |
180 |
|
- |
MEOP 14 | Box | Active | - | Mechanical | Pulse | 4 | 3.135V ~ 3.465V | 6.35mm Dia Round End | Yes | Yes | PCB, Through Hole | User Selectable | Cable | 1M | - | - |
|
|
MEOP14DP16F10-MGOPTICAL ENCODER, 14 X 17.4 MM, P |
180 |
|
- |
MEOP 14 | Box | Active | - | Mechanical | Pulse | 4 | 3.135V ~ 3.465V | 6.35mm Dia Round End | Yes | Yes | PCB, Through Hole | User Selectable | Cable | 1M | - | - |
