Encoders
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Programmable | Encoder Type | Output Type | Pulses per Revolution | Voltage - Supply | Actuator Type | Detent | Built in Switch | Mounting Type | Orientation | Termination Style | Rotational Life (Cycles Min) | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AEDR-9930E-100REFLECTIVE ROTARY 397LPI ENCODER |
0 |
|
Datasheet |
AEDR | Tape & Reel (TR) | Active | - | Incremental | Digital | 397 LPI | 3.3V ~ 5V | Codewheel Not Included | No | No | Surface Mount | - | SMD (SMT) Tab | - | - | - |
|
|
C14D32N-F3ENCODER OPT PANEL 32PPR 5VDC |
0 |
|
Datasheet |
C14 | Bulk | Active | Not Verified | Optical | Quadrature (Incremental) | 32 | 4.75V ~ 5.25V | 1/4" Dia Flatted End | Yes | No | Panel, PCB Through Hole | Vertical | PC Pin | 1M | - | - |
|
|
REC16A50-201-CROTARY ENCODER OPTICAL 50PPR |
0 |
|
Datasheet |
REC16 | Bulk | Active | Not Verified | Optical | Quadrature with Index (Incremental) | 50 | 5V | 6mm Dia Flatted End | No | Yes | Panel, PCB Through Hole | Vertical | PC Pin | 1M | - | - |
|

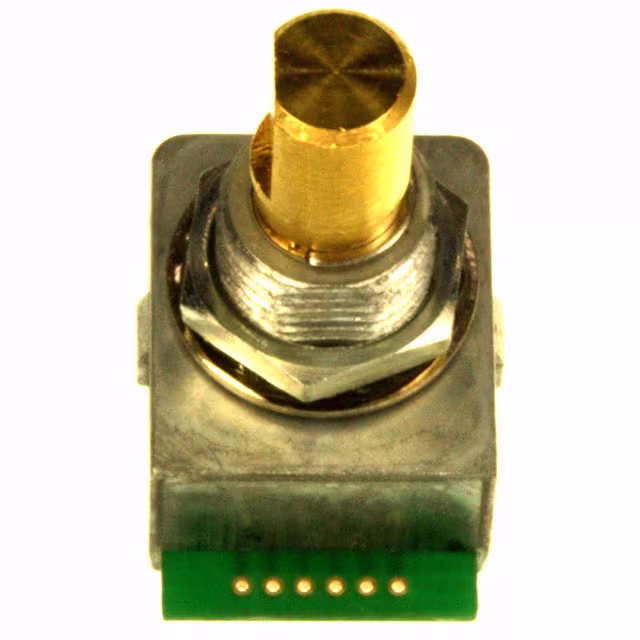

C14D16N-A2ROTARY ENCODER OPTICAL 16PPR |
0 |
|
Datasheet |
C14 | Box | Active | Not Verified | Optical | Quadrature (Incremental) | 16 | 5V | 6mm Dia Round End | Yes | No | Panel Mount | Right Angle | Solder Lug | 1M | - | - |
|
OPE1275H-128ROTARY ENCODER OPTICAL 128PPR |
0 |
|
Datasheet |
OPE | Box | Obsolete | Not Verified | Optical | Tachometer | 128 | 5V | 2mm Open Center | No | No | Chassis Mount, Motors | Vertical | Terminal Pins | - | - | - |
|
OPE1275H-256ROTARY ENCODER OPTICAL 256PPR |
0 |
|
Datasheet |
OPE | Box | Obsolete | Not Verified | Optical | Tachometer | 256 | 5V | 2mm Open Center | No | No | Chassis Mount, Motors | Vertical | Terminal Pins | - | - | - |
|
OPE1275S-128ROTARY ENCODER OPTICAL 128PPR |
0 |
|
Datasheet |
OPE | Box | Obsolete | Not Verified | Optical | Tachometer | 128 | 5V | 1/4" Dia Flatted End | No | No | Panel Mount | Vertical | Terminal Pins | - | - | - |
|
OPE1275S-256ROTARY ENCODER OPTICAL 256PPR |
0 |
|
Datasheet |
OPE | Box | Obsolete | Not Verified | Optical | Tachometer | 256 | 5V | 1/4" Dia Flatted End | No | No | Panel Mount | Vertical | Terminal Pins | - | - | - |
|
|
AEDR-9830A-100AUTO HT ENCODER 318LPI, REEL 1KP |
0 |
|
- |
AEDR | Tape & Reel (TR) | Active | Not Verified | Optical | Digital | 318 LPI | 2.97V ~ 3.63V, 4.5V ~ 5.5V | Codewheel Not Included | No | No | Surface Mount | - | SMD (SMT) Tab | - | - | - |
|
|
AEDR-9920-100AEDR-9920, 225 LPI INC ENCODER, |
0 |
|
- |
- | Tape & Reel (TR) | Active | Not Verified | Incremental | Digital, Quadrature, SPI, TTL | 225 | 3V ~ 3.6V, 4.5V ~ 5.5V | External Magnet, Not Included | No | No | Surface Mount | Vertical | SMD (SMT) Tab | - | - | - |
|
|
AEDR-9930EL-100LINEAR 397LPI ENCODER,TNR 1000 P |
0 |
|
Datasheet |
AEDR | Tape & Reel (TR) | Active | - | Incremental | Digital | 397 LPI | 3.3V ~ 5V | Codewheel Not Included | No | No | Surface Mount | - | SMD (SMT) Tab | - | - | - |
|
C14D16P-C2ROTARY ENCODER OPTICAL 16PPR |
0 |
|
Datasheet |
C14 | Box | Active | Not Verified | Optical | Quadrature (Incremental) | 16 | 5V | 6mm Dia Round End | Yes | Yes | Panel, PCB Through Hole | Vertical | PC Pin | 1M | - | - |
|

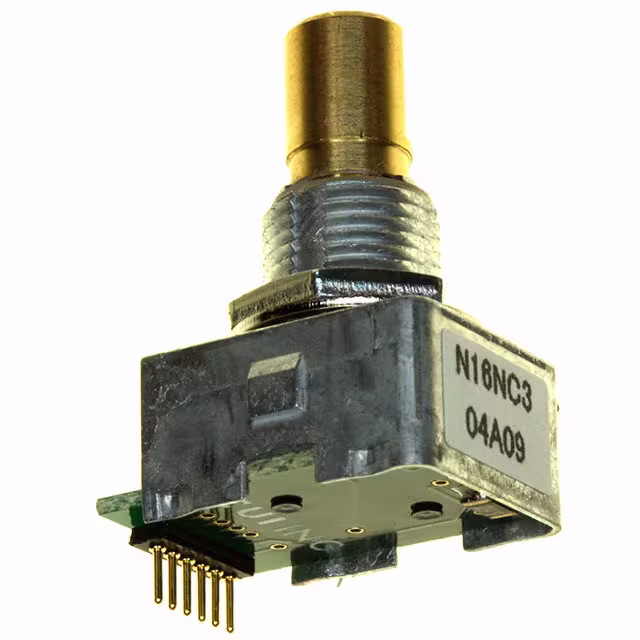

C14N16N-C3ROTARY ENCODER OPTICAL 16PPR |
0 |
|
Datasheet |
C14 | Box | Active | Not Verified | Optical | Quadrature (Incremental) | 16 | 5V | 1/4" Dia Flatted End | No | No | Panel, PCB Through Hole | Vertical | PC Pin | 1M | - | - |
|
C14N32N-C3ROTARY ENCODER OPTICAL 32PPR |
0 |
|
Datasheet |
C14 | Box | Active | Not Verified | Optical | Quadrature (Incremental) | 32 | 5V | 1/4" Dia Flatted End | No | No | Panel, PCB Through Hole | Vertical | PC Pin | 1M | - | - |
|
C14D32P-A3PA15 MM, 32 PPR, 6.35 MM METAL SHA |
0 |
|
Datasheet |
C14 | Tray | Active | Not Verified | Optical | Quadrature (Incremental) | 32 | 4.75V ~ 5.25V | 1/4" Dia Flatted End | Yes | Yes | Panel Mount | Right Angle | Solder Lug | 1M | - | - |
|
C14D16N-C3PA15 MM, 16 PPR, 6.35 MM PLASTIC S |
0 |
|
Datasheet |
C14 | Tray | Active | Not Verified | Optical | Quadrature (Incremental) | 16 | 4.75V ~ 5.25V | 1/4" Dia Flatted End | Yes | No | Panel, PCB Through Hole | Vertical | PC Pin | 1M | - | - |
|
|
C14D32N-C3PA15 MM, 32 PPR, 6.35 MM PLASTIC S |
0 |
|
Datasheet |
C14 | Tray | Active | Not Verified | Optical | Quadrature (Incremental) | 32 | 4.75V ~ 5.25V | 1/4" Dia Flatted End | Yes | No | Panel, PCB Through Hole | Vertical | PC Pin | 1M | - | - |
|
C14D32P-F3P15 MM, 32 PPR, 6.35 MM PLASTIC S |
0 |
|
Datasheet |
C14 | Tray | Active | Not Verified | Optical | Quadrature (Incremental) | 32 | 4.75V ~ 5.25V | 1/4" Dia Flatted End | Yes | Yes | Panel, PCB Through Hole | Vertical | PC Pin | 1M | - | - |
|

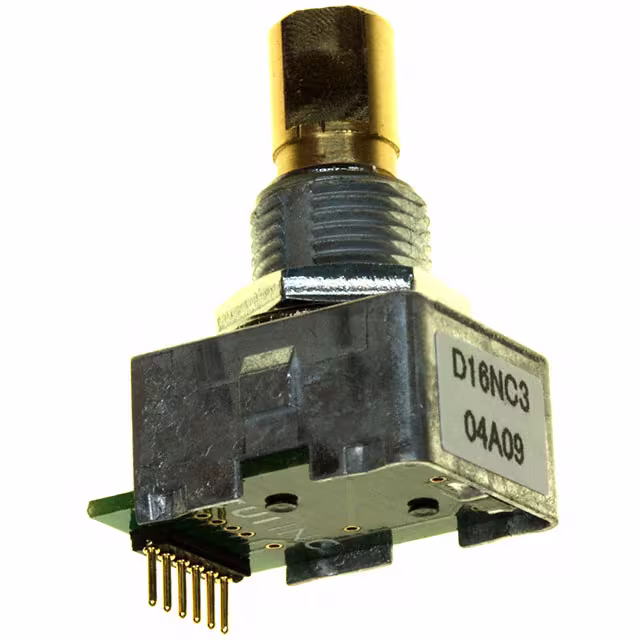

C14D16N-C3ROTARY ENCODER OPTICAL 16PPR |
0 |
|
Datasheet |
C14 | Box | Active | Not Verified | Optical | Quadrature (Incremental) | 16 | 5V | 1/4" Dia Flatted End | Yes | No | Panel, PCB Through Hole | Vertical | PC Pin | 1M | - | - |
|
C14D32N-C3ROTARY ENCODER OPTICAL 32PPR |
0 |
|
Datasheet |
C14 | Box | Active | Not Verified | Optical | Quadrature (Incremental) | 32 | 5V | 1/4" Dia Flatted End | Yes | No | Panel, PCB Through Hole | Vertical | PC Pin | 1M | - | - |
Encoders Electronic Components
Explore Encoders electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
