EMI/RFI Filters (LC, RC Networks)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Filter Order | Technology | Number of Channels | Center / Cutoff Frequency | Attenuation Value | Resistance - Channel (Ohms) | Current | Values | ESD Protection | Operating Temperature | Applications | Voltage - Rated | Grade | Qualification | Mounting Type | Size / Dimension | Height |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RI4184DUAL USB 2.0 480 MBPS FEEDTHRU F |
0 |
|
- |
- | - | Box | Active | Band Pass | 2nd | - | 4 | - | 50dB @ 800MHz ~ 3GHz | - | - | - | Yes | - | - | - | - | - | Bolt Mount | 2.795" L x 1.417" W (71.0mm x 36.0mm) | 0.870" (22.10mm) |
|
RI4185SINGLE USB 2.0 480 MBPS FEEDTHRU |
0 |
|
- |
- | - | Box | Active | Band Pass | 2nd | - | 4 | - | 50dB @ 800MHz ~ 3GHz | - | - | - | Yes | - | - | - | - | - | Bolt Mount | 2.795" L x 1.417" W (71.0mm x 36.0mm) | 0.870" (22.10mm) |
|
RI4193HDMI FEEDTHRU FILTER |
0 |
|
- |
- | - | Box | Active | Band Pass | 2nd | - | 19 | - | 50dB @ 800MHz ~ 3GHz | - | - | - | Yes | - | - | - | - | - | Bolt Mount | 2.795" L x 1.417" W (71.0mm x 36.0mm) | 0.870" (22.10mm) |
|
RI4192USB 3.0 FEEDTHRU FILTER |
0 |
|
- |
- | - | Box | Active | Band Pass | 2nd | - | 9 | - | 50dB @ 800MHz ~ 3GHz | - | - | - | Yes | - | - | - | - | - | Bolt Mount | 2.795" L x 1.417" W (71.0mm x 36.0mm) | 0.870" (22.10mm) |
|

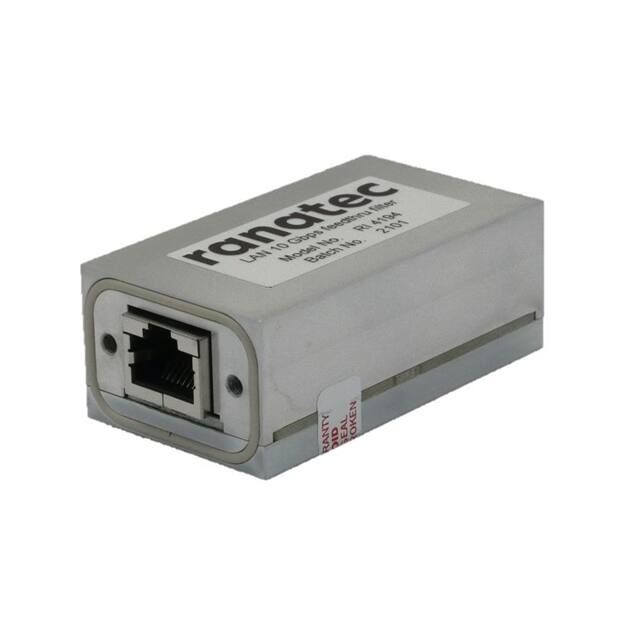

RI4194LAN 10 GBPS FEEDTHRU FILTER |
0 |
|
- |
- | - | Box | Active | Band Pass | 2nd | - | 8 | - | 50dB @ 800MHz ~ 3GHz | - | - | - | Yes | - | - | - | - | - | Bolt Mount | 2.795" L x 1.417" W (71.0mm x 36.0mm) | 0.870" (22.10mm) |
|
RI4182LAN 1 GBPS FEEDTHRU FILTER |
0 |
|
- |
- | - | Box | Active | Band Pass | 2nd | - | 8 | - | 50dB @ 800MHz ~ 3GHz | - | - | - | Yes | - | - | 50V | - | - | Bolt Mount | 2.795" L x 1.417" W (71.0mm x 36.0mm) | 0.870" (22.10mm) |
|
EMI332T-RCEMI T NETWORK FILTER |
0 |
|
- |
EMIT | Radial - 3 Leads | Tape & Box (TB) | Obsolete | Low Pass | 3rd | LC (T-Type) | 1 | - | 25dB @ 35MHz ~ 200MHz | 0.05 | 5 A | C = 3300pF | No | -25°C ~ 85°C | General Purpose | 50V | - | - | Through Hole | 0.354" L x 0.126" W (9.00mm x 3.20mm) | 0.315" (8.00mm) |
|
RG1784-1RC NETWORK, 0.5 MFD, 22 OHM, 250 |
0 |
|
- |
- | Radial | Box | Active | Low Pass | 1st | RC | 1 | - | - | - | - | R = 22Ohm, C = 0.5µF | No | -40°C ~ 80°C | General Purpose | 600V | - | - | Through Hole | 1.250" L x 0.580" W (31.75mm x 14.73mm) | 0.870" (22.10mm) |
|
|
4416P-AC3-00CRES NETWORK ARRAY SMD |
0 |
|
- |
601 | 16-SOIC (0.295", 7.50mm Width) | Bulk | Obsolete | Low Pass | - | - | - | - | - | - | - | - | No | - | General Purpose | - | - | - | Surface Mount | 0.410" L x 0.295" W (10.41mm x 7.50mm) | 0.115" (2.91mm) |
|
|
ACH3218-221-TD08FILTER LC(T) SMD |
0 |
|
- |
ACH | 1210 (3225 Metric), 3 PC Pad | Tape & Reel (TR) | Obsolete | Low Pass | 3rd | LC (T-Type) | 1 | - | - | 60 | 1.5 A | C = 22µF | No | -40°C ~ 125°C | General Purpose | 20V | - | - | Surface Mount | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.079" (2.00mm) |
|
|
NFW31SP206X1E4L01FILTER LC(PI) |
0 |
|
- |
EMIFIL®, NFW31 | 1206 (3216 Metric), 3 PC Pad | Bulk | Obsolete | Low Pass | 3rd | LC (Pi) | 1 | 20MHz (Cutoff) | 25dB @ 100MHz ~ 200MHz | - | 200 mA | - | No | -40°C ~ 85°C | General Purpose | 25V | - | - | Surface Mount | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.079" (2.00mm) |
|
|
NFW31SP506X1E4L01FILTER LC(PI) |
0 |
|
- |
EMIFIL®, NFW31 | 1206 (3216 Metric), 3 PC Pad | Bulk | Obsolete | Low Pass | 3rd | LC (Pi) | 1 | 50MHz (Cutoff) | 30dB @ 200MHz ~ 1GHz | - | 200 mA | - | No | -40°C ~ 85°C | General Purpose | 25V | - | - | Surface Mount | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.079" (2.00mm) |
|
|
NFW31SP106X1E4L01FILTER LC(PI) |
0 |
|
- |
EMIFIL®, NFW31 | 1206 (3216 Metric), 3 PC Pad | Bulk | Obsolete | Low Pass | 3rd | LC (Pi) | 1 | 10MHz (Cutoff) | 25dB @ 50MHz ~ 200MHz | - | 200 mA | - | No | -40°C ~ 85°C | General Purpose | 25V | - | - | Surface Mount | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.079" (2.00mm) |
|
|
NFW31SP206X1E4KFILTER LC(PI) |
0 |
|
- |
EMIFIL®, NFW31 | 1206 (3216 Metric), 3 PC Pad | Bulk | Obsolete | Low Pass | 3rd | LC (Pi) | 1 | 20MHz (Cutoff) | 25dB @ 100MHz ~ 200MHz | - | 200 mA | - | No | -40°C ~ 85°C | General Purpose | 25V | - | - | Surface Mount | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.079" (2.00mm) |
|
|
NFW31SP106X1E4KFILTER LC(PI) |
0 |
|
- |
EMIFIL®, NFW31 | 1206 (3216 Metric), 3 PC Pad | Bulk | Obsolete | Low Pass | 3rd | LC (Pi) | 1 | 10MHz (Cutoff) | 25dB @ 50MHz ~ 200MHz | - | 200 mA | - | No | -40°C ~ 85°C | General Purpose | 25V | - | - | Surface Mount | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.079" (2.00mm) |
|
F2779Y002L-0111 channel low voltage data line |
0 |
|
- |
* | - | Bulk | Active | - | - | - | 1 | - | 100dB @ 1MHz ~ 10GHz | - | 2.5 A | - | - | -25°C ~ 85°C | Datalines, Fire Alarm, LED Lighting | 250VAC | - | - | - | - | - |
|
|
FNC1005154103AFILTER EMI |
0 |
|
- |
FNC | Cylindrical | Bulk | Last Time Buy | - | - | - | - | - | - | - | 10 A | - | No | -25°C ~ 85°C | General Purpose | 275VAC | - | - | Chassis, Stud Mount | 1.575" Dia (40.00mm) | 1.575" (40.00mm) |
|
|
SF200-28-28S-C-HEMI FILTER, 28V INPUT, SINGLE OU |
0 |
|
- |
SF200-28 | Module | Bulk | Active | - | - | - | 2 | - | 63.4dB @ 325kHz | 0.025 | 13 mA | - | - | -55°C ~ 125°C | General Purpose | 60V | - | - | Chassis Mount | 3.050" L x 2.050" W (77.47mm x 52.07mm) | 0.500" (12.70mm) |
|
|
SF200-28-28S-B-HEMI FILTER, 28V INPUT, SINGLE OU |
0 |
|
- |
SF200-28 | 12-DIP Module | Bulk | Active | - | - | - | 2 | - | 63.4dB @ 325kHz | 0.025 | 13 mA | - | - | -55°C ~ 125°C | General Purpose | 60V | - | - | Through Hole | 3.050" L x 2.050" W (77.47mm x 52.07mm) | 0.500" (12.70mm) |
|
|
SF200-28-28S-D-HEMI FILTER, 28V INPUT, SINGLE OU |
0 |
|
- |
SF200-28 | 12-DIP Module | Bulk | Active | - | - | - | 2 | - | 63.4dB @ 325kHz | 0.025 | 13 mA | - | - | -55°C ~ 125°C | General Purpose | 60V | - | - | Through Hole | 3.050" L x 2.050" W (77.47mm x 52.07mm) | 0.500" (12.70mm) |
