EMI/RFI Filters (LC, RC Networks)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Filter Order | Technology | Number of Channels | Center / Cutoff Frequency | Attenuation Value | Resistance - Channel (Ohms) | Current | Values | ESD Protection | Operating Temperature | Applications | Voltage - Rated | Grade | Qualification | Mounting Type | Size / Dimension | Height |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CM1426-08CPFILTER RC(PI) 100 OHM/8.5PF SMD |
0 |
|
- |
- | 20-WFBGA, WLCSP | Tape & Reel (TR) | Obsolete | Low Pass | 2nd | RC (Pi) | 8 | 230MHz (Cutoff) | 20dB @ 1GHz | 100 | - | R = 100Ohms, C = 8.5pF | Yes | -40°C ~ 85°C | Data Lines for Mobile Devices | - | - | - | Surface Mount | 0.156" L x 0.052" W (3.96mm x 1.33mm) | 0.028" (0.70mm) |
|
CM1411-03CPFILTER RC(PI) 10 OHM/100PF SMD |
0 |
|
- |
- | 5-WFBGA, WLCSP | Tape & Reel (TR) | Obsolete | Low Pass | 2nd | RC (Pi) | 2 | 31MHz (Cutoff) | 35dB @ 800MHz ~ 2.7GHz | 10 | - | R = 10Ohms, C = 100pF | Yes | -40°C ~ 85°C | Audio | - | - | - | Surface Mount | 0.056" L x 0.037" W (1.41mm x 0.95mm) | 0.028" (0.70mm) |
|
NUF4210MNT1GFILTER RC(PI) 100 OHM/8.5PF SMD |
0 |
|
- |
- | 8-VFDFN Exposed Pad | Tape & Reel (TR) | Obsolete | Low Pass | 2nd | RC (Pi) | 4 | 250MHz (Cutoff) | -20dB @ 800MHz ~ 3GHz | 100 | - | R = 100Ohms, C = 8.5pF | Yes | -40°C ~ 85°C | Data Lines for Mobile Devices | - | - | - | Surface Mount | 0.063" L x 0.063" W (1.60mm x 1.60mm) | 0.039" (1.00mm) |
|
NUF4010MUT2GFILTER RC(PI) 100 OHM/7PF SMD |
0 |
|
- |
- | 8-UFDFN Exposed Pad | Tape & Reel (TR) | Obsolete | Low Pass | 2nd | RC (Pi) | 4 | 250MHz (Cutoff) | -20dB @ 800MHz ~ 5GHz | 100 | - | R = 100Ohms, C = 7pF | Yes | -40°C ~ 85°C | Data Lines for Mobile Devices | - | - | - | Surface Mount | 0.071" L x 0.047" W (1.80mm x 1.20mm) | 0.022" (0.55mm) |
|
CM1425-03CPFILTER RC(PI) 100 OHM/20PF SMD |
0 |
|
- |
- | 9-UFBGA, WLCSP | Tape & Reel (TR) | Obsolete | Low Pass | 2nd | RC (Pi) | 4 | 86MHz (Cutoff) | 30dB @ 800MHz ~ 3GHz | 100 | - | R = 100Ohms, C = 20pF | Yes | -40°C ~ 85°C | Data Lines for Mobile Devices | - | - | - | Surface Mount | 0.097" L x 0.038" W (2.47mm x 0.97mm) | 0.026" (0.65mm) |
|
NUF2015W1T2GFILTER RC(PI) 15 OHM/42PF SMD |
0 |
|
- |
- | 6-TSSOP, SC-88, SOT-363 | Tape & Reel (TR) | Obsolete | Low Pass | 2nd | RC (Pi) | 3 | - | - | 15 | - | R = 15Ohms, C = 42pF | Yes | -55°C ~ 125°C | USB | - | - | - | Surface Mount | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.043" (1.09mm) |
|

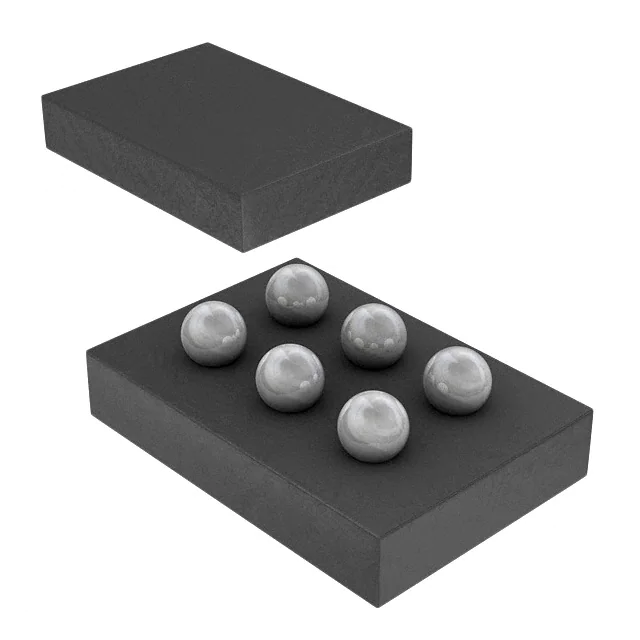

CM1418-02CPFILTER LC(PI) 3NH/117PF ESD SMD |
0 |
|
- |
Praetorian™ | 6-WFBGA, WLCSP | Tape & Reel (TR) | Obsolete | Low Pass | 3rd | LC (Pi) | 2 | 22MHz (Cutoff) | 35dB @ 1GHz | 0.28 | 500 mA | L = 3nH, C = 117pF | Yes | -40°C ~ 85°C | Data Lines for Mobile Devices | - | - | - | Surface Mount | 0.067" L x 0.048" W (1.72mm x 1.22mm) | 0.028" (0.70mm) |
|
CM1423-03CPFILTER RC(PI) 100 OHM/12PF SMD |
0 |
|
- |
- | 20-WFBGA, WLCSP | Tape & Reel (TR) | Obsolete | Low Pass | 2nd | RC (Pi) | 6 | 145MHz (Cutoff) | 25dB @ 1GHz | 100 | - | R = 100Ohms, C = 12pF | Yes | -40°C ~ 85°C | Data Lines for Mobile Devices | - | - | - | Surface Mount | 0.157" L x 0.057" W (4.00mm x 1.46mm) | 0.020" (0.51mm) |
|
|
CM1423-03CPDATA LINE FILTER, 6 FUNCTION(S), |
13,832 |
|
- |
- | 20-WFBGA, WLCSP | Bulk | Active | Low Pass | 2nd | RC (Pi) | 6 | 145MHz (Cutoff) | 25dB @ 1GHz | 100 | - | R = 100Ohms, C = 12pF | Yes | -40°C ~ 85°C | Data Lines for Mobile Devices | - | - | - | Surface Mount | 0.157" L x 0.057" W (4.00mm x 1.46mm) | 0.020" (0.51mm) |
|
CSPEMI306AGFILTER RC(PI) 100 OHM/30PF SMD |
0 |
|
- |
- | 15-UFBGA, WLCSP | Tape & Reel (TR) | Obsolete | Low Pass | 2nd | RC (Pi) | 6 | 58MHz (Cutoff) | 30dB @ 800MHz ~ 2.7GHz | 100 | - | R = 100Ohms, C = 30pF | Yes | -40°C ~ 85°C | Data Lines for Mobile Devices | - | - | - | Surface Mount | 0.117" L x 0.052" W (2.96mm x 1.33mm) | 0.026" (0.65mm) |
|
|
NUF2070MNT1GFILTER LC(PI) 10NH/64PF ESD SMD |
0 |
|
- |
- | 8-VFDFN Exposed Pad | Tape & Reel (TR) | Obsolete | Low Pass | 3rd | LC (Pi) | 2 | 50MHz (Cutoff) | -22.5dB @ 800MHz ~ 5GHz | 2.4 | - | L = 10nH, C = 64pF | Yes | -40°C ~ 85°C | Audio | - | - | - | Surface Mount | 0.079" L x 0.079" W (2.00mm x 2.00mm) | 0.039" (1.00mm) |
|
CM1420-03CPDATA LINE FILTER, 6 FUNCTION(S), |
4,500 |
|
- |
- | 15-WFBGA, WLCSP | Bulk | Active | Low Pass | 2nd | RC (Pi) | 6 | 120MHz (Cutoff) | 30dB @ 1GHz ~ 3GHz | 100 | - | R = 100Ohms, C = 15pF | Yes | -40°C ~ 85°C | Data Lines for Mobile Devices | - | - | - | Surface Mount | 0.117" L x 0.052" W (2.96mm x 1.33mm) | 0.028" (0.70mm) |
|
|
CM1420-03CPFILTER RC(PI) 100 OHM/15PF SMD |
0 |
|
- |
- | 15-WFBGA, WLCSP | Tape & Reel (TR) | Obsolete | Low Pass | 2nd | RC (Pi) | 6 | 120MHz (Cutoff) | 30dB @ 1GHz ~ 3GHz | 100 | - | R = 100Ohms, C = 15pF | Yes | -40°C ~ 85°C | Data Lines for Mobile Devices | - | - | - | Surface Mount | 0.117" L x 0.052" W (2.96mm x 1.33mm) | 0.028" (0.70mm) |
|
|
CM1426-06CPFILTER RC(PI) 100 OHM/8.5PF SMD |
0 |
|
- |
- | 15-WFBGA, WLCSP | Tape & Reel (TR) | Obsolete | Low Pass | 2nd | RC (Pi) | 6 | 230MHz (Cutoff) | 20dB @ 1GHz | 100 | - | R = 100Ohms, C = 8.5pF | Yes | -40°C ~ 85°C | Data Lines for Mobile Devices | - | - | - | Surface Mount | 0.117" L x 0.052" W (2.96mm x 1.33mm) | 0.028" (0.70mm) |
|
|
CM1401-32CPFILTER RC(PI) 100 OHM/30PF SMD |
0 |
|
- |
- | 15-WFBGA, WLCSP | Tape & Reel (TR) | Obsolete | Low Pass | 2nd | RC (Pi) | 4 | 58MHz (Cutoff) | 30dB @ 800MHz ~ 2.7GHz | 100 | - | R = 100Ohms, C = 30pF | Yes | -40°C ~ 85°C | Data Lines for Mobile Devices | - | - | - | Surface Mount | 0.117" L x 0.052" W (2.96mm x 1.33mm) | 0.028" (0.70mm) |
|
|
CM1406-04DEFILTER RC(PI) 200 OHM/15PF SMD |
0 |
|
- |
- | 8-WFDFN Exposed Pad | Tape & Reel (TR) | Obsolete | Low Pass | 2nd | RC (Pi) | 4 | 105MHz (Cutoff) | 30dB @ 800MHz ~ 3GHz | 200 | - | R = 200Ohms, C = 15pF | Yes | -40°C ~ 85°C | Data Lines for Mobile Devices | - | - | - | Surface Mount | 0.079" L x 0.079" W (2.00mm x 2.00mm) | 0.031" (0.79mm) |
|
|
CM1412-03CPFILTER RC(PI) 68 OHM/47PF SMD |
0 |
|
- |
- | 5-WFBGA, WLCSP | Tape & Reel (TR) | Obsolete | Low Pass | 2nd | RC (Pi) | 2 | 60MHz (Cutoff) | 35dB @ 800MHz ~ 2.7GHz | 68 | - | R = 68Ohms, C = 47pF | Yes | -40°C ~ 85°C | Audio | - | - | - | Surface Mount | 0.056" L x 0.037" W (1.41mm x 0.95mm) | 0.028" (0.70mm) |
|
EMIF05-AUD02F3FILTER ESD SMD |
5,000 |
|
- |
EMIF | 12-UFBGA, FCBGA | Tape & Reel (TR) | Obsolete | Low Pass | - | - | 5 | - | - | - | - | - | Yes | -40°C ~ 85°C | Data Lines for Mobile Devices | - | - | - | Surface Mount | 0.062" L x 0.046" W (1.57mm x 1.17mm) | 0.022" (0.55mm) |
|
IP3088CX10,135FILTER LC 40NH/42PF 175MHZ SMD |
27,000 |
|
- |
- | 10-WFBGA, CSPBGA | Bulk | Active | Low Pass | 2nd | LC | 4 | 175MHz (Cutoff) | - | 18 | 30 mA | L = 40nH, C = 42pF | Yes | -40°C ~ 85°C | General Purpose | 5.6V | - | - | Surface Mount | 0.077" L x 0.050" W (1.96mm x 1.28mm) | 0.028" (0.70mm) |
|
IP4035CX24/LF/P,13IC EMI FILTER ESD PROTECT 24CSP |
18,000 |
|
- |
* | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
