Emergency Stop (E-Stop) Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Reset Operation | Circuit | Switch Function | Features | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Panel Cutout Dimensions | Termination Style | Ingress Protection | Operating Temperature | Illumination Voltage (Nominal) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
XA1E-BV304V-RSW ESTOP PULL/TWST RESET 3A 125V |
4 |
|
- |
XN | Bulk | Active | Panel Mount, Front | Pull or Twist | 4PST-NC | On-Off | - | 3A (AC), 2A (DC) | 125 V | 30 V | Circular - 16.20mm Dia | PC Pin | IP65 - Dust Tight, Water Resistant | -25°C ~ 60°C | - |
|
|
FB1W-XW1E-BV402MR-HWAV27E-STOP STATION |
20 |
|
- |
XW | Bulk | Active | Panel Mount, Front | Pull or Twist | DPST-NC | On-Off | - | 5A (AC), 2A (DC) | 125 V | 30 V | Circular - 22.30mm Dia | Screw Terminal | IP65/IP67 - Dust Tight, Water Resistant, Waterproof | -25°C ~ 60°C | - |
|
XB6AS9345BSW E-STOP KEY LOCK RESET 3A 120V |
3 |
|
Datasheet |
Harmony XB6 | Box | Obsolete | Panel Mount, Front | Key Lock | DPST-NO/NC | On-Off, Off-On | - | 3A (AC), 220mA (DC) | 120 V | 125 V | Circular - 22.00mm Dia | Quick Connect - 0.110" (2.8mm) | IP66/IP67/IP69/IP69K - Dust Tight, Water Resistant, Waterproof | -40°C ~ 70°C | - |
|
|
XA1E-LV404Q4V-RSW ESTOP PULL/TWST RESET 3A 125V |
2 |
|
- |
XN | Bulk | Active | Panel Mount, Front | Pull or Twist | 4PST-NC | On-Off | - | 3A (AC), 2A (DC) | 125 V | 30 V | Circular - 40.00mm Dia | Screw Terminal | IP65 - Dust Tight, Water Resistant | -25°C ~ 55°C | - |
|
|
C22-PVT45P-MPI-K11-P62SWITCH E-STOP TWIST RESET 4A 24V |
2 |
|
Datasheet |
C22 | Bulk | Active | Panel Mount, Front | Twist | DPST-NO/NC | On-Off, Off-On | - | 4A (AC), 3A (DC) | 24 V | 24 V | Circular - 22.50mm Dia | Cable Leads | IP67/IP69K - Dust Tight, Water Resistant, Waterproof | -30°C ~ 70°C | - |
|
XB5AT845SWITCH E-STOP PULL RESET 6A 120V |
10 |
|
Datasheet |
Harmony XB5 | Box | Active | Panel Mount, Front | Pull | DPST-NO/NC | On-Off, Off-On | - | 6A (AC), 550mA (DC) | 120 V | 125 V | Circular - 22.00mm Dia | Screw Terminal | IP66/IP67/IP69/IP69K - Dust Tight, Water Resistant, Waterproof | -40°C ~ 70°C | - |
|
YW1L-V4E01Q4RSWITCH ESTOP PULL RESET 10A 120V |
5 |
|
- |
YW | Bulk | Active | Panel Mount, Front | Pull | SPST-NC | On-Off | - | 10A (AC/DC) | 120 V | 24 V | Circular - 22.30mm Dia | Screw Terminal | IP65 - Dust Tight, Water Resistant | -20°C ~ 55°C | - |
|
|
XN1E-TV412Q4MRSW ESTOP PULL/TWST RESET 5A 125V |
2 |
|
- |
XN | Bulk | Active | Panel Mount, Front | Pull or Twist | 3PST-2NC/1NO | On-Off, Off-On | Illuminated (Red), Padlock Style | 5A (AC), 2A (DC) | 125 V | 30 V | Circular - 30.50mm Dia | Screw Terminal | IP65 - Dust Tight, Water Resistant | -25°C ~ 55°C | 24 VAC/DC |
|
XALK178H7SWITCH ESTOP TWIST RESET 6A 120V |
3 |
|
Datasheet |
Harmony XALK | Box | Active | Panel Mount, Front | Twist | SPST-NC | On-Off | - | 6A (AC), 550mA (DC) | 120 V | 125 V | Circular - 22.00mm Dia | Screw Terminal | IP66/IP67/IP69K - Dust Tight, Water Resistant, Waterproof | -40°C ~ 70°C | - |
|
MES-1LRSWITCH E-STOP |
10 |
|
- |
* | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
TG-20S.F120.36SW E-STOP TWIST RESET 100MA 42V |
2 |
|
Datasheet |
TG | Tray | Active | Chassis Mount | Twist | DPST-NC | On-Off | Control Box Enclosure | 100mA (AC/DC) | 42 V | 42 V | - | Connector | IP65 - Dust Tight, Water Resistant | - | - |
|
MES-1RSWITCH E-STOP |
10 |
|
- |
* | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
MES-1LSWITCH E-STOP |
10 |
|
- |
* | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

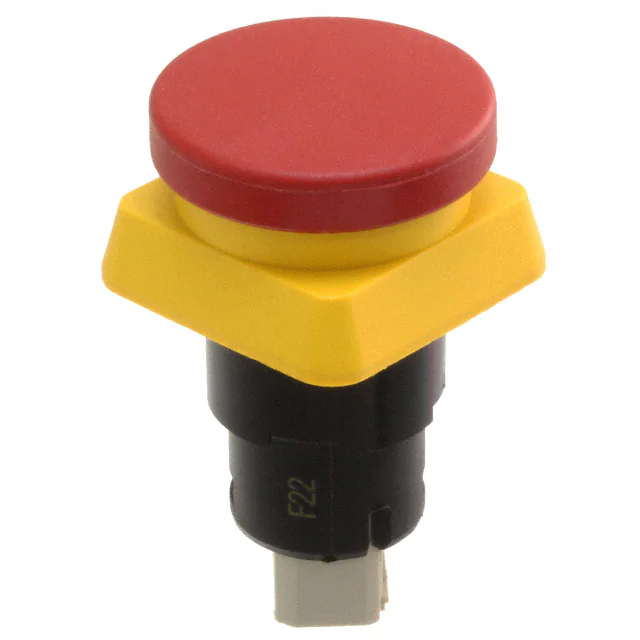

1.15.154.016/0301SW E-STOP PULL RESET 100MA 25V |
0 |
|
Datasheet |
LUMOTAST 25 | Bulk | Active | Panel Mount, Front | Pull | DPST-NC | On-Off | - | 100mA (AC/DC) | 25 V | 25 V | Circular - 16.10mm Dia | Connector | IP65 - Dust Tight, Water Resistant | -25°C ~ 70°C | - |
|
84-5221.2B20SWITCH ESTOP TWIST RESET 5A 250V |
0 |
|
Datasheet |
84 | Bag | Active | Panel Mount, Front | Twist | SPST-NC | On-Off | Illuminated (Red) | 5A (AC/DC) | 250 V | 250 V | Circular - 22.30mm Dia | Solder, Quick Connect - 0.110" (2.8mm) | IP65/IP67 - Dust Tight, Water Resistant, Waterproof | -25°C ~ 65°C | - |
|
A22NE-M-P202-NSW E-STOP TWIST RESET 10A 120V |
0 |
|
Datasheet |
A22NE-P | Tray | Active | Panel Mount, Front | Twist | DPST-NC | On-Off | - | 10A (AC), 8A (DC) | 120 V | 24 V | Circular - 22.30mm Dia | Spring Terminal | IP65 - Dust Tight, Oil and Water Resistant | -20°C ~ 70°C | - |
|
ES-2012-T111SWITCH ESTOP TWIST RESET 10A 32V |
0 |
|
Datasheet |
ES | Box | Active | Panel Mount, Front | Twist | 3PST-2NC/1NO | On-Off, Off-On | - | 10A (DC) | - | 32 V | Circular - 30.50mm Dia | Connector | IP67/IP69K - Dust Tight, Water Resistant, Waterproof | -40°C ~ 85°C | - |
|
|
A22NE-MP-P102-NSWITCH ESTOP PULL RESET 10A 120V |
0 |
|
Datasheet |
A22NE-P | Tray | Active | Panel Mount, Front | Pull | DPST-NO/NC | On-Off, Off-On | - | 10A (AC), 8A (DC) | 120 V | 24 V | Circular - 22.30mm Dia | Spring Terminal | IP65 - Dust Tight, Oil and Water Resistant | -20°C ~ 70°C | - |
|
ES-2002-T312-020BSWITCH E-STOP TWIST RESET 8A 32V |
0 |
|
Datasheet |
ES | Box | Active | Panel Mount, Front | Twist | DPDT | On-On | - | 8A (DC) | - | 32 V | Circular - 30.50mm Dia | Wire Leads with Connector | IP67/IP69K - Dust Tight, Water Resistant, Waterproof | -40°C ~ 85°C | - |
|
1.10.031.011/0000SW E-STOP TWIST RESET 100MA 35V |
0 |
|
Datasheet |
RAMO 22 E | Bulk | Active | Panel Mount, Front | Twist | DPST-NC | On-Off | Status Indicator | 100mA (DC) | - | 35 V | Circular - 22.30mm Dia | Connector | IP65/IP67 - Dust Tight, Water Resistant, Waterproof | -25°C ~ 70°C | - |
