Emergency Stop (E-Stop) Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Reset Operation | Circuit | Switch Function | Features | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Panel Cutout Dimensions | Termination Style | Ingress Protection | Operating Temperature | Illumination Voltage (Nominal) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
A165E-M-01SWITCH ESTOP TWIST RESET 5A 125V |
18 |
|
Datasheet |
A165E | Bulk | Active | Panel Mount, Front | Twist | SPST-NC | On-Off | - | 5A (AC), 3A (DC) | 125 V | 30 V | Circular - 16.00mm Dia | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Oil and Water Resistant | -10°C ~ 55°C | - |
|
A22NE-M-P102-NSW E-STOP TWIST RESET 10A 120V |
2 |
|
Datasheet |
A22NE-P | Tray | Active | Panel Mount, Front | Twist | DPST-NO/NC | On-Off, Off-On | - | 10A (AC), 8A (DC) | 120 V | 24 V | Circular - 22.30mm Dia | Spring Terminal | IP65 - Dust Tight, Oil and Water Resistant | -20°C ~ 70°C | - |
|
XB7NT844SW E-STOP PULL RESET 1.5A 120V |
17 |
|
Datasheet |
Harmony XB7 | Box | Active | Panel Mount, Front | Pull | DPST-NC | On-Off | - | 1.5A (AC), 220mA (DC) | 120 V | 125 V | Circular - 22.00mm Dia | Screw Terminal | IP65 - Dust Tight, Water Resistant | -25°C ~ 70°C | - |
|
XW1E-LV404Q4M-RSW ESTOP PULL/TWST RESET 5A 125V |
5 |
|
Datasheet |
XW | Bulk | Active | Panel Mount, Front | Pull or Twist | 4PST-NC | On-Off | Illuminated (Red) | 5A (AC), 2A (DC) | 125 V | 30 V | Circular - 22.30mm Dia | Screw Terminal | IP65 - Dust Tight, Water Resistant | -25°C ~ 55°C | 24 VAC/DC |
|
A22NE-M-PD01-NSWITCH ESTOP TWIST RESET 5A 125V |
7 |
|
Datasheet |
A22NE-PD | Bulk | Active | Panel Mount, Front | Twist | SPST-NC | On-Off | - | 5A (AC), 2A (DC) | 125 V | 30 V | Circular - 22.30mm Dia | Spring Terminal | IP65 - Dust Tight, Oil and Water Resistant | -20°C ~ 70°C | - |
|
XA1E-BV3U02T-RSW ESTOP PULL/TWST RESET 3A 125V |
14 |
|
Datasheet |
XA | Bulk | Active | Panel Mount, Front | Pull or Twist | DPST-NC | On-Off | - | 3A (AC), 2A (DC) | 125 V | 30 V | Circular - 16.20mm Dia | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | -25°C ~ 60°C | - |
|
3SU11001HB201CG0SW E-STOP TWIST RESET 10A 500V |
13 |
|
Datasheet |
3SU1 | Bulk | Active | Panel Mount, Front | Twist | SPST-NC | On-Off | - | 10A (AC/DC) | 500 V | 500 V | Circular - 22.30mm Dia | Screw Terminal | IP66/IP67/IP69K - Dust Tight, Water Resistant, Waterproof | -25°C ~ 70°C | - |
|
XN1E-BV402MRSWITCH ESTOP TWIST RESET 5A 125V |
9 |
|
Datasheet |
XN | Bulk | Active | Panel Mount, Front | Twist | DPST-NC | On-Off | - | 5A (AC), 2A (DC) | 125 V | 30 V | Circular - 30.50mm Dia | Screw Terminal | IP65 - Dust Tight, Water Resistant | -25°C ~ 60°C | - |
|
A22E-S-02SW E-STOP TWIST RESET 10A 110V |
9 |
|
Datasheet |
A22E | Bulk | Active | Panel Mount, Front | Twist | DPST-NC | On-Off | - | 10A (AC/DC) | 110 V | 24 V | Circular - 22.30mm Dia | Screw Terminal | IP65 - Dust Tight, Oil and Water Resistant | -20°C ~ 70°C | - |
|
3SU11501HB201CG0SWITCH E-STOP TWIST RESET 10A |
7 |
|
Datasheet |
3SU1 | Bulk | Active | Panel Mount, Front | Twist | SPST-NC | On-Off | - | 10A (AC/DC) | - | - | Circular - 22.30mm Dia | Screw Terminal | IP66/IP67/IP69K - Dust Tight, Water Resistant, Waterproof | -25°C ~ 70°C | - |
|
A22EL-M-12A-01SW E-STOP TWIST RESET 10A 110V |
8 |
|
Datasheet |
A22E | Bulk | Active | Panel Mount, Front | Twist | SPST-NC | On-Off | Illuminated (Red) | 10A (AC/DC) | 110 V | 24 V | Circular - 22.30mm Dia | Screw Terminal | IP65 - Dust Tight, Water Resistant | -20°C ~ 55°C | 12 VAC/DC |
|
|
1221735SWITCH E-STOP TWIST RESET |
5 |
|
Datasheet |
- | Bulk | Active | Chassis Mount | Twist | - | - | - | - | - | - | - | Connector | IP65 - Dust Tight, Water Resistant | -25°C ~ 60°C | - |
|
61-6441.4087SWITCH E-STOP TWIST RESET |
8 |
|
Datasheet |
61 | Bulk | Active | Panel Mount, Front | Twist | 3PST-2NC/1NO | On-Off, Off-On | - | - | - | - | Circular - 16.00mm Dia | Solder, Quick Connect - 0.110" (2.8mm) | IP67/IP69K - Dust Tight, Water Resistant, Waterproof | -25°C ~ 55°C | - |
|
|
XB7NS8444SW E-STOP TWIST RESET 1.5A 120V |
4 |
|
Datasheet |
Harmony XB7 | Box | Active | Panel Mount, Front | Twist | DPST-NC | On-Off | - | 1.5A (AC), 220mA (DC) | 120 V | 125 V | Circular - 22.00mm Dia | Screw Terminal | IP65 - Dust Tight, Water Resistant | -25°C ~ 70°C | - |
|
SSA-EBM-11LSWITCH E-STOP TWIST RESET 2A 30V |
13 |
|
Datasheet |
SSA-EB | Bulk | Active | Panel Mount, Front | Twist | DPST-NO/NC | On-Off, Off-On | - | 2A (DC) | - | 30 V | Circular - 22.00mm Dia | Screw Terminal | IP65 - Dust Tight, Water Resistant | -25°C ~ 60°C | - |
|
SSA-EBM-02LSWITCH E-STOP TWIST RESET 2A 30V |
4 |
|
Datasheet |
SSA-EB | Bulk | Active | Panel Mount, Front | Twist | DPST-NC | On-Off | - | 2A (DC) | - | 30 V | Circular - 22.00mm Dia | Screw Terminal | IP65 - Dust Tight, Water Resistant | -25°C ~ 60°C | - |
|
|
XN1E-BV422MRSWITCH ESTOP TWIST RESET 5A 125V |
3 |
|
Datasheet |
XN | Bulk | Active | Panel Mount, Front | Twist | 4PST-2NO/2NC | On-Off, Off-On | - | 5A (AC), 2A (DC) | 125 V | 30 V | Circular - 30.50mm Dia | Screw Terminal | IP65 - Dust Tight, Water Resistant | -25°C ~ 60°C | - |
|
3SU11501HB201FG0SWITCH E-STOP TWIST RESET 10A |
3 |
|
Datasheet |
3SU1 | Bulk | Active | Panel Mount, Front | Twist | SPST-NO + SPST-NC | On-Off, Off-On | - | 10A (AC/DC) | - | - | Circular - 22.30mm Dia | Screw Terminal | IP66/IP67/IP69K - Dust Tight, Water Resistant, Waterproof | -25°C ~ 70°C | - |
|
|
SSA-EBM-11ESWITCH E-STOP TWIST RESET 2A 24V |
9 |
|
Datasheet |
SSA-EB | Bulk | Active | Chassis Mount | Twist | DPST-NO/NC | On-Off, Off-On | Control Box Enclosure | 2A (DC) | - | 24 V | Circular - 22.00mm Dia | Screw Terminal | IP65 - Dust Tight, Water Resistant | -25°C ~ 60°C | - |
|

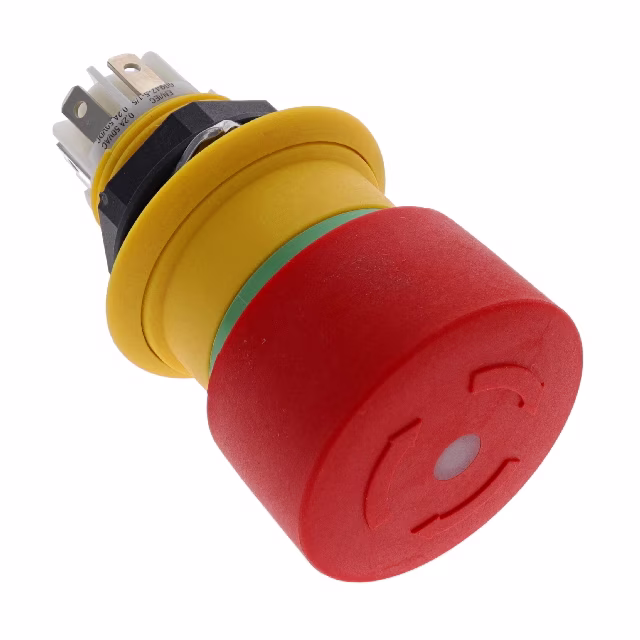

61-6451.4277SWITCH E-STOP TWIST RESET |
15 |
|
Datasheet |
61 | Bag | Active | Panel Mount, Front | Twist | DPST-NO/NC | On-Off, Off-On | - | - | - | - | Circular - 16.00mm Dia | Solder, Quick Connect - 0.110" (2.8mm) | IP67/IP69K - Dust Tight, Water Resistant, Waterproof | -25°C ~ 55°C | - |
