Emergency Stop (E-Stop) Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Reset Operation | Circuit | Switch Function | Features | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Panel Cutout Dimensions | Termination Style | Ingress Protection | Operating Temperature | Illumination Voltage (Nominal) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1.15.213.002/0000SWITCH E-STOP TWIST RESET 5A 35V RAFI USA |
317 |
|
Datasheet |
LUMOTAST 16 | Bulk | Active | Panel Mount, Front | Twist | DPST-NC | On-Off | Status Indicator | 5A (AC), 2A (DC) | 35 V | 35 V | Circular - 16.20mm Dia | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | -25°C ~ 70°C | - |
|

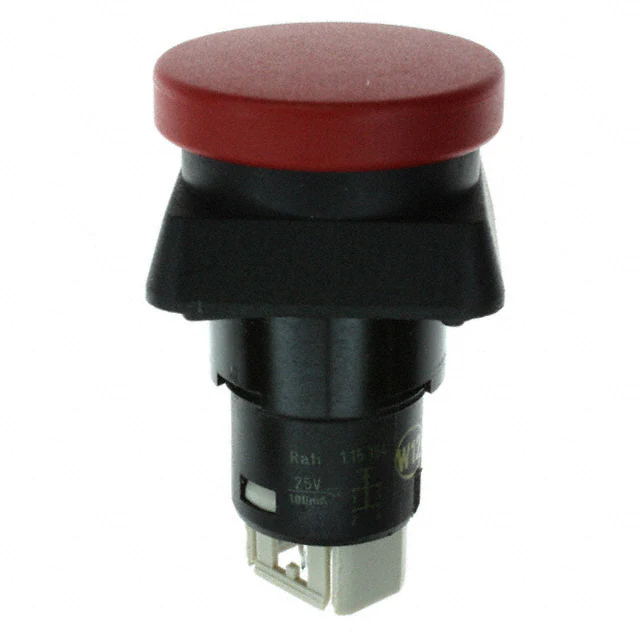

1.15.154.006/0301SW E-STOP PULL RESET 100MA 25V RAFI USA |
156 |
|
Datasheet |
LUMOTAST 25 | Bulk | Active | Panel Mount, Front | Pull | DPST-NC | On-Off | - | 100mA (AC/DC) | 25 V | 25 V | Circular - 16.10mm Dia | Connector | IP65 - Dust Tight, Water Resistant | -25°C ~ 70°C | - |
|
1.15.213.003/0000SWITCH E-STOP TWIST RESET 5A 35V RAFI USA |
38 |
|
Datasheet |
LUMOTAST 16 | Bulk | Active | Panel Mount, Front | Twist | 3PST-2NC/1NO | On-Off, Off-On | Status Indicator | 5A (AC), 2A (DC) | 35 V | 35 V | Circular - 16.20mm Dia | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | -25°C ~ 70°C | - |
|

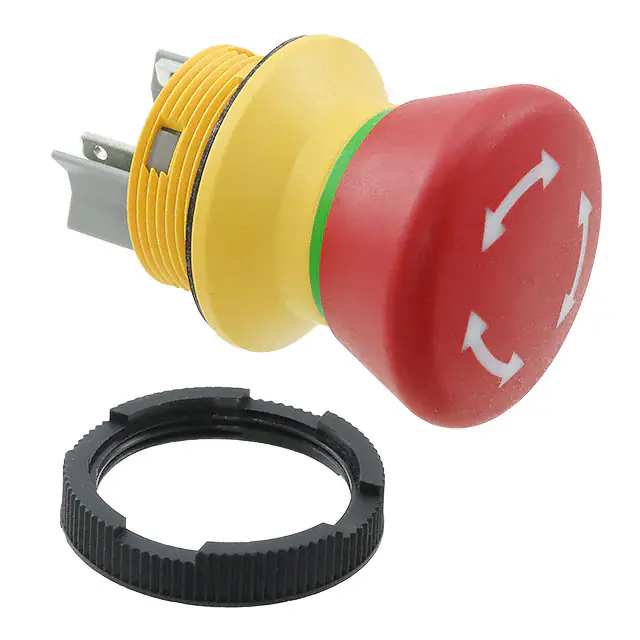

1.15.105.001/0000SW E-STOP TWIST RESET 2.5A 250V RAFI USA |
30 |
|
Datasheet |
LUMOTAST 22 | Bulk | Obsolete | Panel Mount, Front | Twist | DPST-NC | On-Off | Status Indicator | 2.5A (AC/DC) | 250 V | 240 V | Circular - 22.30mm Dia | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | -25°C ~ 70°C | - |
|
1.15.105.021/0000SW E-STOP TWIST RESET 2.5A 250V RAFI USA |
57 |
|
Datasheet |
LUMOTAST 22 | Bulk | Obsolete | Panel Mount, Front | Twist | 3PST-2NC/1NO | On-Off, Off-On | Status Indicator | 2.5A (AC/DC) | 250 V | 240 V | Circular - 22.30mm Dia | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | -25°C ~ 70°C | - |
|
1.15.105.011/0000SW E-STOP TWIST RESET 2.5A 250V RAFI USA |
50 |
|
Datasheet |
LUMOTAST 22 | Bulk | Obsolete | Panel Mount, Front | Twist | DPST-NC | On-Off | Status Indicator | 2.5A (AC/DC) | 250 V | 240 V | Circular - 22.30mm Dia | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | -25°C ~ 70°C | - |
|
1.22.114.212/0500SWITCH E-STOP TWIST RESET 100MA RAFI USA |
24 |
|
Datasheet |
- | Bulk | Active | Free Hanging | Twist | DPST-NC + SPST-NO | On-Off, Off-On | Control Box Enclosure, Status Indicator, With Pushbutton Switch | 100mA (AC/DC) | - | - | - | Connector | IP65 - Dust Tight, Water Resistant | -25°C ~ 70°C | - |
|
|
1.15.213.001/0000SWITCH E-STOP TWIST RESET 5A 35V RAFI USA |
10 |
|
Datasheet |
LUMOTAST 16 | Bulk | Active | Panel Mount, Front | Twist | SPST-NC | On-Off | Status Indicator | 5A (AC), 2A (DC) | 35 V | 35 V | Circular - 16.20mm Dia | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | -25°C ~ 70°C | - |
|
|
1.15.213.004/0000SWITCH E-STOP TWIST RESET 5A 35V RAFI USA |
19 |
|
Datasheet |
LUMOTAST 16 | Bulk | Active | Panel Mount, Front | Twist | DPST-NC | On-Off | Status Indicator | 5A (AC), 2A (DC) | 35 V | 35 V | Circular - 16.20mm Dia | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | -25°C ~ 70°C | - |
|
1.22.114.000/0000SWITCH E-STOP TWIST RESET 100MA RAFI USA |
2 |
|
Datasheet |
- | Bulk | Active | Free Hanging | Twist | DPST-NC | On-Off | Control Box Enclosure, Status Indicator | 100mA (AC/DC) | - | - | - | Connector | IP65 - Dust Tight, Water Resistant | -25°C ~ 70°C | - |
