Microprocessors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Core Processor | Number of Cores/Bus Width | Speed | Co-Processors/DSP | RAM Controllers | Graphics Acceleration | Display & Interface Controllers | Ethernet | SATA | USB | Voltage - I/O | Operating Temperature | Grade | Qualification | Security Features | Mounting Type | Supplier Device Package | Additional Interfaces |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
KMPC852TVR100AIC MPU MPC8XX 100MHZ 256BGA |
0 |
|
Datasheet |
256-BBGA | MPC8xx | Box | Obsolete | MPC8xx | 1 Core, 32-Bit | 100MHz | Communications; CPM | DRAM | No | - | 10Mbps (1) | - | - | 3.3V | 0°C ~ 95°C (TA) | - | - | - | Surface Mount | 256-PBGA (23x23) | HDLC/SDLC, PCMCIA, SPI, UART |
.JPG)
|
AM3359BZCZD60IC MPU SITARA 600MHZ 324NFBGA |
0 |
|
Datasheet |
324-LFBGA | Sitara™ | Tube | Discontinued at Digi-Key | ARM® Cortex®-A8 | 1 Core, 32-Bit | 600MHz | Multimedia; NEON™ SIMD | LPDDR, DDR2, DDR3, DDR3L | Yes | LCD, Touchscreen | 10/100/1000Mbps (2) | - | USB 2.0 + PHY (2) | 1.8V, 3.3V | -40°C ~ 90°C (TJ) | - | - | Cryptography, Random Number Generator | Surface Mount | 324-NFBGA (15x15) | CAN, I2C, McASP, McSPI, MMC/SD/SDIO, UART |
|
MCIMX6X3CVK08ACRIC MPU I.MX6SX 800MHZ 400MAPBGA |
0 |
|
Datasheet |
400-LFBGA | i.MX6SX | Tape & Reel (TR) | Active | ARM® Cortex®-A9, ARM® Cortex®-M4 | 2 Core, 32-Bit | 200MHz, 800MHz | Multimedia; NEON™ MPE | DDR3, LPDDR2, LVDDR3 | Yes | Keypad, LCD | 10/100/1000Mbps (2) | - | USB 2.0 + PHY (1), USB 2.0 OTG + PHY (2) | 1.8V, 2.5V, 2.8V, 3.15V | -40°C ~ 105°C (TA) | - | - | A-HAB, ARM TZ, CAAM, CSU, SNVS, System JTAG, TVDECODE | Surface Mount | 400-MAPBGA (14x14) | AC'97, CAN, I2C, I2S, MMC/SD/SDIO, SAI, SPDIF, SPI, SSI, UART |
|

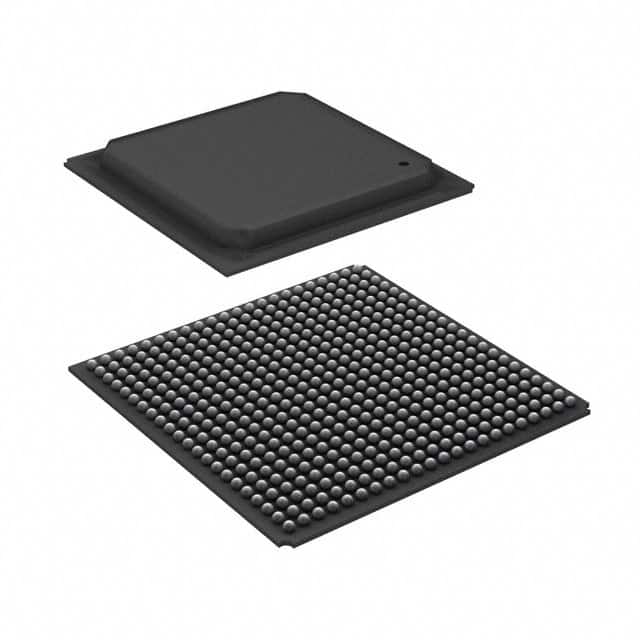

AM3517AZERAIC MPU SITARA 600MHZ 484BGA |
0 |
|
Datasheet |
484-BBGA Exposed Pad | Sitara™ | Tray | Active | ARM® Cortex®-A8 | 1 Core, 32-Bit | 600MHz | Multimedia; NEON™ SIMD | LPDDR, DDR2 | Yes | LCD | 10/100Mbps (1) | - | USB 2.0 (3), USB 2.0 + PHY (1) | 1.8V, 3.3V | -40°C ~ 105°C (TJ) | - | - | - | Surface Mount | 484-BGA (23x23) | CAN, HDQ/1-Wire, I2C, McBSP, McSPI, MMC/SD/SDIO, UART |
|
|
MCIMX6X2AVN08ACIC MPU I.MX6SX 800MHZ 400MAPBGA |
0 |
|
Datasheet |
400-LFBGA | i.MX6SX | Tray | Active | ARM® Cortex®-A9, ARM® Cortex®-M4 | 2 Core, 32-Bit | 200MHz, 800MHz | Multimedia; NEON™ MPE | LPDDR2, LVDDR3, DDR3 | Yes | Keypad, LCD | 10/100/1000Mbps (2) | - | USB 2.0 + PHY (1), USB 2.0 OTG + PHY (2) | 1.8V, 2.5V, 2.8V, 3.15V | -40°C ~ 125°C (TJ) | - | - | A-HAB, ARM TZ, CAAM, CSU, SNVS, System JTAG, TVDECODE | Surface Mount | 400-MAPBGA (17x17) | AC'97, CAN, I2C, I2S, MMC/SD/SDIO, PCIe, SAI, SPDIF, SPI, SSI, UART |
|
|
OMAP2530CZAC450IC MPU 450MHZ 80TQFP |
0 |
|
- |
- | - | Tray | Active | ARM® Cortex®-A8 | 1 Core, 32-Bit | 450MHz | Multimedia; NEON™ SIMD | LPDDR | Yes | LCD | - | - | USB OTG (1) | 1.2V | 0°C ~ 70°C (TA) | - | - | Boot Security, Secure JTAG | - | - | 1-Wire®, I2C, McASP, McSPI, MMC/SD/SDIO |
|
|
MCIMX6X3CVK08ACIC MPU I.MX6SX 800MHZ 400MAPBGA |
0 |
|
Datasheet |
400-LFBGA | i.MX6SX | Tray | Active | ARM® Cortex®-A9, ARM® Cortex®-M4 | 2 Core, 32-Bit | 200MHz, 800MHz | Multimedia; NEON™ MPE | DDR3, LPDDR2, LVDDR3 | Yes | Keypad, LCD | 10/100/1000Mbps (2) | - | USB 2.0 + PHY (1), USB 2.0 OTG + PHY (2) | 1.8V, 2.5V, 2.8V, 3.15V | -40°C ~ 105°C (TA) | - | - | A-HAB, ARM TZ, CAAM, CSU, SNVS, System JTAG, TVDECODE | Surface Mount | 400-MAPBGA (14x14) | AC'97, CAN, I2C, I2S, MMC/SD/SDIO, SAI, SPDIF, SPI, SSI, UART |
|
|
MVF60NS151CMK50IC MPU VYBRID 167MHZ 364LFBGA |
0 |
|
Datasheet |
364-LFBGA | Vybrid, VF6xx | Tray | Active | ARM® Cortex®-A5 + Cortex®-M4 | 2 Core, 32-Bit | 500MHz, 167MHz | Multimedia; NEON™ MPE | LPDDR2, DDR3, DRAM | Yes | DCU, GPU, LCD, VideoADC, VIU | 10/100Mbps (2) | - | USB 2.0 OTG + PHY (1) | 3.3V | -40°C ~ 85°C (TA) | - | - | ARM TZ, CAAM, HAB, RTIC, Secure JTAG, SNVS, Tamper, TZ ASC, TZ WDOG | Surface Mount | 364-LFBGA (17x17) | CAN, I2C, IrDA, LIN, SCI, SDHC, SPI, UART/USART |
|
MVF60NS152CMK50IC MPU VYBRID 167MHZ 364LFBGA |
0 |
|
Datasheet |
364-LFBGA | Vybrid, VF6xx | Tray | Active | ARM® Cortex®-A5 + Cortex®-M4 | 2 Core, 32-Bit | 500MHz, 167MHz | Multimedia; NEON™ MPE | LPDDR2, DDR3, DRAM | Yes | DCU, GPU, LCD, VideoADC, VIU | 10/100Mbps (2) | - | USB 2.0 OTG + PHY (1) | 3.3V | -40°C ~ 85°C (TA) | - | - | ARM TZ, CAAM, HAB, RTIC, Secure JTAG, SNVS, Tamper, TZ ASC, TZ WDOG | Surface Mount | 364-LFBGA (17x17) | CAN, I2C, IrDA, LIN, SCI, SDHC, SPI, UART/USART |
|
MCIMX513CJM6CR2IC MPU I.MX51 600MHZ 529BGA |
0 |
|
Datasheet |
529-LFBGA | i.MX51 | Tape & Reel (TR) | Obsolete | ARM® Cortex®-A8 | 1 Core, 32-Bit | 600MHz | Multimedia; NEON™ SIMD | LPDDR, DDR2 | No | Keypad, LCD | 10/100Mbps (1) | - | USB 2.0 (3), USB 2.0 + PHY (1) | 1.2V, 1.875V, 2.775V, 3.0V | -40°C ~ 95°C (TC) | - | - | ARM TZ, Boot Security, Cryptography, RTIC, Secure Fusebox, Secure JTAG, Secure Memory, Secure RTC | Surface Mount | 529-BGA (19x19) | 1-Wire, AC'97, I2C, I2S, MMC/SD, SPI, SSI, UART |
|
|
MIMX8DL1CVNFZBAI.MX8DUALXLITE 15SQ |
0 |
|
Datasheet |
388-LFBGA | - | Tray | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | Surface Mount | 388-LBGA (15x15) | - |
|
|
MIMX8DL1CVNFZABI.MX 8DUALXLITE 15SQ |
0 |
|
Datasheet |
388-LFBGA | i.MX8XL | Tray | Active | ARM® Cortex®-A35 | 2 Core, 64-Bit | 1.2GHz | ARM® Cortex®-M4F | DDR3L SDRAM, LPDDR4 DRAM | No | LCD | 1Gbps (2) | - | USB 2.0 + PHY (2) | 1.8V, 3.3V | -40°C ~ 105°C (TJ) | - | - | AES, Boot Security, Crypto Accelerator, Secure Debug, Secure JTAG, TRNG | Surface Mount | 388-LBGA (15x15) | CANbus, DMA, GPIO, I2C, MMC/SD/SDIO, PCIe, QSPI, SAI, SPDIF, SPI, UART |
|
AM3703CUSD100IC MPU SITARA 1.0GHZ 423FCBGA |
0 |
|
Datasheet |
423-LFBGA, FCBGA | Sitara™ | Tray | Active | ARM® Cortex®-A8 | 1 Core, 32-Bit | 1.0GHz | Multimedia; NEON™ SIMD | SDRAM | No | LCD | - | - | USB 2.0 (4) | 1.8V | -40°C ~ 90°C (TJ) | - | - | - | Surface Mount | 423-FCBGA (16x16) | HDQ/1-Wire, I2C, McBSP, McSPI, MMC/SD/SDIO, UART |
|
OMAPL137CZKBT3IC MPU OMAP-L1X 375MHZ 256BGA |
0 |
|
Datasheet |
256-BGA | OMAP-L1x | Tray | Obsolete | ARM926EJ-S | 1 Core, 32-Bit | 375MHz | Signal Processing; C674x, System Control; CP15 | SDRAM | No | LCD | 10/100Mbps (1) | - | USB 1.1 + PHY (1), USB 2.0 + PHY (1) | 1.8V, 3.3V | -40°C ~ 125°C (TJ) | - | - | - | Surface Mount | 256-BGA (17x17) | HPI, I2C, McASP, MMC/SD, SPI, UART |
|
MC68EC020AA25IC MPU M680X0 25MHZ 100QFP |
0 |
|
Datasheet |
100-BQFP | M680x0 | Tray | Obsolete | 68020 | 1 Core, 32-Bit | 25MHz | - | - | No | - | - | - | - | 5.0V | 0°C ~ 70°C (TA) | - | - | - | Surface Mount | 100-QFP (14x20) | - |
|
MCIMX31LDVKN5DIC MPU I.MX31 532MHZ 457LFBGA |
0 |
|
Datasheet |
457-LFBGA | i.MX31 | Tray | Active | ARM1136JF-S | 1 Core, 32-Bit | 532MHz | Multimedia; GPU, IPU, MPEG-4, VFP | DDR | Yes | Keyboard, Keypad, LCD | - | - | USB 2.0 (3) | 1.8V, 2.0V, 2.5V, 2.7V, 3.0V | -20°C ~ 70°C (TA) | - | - | Random Number Generator, RTIC, Secure Fusebox, Secure JTAG, Secure Memory | Surface Mount | 457-LFBGA (14x14) | 1-Wire, AC97, ATA, FIR, I2C, I2S, MMC/SD/SDIO, MSHC, PCMCIA, SDHC, SIM, SPI, SSI, UART |
|
MCIMX535DVV1CR2IC MPU I.MX53 1.0GHZ 529FBGA |
0 |
|
Datasheet |
529-FBGA | i.MX53 | Tape & Reel (TR) | Obsolete | ARM® Cortex®-A8 | 1 Core, 32-Bit | 1.0GHz | Multimedia; NEON™ SIMD | LPDDR2, DDR2, DDR3 | Yes | Keypad, LCD | 10/100Mbps (1) | SATA 1.5Gbps (1) | USB 2.0 (2), USB 2.0 + PHY (2) | 1.3V, 1.8V, 2.775V, 3.3V | -20°C ~ 85°C (TC) | - | - | ARM TZ, Boot Security, Cryptography, RTIC, Secure Fusebox, Secure JTAG, Secure Memory, Secure RTC, Tamper Detection | Surface Mount | 529-FBGA (19x19) | 1-Wire, AC'97, CAN, I2C, I2S, MMC/SD, SAI, SPI, SSI, UART |
|
|
MCIMX535DVV1C2R2IC MPU I.MX53 1GHZ 529FBGA |
0 |
|
- |
529-FBGA | i.MX53 | Tape & Reel (TR) | Obsolete | ARM® Cortex®-A8 | 1 Core, 32-Bit | 1GHz | Multimedia; NEON™ SIMD | LPDDR2, DDR2, DDR3 | Yes | Keypad, LCD | 10/100Mbps (1) | SATA 1.5Gbps (1) | USB 2.0 (2), USB 2.0 + PHY (2) | 1.3V, 1.8V, 2.775V, 3.3V | -20°C ~ 70°C (TA) | - | - | ARM TZ, Boot Security, Cryptography, RTIC, Secure Fusebox, Secure JTAG, Secure Memory, Secure RTC, Tamper Detection | Surface Mount | 529-FBGA (19x19) | 1-Wire, AC'97, CAN, I2C, I2S, MMC/SD, SAI, SPI, SSI, UART |
|
MCIMX6S8DVM10ADIC MPU I.MX6S 1.0GHZ 624MAPBGA |
0 |
|
Datasheet |
624-LFBGA | i.MX6S | Tray | Active | ARM® Cortex®-A9 | 1 Core, 32-Bit | 1.0GHz | Multimedia; NEON™ SIMD | LPDDR2, LVDDR3, DDR3 | Yes | Keypad, LCD | 10/100/1000Mbps (1) | - | USB 2.0 + PHY (4) | 1.8V, 2.5V, 2.8V, 3.3V | 0°C ~ 95°C (TJ) | - | - | ARM TZ, Boot Security, Cryptography, RTIC, Secure Fusebox, Secure JTAG, Secure Memory, Secure RTC, Tamper Detection | Surface Mount | 624-MAPBGA (21x21) | CAN, I2C, I2S, MMC/SD/SDIO, SAI, SPI, SSI, UART |
|
MPC8248ZQPIEAIC MPU MPC82XX 300MHZ PBGA516 |
0 |
|
Datasheet |
516-BBGA | MPC82xx | Tray | Obsolete | PowerPC G2_LE | 1 Core, 32-Bit | 300MHz | Communications; RISC CPM, Security; SEC | DRAM, SDRAM | No | - | 10/100Mbps (2) | - | USB 2.0 (1) | 3.3V | 0°C ~ 105°C (TA) | - | - | Cryptography, Random Number Generator | Surface Mount | 516-PBGA (27x27) | I2C, SCC, SMC, SPI, UART, USART |
Microprocessors Electronic Components
Explore Microprocessors electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
