Microprocessors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Core Processor | Number of Cores/Bus Width | Speed | Co-Processors/DSP | RAM Controllers | Graphics Acceleration | Display & Interface Controllers | Ethernet | SATA | USB | Voltage - I/O | Operating Temperature | Grade | Qualification | Security Features | Mounting Type | Supplier Device Package | Additional Interfaces |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MPC8248CVRMIBAIC MPU MPC82XX 266MHZ PBGA516 |
36 |
|
Datasheet |
516-BBGA | MPC82xx | Tray | Active | PowerPC G2_LE | 1 Core, 32-Bit | 266MHz | Communications; RISC CPM, Security; SEC | DRAM, SDRAM | No | - | 10/100Mbps (2) | - | USB 2.0 (1) | 3.3V | -40°C ~ 105°C (TA) | - | - | Cryptography, Random Number Generator | Surface Mount | 516-PBGA (27x27) | I2C, SCC, SMC, SPI, UART, USART |
|
MPC5200CVR400IC MPU MPC52XX 400MHZ 272BGA |
600 |
|
Datasheet |
272-BBGA | MPC52xx | Tray | Not For New Designs | PowerPC G2_LE | 1 Core, 32-Bit | 400MHz | - | DDR, SDRAM | No | - | 10/100Mbps (1) | - | USB 1.1 (2) | 2.5V, 3.3V | -40°C ~ 85°C (TA) | - | - | - | Surface Mount | 272-PBGA (27x27) | AC97, CAN, J1850, I2C, I2S, IrDA, PCI, PSC, SPI, UART |
|
AM3894CCYG120IC MPU SITARA 1.2GHZ 1031FCBGA |
42 |
|
Datasheet |
1031-BFBGA, FCBGA | Sitara™ | Tray | Active | ARM® Cortex®-A8 | 1 Core, 32-Bit | 1.2GHz | Multimedia; NEON™ SIMD | DDR2, DDR3 | Yes | HDMI, HDVPSS | 10/100/1000Mbps (2) | SATA 3Gbps (1) | USB 2.0 + PHY (2) | 1.8V, 3.3V | 0°C ~ 95°C (TJ) | - | - | - | Surface Mount | 1031-FCBGA (25x25) | I2C, McASP, McBSP, SPI, SD/SDIO, UART |
|
MCIMX6U6AVM10ACIC MPU I.MX6DL 1GHZ 624MAPBGA |
32 |
|
Datasheet |
624-LFBGA | i.MX6DL | Tray | Active | ARM® Cortex®-A9 | 2 Core, 32-Bit | 1GHz | Multimedia; NEON™ SIMD | LPDDR2, LVDDR3, DDR3 | Yes | Keypad, LCD | 10/100/1000Mbps (1) | - | USB 2.0 + PHY (4) | 1.8V, 2.5V, 2.8V, 3.3V | -40°C ~ 125°C (TJ) | - | - | ARM TZ, Boot Security, Cryptography, RTIC, Secure Fusebox, Secure JTAG, Secure Memory, Secure RTC, Tamper Detection | Surface Mount | 624-MAPBGA (21x21) | CAN, I2C, I2S, MMC/SD/SDIO, SAI, SPI, SSI, UART |
|
MPC8315EVRAGDAIC MPU MPC83XX 400MHZ 620HBGA |
70 |
|
Datasheet |
620-BBGA Exposed Pad | MPC83xx | Tray | Active | PowerPC e300c3 | 1 Core, 32-Bit | 400MHz | Security; SEC 3.3 | DDR, DDR2 | No | - | 10/100/1000Mbps (2) | SATA 3Gbps (2) | USB 2.0 + PHY (1) | 1.8V, 2.5V, 3.3V | 0°C ~ 105°C (TA) | - | - | Cryptography, Random Number Generator | Surface Mount | 620-HBGA (29x29) | DUART, I2C, PCI, SPI, TDM |
|
|
MPC5200VR400BIC MPU MPC52XX 400MHZ 272BGA |
328 |
|
Datasheet |
272-BBGA | MPC52xx | Tray | Not For New Designs | PowerPC e300 | 1 Core, 32-Bit | 400MHz | - | DDR, SDRAM | No | - | 10/100Mbps (1) | - | USB 1.1 (2) | 2.5V, 3.3V | 0°C ~ 70°C (TA) | - | - | - | Surface Mount | 272-PBGA (27x27) | AC97, CAN, J1850, I2C, I2S, IrDA, PCI, PSC, SPI, UART |
|
AM5749ABZXAIC MPU SITARA 1.5GHZ 760FCBGA |
120 |
|
Datasheet |
760-LFBGA, FCBGA | Sitara™ | Tray | Active | ARM® Cortex®-A15 | 1 Core, 32-Bit | 1.5GHz | ARM® Cortex®-M4, C66x | DDR3, DDR3L | Yes | HDMI, LCD, Video | GbE (2) | SATA 3Gbps (1) | USB 2.0 (2), USB 3.0 (2) | 1.35V, 1.5V, 1.8V, 3.3V | -40°C ~ 105°C (TJ) | - | - | ARM TZ, Boot Security, Cryptography, Secure JTAG, Secure RTC | Surface Mount | 760-FCBGA (23x23) | CAN, HDQ/1-Wire, I2C, McASP, MMC/SD/SDIO, QSPI, SPI, SD/SDIO, UART |
|
MCIMX6D4AVT08ADIC MPU I.MX6D 852MHZ 624FCBGA |
345 |
|
Datasheet |
624-FBGA, FCBGA | i.MX6D | Tray | Active | ARM® Cortex®-A9 | 2 Core, 32-Bit | 852MHz | Multimedia; NEON™ SIMD | LPDDR2, LVDDR3, DDR3 | Yes | Keypad, LCD | 10/100/1000Mbps (1) | SATA 3Gbps (1) | USB 2.0 + PHY (4) | 1.8V, 2.5V, 2.8V, 3.3V | -40°C ~ 125°C (TJ) | - | - | ARM TZ, Boot Security, Cryptography, RTIC, Secure Fusebox, Secure JTAG, Secure Memory, Secure RTC, Tamper Detection | Surface Mount | 624-FCBGA (21x21) | CAN, I2C, I2S, MMC/SD/SDIO, SAI, SPI, SSI, UART |
|
R8A77440HA02BG#UAIC MPU RZ/G/G1N 1.5GHZ |
30 |
|
Datasheet |
- | RZ/G/G1N | Tray | Active | - | - | 1.5GHz | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MIMX8MD6DVAJZAAIC MPU I.MX8MD 1.5GHZ 621FCPBGA |
79 |
|
Datasheet |
621-FBGA, FCBGA | i.MX8MD | Tray | Not For New Designs | ARM® Cortex®-A53 | 2 Core, 64-Bit | 1.5GHz | ARM® Cortex®-M4 | DDR3L, DDR4, LPDDR4 | Yes | eDP, HDMI, MIPI-CSI, MIPI-DSI | GbE | - | USB 3.0 (2) | - | 0°C ~ 95°C (TJ) | - | - | ARM TZ, CAAM, HAB, RDC, RTC, SJC, SNVS | Surface Mount | 621-FCPBGA (17x17) | EBI/EMI, I2C, PCIe, SPI, UART, uSDHC |
|
MPC8247VRTIEAIC MPU MPC82XX 400MHZ PBGA516 |
40 |
|
Datasheet |
516-BBGA | MPC82xx | Tray | Active | PowerPC G2_LE | 1 Core, 32-Bit | 400MHz | Communications; RISC CPM | DRAM, SDRAM | No | - | 10/100Mbps (2) | - | USB 2.0 (1) | 3.3V | 0°C ~ 105°C (TA) | - | - | - | Surface Mount | 516-PBGA (27x27) | I2C, SCC, SMC, SPI, UART, USART |
|
|

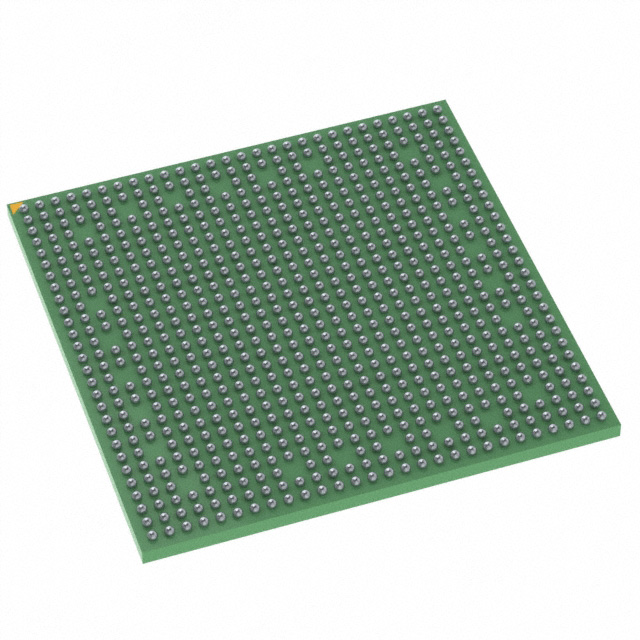

AM5749ABZXIC MPU SITARA 1.5GHZ 760FCBGA |
44 |
|
Datasheet |
760-LFBGA, FCBGA | Sitara™ | Tray | Active | ARM® Cortex®-A15 | 1 Core, 32-Bit | 1.5GHz | ARM® Cortex®-M4, C66x | DDR3, DDR3L | Yes | HDMI, LCD, Video | GbE (2) | SATA 3Gbps (1) | USB 2.0 (2), USB 3.0 (2) | 1.35V, 1.5V, 1.8V, 3.3V | 0°C ~ 90°C (TJ) | - | - | ARM TZ, Boot Security, Cryptography, Secure JTAG, Secure RTC | Surface Mount | 760-FCBGA (23x23) | CAN, HDQ/1-Wire, I2C, McASP, MMC/SD/SDIO, QSPI, SPI, SD/SDIO, UART |
|
MCIMX6D5EYM10ADIC MPU I.MX6D 1.0GHZ 624FCPBGA |
169 |
|
Datasheet |
624-LFBGA, FCBGA | i.MX6D | Tray | Active | ARM® Cortex®-A9 | 2 Core, 32-Bit | 1.0GHz | Multimedia; NEON™ SIMD | LPDDR2, LVDDR3, DDR3 | Yes | Keypad, LCD | 10/100/1000Mbps (1) | SATA 3Gbps (1) | USB 2.0 + PHY (4) | 1.8V, 2.5V, 2.8V, 3.3V | -20°C ~ 105°C (TJ) | - | - | ARM TZ, Boot Security, Cryptography, RTIC, Secure Fusebox, Secure JTAG, Secure Memory, Secure RTC, Tamper Detection | Surface Mount | 624-FCPBGA (21x21) | CAN, I2C, I2S, MMC/SD/SDIO, SAI, SPI, SSI, UART |
|
R8A774A0HA01BG#G2IC MPU RZ 1.2GHZ/1.5GHZ 1022BGA |
0 |
|
- |
1022-BGA | RZ/G2M | Tray | Active | ARM® Cortex®-A53, ARM® Cortex®-A57 | 6 Core, 64-Bit | 1.2GHz, 1.5GHz | - | LPDDR4 | No | DU | 10/100Mbps (1), 100/1000Mbps (1) | - | USB (2) | 0.82V, 1.8V, 3.3V | -40°C ~ 85°C (TA) | - | - | - | Surface Mount | 1022-FPBGA (29x29) | CAN, I2C, SCI, SPI |
|
|
MCIMX6Q6AVT08ADIC MPU I.MX6Q 852MHZ 624FCBGA |
58 |
|
Datasheet |
624-FBGA, FCBGA | i.MX6Q | Tray | Active | ARM® Cortex®-A9 | 4 Core, 32-Bit | 852MHz | Multimedia; NEON™ SIMD | LPDDR2, LVDDR3, DDR3 | Yes | Keypad, LCD | 10/100/1000Mbps (1) | SATA 3Gbps (1) | USB 2.0 + PHY (4) | 1.8V, 2.5V, 2.8V, 3.3V | -40°C ~ 125°C (TJ) | - | - | ARM TZ, Boot Security, Cryptography, RTIC, Secure Fusebox, Secure JTAG, Secure Memory, Secure RTC, Tamper Detection | Surface Mount | 624-FCBGA (21x21) | CAN, I2C, I2S, MMC/SD/SDIO, SAI, SPI, SSI, UART |
|
|
MPC8315VRAGDAIC MPU MPC83XX 400MHZ 620HBGA |
46 |
|
Datasheet |
620-BBGA Exposed Pad | MPC83xx | Tray | Active | PowerPC e300c3 | 1 Core, 32-Bit | 400MHz | - | DDR, DDR2 | No | - | 10/100/1000Mbps (2) | SATA 3Gbps (2) | USB 2.0 + PHY (1) | 1.8V, 2.5V, 3.3V | 0°C ~ 105°C (TA) | - | - | - | Surface Mount | 620-HBGA (29x29) | DUART, I2C, PCI, SPI, TDM |
|
|
AM5748ABZXAIC MPU SITARA 1.5GHZ 760FCBGA |
105 |
|
Datasheet |
760-LFBGA, FCBGA | Sitara™ | Tray | Active | ARM® Cortex®-A15 | 1 Core, 32-Bit | 1.5GHz | ARM® Cortex®-M4, C66x | DDR3, DDR3L | Yes | HDMI, LCD, Video | GbE (2) | SATA 3Gbps (1) | USB 2.0 (2), USB 3.0 (2) | 1.35V, 1.5V, 1.8V, 3.3V | -40°C ~ 105°C (TJ) | - | - | ARM TZ, Boot Security, Cryptography, Secure JTAG, Secure RTC | Surface Mount | 760-FCBGA (23x23) | CAN, HDQ/1-Wire, I2C, McASP, MMC/SD/SDIO, QSPI, SPI, SD/SDIO, UART |
|
MCIMX6D6AVT10AEIC MPU I.MX6D 1.0GHZ 624FCBGA |
120 |
|
Datasheet |
624-FBGA, FCBGA | i.MX6D | Tray | Active | ARM® Cortex®-A9 | 2 Core, 32-Bit | 1.0GHz | Multimedia; NEON™ SIMD | LPDDR2, LVDDR3, DDR3 | Yes | Keypad, LCD | 10/100/1000Mbps (1) | SATA 3Gbps (1) | USB 2.0 + PHY (4) | 1.8V, 2.5V, 2.8V, 3.3V | -40°C ~ 125°C (TJ) | - | - | ARM TZ, Boot Security, Cryptography, RTIC, Secure Fusebox, Secure JTAG, Secure Memory, Secure RTC, Tamper Detection | Surface Mount | 624-FCBGA (21x21) | CAN, I2C, I2S, MMC/SD/SDIO, SAI, SPI, SSI, UART |
|
|
R8A774B0HA01BG#G0IC MPU RZ/G2N 1.5GHZ 1022FPBGA |
169 |
|
- |
1022-BGA | RZ/G2N | Tray | Active | ARM® Cortex®-A57 | 2 Core, 64-Bit | 1.5GHz | - | LPDDR4 | No | DU | 10/100Mbps (1), 100/1000Mbps (1) | - | USB (2) | 0.82V, 1.8V, 3.3V | -40°C ~ 85°C (TA) | - | - | - | Surface Mount | 1022-FPBGA | CAN, I2C, SCI, SPI |
|
|
MPC8343CVRAGDBIC MPU MPC83XX 400MHZ 620HBGA |
36 |
|
Datasheet |
620-BBGA Exposed Pad | MPC83xx | Tray | Active | PowerPC e300 | 1 Core, 32-Bit | 400MHz | - | DDR, DDR2 | No | - | 10/100/1000Mbps (3) | - | USB 2.0 + PHY (2) | 1.8V, 2.5V, 3.3V | -40°C ~ 105°C (TA) | - | - | - | Surface Mount | 620-HBGA (29x29) | DUART, I2C, PCI, SPI |
Microprocessors Electronic Components
Explore Microprocessors electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
