Electrical, Specialty Fuses
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package / Case | Packaging | Product Status | Mounting Type | Fuse Type | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Response Time | Applications | Features | Class | Approval Agency | Operating Temperature | Breaking Capacity @ Rated Voltage | Size / Dimension | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TR2-1/2RFUSE,TIME DELAY,CLASS RK5,REJECT |
10 |
|
Datasheet |
TR-R | Cartridge, Non-Standard | Box | Active | Requires Holder | Cartridge | 2.5A | 250 VAC | 250 VDC | Slow Blow | Electrical, Industrial | Indicating | RK5 | CSA, UL | - | 200kA AC, 20kA DC | 0.551" Dia x 2.008" L (14.00mm x 51.00mm) | - | - |
|
0090.1015FUSE CARTRIDGE 15A 1KVDC 5AG |
100 |
|
Datasheet |
ASO 10.3x38 | 5AG, 10mm x 38mm (Midget) | Bulk | Active | Requires Holder | Cartridge | 15A | - | 1 kVDC | - | Solar (Photovoltaic) | - | - | UL, VDE | -50°C ~ 125°C | 20kA | 0.406" Dia x 1.496" L (10.30mm x 38.00mm) | - | - |
|

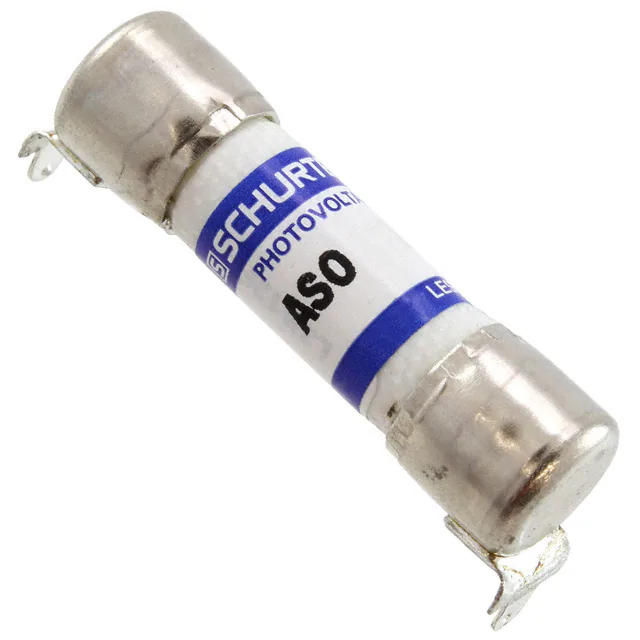

0090.1001FUSE CARTRIDGE 1A 1KVDC 5AG |
28 |
|
Datasheet |
ASO 10.3x38 | 5AG, 10mm x 38mm (Midget) | Bulk | Active | Requires Holder | Cartridge | 1A | - | 1 kVDC | - | Solar (Photovoltaic) | - | - | UL, VDE | -50°C ~ 125°C | 20kA | 0.406" Dia x 1.496" L (10.30mm x 38.00mm) | - | - |
|
|
0090.1002FUSE CARTRIDGE 2A 1KVDC 5AG |
19 |
|
Datasheet |
ASO 10.3x38 | 5AG, 10mm x 38mm (Midget) | Bulk | Active | Through Hole | Cartridge | 2A | - | 1 kVDC | - | Solar (Photovoltaic) | - | - | UL, VDE | -50°C ~ 125°C | 20kA | 0.406" Dia x 1.496" L (10.30mm x 38.00mm) | - | - |
|
|
TR9RFUSE,TIME DELAY,CLASS RK5,REJECT |
10 |
|
Datasheet |
TR-R | Cartridge, Non-Standard | Box | Active | Requires Holder | Cartridge | 9A | 250 VAC | 160 VDC | Slow Blow | Electrical, Industrial | Indicating | RK5 | CSA, UL | - | 200kA AC, 20kA DC | 0.551" Dia x 2.008" L (14.00mm x 51.00mm) | - | - |
|
|
TR1/2RFUSE,TIME DELAY,CLASS RK5,REJECT |
10 |
|
Datasheet |
TR-R | Cartridge, Non-Standard | Box | Active | Requires Holder | Cartridge | 12A | 250 VAC | 160 VDC | Slow Blow | Electrical, Industrial | Indicating | RK5 | CSA, UL | - | 200kA AC, 20kA DC | 0.551" Dia x 2.008" L (14.00mm x 51.00mm) | - | - |
|
|
EAC14-80-3PFUSE EV 80A 420VAC 500VDC 3P |
51 |
|
Datasheet |
EAC14 | Radial Bend Cylinder | Box | Active | Through Hole | Cartridge | 80A | 420 VAC | 500 VDC | - | Electrical, Industrial | - | - | - | -40°C ~ 125°C | 6kA AC, 20kA DC | 0.589" Dia x 1.555" L (14.96mm x 39.50mm) | - | - |
|
|
EAC14-70-3PFUSE EV 70A 420VAC 500VDC 3P |
30 |
|
Datasheet |
EAC14 | Radial Bend Cylinder | Box | Active | Through Hole | Cartridge | 70A | 420 VAC | 500 VDC | - | Electrical, Industrial | - | - | - | -40°C ~ 125°C | 6kA AC, 20kA DC | 0.589" Dia x 1.555" L (14.96mm x 39.50mm) | - | - |
|
0FLM03.5TFUSE CRTRDGE 3.5A 250VAC/125VDC |
9 |
|
Datasheet |
FLM | 5AG, 10mm x 38mm (Midget) | Bulk | Active | Requires Holder | Cartridge | 3.5A | 250 VAC | 125 VDC | Slow Blow | Motor Protection | - | - | CSA, PSE, QPL, UL | - | 10kA | 0.406" Dia x 1.500" L (10.31mm x 38.10mm) | - | - |
|
|
0FLM03.2TFUSE CRTRDGE 3.2A 250VAC/125VDC |
7 |
|
Datasheet |
FLM | 5AG, 10mm x 38mm (Midget) | Bulk | Active | Requires Holder | Cartridge | 3.2A | 250 VAC | 125 VDC | Slow Blow | Motor Protection | - | - | CSA, PSE, QPL, UL | - | 10kA | 0.406" Dia x 1.500" L (10.31mm x 38.10mm) | - | - |
|
|
OTS20FUSE,CLASS K5,GENERAL PURPOSE,50 |
10 |
|
Datasheet |
OTS | Cartridge, Non-Standard | Box | Active | Requires Holder | Cartridge | 20A | 600 VAC | 300 VDC | Fast Blow | Electrical, Industrial | - | K5 | CSA, UL | - | 50kA AC, 20kA DC | 0.811" Dia x 5.000" L (20.60mm x 127.00mm) | - | - |
|
BK/GMF-1-6/10FUSE CARTRIDGE 1.6A 300VAC |
97 |
|
Datasheet |
GMF | Cartridge, Non-Standard | Bulk | Active | Requires Holder | Cartridge | 1.6A | 300 VAC | - | Slow Blow | Electrical, Industrial | - | - | CE, CSA, UL | - | 10kA | - | - | - |
|
|
EAC14-60-SCTFUSE EV 60A 420VAC 500VDC SCT |
33 |
|
Datasheet |
EAC14 | Cylindrical, Blade Terminal (Bolt) | Box | Active | Bolt Mount | Cartridge | 60A | 420 VAC | 500 VDC | - | Electrical, Industrial | - | - | - | -40°C ~ 125°C | 6kA AC, 20kA DC | 0.589" Dia x 1.559" L (14.96mm x 39.60mm) | - | - |
|
|
EAC14-50-SCTFUSE EV 50A 420VAC 500VDC SCT |
26 |
|
Datasheet |
EAC14 | Cylindrical, Blade Terminal (Bolt) | Box | Active | Bolt Mount | Cartridge | 50A | 420 VAC | 500 VDC | - | Electrical, Industrial | - | - | - | -40°C ~ 125°C | 6kA AC, 20kA DC | 0.589" Dia x 1.559" L (14.96mm x 39.60mm) | - | - |
|
|
GMT-1/4AFUSE INDICAT 250MA 125VAC/60VDC |
6 |
|
Datasheet |
GMT | Alarm Indicator | Bulk | Active | Requires Holder | Indicating Fuse | 250mA | 125 VAC | 60 VDC | Fast Blow | Telecom | Indicating | - | UR | - | 300A AC, 450A DC | 0.688" L x 0.127" W x 0.810" H (17.48mm x 3.23mm x 20.57mm) | - | - |
|
0034.1112FUSE CRTRDGE 35A 500VAC GLD III |
7 |
|
Datasheet |
- | GLD III | Bulk | Active | Requires Holder | Cartridge | 35A | 500 VAC | - | Fast Blow | - | - | D | - | - | 50kA | - | - | - |
|
|
EAC14-70-SCTFUSE EV 70A 420VAC 500VDC SCT |
34 |
|
Datasheet |
EAC14 | Cylindrical, Blade Terminal (Bolt) | Box | Active | Bolt Mount | Cartridge | 70A | 420 VAC | 500 VDC | - | Electrical, Industrial | - | - | - | -40°C ~ 125°C | 6kA AC, 20kA DC | 0.589" Dia x 1.559" L (14.96mm x 39.60mm) | - | - |
|
|
EAC14-80-SCTFUSE EV 80A 420VAC 500VDC SCT |
33 |
|
Datasheet |
EAC14 | Cylindrical, Blade Terminal (Bolt) | Box | Active | Bolt Mount | Cartridge | 80A | 420 VAC | 500 VDC | - | Electrical, Industrial | - | - | - | -40°C ~ 125°C | 6kA AC, 20kA DC | 0.589" Dia x 1.559" L (14.96mm x 39.60mm) | - | - |
|
0SLC003.TFUSE CARTRIDGE 3A 600VAC/170VDC |
13 |
|
Datasheet |
POWR-GARD® SLC | Cartridge, Non-Standard | Bulk | Active | Requires Holder | Cartridge | 3A | 600 VAC | 170 VDC | Medium Blow | Electrical, Industrial | - | G | CE, CSA, QPL, UL | - | 100kA AC, 10kA DC | 0.406" Dia x 1.311" L (10.30mm x 33.30mm) | - | - |
|
|
EXC14-80-3PFUSE EV 80A 800VDC 3P TERM |
76 |
|
Datasheet |
EXC14 | Radial Bend Cylinder | Box | Active | Through Hole | Cartridge | 80A | - | 800 VDC | - | Electrical, Industrial | - | - | UR | -40°C ~ 125°C | 50kA | 0.589" Dia x 1.555" L (14.96mm x 39.50mm) | - | - |
