Electrical, Specialty Fuses
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package / Case | Packaging | Product Status | Mounting Type | Fuse Type | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Response Time | Applications | Features | Class | Approval Agency | Operating Temperature | Breaking Capacity @ Rated Voltage | Size / Dimension | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PSR033UL0450XFUSE SQUARE 450A 700VAC/600VDC |
9,019 |
|
Datasheet |
POWR-SPEED® PSR | - | Box | Active | Bolt Mount | Square | 450A | 700 VAC | 600 VDC | Fast Blow | Semiconductors | Indicating | - | CE, cURus, UL | -55°C ~ 125°C | 200kA AC, 150kA DC | 1.937" L x 2.894" W x 3.130" H (49.20mm x 73.50mm x 79.50mm) | - | - |
|
PSX1XLDB0250XFUSE SEMI 1500VDC 1XL SIZE 250A |
8,713 |
|
Datasheet |
POWR-SPEED® PSX | Rectangular, Blade | Box | Active | Bolt Mount | Square | 250A | - | 1.5 kVDC | Fast Blow | Semiconductors | Indicating | - | CE, cURus, UL | -55°C ~ 125°C | 200kA | 4.988" L x 2.028" W x 2.264" H (126.70mm x 51.50mm x 57.50mm) | - | - |
|
|
PSX1XLDB0280XFUSE SEMI 1500VDC 1XL SIZE 280A |
6,511 |
|
Datasheet |
POWR-SPEED® PSX | Rectangular, Blade | Box | Active | Bolt Mount | Square | 280A | - | 1.5 kVDC | Fast Blow | Semiconductors | Indicating | - | CE, cURus, UL | -55°C ~ 125°C | 200kA | 4.988" L x 2.028" W x 2.264" H (126.70mm x 51.50mm x 57.50mm) | - | - |
|
PSX1XLUB0250XFUSE SEMI 1500VDC 1XL SIZE 250A |
4,417 |
|
Datasheet |
POWR-SPEED® PSX | Rectangular, Blade | Box | Active | Bolt Mount | Square | 250A | - | 1.5 kVDC | Fast Blow | Semiconductors | Indicating | - | CE, cURus, UL | -55°C ~ 125°C | 200kA | 4.988" L x 2.028" W x 2.264" H (126.70mm x 51.50mm x 57.50mm) | - | - |
|
|
PSX1XLUB0280XFUSE SEMI 1500VDC 1XL SIZE 280A |
8,553 |
|
Datasheet |
POWR-SPEED® PSX | Rectangular, Blade | Box | Active | Bolt Mount | Square | 280A | - | 1.5 kVDC | Fast Blow | Semiconductors | Indicating | - | CE, cURus, UL | -55°C ~ 125°C | 200kA | 4.988" L x 2.028" W x 2.264" H (126.70mm x 51.50mm x 57.50mm) | - | - |
|
170M4713FUSE SQUARE 450A 700VAC RECT |
3,514 |
|
Datasheet |
- | Rectangular, Blade | Bulk | Active | Bolt Mount | Square | 450A | 700 VAC | - | - | Electrical, Industrial | - | - | CE, CSA, UR | - | 200kA | 1.969" L x 2.087" W x 2.717" H (50.00mm x 53.00mm x 69.00mm) | - | - |
|
|
170M4714FUSE SQUARE 500A 700VAC RECT |
5,910 |
|
Datasheet |
- | Rectangular, Blade | Bulk | Active | Bolt Mount | Square | 500A | 700 VAC | - | - | Electrical, Industrial | - | - | CE, CSA, UR | - | 200kA | 1.969" L x 2.087" W x 2.717" H (50.00mm x 53.00mm x 69.00mm) | - | - |
|
|
170M4716FUSE SQUARE 630A 700VAC RECT |
9,007 |
|
Datasheet |
- | Rectangular, Blade | Bulk | Active | Bolt Mount | Square | 630A | 700 VAC | - | - | Electrical, Industrial | - | - | CE, CSA, UR | - | 200kA | 1.969" L x 2.087" W x 2.717" H (50.00mm x 53.00mm x 69.00mm) | - | - |
|
|
170M4717FUSE SQUARE 700A 700VAC RECT |
9,309 |
|
Datasheet |
- | Rectangular, Blade | Bulk | Active | Bolt Mount | Square | 700A | 700 VAC | - | - | Electrical, Industrial | - | - | CE, CSA, UR | - | 200kA | 1.969" L x 2.087" W x 2.717" H (50.00mm x 53.00mm x 69.00mm) | - | - |
|
|
170M5712FUSE SQUARE 630A 70VAC RECT |
9,524 |
|
Datasheet |
- | Rectangular, Blade | Bulk | Active | Bolt Mount | Square | 630A | 70 VAC | - | - | Electrical, Industrial | - | - | CE, CSA, UR | - | 200kA | 1.969" L x 2.402" W x 3.031" H (50.00mm x 61.00mm x 77.00mm) | - | - |
|
|
170M5713FUSE SQUARE 700A 70VAC RECT |
9,692 |
|
Datasheet |
- | Rectangular, Blade | Bulk | Active | Bolt Mount | Square | 700A | 70 VAC | - | - | Electrical, Industrial | - | - | CE, CSA, UR | - | 200kA | 1.969" L x 2.402" W x 3.031" H (50.00mm x 61.00mm x 77.00mm) | - | - |
|
WHA-D-1200FUSE BUSS OPEN LINK |
9,887 |
|
- |
* | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
PSR033FL1100ZFUSE SQUARE 1.1KA 700VAC/600VDC |
2,363 |
|
Datasheet |
POWR-SPEED® PSR | - | Bulk | Active | Bolt Mount | Square | 1.1kA | 700 VAC | 600 VDC | Fast Blow | Semiconductors | - | - | CCC, CE, cURus, UL | -55°C ~ 125°C | 200kA AC, 150kA DC | 2.008" L x 2.894" W x 3.130" H (51.00mm x 73.50mm x 79.50mm) | - | - |
|
|
PSR033FL1400ZFUSE SQUARE 1.4KA 700VAC/500VDC |
4,152 |
|
Datasheet |
POWR-SPEED® PSR | - | Bulk | Active | Bolt Mount | Square | 1.4kA | 700 VAC | 500 VDC | Fast Blow | Semiconductors | - | - | CCC, CE, cURus, UL | -55°C ~ 125°C | 200kA AC, 150kA DC | 2.008" L x 2.894" W x 3.130" H (51.00mm x 73.50mm x 79.50mm) | - | - |
|

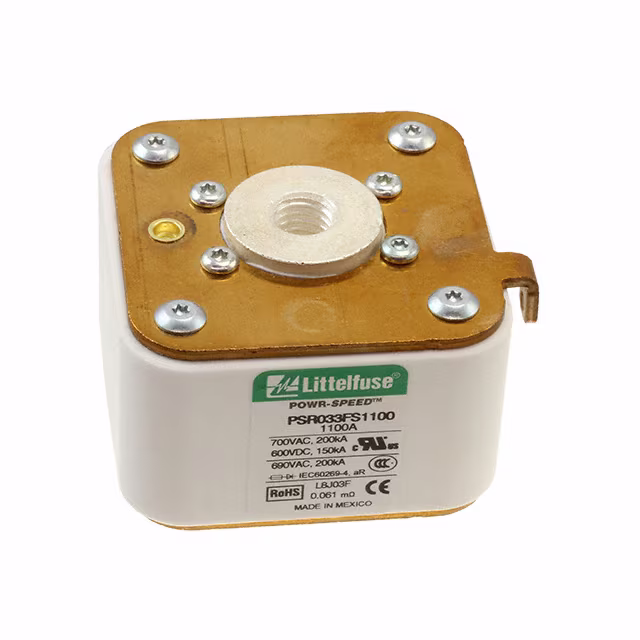

PSR033FS1100ZFUSE SQUARE 1.1KA 700VAC/600VDC |
3,671 |
|
Datasheet |
POWR-SPEED® PSR | - | Bulk | Active | Bolt Mount | Square | 1.1kA | 700 VAC | 600 VDC | Fast Blow | Semiconductors | - | - | CCC, CE, cURus, UL | -55°C ~ 125°C | 200kA AC, 150kA DC | 2.008" L x 2.894" W x 3.130" H (51.00mm x 73.50mm x 79.50mm) | - | - |
|

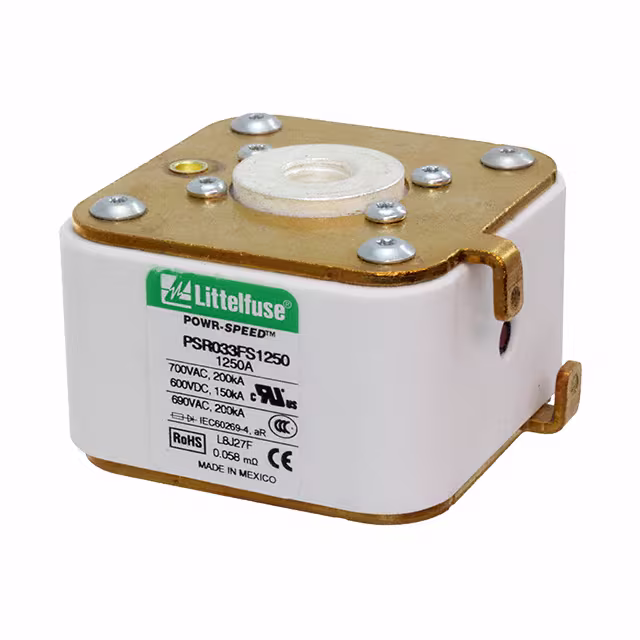

PSR033FS1250ZFUSE SQUARE 1.25KA 700VAC/600VDC |
3,900 |
|
Datasheet |
POWR-SPEED® PSR | - | Bulk | Active | Bolt Mount | Square | 1.25kA | 700 VAC | 600 VDC | Fast Blow | Semiconductors | - | - | CCC, CE, cURus, UL | -55°C ~ 125°C | 200kA AC, 150kA DC | 2.008" L x 2.894" W x 3.130" H (51.00mm x 73.50mm x 79.50mm) | - | - |
|

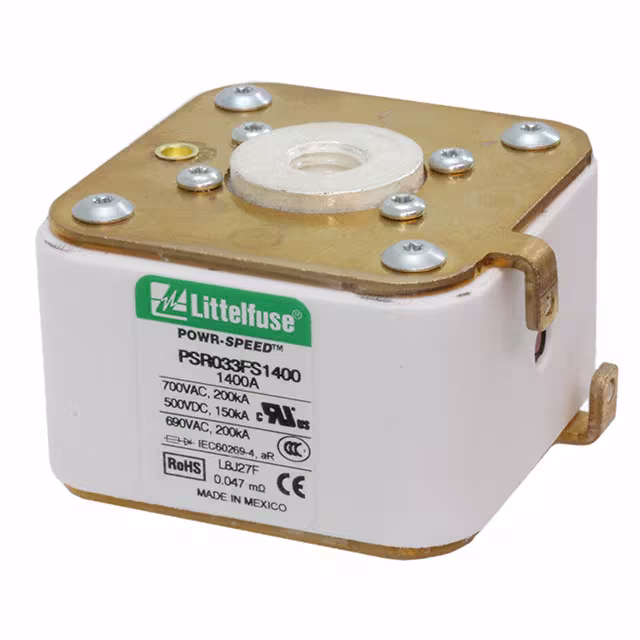

PSR033FS1400ZFUSE SQUARE 1.4KA 700VAC/500VDC |
6,486 |
|
Datasheet |
POWR-SPEED® PSR | - | Bulk | Active | Bolt Mount | Square | 1.4kA | 700 VAC | 500 VDC | Fast Blow | Semiconductors | - | - | CCC, CE, cURus, UL | -55°C ~ 125°C | 200kA AC, 150kA DC | 2.008" L x 2.894" W x 3.130" H (51.00mm x 73.50mm x 79.50mm) | - | - |
|
|
PSR033FL1000ZFUSE SQUARE 1KA 700VAC/600VDC |
2,733 |
|
Datasheet |
POWR-SPEED® PSR | - | Box | Active | Bolt Mount | Square | 1kA | 700 VAC | 600 VDC | Fast Blow | Semiconductors | Indicating | - | CCC, CE, cURus, UL | -55°C ~ 125°C | 200kA AC, 150kA DC | 2.008" L x 2.894" W x 3.130" H (51.00mm x 73.50mm x 79.50mm) | - | - |
|
170M4063FUSE SQUARE 450A 700VAC RECT |
8,206 |
|
Datasheet |
- | Rectangular, Blade | Bulk | Active | Bolt Mount | Square | 450A | 700 VAC | - | - | Electrical, Industrial | Indicating | - | CE, CSA, UR | - | 200kA | 1.969" L x 2.087" W x 2.598" H (50.00mm x 53.00mm x 66.00mm) | - | - |
|
|
170M4064FUSE SQUARE 500A 700VAC RECT |
6,831 |
|
Datasheet |
- | Rectangular, Blade | Bulk | Active | Bolt Mount | Square | 500A | 700 VAC | - | - | Electrical, Industrial | Indicating | - | CE, CSA, UR | - | 200kA | 1.969" L x 2.087" W x 2.598" H (50.00mm x 53.00mm x 66.00mm) | - | - |
