Electrical, Specialty Fuses
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package / Case | Packaging | Product Status | Mounting Type | Fuse Type | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Response Time | Applications | Features | Class | Approval Agency | Operating Temperature | Breaking Capacity @ Rated Voltage | Size / Dimension | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LPJ-40SPFUSE CARTRIDGE 40A 600VAC/300VDC |
11 |
|
Datasheet |
LOW-PEAK™ LPJ | Cartridge, Non-Standard | Bulk | Active | Requires Holder | Cartridge | 40A | 600 VAC | 300 VDC | Slow Blow | Electrical, Industrial | - | J | CE, CSA, UL | - | 300kA AC, 100kA DC | 1.060" Dia x 2.380" L (26.92mm x 60.45mm) | - | - |
|
FWP-50A14FAFUSE CARTRIDGE 50A 700VAC/800VDC |
23 |
|
Datasheet |
FWP | Cartridge, Non-Standard | Bulk | Active | Requires Holder | Cartridge | 50A | 700 VAC | 800 VDC | - | Electrical, Industrial | - | - | CE, CSA, UR | - | 200kA AC, 50kA DC | 0.563" Dia x 2.000" L (14.30mm x 50.80mm) | - | - |
|
|
FWP-40A14FAFUSE CARTRIDGE 40A 700VAC/800VDC |
16 |
|
Datasheet |
FWP | Cartridge, Non-Standard | Bulk | Active | Requires Holder | Cartridge | 40A | 700 VAC | 800 VDC | - | Electrical, Industrial | - | - | CE, CSA, UR | - | 200kA AC, 50kA DC | 0.563" Dia x 2.000" L (14.30mm x 50.80mm) | - | - |
|

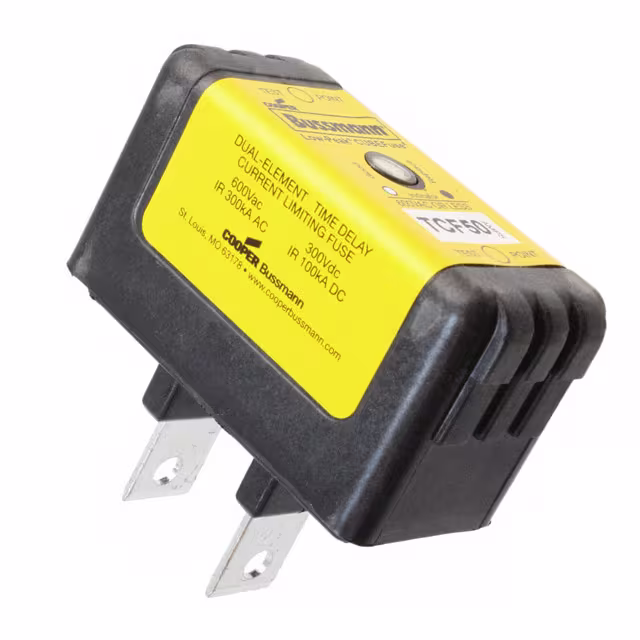

TCF50FUSE RECT 50A 600VAC/300VDC BLAD |
25 |
|
Datasheet |
CUBEFuse™ TCF | Blade Type, Module | Bulk | Active | Requires Holder | Rectangular | 50A | 600 VAC | 300 VDC | Slow Blow | Electrical, Industrial | Indicating | - | CE, CSA, UL | -40°C ~ 80°C | 300kA AC, 100kA DC | 1.880" L x 0.750" W x 1.270" H (47.75mm x 19.05mm x 32.26mm) | - | - |
|

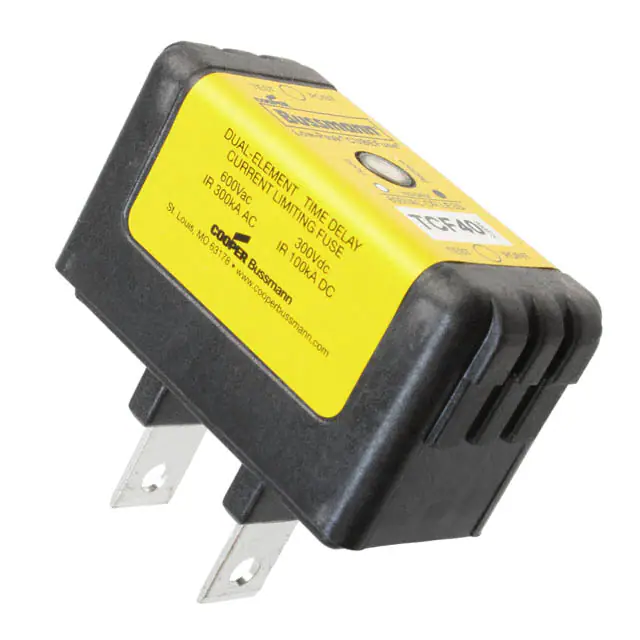

TCF40FUSE RECT 40A 600VAC/300VDC BLAD |
18 |
|
Datasheet |
CUBEFuse™ TCF | Blade Type, Module | Bulk | Active | Requires Holder | Rectangular | 40A | 600 VAC | 300 VDC | Slow Blow | Electrical, Industrial | Indicating | - | CE, CSA, UL | -40°C ~ 80°C | 300kA AC, 100kA DC | 1.880" L x 0.750" W x 1.270" H (47.75mm x 19.05mm x 32.26mm) | - | - |
|

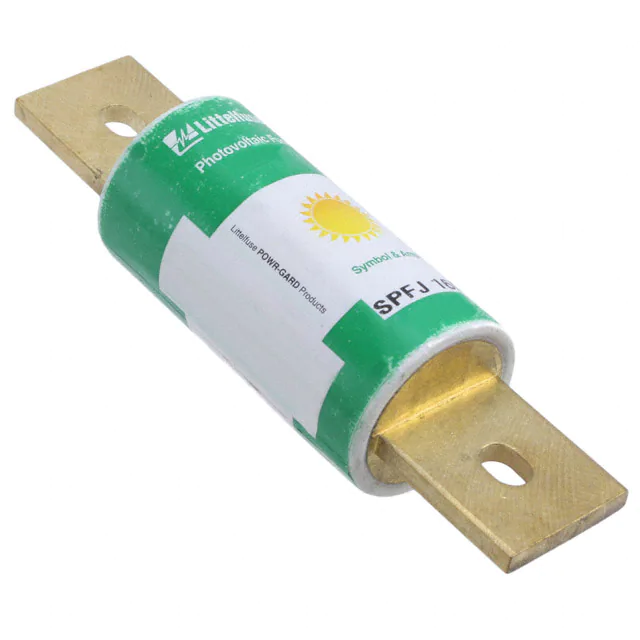

SPFJ160.XFUSE CARTRIDGE 160A 600VAC/1KVDC |
6 |
|
Datasheet |
POWR-GARD® SPFJ | Cylindrical, Blade Terminals | Bulk | Active | Requires Holder | Cartridge | 160A | 600 VAC | 1 kVDC | Fast Blow | Solar (Photovoltaic) | - | J | CE, cULus, UL, VDE | - | 200kA AC, 20kA DC | 1.500" Dia x 5.670" L (38.10mm x 144.02mm) | - | - |
|
PSR070FL0250ZFUSE SQUARE 250A 1.3KVAC/1KVDC |
14 |
|
Datasheet |
POWR-SPEED® PSR | - | Box | Active | Bolt Mount | Square | 250A | 1.3 kVAC | 1 kVDC | Fast Blow | Semiconductors | Indicating | - | CCC, CE, cURus, UL | -55°C ~ 125°C | 100kA AC, 150kA DC | 2.913" L x 1.693" W x 1.929" H (74.00mm x 43.00mm x 49.00mm) | - | - |
|
SPFJ400.XFUSE CARTRIDGE 400A 600VAC/1KVDC |
24 |
|
Datasheet |
POWR-GARD® SPFJ | Cylindrical, Blade Terminals | Bulk | Active | Requires Holder | Cartridge | 400A | 600 VAC | 1 kVDC | Fast Blow | Solar (Photovoltaic) | - | J | CE, cULus, UL, VDE | - | 200kA AC, 10kA DC | 2.000" Dia x 7.126" L (50.80mm x 181.00mm) | - | - |
|
|
BK1/TDC600-10-RFUSE CART 10A 600VAC 8AG 1000BAG |
806 |
|
- |
TDC600 | 8AG, 1/4" x 1" | Bulk | Active | Requires Holder | Cartridge | 10A | 600 VAC | - | Fast Blow | Electrical, Industrial | - | - | UL | - | 200A | 0.250" Dia x 1.000" L (6.35mm x 25.40mm) | - | - |
|
156.5610.5801FUSE STRIP 80A 36VDC BOLT MOUNT |
118 |
|
Datasheet |
- | Metal Strip | Bulk | Active | Bolt Mount | Fuse Strip | 80A | - | 36 VDC | - | Lift Trucks | - | - | - | -40°C ~ 125°C | - | 1.614" L x 0.433" W x 0.043" H (41.00mm x 11.00mm x 1.08mm) | - | - |
|
157.5701.5631FUSE STRIP 63A 48VDC BOLT MOUNT |
54 |
|
Datasheet |
- | Metal Strip | Bulk | Active | Bolt Mount | Fuse Strip | 63A | - | 48 VDC | - | Lift Trucks | Indicating | - | cURus | -40°C ~ 125°C | 378A | 3.228" L x 0.866" W x 0.413" H (82.00mm x 22.00mm x 10.50mm) | - | - |
|
|
157.5701.6201FUSE STRIP 200A 48VDC BOLT MOUNT |
52 |
|
Datasheet |
- | Metal Strip | Bulk | Active | Bolt Mount | Fuse Strip | 200A | - | 48 VDC | - | Lift Trucks | Indicating | - | cURus | -40°C ~ 125°C | 1.2kA | 3.228" L x 0.866" W x 0.413" H (82.00mm x 22.00mm x 10.50mm) | - | - |
|
|
157.5701.6121FUSE STRIP 125A 48VDC BOLT MOUNT |
41 |
|
Datasheet |
- | Metal Strip | Bulk | Active | Bolt Mount | Fuse Strip | 125A | - | 48 VDC | - | Lift Trucks | Indicating | - | cURus | -40°C ~ 125°C | 750A | 3.228" L x 0.866" W x 0.413" H (82.00mm x 22.00mm x 10.50mm) | - | - |
|
69032FUSE CARTRIDGE 10A 600VAC/VDC |
48 |
|
Datasheet |
- | Cartridge, Non-Standard | Bulk | Active | Requires Holder | Cartridge | 10A | 600 VAC | 600 VDC | - | - | - | - | - | - | - | 0.236" Dia x 1.260" L (6.00mm x 32.00mm) | - | - |
|
871173FUSE CARTRIDGE 630MA 250VAC 5PK |
26 |
|
Datasheet |
- | 5mm x 20mm | Bulk | Active | Requires Holder | Cartridge | 630mA | 250 VAC | - | Fast Blow | Multi-Meters | - | - | - | - | - | - | - | - |
|
892583FUSE CARTRIDGE 15A 600VAC 5AG |
70 |
|
Datasheet |
- | 5AG, 10mm x 38mm (Midget) | Bulk | Active | Requires Holder | Cartridge | 15A | 600 VAC | - | Fast Blow | Multi-Meters | - | - | - | - | - | 0.406" Dia x 1.500" L (10.30mm x 38.00mm) | - | - |
|
69035FUSE CRTRDGE 500MA 1KVAC/1KVDC |
16 |
|
Datasheet |
- | Cartridge, Non-Standard | Bulk | Active | Requires Holder | Cartridge | 500mA | 1 kVAC | 1 kVDC | - | - | - | - | - | - | - | 0.236" Dia x 1.260" L (6.00mm x 32.00mm) | - | - |
|
69033FUSE CARTRIDGE 500MA 600VAC/VDC |
18 |
|
Datasheet |
- | 5mm x 20mm | Bulk | Active | Requires Holder | Cartridge | 500mA | 600 VAC | 600 VDC | - | - | - | - | - | - | - | 0.197" Dia x 0.787" L (5.00mm x 20.00mm) | - | - |
|
0305.080HFUSE BRD MNT 80MA 277VAC/VDC RAD |
63 |
|
Datasheet |
PICO® 305 | Radial, Can, Horizontal | Bulk | Active | Through Hole | Board Mount | 80mA | 277 VAC | 277 VDC | - | Hazardous Locations | Intrinsically Safe | - | ATEX, cURus, IECEx | -40°C ~ 50°C | 1.5kA | 0.354" Dia x 0.614" L (9.00mm x 15.60mm) | - | - |
|
69031FUSE CARTRIDGE 200MA 600VAC/VDC |
15 |
|
Datasheet |
- | 5mm x 20mm | Bulk | Active | Requires Holder | Cartridge | 200mA | 600 VAC | 600 VDC | - | - | - | - | - | - | - | 0.197" Dia x 0.787" L (5.00mm x 20.00mm) | - | - |
