Electrical, Specialty Fuses
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package / Case | Packaging | Product Status | Mounting Type | Fuse Type | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Response Time | Applications | Features | Class | Approval Agency | Operating Temperature | Breaking Capacity @ Rated Voltage | Size / Dimension | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

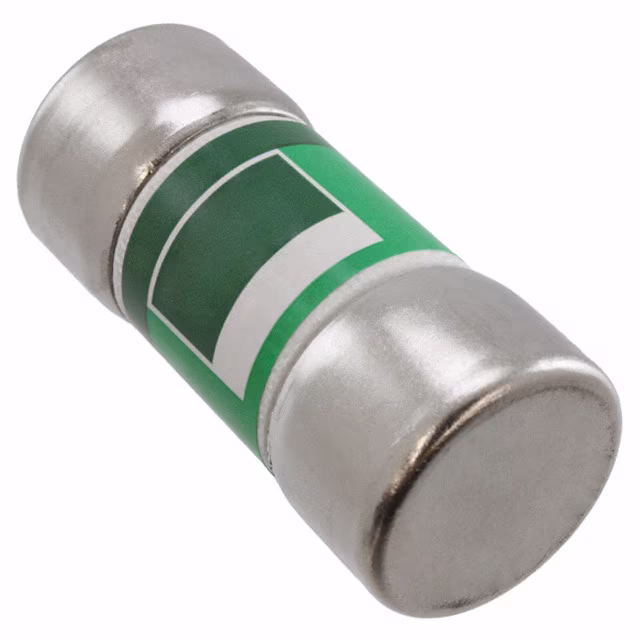

0JTD040.TFUSE CARTRIDGE 40A 600VAC/300VDC |
3,195 |
|
Datasheet |
POWR-GARD®, POWR-PRO® JTD | Cartridge, Non-Standard | Bulk | Active | Requires Holder | Cartridge | 40A | 600 VAC | 300 VDC | Slow Blow | Transformer Protection | - | J | CE, CSA, UL | - | 200kA AC, 20kA DC | 1.063" Dia x 2.374" L (27.00mm x 60.30mm) | - | - |
|
0JTD035.TXIDFUSE CARTRIDGE 35A 600VAC/300VDC |
2,744 |
|
Datasheet |
POWR-GARD®, POWR-PRO® JTD_ID | Cylindrical, Alarm Indicating | Bulk | Active | Requires Holder | Cartridge | 35A | 600 VAC | 300 VDC | Slow Blow | Transformer Protection | Indicating | J | CE, CSA, UL | - | 200kA AC, 20kA DC | 1.063" Dia x 2.374" L (27.00mm x 60.30mm) | - | - |
|
ANL-200FUSE STRIP 200A 80VDC RECT |
2,134 |
|
Datasheet |
ANL | Rectangular, Blade | Bulk | Active | Bolt Mount | Fuse Strip | 200A | - | 80 VDC | Fast Blow | Lift Trucks | Indicating | - | UR | - | 2.7kA | 0.874" Dia x 3.189" L (22.20mm x 81.00mm) | - | - |
|
L50S070.TFUSE CARTRIDGE 70A 500VAC/450VDC |
8,440 |
|
Datasheet |
POWR-GARD® L50S | Cylindrical, Blade Terminal (Bolt) | Box | Active | Bolt Mount | Cartridge | 70A | 500 VAC | 450 VDC | Fast Blow | Semiconductors | - | - | CE, CSA, UR | - | 200kA AC, 20kA DC | 1.000" Dia x 2.126" L (25.40mm x 54.00mm) | - | - |
|
FLSR100.VFUSE CRTRDGE 100A 600VAC/300VDC |
1 |
|
Datasheet |
POWR-GARD® FLSR | Cylindrical, Blade Terminals | Box | Active | Requires Holder | Cartridge | 100A | 600 VAC | 300 VDC | Slow Blow | Electrical, Industrial | - | RK5 | CE, CSA, QPL, UL | - | 200kA AC, 20kA DC | 1.311" Dia x 7.874" L (33.30mm x 200.00mm) | - | - |
|

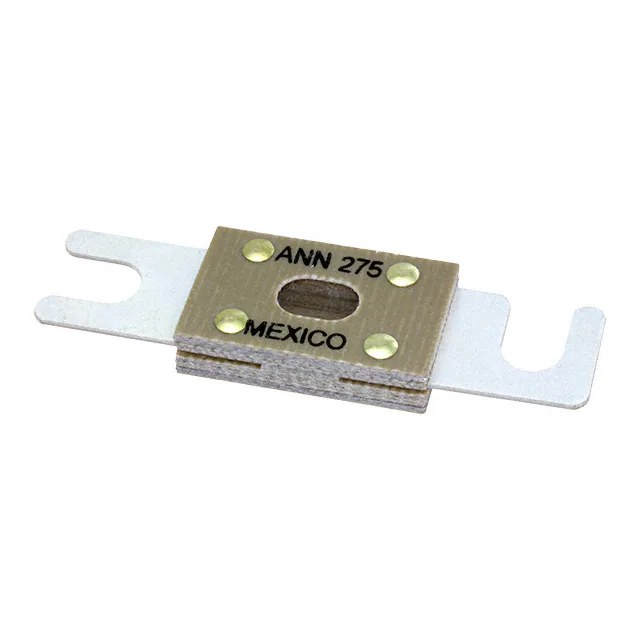

ANN-275FUSE STRIP 275A 125VAC/80VDC |
9,797 |
|
Datasheet |
ANN | Rectangular, Blade | Bulk | Active | Bolt Mount | Fuse Strip | 275A | 125 VAC | 80 VDC | Fast Blow | Lift Trucks | - | - | CSA, UR | - | 2.5kA AC, 2.7kA DC | 0.874" Dia x 3.189" L (22.20mm x 81.00mm) | - | - |
|
KLNR080.VFUSE CARTRIDGE 80A 250VAC/125VDC |
1 |
|
Datasheet |
POWR-GARD® KLNR | Cylindrical, Blade Terminals | Box | Active | Requires Holder | Cartridge | 80A | 250 VAC | 125 VDC | Fast Blow | Electrical, Industrial | - | RK1 | CE, CSA, UL | - | 200kA AC, 20kA DC | 1.063" Dia x 5.874" L (27.00mm x 149.20mm) | - | - |
|
L50QS175.VFUSE CRTRDGE 175A 500VAC/VDC |
1 |
|
Datasheet |
POWR-SPEED™ L50QS | Cylindrical, Blade Terminal (Bolt) | Box | Active | Bolt Mount | Cartridge | 175A | 500 VAC | 500 VDC | Fast Blow | Semiconductors | - | - | CE, cURus, UR | -55°C ~ 125°C | 200kA AC, 50kA DC | 1.218" Dia x 3.625" L (30.94mm x 92.08mm) | - | - |
|
63FEFUSE CRTRDGE 63A 450VDC CYLINDR |
5,665 |
|
Datasheet |
FE | Cylindrical, Blade Terminal (Bolt) | Bulk | Active | Bolt Mount | Cartridge | 63A | - | 450 VDC | - | Electrical, Industrial | - | - | CE, UR | - | 200kA | 0.673" Dia x 1.890" L (17.10mm x 48.00mm) | - | - |
|

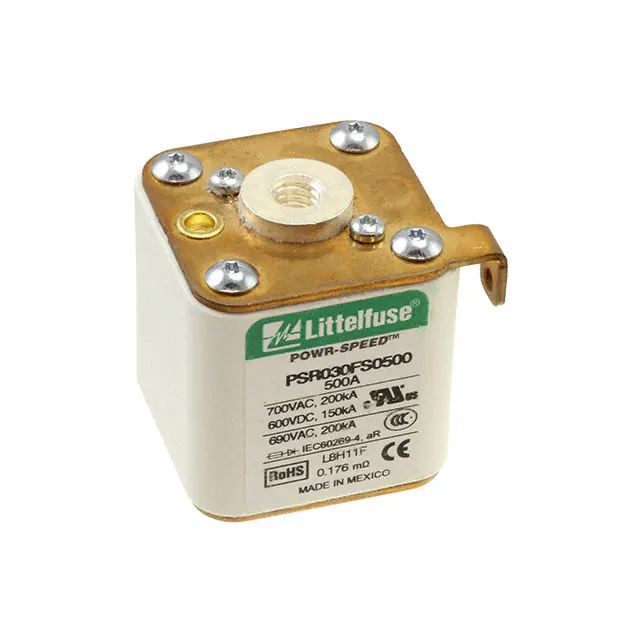

PSR030FS0500ZFUSE SQUARE 500A 700VAC/600VDC |
1 |
|
Datasheet |
POWR-SPEED® PSR | - | Bulk | Active | Bolt Mount | Square | 500A | 700 VAC | 600 VDC | Fast Blow | Semiconductors | - | - | CCC, CE, cURus, UL | -55°C ~ 125°C | 200kA AC, 150kA DC | 1.969" L x 1.693" W x 1.929" H (50.00mm x 43.00mm x 49.00mm) | - | - |
|
L70QS090.VFUSE CARTRIDGE 90A 700VAC/700VDC |
4,934 |
|
Datasheet |
POWR-SPEED™ L70QS | Cylindrical, Blade Terminal (Bolt) | Box | Active | Bolt Mount | Cartridge | 90A | 700 VAC | 700 VDC | Fast Blow | Semiconductors | - | - | CE, cURus, UR | -55°C ~ 125°C | 200kA AC, 50kA DC | 1.000" Dia x 4.375" L (25.40mm x 111.13mm) | - | - |
|
FWX-40AFUSE CARTRIDGE 40A 250VAC/VDC |
5,677 |
|
Datasheet |
FWX | Cylindrical, Blade Terminal (Bolt) | Bulk | Active | Bolt Mount | Cartridge | 40A | 250 VAC | 250 VDC | - | Electrical, Industrial | - | - | CE, CSA, UR | - | 200kA AC, 50kA DC | 0.810" Dia x 3.190" L (20.57mm x 81.03mm) | - | - |
|

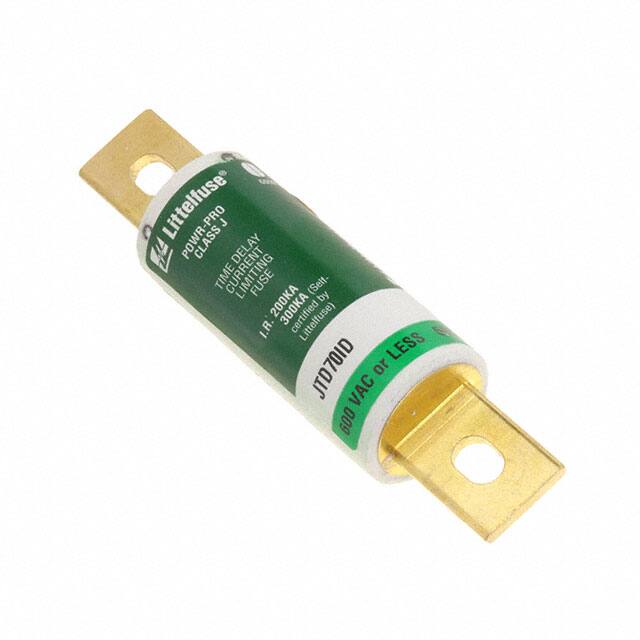

0JTD070.VXIDFUSE CARTRIDGE 70A 600VAC/300VDC |
3,584 |
|
Datasheet |
POWR-GARD®, POWR-PRO® JTD_ID | Cylindrical, Alarm Indicator, Blade Terminal | Bulk | Active | Requires Holder | Cartridge | 70A | 600 VAC | 300 VDC | Slow Blow | Transformer Protection | Indicating | J | CE, CSA, UL | - | 200kA AC, 20kA DC | 1.126" Dia x 2.626" L (28.60mm x 66.70mm) | - | - |
|
0JTD100.VXIDFUSE CRTRDGE 100A 600VAC/300VDC |
6,889 |
|
Datasheet |
POWR-GARD®, POWR-PRO® JTD_ID | Cylindrical, Alarm Indicator, Blade Terminal | Bulk | Active | Requires Holder | Cartridge | 100A | 600 VAC | 300 VDC | Slow Blow | Transformer Protection | Indicating | J | CE, CSA, UL | - | 200kA AC, 20kA DC | 1.126" Dia x 2.626" L (28.60mm x 66.70mm) | - | - |
|
L70S090.VFUSE CARTRIDGE 90A 700VAC/650VDC |
5,694 |
|
Datasheet |
POWR-GARD® L70S | Cylindrical, Blade Terminal (Bolt) | Box | Active | Bolt Mount | Cartridge | 90A | 700 VAC | 650 VDC | Fast Blow | Semiconductors | - | - | CE, CSA, UR | - | 200kA AC, 20kA DC | 1.220" Dia x 2.874" L (31.00mm x 73.00mm) | - | - |
|
FRN-R-200FUSE CRTRDGE 200A 250VAC/125VDC |
1 |
|
Datasheet |
Fusetron™ FRN-R | Cartridge, Non-Standard | Bulk | Active | Requires Holder | Cartridge | 200A | 250 VAC | 125 VDC | Slow Blow | Electrical, Industrial | - | RK5 | CE, CSA, UL | - | 200kA AC, 20kA DC | 1.560" Dia x 7.13" L (39.62mm x 181.10mm) | - | - |
|
|
FRN-R-125FUSE CRTRDGE 125A 250VAC/125VDC |
5,804 |
|
Datasheet |
Fusetron™ FRN-R | Cartridge, Non-Standard | Bulk | Active | Requires Holder | Cartridge | 125A | 250 VAC | 125 VDC | Slow Blow | Electrical, Industrial | - | RK5 | CE, CSA, UL | - | 200kA AC, 20kA DC | 1.560" Dia x 7.13" L (39.62mm x 181.10mm) | - | - |
|
|
L70QS150.VFUSE CRTRDGE 150A 700VAC/700VDC |
1 |
|
Datasheet |
POWR-SPEED™ L70QS | Cylindrical, Blade Terminal (Bolt) | Box | Active | Bolt Mount | Cartridge | 150A | 700 VAC | 700 VDC | Fast Blow | Semiconductors | - | - | CE, cURus, UR | -55°C ~ 125°C | 200kA AC, 50kA DC | 1.218" Dia x 5.085" L (30.94mm x 129.16mm) | - | - |
|
PSR030FS0100ZFUSE SQUARE 100A 700VAC/600VDC |
9,938 |
|
Datasheet |
POWR-SPEED® PSR | - | Bulk | Active | Bolt Mount | Square | 100A | 700 VAC | 600 VDC | Fast Blow | Semiconductors | - | - | CCC, CE, cURus, UL | -55°C ~ 125°C | 200kA AC, 150kA DC | 1.969" L x 1.693" W x 1.929" H (50.00mm x 43.00mm x 49.00mm) | - | - |
|

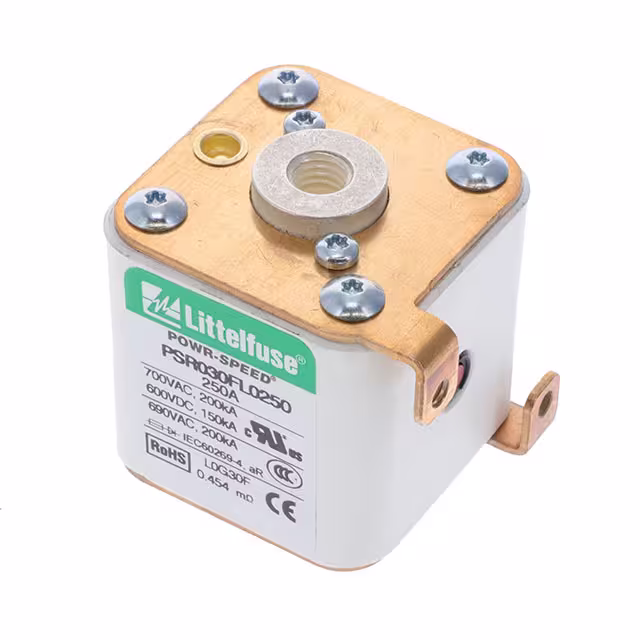

PSR030FL0250ZFUSE SQUARE 250A 700VAC/600VDC |
6,280 |
|
Datasheet |
POWR-SPEED® PSR | - | Bulk | Active | Bolt Mount | Square | 250A | 700 VAC | 600 VDC | Fast Blow | Semiconductors | - | - | CCC, CE, cURus, UL | -55°C ~ 125°C | 200kA AC, 150kA DC | 1.969" L x 1.693" W x 1.929" H (50.00mm x 43.00mm x 49.00mm) | - | - |
