Electric Double Layer Capacitors (EDLC), Supercapacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Termination | Mounting Type | Package / Case | Lead Spacing | Size / Dimension | Height - Seated (Max) | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DSM154Q030W075PB0.15F, 30V, 35X24.5X14.5MM STD M |
107 |
|
Datasheet |
DSM | Bulk | Active | 150 mF | -10%, +30% | 30 V | 6.464Ohm | 1000 Hrs @ 65°C | Cable with Connector | Chassis Mount | Module | - | 1.378" L x 0.571" W (35.00mm x 14.50mm) | 0.965" (24.50mm) | -40°C ~ 65°C |
|

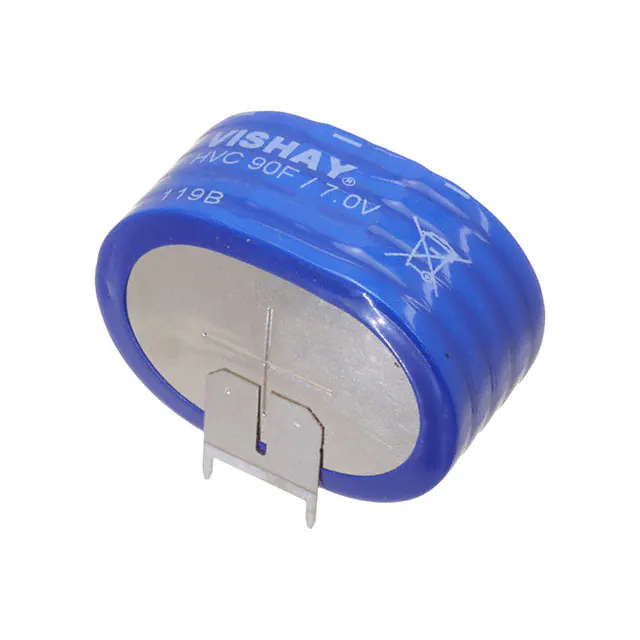

MAL219690107E3CAPACITOR 90F -20% +80% 7V T/H |
129 |
|
Datasheet |
ENYCAP™ 196HVC | Tray | Last Time Buy | 90 F | -20%, +80% | 7 V | 75mOhm @ 1kHz | 2000 Hrs @ 85°C | PC Pins | Through Hole | Coin, Stacked Vertical | 0.394" (10.00mm) | 1.378" L x 0.984" W (35.00mm x 25.00mm) | 0.689" (17.50mm) | -20°C ~ 85°C |
|
|
DSM165Q018W075PB1.6F, 18V, 64X30X11MM, STD MOD |
118 |
|
Datasheet |
DSM | Bulk | Active | 1.6 F | -10%, +30% | 18 V | 1.091Ohm | 1000 Hrs @ 65°C | Cable with Connector | Chassis Mount | Module | - | 2.520" L x 0.433" W (64.00mm x 11.00mm) | 1.260" (32.00mm) | -40°C ~ 65°C |
|
DSF607Q3R0CAPACITOR 600F -10%, +30% 3V TH |
139 |
|
Datasheet |
DSF | Bulk | Active | 600 F | -10%, +30% | 3 V | 3mOhm @ 1kHz | 1000 Hrs @ 85°C | PC Pins | Through Hole | Radial, Can - Snap-In - 4 Lead | 0.886" (22.50mm) | 1.378" Dia (35.00mm) | 2.756" (70.00mm) | -40°C ~ 85°C |
|
|
DSM304Q030W075PB0.3F, 30V, 44X27X18MM, STD MOD |
115 |
|
Datasheet |
DSM | Bulk | Active | 300 mF | -10%, +30% | 30 V | 1.515Ohm | 1000 Hrs @ 65°C | Cable with Connector | Chassis Mount | Module | - | 1.732" L x 0.709" W (44.00mm x 18.00mm) | 1.063" (27.00mm) | -40°C ~ 65°C |
|
MAL219690117E3CAPACITOR 90F -20% +80% 7V T/H |
110 |
|
Datasheet |
ENYCAP™ 196HVC | Tray | Last Time Buy | 90 F | -20%, +80% | 7 V | 75mOhm @ 1kHz | 2000 Hrs @ 85°C | PC Pins | Through Hole | Coin, Stacked Horizontal | 0.394" (10.00mm) | 1.378" L x 0.984" W (35.00mm x 25.00mm) | 0.669" (17.00mm) | -20°C ~ 85°C |
|
MAL219690108E3CAPACITOR 90F -20% +80% 8.4V T/H |
146 |
|
Datasheet |
ENYCAP™ 196HVC | Tray | Last Time Buy | 90 F | -20%, +80% | 8.4 V | 90mOhm @ 1kHz | 2000 Hrs @ 85°C | PC Pins | Through Hole | Coin, Stacked Vertical | 0.394" (10.00mm) | 1.378" L x 0.984" W (35.00mm x 25.00mm) | 0.787" (20.00mm) | -20°C ~ 85°C |
|
SCAP,PBLS-3.5/21.6CAP 3.5F 21.6V UCAP PACK |
113 |
|
Datasheet |
PBLS | Bulk | Active | 3.5 F | - | 21.6 V | 260mOhm | 1000 Hrs @ 65°C | Wire Leads with Connector | User Defined | Module, Wire Leads | - | 1.811" L x 1.063" W (46.00mm x 27.00mm) | 2.087" (53.00mm) | -40°C ~ 65°C |
|
XT3585-3R0567-RCAP 555F -5% +20% 3V T/H |
48 |
|
Datasheet |
XT | Bulk | Active | 555 F | -5%, +20% | 3 V | 2.6mOhm | 1500 Hrs @ 65°C | PC Pins | Through Hole | Radial, Can - Snap-In - 4 Lead | 0.886" (22.50mm) | 1.378" Dia (35.00mm) | 3.484" (88.50mm) | -40°C ~ 65°C |
|
|
DSM376Q009W075PB36.6F, 9V, 57X67X19.5MM, STD MOD |
43 |
|
Datasheet |
DSM | Bulk | Active | 36.6 F | -10%, +30% | 9 V | 49mOhm | 1000 Hrs @ 65°C | Cable with Connector | Chassis Mount | Module | - | 2.244" L x 0.768" W (57.00mm x 19.50mm) | 2.638" (67.00mm) | -40°C ~ 65°C |
|
|
DSM355Q030W075PB3.5F, 30V, 84X39X34MM, STD MOD |
35 |
|
Datasheet |
DSM | Bulk | Active | 3.5 F | -10%, +30% | 30 V | 505mOhm | 1000 Hrs @ 65°C | Cable with Connector | Chassis Mount | Module | - | 3.307" L x 1.339" W (84.00mm x 34.00mm) | 1.535" (39.00mm) | -40°C ~ 65°C |
|
|
SC3000-270-ASCCAPACITOR 3000F 0%/20% 2.7V CHAS |
103 |
|
Datasheet |
- | Box | Active | 3000 F | 0%, +20% | 2.7 V | 0.28mOhm | 1500 Hrs @ 65°C | Screw Terminals | Chassis Mount | Axial, Can - Screw Terminals | - | 2.402" Dia x 6.496" L (61.00mm x 165.00mm) | - | -40°C ~ 65°C |
|
PBLH-12R0/100STCAP EDLC 100F 12V UCAP PACK |
72 |
|
Datasheet |
PBLH | Bulk | Active | 100 F | - | 12 V | 20mOhm @ 1kHz | 1500 Hrs @ 65°C | Screw Terminals | Chassis Mount | Module | - | 6.614" L x 1.654" W (168.00mm x 42.00mm) | 3.543" (90.00mm) | -40°C ~ 65°C |
|

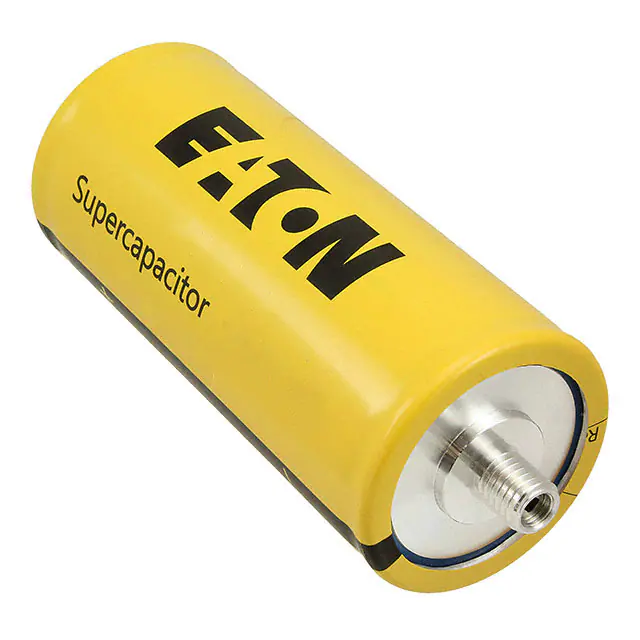

XL60-2R9348T-RCAP 3400F 2.85V SCREW TERM |
35 |
|
Datasheet |
XL60 | Bulk | Active | 3400 F | 0%, +20% | 2.85 V | 0.23mOhm | 1500 Hrs @ 65°C | Screw Terminals | Chassis, Stud Mount | Axial, Can - Screw Terminals | - | 2.390" Dia x 5.433" L (60.70mm x 138.00mm) | - | -40°C ~ 65°C |
|
TPLH-2R7/2.8WR8X16CAP 2.8F 2.7V THROUGH HOLE |
495 |
|
Datasheet |
TPLH-Radial | Bulk | Active | 2.8 F | - | 2.7 V | 129mOhm @ 1kHz | 1500 Hrs @ 85°C | PC Pins | Through Hole | Radial, Can | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.709" (18.00mm) | -40°C ~ 85°C |
|
RSCXJ1045R5F05013UCAP 100MF -20% +80% 5.5V T/H |
4,000 |
|
- |
DXJ | Bulk | Not For New Designs | 100 mF | -20%, +80% | 5.5 V | 150Ohm | 1000 Hrs @ 85°C | PC Pins | Through Hole | Axial, Can - Horizontal | 0.394" (10.00mm) | 0.453" Dia (11.50mm) | 0.217" (5.50mm) | -10°C ~ 85°C |
|
|
HV0810-2R7105-APCAP 1F -10% +30% 2.7V T/H |
5,000 |
|
Datasheet |
HV | Cut Tape (CT) | Active | 1 F | -10%, +30% | 2.7 V | 200mOhm @ 100Hz | 1000 Hrs @ 65°C | PC Pins | Through Hole | Radial, Can | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.532" (13.50mm) | -40°C ~ 65°C |
|
RSCBN2245R5G07014TCAP 220MF -20% +80% 5.5V T/H |
3,000 |
|
Datasheet |
DBN | Bulk | Not For New Designs | 220 mF | -20%, +80% | 5.5 V | 25Ohm @ 1kHz | 1000 Hrs @ 70°C | PC Pins | Through Hole | Radial, Can | 0.197" (5.00mm) | 0.531" Dia (13.50mm) | 0.295" (7.50mm) | -25°C ~ 70°C |
|
FMC0H473ZFCAP 47MF -20% +80% 5.5V T/H |
496 |
|
Datasheet |
FMC | Bulk | Active | 47 mF | -20%, +80% | 5.5 V | 100Ohm @ 1kHz | - | PC Pins | Through Hole | Radial | 0.197" (5.00mm) | 0.413" L x 0.197" W (10.50mm x 5.00mm) | 0.472" (12.00mm) | -25°C ~ 75°C |
|
MAL223091002E3CAP 35F -20% +50% 3V T/H |
489 |
|
Datasheet |
ENYCAP™ 230 EDLC-HV, Automotive, AEC-Q200 | Tray | Active | 35 F | -20%, +50% | 3 V | 18mOhm @ 1kHz | 2000 Hrs @ 85°C | PC Pins | Through Hole | Radial, Can | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.319" (33.50mm) | -40°C ~ 85°C |
