Electric Double Layer Capacitors (EDLC), Supercapacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Termination | Mounting Type | Package / Case | Lead Spacing | Size / Dimension | Height - Seated (Max) | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PAS1030LN2R7705CAP 7F 20% 2.7V T/H |
0 |
|
Datasheet |
PAS | Bulk | Obsolete | 7 F | ±20% | 2.7 V | 80mOhm @ 1kHz | - | PC Pins | Through Hole | Radial, Can | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 1.260" (32.00mm) | -40°C ~ 70°C |
|
|
PAS1030LN2R7905CAP 9F 20% 2.7V T/H |
0 |
|
Datasheet |
PAS | Bulk | Obsolete | 9 F | ±20% | 2.7 V | 80mOhm @ 1kHz | - | PC Pins | Through Hole | Radial, Can | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 1.260" (32.00mm) | -40°C ~ 70°C |
|
|
PAS1220LN2R7905CAP 9F 20% 2.7V T/H |
0 |
|
Datasheet |
PAS | Bulk | Obsolete | 9 F | ±20% | 2.7 V | 60mOhm @ 1kHz | - | PC Pins | Through Hole | Radial, Can | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 0.866" (22.00mm) | -40°C ~ 70°C |
|
LIC1235RS3R8406CAPACITOR 40F 20% 3.8V T/H |
0 |
|
Datasheet |
RS | Bulk | Obsolete | 40 F | ±20% | 3.8 V | 70mOhm @ 1kHz | - | PC Pins | Through Hole | Radial, Can | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 1.378" (35.00mm) | -30°C ~ 70°C |
|
LIC1840RS3R8107CAPACITOR 100F 15% 3.8V T/H |
0 |
|
Datasheet |
RS | Bulk | Obsolete | 100 F | ±15% | 3.8 V | - | - | PC Pins | Through Hole | Radial, Can | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 1.654" (42.00mm) | -30°C ~ 70°C |
|
LIC2540RS3R8207CAP LIC CYLINDER TYPE 3.8V 200F |
0 |
|
Datasheet |
LIC | Bulk | Obsolete | 200 F | ±15% | 3.8 V | - | - | PC Pins | Through Hole | Radial, Can | 0.492" (12.50mm) | 0.984" Dia (25.00mm) | 1.654" (42.00mm) | -30°C ~ 70°C |
|
|
LIC2540RS3R8277S2CAP LITH HYBRID 270F 15% 3.8V TH |
0 |
|
Datasheet |
RS | Bulk | Obsolete | 270 F | ±15% | 3.8 V | - | - | PC Pins | Through Hole | Radial, Can | 0.492" (12.50mm) | 0.984" Dia (25.00mm) | 1.654" (42.00mm) | -30°C ~ 70°C |
|

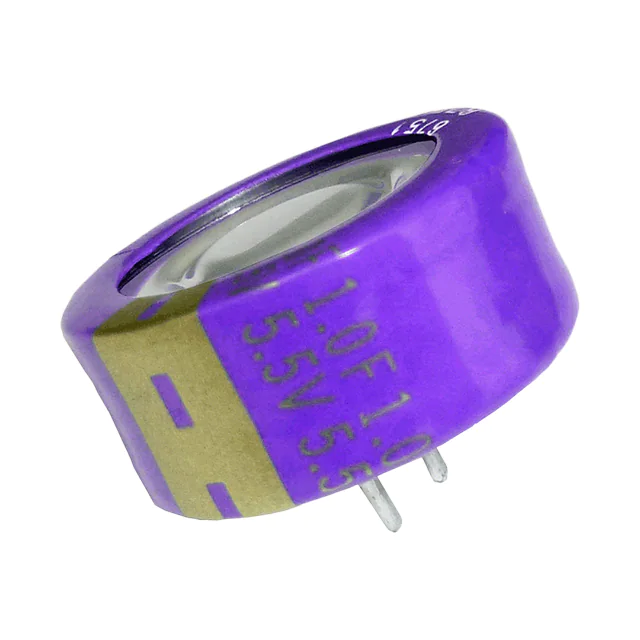

EEC-LF0H105CAPACITOR 1F -20% +80% 5.5V T/H |
0 |
|
Datasheet |
LF | Tray | Obsolete | 1 F | -20%, +80% | 5.5 V | 20Ohm @ 1kHz | 6000 Hrs @ 85°C | PC Pins | Through Hole | Radial, Can | 0.197" (5.00mm) | 0.846" Dia (21.50mm) | 0.374" (9.50mm) | -40°C ~ 85°C |
|
EEC-HL0E255CAP 2.5F 20% 2.7V T/H |
0 |
|
Datasheet |
HL | Bulk | Obsolete | 2.5 F | ±20% | 2.7 V | 70mOhm @ 1kHz | 2000 Hrs @ 70°C | PC Pins | Through Hole | Radial, Can | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.866" (22.00mm) | -40°C ~ 70°C |
|
|
EEC-HL0E405CAP 4F 20% 2.7V T/H |
0 |
|
Datasheet |
HL | Bulk | Obsolete | 4 F | ±20% | 2.7 V | 50mOhm @ 1kHz | 2000 Hrs @ 70°C | PC Pins | Through Hole | Radial, Can | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.866" (22.00mm) | -40°C ~ 70°C |
|
MAL219690203E3CAPACITOR 45F -20% +80% 2.8V T/H |
0 |
|
Datasheet |
ENYCAP™ 196HVC | Tray | Obsolete | 45 F | -20%, +80% | 2.8 V | 500mOhm @ 1kHz | 2000 Hrs @ 85°C | PC Pins | Through Hole | Coin, Stacked Vertical | 0.394" (10.00mm) | 0.984" L x 0.591" W (25.00mm x 15.00mm) | 0.197" (5.00mm) | -20°C ~ 85°C |
|
MAL219690201E3CAPACITOR 45F -20% +80% 4.2V T/H |
0 |
|
Datasheet |
ENYCAP™ 196HVC | Tray | Obsolete | 45 F | -20%, +80% | 4.2 V | 750mOhm @ 1kHz | 2000 Hrs @ 85°C | PC Pins | Through Hole | Coin, Stacked Vertical | 0.394" (10.00mm) | 0.984" L x 0.591" W (25.00mm x 15.00mm) | 0.295" (7.50mm) | -20°C ~ 85°C |
|
|
MAL219690202E3CAPACITOR 45F -20% +80% 5.6V T/H |
0 |
|
Datasheet |
ENYCAP™ 196HVC | Tray | Obsolete | 45 F | -20%, +80% | 5.6 V | 1Ohm @ 1kHz | 2000 Hrs @ 85°C | PC Pins | Through Hole | Coin, Stacked Vertical | 0.394" (10.00mm) | 0.984" L x 0.591" W (25.00mm x 15.00mm) | 0.394" (10.00mm) | -20°C ~ 85°C |
|
MAL219690213E3CAPACITOR 45F -20% +80% 2.8V T/H |
0 |
|
Datasheet |
ENYCAP™ 196HVC | Tray | Obsolete | 45 F | -20%, +80% | 2.8 V | 500mOhm @ 1kHz | 2000 Hrs @ 85°C | PC Pins | Through Hole | Coin, Stacked Horizontal | 0.394" (10.00mm) | 0.984" L x 0.591" W (25.00mm x 15.00mm) | 0.197" (5.00mm) | -20°C ~ 85°C |
|
MAL219690211E3CAPACITOR 45F -20% +80% 4.2V T/H |
0 |
|
Datasheet |
ENYCAP™ 196HVC | Tray | Obsolete | 45 F | -20%, +80% | 4.2 V | 750mOhm @ 1kHz | 2000 Hrs @ 85°C | PC Pins | Through Hole | Coin, Stacked Horizontal | 0.394" (10.00mm) | 0.984" L x 0.591" W (25.00mm x 15.00mm) | 0.295" (7.50mm) | -20°C ~ 85°C |
|
|
MAL219690212E3CAPACITOR 45F -20% +80% 5.6V T/H |
0 |
|
Datasheet |
ENYCAP™ 196HVC | Tray | Obsolete | 45 F | -20%, +80% | 5.6 V | 1Ohm @ 1kHz | 2000 Hrs @ 85°C | PC Pins | Through Hole | Coin, Stacked Horizontal | 0.394" (10.00mm) | 0.984" L x 0.591" W (25.00mm x 15.00mm) | 0.394" (10.00mm) | -20°C ~ 85°C |
|
UMAL361421B024TA01CAP 100F 2.7V SURFACE MNT |
0 |
|
Datasheet |
UMAL | Tray | Obsolete | 100 F | - | 2.7 V | 100mOhm | - | SMD (SMT) Tabs | Surface Mount | 3-SMD, Flat Leads | - | 0.827" L x 0.551" W (21.00mm x 14.00mm) | 0.142" (3.60mm) | -20°C ~ 70°C |
|
BZ015B603ZABCAPACITOR 60MF -20% +80% 5.5V TH |
0 |
|
- |
BestCap® BZ | Bulk | Obsolete | 60 mF | -20%, +80% | 5.5 V | 96mOhm @ 1kHz | 1000 Hrs @ 70°C | PC Pins | Through Hole | BZ01, 4 Lead | - | 1.102" L x 0.669" W (28.00mm x 17.00mm) | 0.213" (5.40mm) | -20°C ~ 70°C |
|
|
PHV1245-5R4176-2ACAPACITOR DOUBLE LAYER TH |
0 |
|
Datasheet |
- | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - |
|
HV1625-2R7256-1CAPACITOR 25F 2.7V |
0 |
|
Datasheet |
- | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - |
