DIP Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Number of Positions | Current Rating (Amps) | Voltage Rating | Actuator Type | Actuator Level | Contact Material | Contact Finish | Height Above Board | Mounting Type | Termination Style | Pitch | Washable | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
7814J-1-051ESWITCH ROTARY DIP SPDT 0.1A 16V Bourns Inc. |
208 |
|
Datasheet |
7814 | Tape & Reel (TR) | Active | SPDT | 2 | 100mA | 16VAC/DC | Rotary for Tool | Flush, Recessed | - | - | 0.100" (2.54mm) | Surface Mount | J Lead | - | No | - | -55°C ~ 125°C |
|

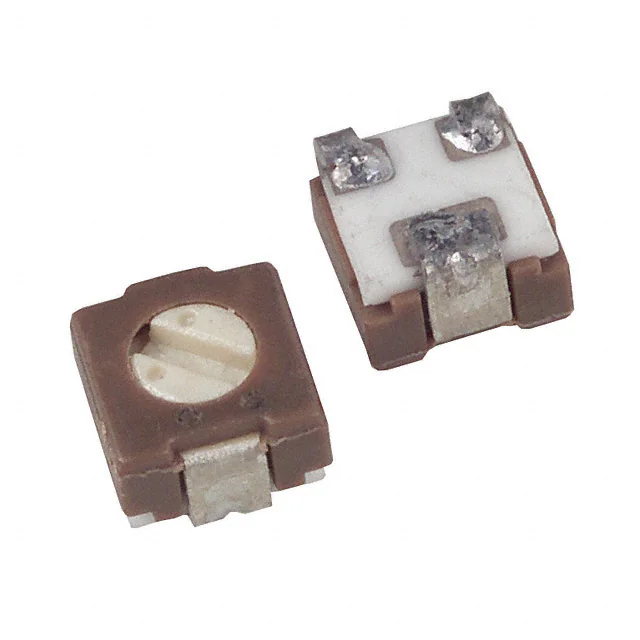

7813J-1-023ESWITCH ROTARY DIP SPDT 0.1A 16V Bourns Inc. |
7,555 |
|
Datasheet |
7813 | Tape & Reel (TR) | Active | SPDT | 2 | 100mA | 16VAC/DC | Rotary for Tool | Flush, Recessed | - | - | 0.087" (2.20mm) | Surface Mount | J Lead | - | No | - | -55°C ~ 125°C |
|

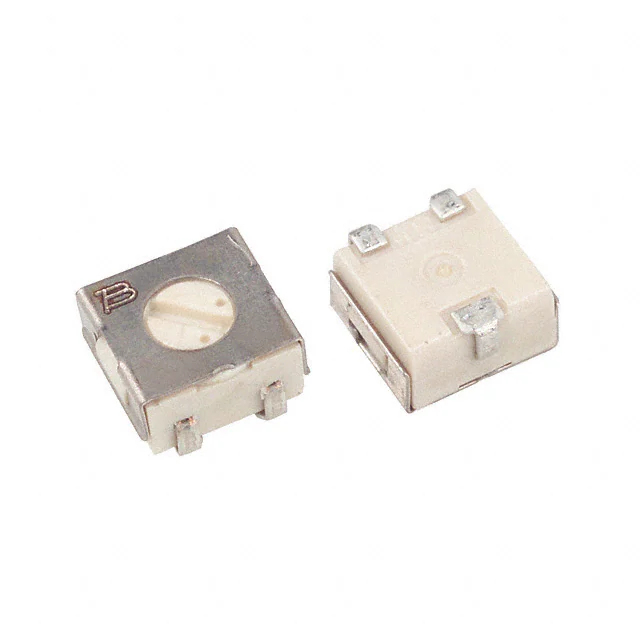

7814J-1-023ESWITCH ROTARY DIP SPDT 0.1A 16V Bourns Inc. |
4,815 |
|
Datasheet |
7814 | Tape & Reel (TR) | Active | SPDT | 2 | 100mA | 16VAC/DC | Rotary for Tool | Flush, Recessed | - | - | 0.100" (2.54mm) | Surface Mount | J Lead | - | No | - | -55°C ~ 125°C |
|
7829H-1-051LFSWITCH ROTARY DIP SPDT 0.1A 16V Bourns Inc. |
103 |
|
Datasheet |
7829 | Tube | Active | SPDT | 2 | 100mA | 16VAC/DC | Rotary for Tool | Raised | - | - | 0.180" (4.57mm) | Through Hole | PC Pin | - | Yes | - | -55°C ~ 125°C |
|
7814G-1-051ESWITCH ROTARY DIP SPDT 0.1A 16V Bourns Inc. |
651 |
|
Datasheet |
7814 | Tape & Reel (TR) | Active | SPDT | 2 | 100mA | 16VAC/DC | Rotary for Tool | Flush, Recessed | - | - | 0.100" (2.54mm) | Surface Mount | Gull Wing | - | No | - | -55°C ~ 125°C |
|
7814Z-1-023ESWITCH ROTARY DIP SPDT 0.1A 16V Bourns Inc. |
443 |
|
Datasheet |
7814 | Tape & Reel (TR) | Active | SPDT | 2 | 100mA | 16VAC/DC | Rotary for Tool | Flush, Recessed | - | - | 0.226" (5.74mm) | Surface Mount, Right Angle | J Lead | - | No | - | -55°C ~ 125°C |
|
7813S-1-023ESWITCH ROTARY DIP SPDT 0.1A 16V Bourns Inc. |
230 |
|
Datasheet |
7813 | Tape & Reel (TR) | Active | SPDT | 2 | 100mA | 16VAC/DC | Rotary for Tool | Flush, Recessed | - | - | 0.211" (5.35mm) | Surface Mount, Right Angle | J Lead | - | No | - | -55°C ~ 125°C |
|

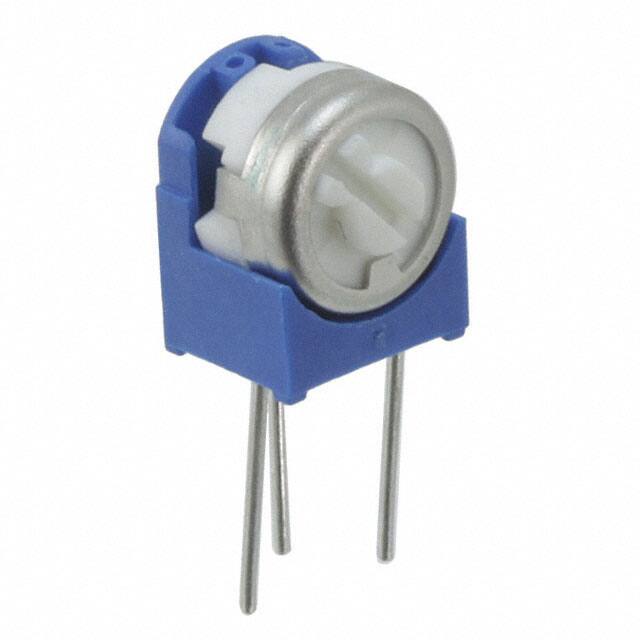

7829S-1-023LFSWITCH ROTARY DIP SPDT 0.1A 16V Bourns Inc. |
0 |
|
Datasheet |
7829 | Tube | Active | SPDT | 2 | 100mA | 16VAC/DC | Rotary for Tool | Raised | - | - | 0.330" (8.38mm) | Through Hole, Right Angle | PC Pin | - | Yes | - | -55°C ~ 125°C |
|

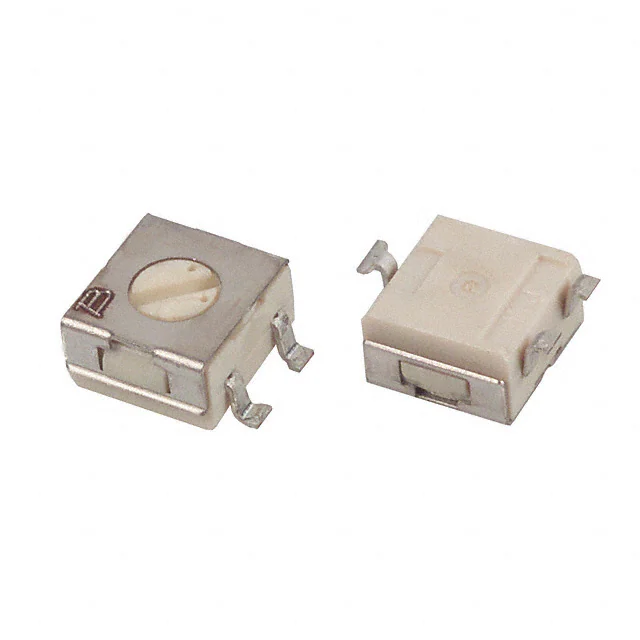

7814G-1-023ESWITCH ROTARY DIP SPDT 0.1A 16V Bourns Inc. |
73 |
|
Datasheet |
7814 | Tape & Reel (TR) | Active | SPDT | 2 | 100mA | 16VAC/DC | Rotary for Tool | Flush, Recessed | - | - | 0.100" (2.54mm) | Surface Mount | Gull Wing | - | No | - | -55°C ~ 125°C |
|
7829H-1-023LFSWITCH ROTARY DIP SPDT 0.1A 16V Bourns Inc. |
96 |
|
Datasheet |
7829 | Tube | Active | SPDT | 2 | 100mA | 16VAC/DC | Rotary for Tool | Raised | - | - | 0.180" (4.57mm) | Through Hole | PC Pin | - | Yes | - | -55°C ~ 125°C |
