DIP Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Number of Positions | Current Rating (Amps) | Voltage Rating | Actuator Type | Actuator Level | Contact Material | Contact Finish | Height Above Board | Mounting Type | Termination Style | Pitch | Washable | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
220AMB04RSWITCH ROTARY DIP SP4T 0.1A 50V |
0 |
|
Datasheet |
220 | Tape & Reel (TR) | Discontinued at Digi-Key | SP4T | 4 | 100mA | 50VDC | Rotary with Shaft | Raised | Beryllium Copper | Gold | 0.268" (6.80mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
221ADA10SWITCH ROTARY DIP BCD 0.1A 50V |
0 |
|
Datasheet |
221 | Tube | Discontinued at Digi-Key | BCD | 10 | 100mA | 50VDC | Rotary for Tool | Flush, Recessed | Beryllium Copper | Gold | 0.225" (5.72mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|
221ADC10SWITCH ROTARY DIP BCD 0.1A 50V |
0 |
|
Datasheet |
221 | Tube | Discontinued at Digi-Key | BCD | 10 | 100mA | 50VDC | Rotary with Shaft | Raised | Beryllium Copper | Gold | 0.470" (11.94mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|
221ADA16SWITCH ROTARY DIP HEX 0.1A 50V |
0 |
|
Datasheet |
221 | Tube | Discontinued at Digi-Key | Hexadecimal | 16 | 100mA | 50VDC | Rotary for Tool | Flush, Recessed | Beryllium Copper | Gold | 0.225" (5.72mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|
221AMB10RSWITCH ROTARY DIP BCD 0.1A 50V |
0 |
|
Datasheet |
221 | Tape & Reel (TR) | Discontinued at Digi-Key | BCD | 10 | 100mA | 50VDC | Rotary with Shaft | Raised | Beryllium Copper | Gold | 0.370" (9.40mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|
221AMB16RSWITCH ROTARY DIP HEX 0.1A 50V |
0 |
|
Datasheet |
221 | Tape & Reel (TR) | Discontinued at Digi-Key | Hexadecimal | 16 | 100mA | 50VDC | Rotary with Shaft | Raised | Beryllium Copper | Gold | 0.370" (9.40mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|
221ADB10SWITCH ROTARY DIP BCD 0.1A 50V |
0 |
|
Datasheet |
221 | Tube | Discontinued at Digi-Key | BCD | 10 | 100mA | 50VDC | Rotary with Shaft | Raised | Beryllium Copper | Gold | 0.370" (9.40mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|

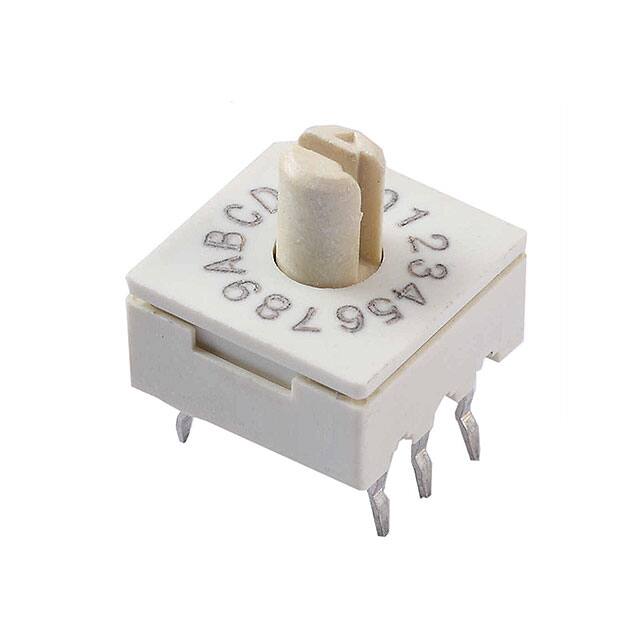

221ADB16SWITCH ROTARY DIP HEX 0.1A 50V |
0 |
|
Datasheet |
221 | Tube | Discontinued at Digi-Key | Hexadecimal | 16 | 100mA | 50VDC | Rotary with Shaft | Raised | Beryllium Copper | Gold | 0.370" (9.40mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|
1-1825189-3SWITCH SHUNT DIP PROGRAMMABLE |
0 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Programmable | 4 | - | - | Breakable (Shunt) | Flush, Recessed | Copper Alloy | Tin | 0.079" (2.00mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | - | - |
|
|
5-435640-3SWITCH ROCKER DIP SPST 0.06A 5V |
0 |
|
Datasheet |
7100 | Bulk | Obsolete | SPST | 8 | 60mA | 5VDC | Rocker | Raised | Copper Alloy | Gold | 0.340" (8.64mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Sealed | -55°C ~ 105°C |
|
|
5338048-2SWITCH SLIDE DIP SPST |
0 |
|
Datasheet |
- | Bulk | Obsolete | SPST | 2 | - | - | Slide (Standard) | Raised | Phosphor Bronze | Tin | 0.354" (9.00mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -25°C ~ 70°C |
|
|
1571983-6SWITCH SLIDE DIP SPST 0.025A 24V |
0 |
|
Datasheet |
GDH | Bulk | Active | SPST | 4 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.091" (2.30mm) | Surface Mount | Gull Wing | 0.050" (1.27mm), Half | No | - | -30°C ~ 85°C |
|
|
1571998-4SWITCH PIANO DIP SPST 0.025A 24V |
0 |
|
Datasheet |
GDP | Tape & Reel (TR) | Active | SPST | 2 | 25mA | 24VDC | Piano | Flush, Recessed | Copper Alloy | Gold | 0.343" (8.70mm) | Surface Mount, Right Angle | Gull Wing | 0.100" (2.54mm), Full | Yes | Tape Seal | -30°C ~ 85°C |
|
|
1825284-2SWITCH SLIDE DIP SPST 0.4VA 20V |
0 |
|
Datasheet |
ATT | Tube | Active | SPST | 5 | 0.4VA | 20VAC/DC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.225" (5.72mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -30°C ~ 85°C |
|
|
1825429-1SWITCH PIANO DIP SPST 0.4VA 20V |
0 |
|
Datasheet |
ARP | Tube | Active | SPST | 8 | 0.4VA | 20VAC/DC | Piano | Raised | Copper Alloy | Gold | 0.274" (6.95mm) | Surface Mount, Right Angle | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -30°C ~ 85°C |
|
|
1825013-7SWITCH ROTARY DIP BCD 0.4VA 20V |
0 |
|
Datasheet |
MRD | Tube | Active | BCD | 10 | 0.4VA | 20VAC/DC | Rotary for Tool | Flush, Recessed | Beryllium Copper | Gold | 0.295" (7.50mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | Process Sealed | -30°C ~ 85°C |
|
|
1-1825013-5SW ROTARY DIP HEX COMP 0.4VA 20V |
0 |
|
Datasheet |
MRD | Tube | Obsolete | Hexadecimal Complement | 16 | 0.4VA | 20VAC/DC | Rotary for Tool | Flush, Recessed | Beryllium Copper | Gold | 0.122" (3.10mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | Process Sealed | -30°C ~ 85°C |
|
|
1825013-2SW ROTARY DIP BCD COMP 0.4VA 20V |
0 |
|
Datasheet |
MRD | Tube | Obsolete | BCD Complement | 10 | 0.4VA | 20VAC/DC | Rotary for Tool | Flush, Recessed | Beryllium Copper | Gold | 0.130" (3.30mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | Process Sealed | -30°C ~ 85°C |
|
|
1977106-1SWITCH SLIDE DIP SPST 0.01A 5V |
0 |
|
Datasheet |
- | Tube | Active | SPST | 10 | 10mA | 5VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.244" (6.20mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -30°C ~ 85°C |
|
|
2-1437583-3SWITCH DIP 4 POLE DIP |
0 |
|
Datasheet |
DTS | Tube | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
DIP Switches Electronic Components
Explore DIP Switches electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
