DIP Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Number of Positions | Current Rating (Amps) | Voltage Rating | Actuator Type | Actuator Level | Contact Material | Contact Finish | Height Above Board | Mounting Type | Termination Style | Pitch | Washable | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
97C06SSWITCH SLIDE DIP SPST 0.025A 24V |
0 |
|
Datasheet |
97 | Bag | Obsolete | SPST | 6 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.063" (1.60mm) | Surface Mount | Gull Wing | 0.050" (1.27mm), Half | Yes | Tape Seal | -40°C ~ 85°C |
|
|
97R06SSWITCH SLIDE DIP SPST 0.025A 24V |
0 |
|
Datasheet |
97 | Bag | Obsolete | SPST | 6 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.061" (1.55mm) | Surface Mount | Gull Wing | 0.050" (1.27mm), Half | Yes | Tape Seal | -40°C ~ 85°C |
|
76PSB09STSWITCH PIANO DIP SPST 0.15A 30V |
0 |
|
Datasheet |
76 | Tube | Obsolete | SPST | 9 | 150mA | 30VDC | Piano | Raised | Copper Alloy | Gold | 0.301" (7.65mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|
76RSB09STSWITCH ROCKER DIP SPST 0.15A 30V |
0 |
|
Datasheet |
76 | Tube | Obsolete | SPST | 9 | 150mA | 30VDC | Rocker | Flush, Recessed | Copper Alloy | Gold | 0.292" (7.41mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|
|
76RSB09TSWITCH ROCKER DIP SPST 0.15A 30V |
0 |
|
Datasheet |
76 | Tube | Obsolete | SPST | 9 | 150mA | 30VDC | Rocker | Flush, Recessed | Copper Alloy | Gold | 0.292" (7.41mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
76SB09STSWITCH ROCKER DIP SPST 0.15A 30V |
0 |
|
Datasheet |
76 | Tube | Obsolete | SPST | 9 | 150mA | 30VDC | Rocker | Raised | Copper Alloy | Gold | 0.315" (8.00mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|
|
76SB09TSWITCH ROCKER DIP SPST 0.15A 30V |
0 |
|
Datasheet |
76 | Tube | Obsolete | SPST | 9 | 150mA | 30VDC | Rocker | Raised | Copper Alloy | Gold | 0.315" (8.00mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|

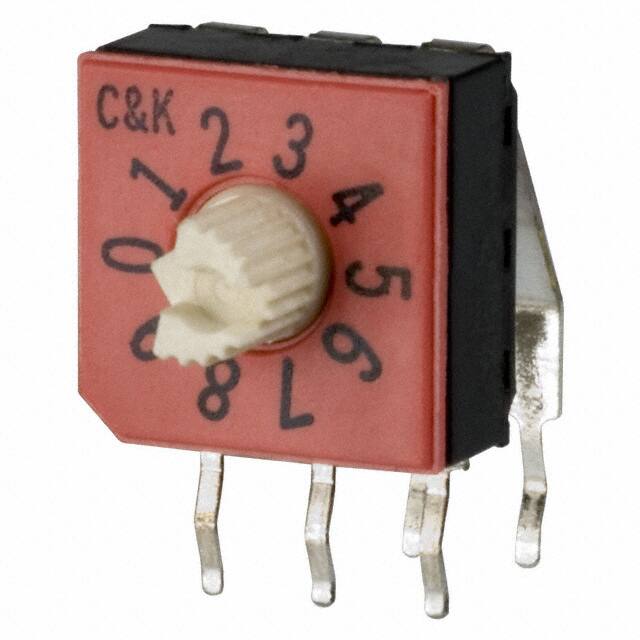

CD10RL1ABSWITCH ROTARY DIP BCD 0.4VA 20V |
0 |
|
Datasheet |
CD | Tube | Obsolete | BCD | 10 | 0.4VA | 20VAC/DC | Rotary with Shaft | Raised | Copper Alloy | Gold | 0.340" (8.64mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Process Sealed | -25°C ~ 85°C |
|

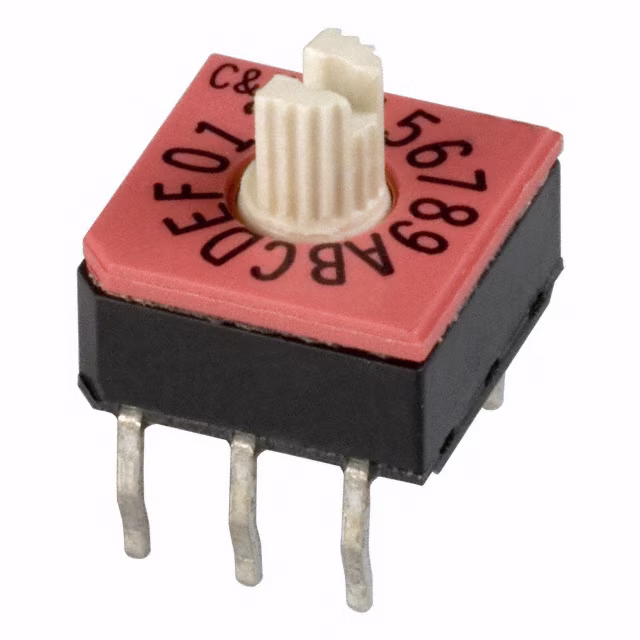

CD16RL1CBSWITCH ROTARY DIP HEX 0.4VA 20V |
0 |
|
Datasheet |
CD | Tube | Obsolete | Hexadecimal | 16 | 0.4VA | 20VAC/DC | Rotary with Shaft | Raised | Copper Alloy | Gold | 0.295" (7.50mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Process Sealed | -25°C ~ 85°C |
|
3-5435640-2SWITCH ROCKER DIP SPST |
0 |
|
Datasheet |
7100 | Tube | Obsolete | SPST | 12 | - | - | Rocker | Raised | - | - | - | Through Hole | - | - | No | - | - |
|
BPA07BSWITCH PIANO DIP SPST 0.1A 5V |
0 |
|
Datasheet |
BPA | Tube | Obsolete | SPST | 7 | 100mA | 5VDC | Piano | Raised | Beryllium Copper | Gold | 0.287" (7.30mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | - | -20°C ~ 85°C |
|

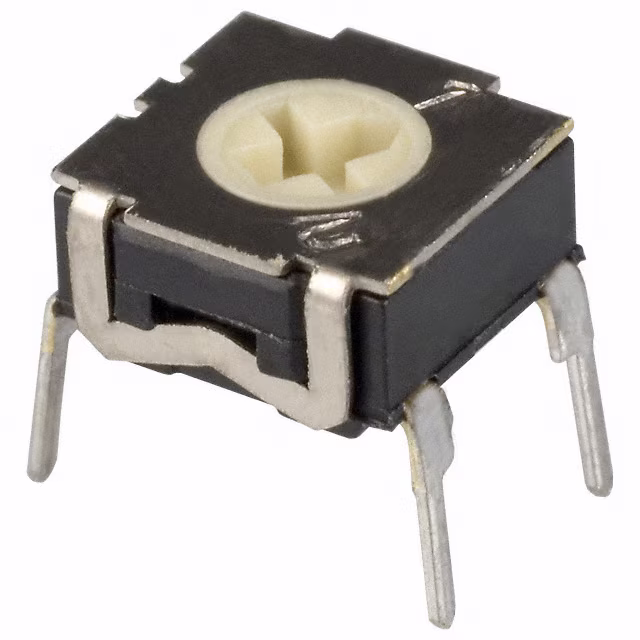

RTE0200N05SWITCH ROTARY DIP SPDT 0.1A 50V |
0 |
|
Datasheet |
RTE | Bulk | Obsolete | SPDT | 2 | 100mA | 50VDC | Rotary for Tool | Flush, Recessed | Bronze | Silver | 0.167" (4.25mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -25°C ~ 85°C |
|

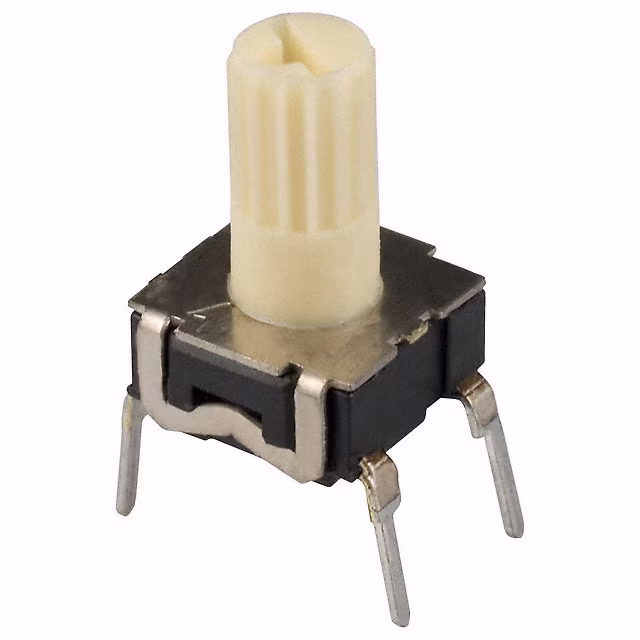

RTE0201N05SWITCH ROTARY DIP SPDT 0.1A 50V |
0 |
|
Datasheet |
RTE | Bulk | Obsolete | SPDT | 2 | 100mA | 50VDC | Rotary with Shaft | Raised | Bronze | Silver | 0.463" (11.75mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -25°C ~ 85°C |
|

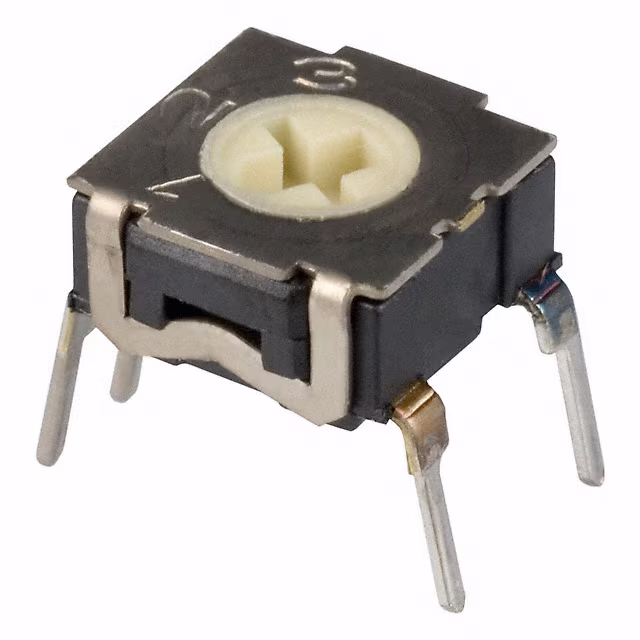

RTE0300N05SWITCH ROTARY DIP SP3T 0.1A 50V |
0 |
|
Datasheet |
RTE | Bulk | Obsolete | SP3T | 3 | 100mA | 50VDC | Rotary for Tool | Flush, Recessed | Bronze | Silver | 0.167" (4.25mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -25°C ~ 85°C |
|

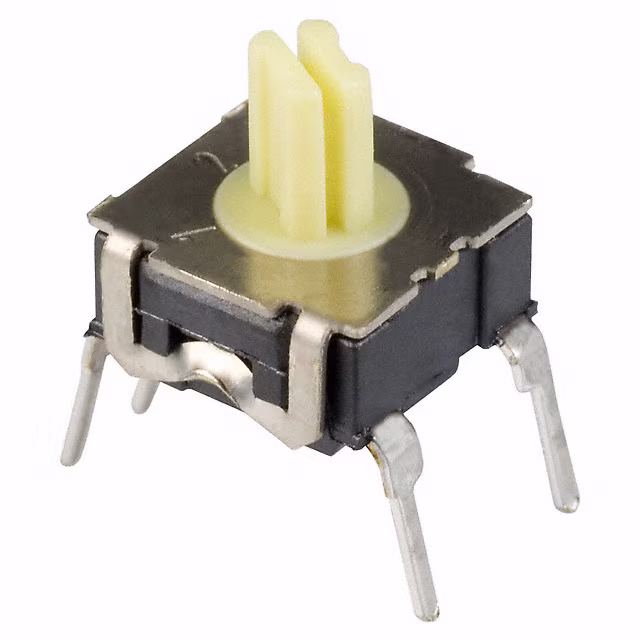

RTE0302N05SWITCH ROTARY DIP SP3T 0.1A 50V |
0 |
|
Datasheet |
RTE | Bulk | Obsolete | SP3T | 3 | 100mA | 50VDC | Rotary with Shaft | Raised | Bronze | Silver | 0.321" (8.15mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -25°C ~ 85°C |
|

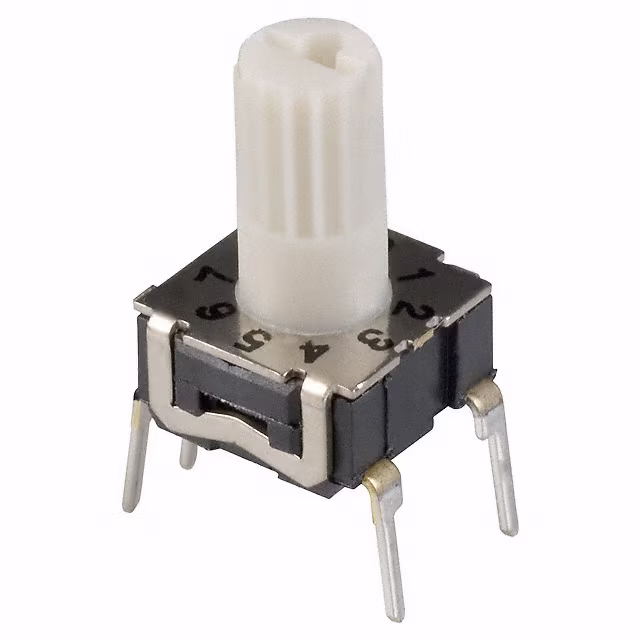

RTE1001N14SWITCH ROTARY DIP BCD 0.1A 30V |
0 |
|
Datasheet |
RTE | Tube | Obsolete | BCD | 10 | 100mA | 30VDC | Rotary with Shaft | Raised | Bronze | Gold | 0.463" (11.75mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -25°C ~ 85°C |
|

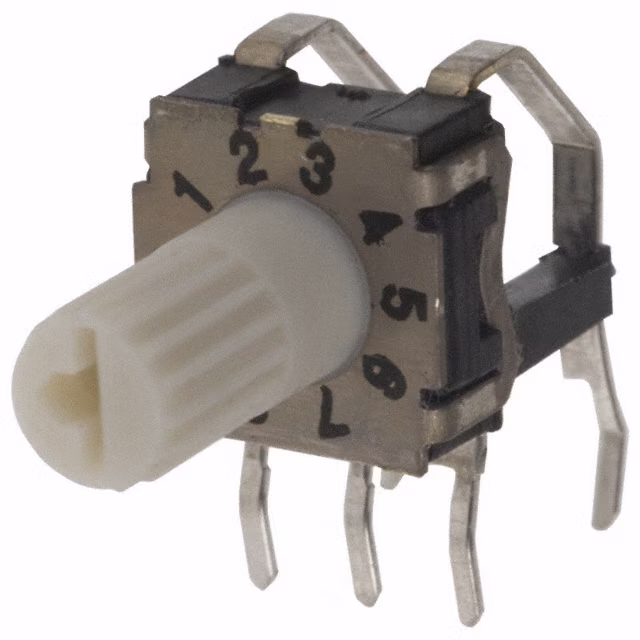

RTE1001V14SWITCH ROTARY DIP BCD 0.1A 30V |
0 |
|
Datasheet |
RTE | Tube | Obsolete | BCD | 10 | 100mA | 30VDC | Rotary with Shaft | Raised | Bronze | Gold | 0.335" (8.50mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -25°C ~ 85°C |
|

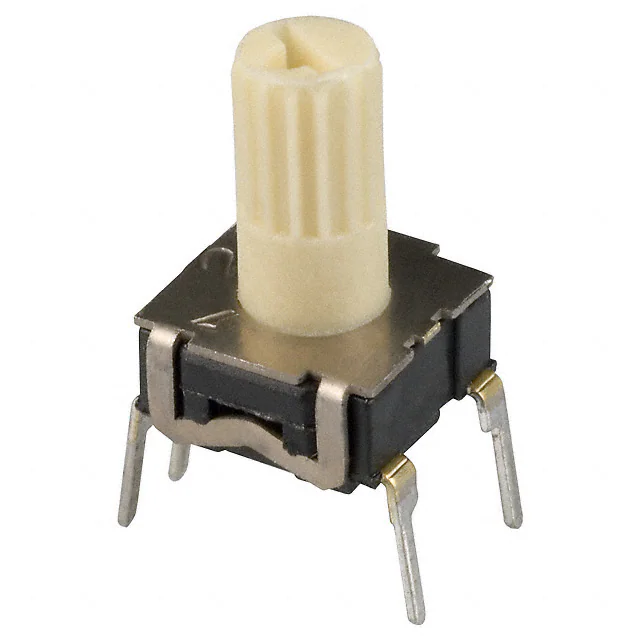

RTE1601N44SWITCH ROTARY DIP HEX 0.1A 30V |
0 |
|
Datasheet |
RTE | Tube | Obsolete | Hexadecimal | 16 | 100mA | 30VDC | Rotary with Shaft | Raised | Bronze | Gold | 0.463" (11.75mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -25°C ~ 85°C |
|

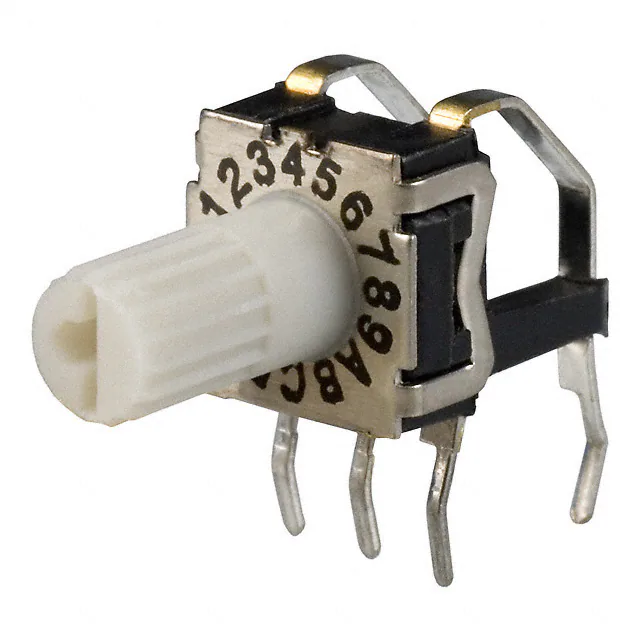

RTE1601V44SWITCH ROTARY DIP HEX 0.1A 30V |
0 |
|
Datasheet |
RTE | Tube | Obsolete | Hexadecimal | 16 | 100mA | 30VDC | Rotary with Shaft | Raised | Bronze | Gold | 0.335" (8.50mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -25°C ~ 85°C |
|
5-435470-2SWITCH STANDARD DIP SPDT |
0 |
|
Datasheet |
7000 | Bulk | Obsolete | SPDT | 6 | - | - | Standard | Raised | - | - | - | Through Hole | - | - | No | - | - |
DIP Switches Electronic Components
Explore DIP Switches electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
