DIP Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Number of Positions | Current Rating (Amps) | Voltage Rating | Actuator Type | Actuator Level | Contact Material | Contact Finish | Height Above Board | Mounting Type | Termination Style | Pitch | Washable | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
A6S-4104SWITCH SLIDE DIP SPST 0.025A 24V |
0 |
|
Datasheet |
A6S | Tube | Obsolete | SPST | 4 | 25mA | 24VDC | Slide (Standard) | Raised | - | - | 0.173" (4.40mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -20°C ~ 70°C |
|
A6S-5104SWITCH SLIDE DIP SPST 0.025A 24V |
0 |
|
Datasheet |
A6S | Tube | Obsolete | SPST | 5 | 25mA | 24VDC | Slide (Standard) | Raised | - | - | 0.173" (4.40mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -20°C ~ 70°C |
|
A6S-6104SWITCH SLIDE DIP SPST 0.025A 24V |
0 |
|
Datasheet |
A6S | Tube | Obsolete | SPST | 6 | 25mA | 24VDC | Slide (Standard) | Raised | - | - | 0.173" (4.40mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -20°C ~ 70°C |
|
A6S-7104SWITCH SLIDE DIP SPST 0.025A 24V |
0 |
|
Datasheet |
A6S | Bag | Obsolete | SPST | 7 | 25mA | 24VDC | Slide (Standard) | Raised | - | - | 0.173" (4.40mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -20°C ~ 70°C |
|
|
A6S-8104SWITCH SLIDE DIP SPST 0.025A 24V |
0 |
|
Datasheet |
A6S | Tube | Obsolete | SPST | 8 | 25mA | 24VDC | Slide (Standard) | Raised | - | - | 0.173" (4.40mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -20°C ~ 70°C |
|
|
A6S-9104SWITCH SLIDE DIP SPST 0.025A 24V |
0 |
|
Datasheet |
A6S | Bag | Obsolete | SPST | 9 | 25mA | 24VDC | Slide (Standard) | Raised | - | - | 0.173" (4.40mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -20°C ~ 70°C |
|
A6S-0104SWITCH SLIDE DIP SPST 0.025A 24V |
0 |
|
Datasheet |
A6S | Bag | Obsolete | SPST | 10 | 25mA | 24VDC | Slide (Standard) | Raised | - | - | 0.173" (4.40mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -20°C ~ 70°C |
|
94HBB08WSWITCH ROTARY DIP OCTAL 0.1A 50V |
0 |
|
Datasheet |
94H | Bag | Obsolete | Octal | 8 | 100mA | 50VDC | Rotary with Shaft | Raised | Copper Alloy | Gold | 0.225" (5.72mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Sealed | -40°C ~ 85°C |
|
435704-4SWITCH SHUNT DIP PROGRAMMABLE |
0 |
|
Datasheet |
7600 | Tube | Obsolete | Programmable | 4 | - | - | Breakable (Shunt) | Flush, Recessed | Copper Alloy | Tin | 0.079" (2.00mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -55°C ~ 105°C |
|

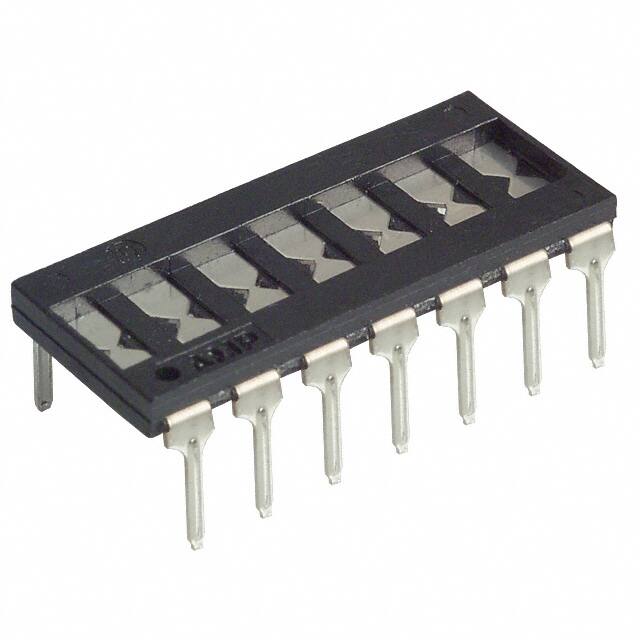

435704-7SWITCH SHUNT DIP PROGRAMMABLE |
0 |
|
Datasheet |
7600 | Tube | Obsolete | Programmable | 7 | - | - | Breakable (Shunt) | Flush, Recessed | Copper Alloy | Tin | 0.079" (2.00mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -55°C ~ 105°C |
|

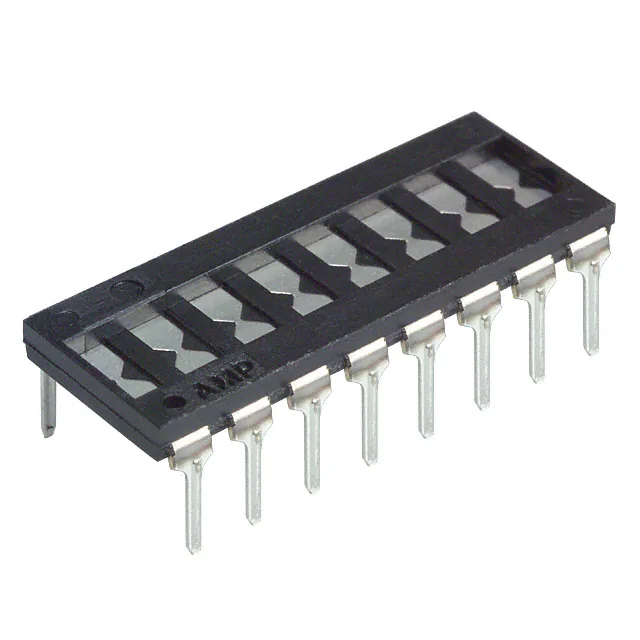

435704-8SWITCH SHUNT DIP PROGRAMMABLE |
0 |
|
Datasheet |
7600 | Tube | Obsolete | Programmable | 8 | - | - | Breakable (Shunt) | Flush, Recessed | Copper Alloy | Tin | 0.079" (2.00mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -55°C ~ 105°C |
|

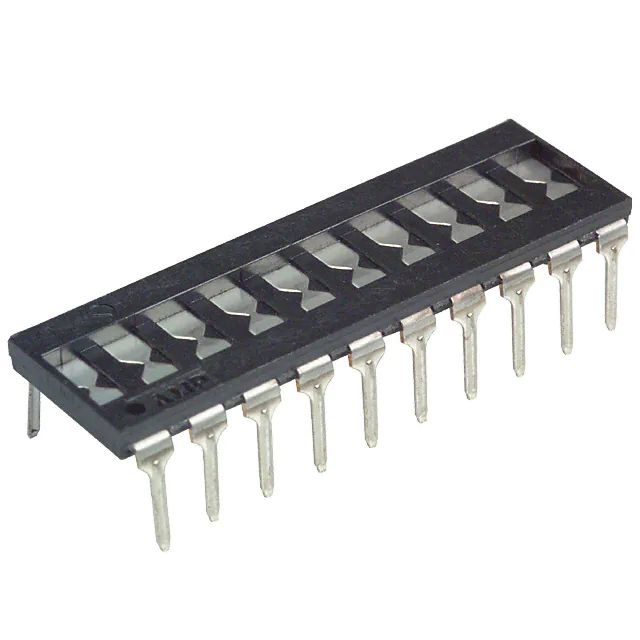

1-435704-0SWITCH SHUNT DIP PROGRAMMABLE |
0 |
|
Datasheet |
7600 | Tube | Obsolete | Programmable | 10 | - | - | Breakable (Shunt) | Flush, Recessed | Copper Alloy | Tin | 0.079" (2.00mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -55°C ~ 105°C |
|

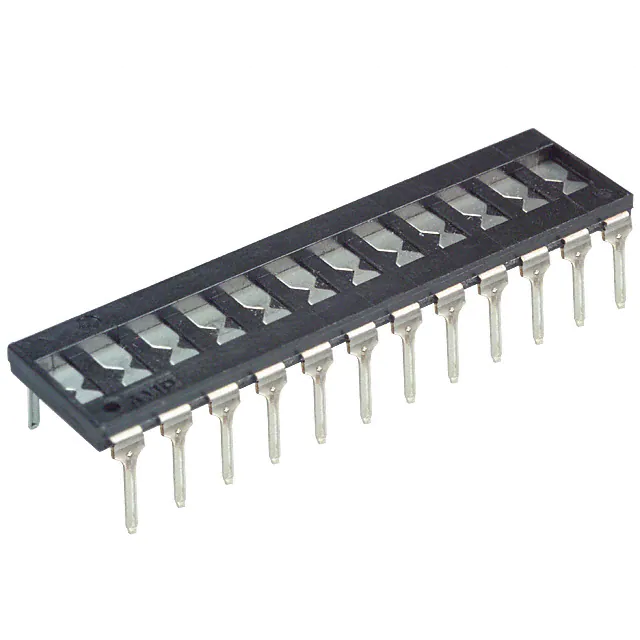

1-435704-2SWITCH SHUNT DIP PROGRAMMABLE |
0 |
|
Datasheet |
7600 | Tube | Obsolete | Programmable | 12 | - | - | Breakable (Shunt) | Flush, Recessed | Copper Alloy | Tin | 0.079" (2.00mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -55°C ~ 105°C |
|
|
SDA02H1KDSWITCH SLIDE DIP SPST 0.025A 24V |
0 |
|
Datasheet |
SDA | Tube | Obsolete | SPST | 2 | 25mA | 24VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 0.228" (5.80mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -20°C ~ 85°C |
|
|
SDA03H1KDSWITCH SLIDE DIP SPST 0.025A 24V |
0 |
|
Datasheet |
SDA | Tube | Obsolete | SPST | 3 | 25mA | 24VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 0.228" (5.80mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -20°C ~ 85°C |
|
|
SDA04H1KDSWITCH SLIDE DIP SPST 0.025A 24V |
0 |
|
Datasheet |
SDA | Tube | Obsolete | SPST | 4 | 25mA | 24VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 0.228" (5.80mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -20°C ~ 85°C |
|
|
SDA05H1KDSWITCH SLIDE DIP SPST 0.025A 24V |
0 |
|
Datasheet |
SDA | Tube | Obsolete | SPST | 5 | 25mA | 24VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 0.228" (5.80mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -20°C ~ 85°C |
|
|
SDA06H1KDSWITCH SLIDE DIP SPST 0.025A 24V |
0 |
|
Datasheet |
SDA | Tube | Obsolete | SPST | 6 | 25mA | 24VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 0.228" (5.80mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -20°C ~ 85°C |
|
|
SDA07H1KDSWITCH SLIDE DIP SPST 0.025A 24V |
0 |
|
Datasheet |
SDA | Tube | Obsolete | SPST | 7 | 25mA | 24VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 0.228" (5.80mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -20°C ~ 85°C |
|
|
SDA08H1KDSWITCH SLIDE DIP SPST 0.025A 24V |
0 |
|
Datasheet |
SDA | Tube | Obsolete | SPST | 8 | 25mA | 24VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 0.228" (5.80mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -20°C ~ 85°C |
DIP Switches Electronic Components
Explore DIP Switches electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
