DIP Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Number of Positions | Current Rating (Amps) | Voltage Rating | Actuator Type | Actuator Level | Contact Material | Contact Finish | Height Above Board | Mounting Type | Termination Style | Pitch | Washable | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
78RB09SWITCH SLIDE DIP SPST 0.15A 30V |
0 |
|
Datasheet |
78 | Bag | Obsolete | SPST | 9 | 150mA | 30VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.265" (6.73mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
78RB10SWITCH SLIDE DIP SPST 0.15A 30V |
0 |
|
Datasheet |
78 | Bag | Obsolete | SPST | 10 | 150mA | 30VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.265" (6.73mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
78RB12SWITCH SLIDE DIP SPST 0.15A 30V |
0 |
|
Datasheet |
78 | Bag | Obsolete | SPST | 12 | 150mA | 30VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.265" (6.73mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
76RSB03SSWITCH ROCKER DIP SPST 0.15A 30V |
0 |
|
Datasheet |
76 | Bag | Obsolete | SPST | 3 | 150mA | 30VDC | Rocker | Flush, Recessed | Copper Alloy | Gold | 0.292" (7.41mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|
76RSB04SSWITCH ROCKER DIP SPST 0.15A 30V |
0 |
|
Datasheet |
76 | Bag | Obsolete | SPST | 4 | 150mA | 30VDC | Rocker | Flush, Recessed | Copper Alloy | Gold | 0.292" (7.41mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|

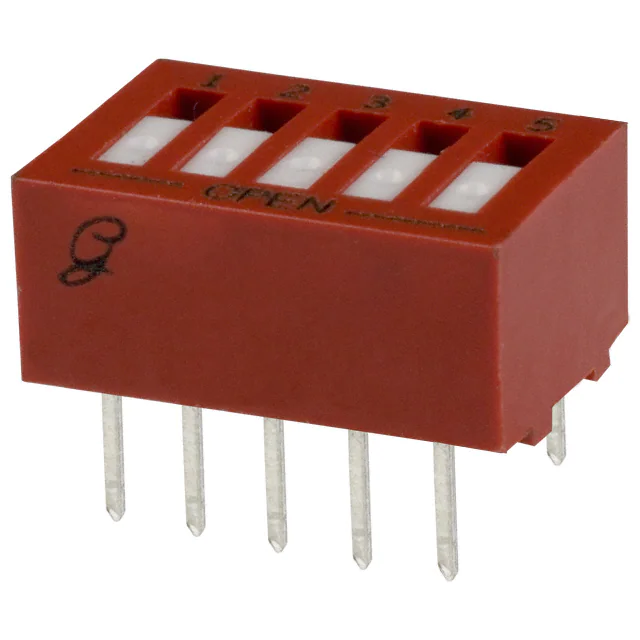

76RSB05SSWITCH ROCKER DIP SPST 0.15A 30V |
0 |
|
Datasheet |
76 | Bag | Obsolete | SPST | 5 | 150mA | 30VDC | Rocker | Flush, Recessed | Copper Alloy | Gold | 0.292" (7.41mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|
76RSB06SSWITCH ROCKER DIP SPST 0.15A 30V |
0 |
|
Datasheet |
76 | Bag | Obsolete | SPST | 6 | 150mA | 30VDC | Rocker | Flush, Recessed | Copper Alloy | Gold | 0.292" (7.41mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|
76RSB07SSWITCH ROCKER DIP SPST 0.15A 30V |
0 |
|
Datasheet |
76 | Bag | Obsolete | SPST | 7 | 150mA | 30VDC | Rocker | Flush, Recessed | Copper Alloy | Gold | 0.292" (7.41mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|
76RSB08SSWITCH ROCKER DIP SPST 0.15A 30V |
0 |
|
Datasheet |
76 | Bag | Obsolete | SPST | 8 | 150mA | 30VDC | Rocker | Flush, Recessed | Copper Alloy | Gold | 0.292" (7.41mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|
76RSB10SSWITCH ROCKER DIP SPST 0.15A 30V |
0 |
|
Datasheet |
76 | Bag | Obsolete | SPST | 10 | 150mA | 30VDC | Rocker | Flush, Recessed | Copper Alloy | Gold | 0.292" (7.41mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|
76RSB12SSWITCH ROCKER DIP SPST 0.15A 30V |
0 |
|
Datasheet |
76 | Bag | Obsolete | SPST | 12 | 150mA | 30VDC | Rocker | Flush, Recessed | Copper Alloy | Gold | 0.292" (7.41mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|
76RSB02SWITCH ROCKER DIP SPST 0.15A 30V |
0 |
|
Datasheet |
76 | Bag | Obsolete | SPST | 2 | 150mA | 30VDC | Rocker | Flush, Recessed | Copper Alloy | Gold | 0.292" (7.41mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
76RSB03SWITCH ROCKER DIP SPST 0.15A 30V |
0 |
|
Datasheet |
76 | Bag | Obsolete | SPST | 3 | 150mA | 30VDC | Rocker | Flush, Recessed | Copper Alloy | Gold | 0.292" (7.41mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
76RSB04SWITCH ROCKER DIP SPST 0.15A 30V |
0 |
|
Datasheet |
76 | Bag | Obsolete | SPST | 4 | 150mA | 30VDC | Rocker | Flush, Recessed | Copper Alloy | Gold | 0.292" (7.41mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
76RSB05SWITCH ROCKER DIP SPST 0.15A 30V |
0 |
|
Datasheet |
76 | Bag | Obsolete | SPST | 5 | 150mA | 30VDC | Rocker | Flush, Recessed | Copper Alloy | Gold | 0.292" (7.41mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
76RSB06SWITCH ROCKER DIP SPST 0.15A 30V |
0 |
|
Datasheet |
76 | Bag | Obsolete | SPST | 6 | 150mA | 30VDC | Rocker | Flush, Recessed | Copper Alloy | Gold | 0.292" (7.41mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
76RSB07SWITCH ROCKER DIP SPST 0.15A 30V |
0 |
|
Datasheet |
76 | Bag | Obsolete | SPST | 7 | 150mA | 30VDC | Rocker | Flush, Recessed | Copper Alloy | Gold | 0.292" (7.41mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
76RSB08SWITCH ROCKER DIP SPST 0.15A 30V |
0 |
|
Datasheet |
76 | Bag | Obsolete | SPST | 8 | 150mA | 30VDC | Rocker | Flush, Recessed | Copper Alloy | Gold | 0.292" (7.41mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
76RSB10SWITCH ROCKER DIP SPST 0.15A 30V |
0 |
|
Datasheet |
76 | Bag | Obsolete | SPST | 10 | 150mA | 30VDC | Rocker | Flush, Recessed | Copper Alloy | Gold | 0.292" (7.41mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
76RSB12SWITCH ROCKER DIP SPST 0.15A 30V |
0 |
|
Datasheet |
76 | Bag | Obsolete | SPST | 12 | 150mA | 30VDC | Rocker | Flush, Recessed | Copper Alloy | Gold | 0.292" (7.41mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
