DIP Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Number of Positions | Current Rating (Amps) | Voltage Rating | Actuator Type | Actuator Level | Contact Material | Contact Finish | Height Above Board | Mounting Type | Termination Style | Pitch | Washable | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DHS6CSWITCH SLIDE DIP SPST 0.1A 6V |
0 |
|
Datasheet |
DHS | Tape & Reel (TR) | Obsolete | SPST | 6 | 100mA | 6VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.087" (2.20mm) | Surface Mount | Gull Wing | 0.050" (1.27mm), Half | Yes | Tape Seal | -40°C ~ 80°C |
|

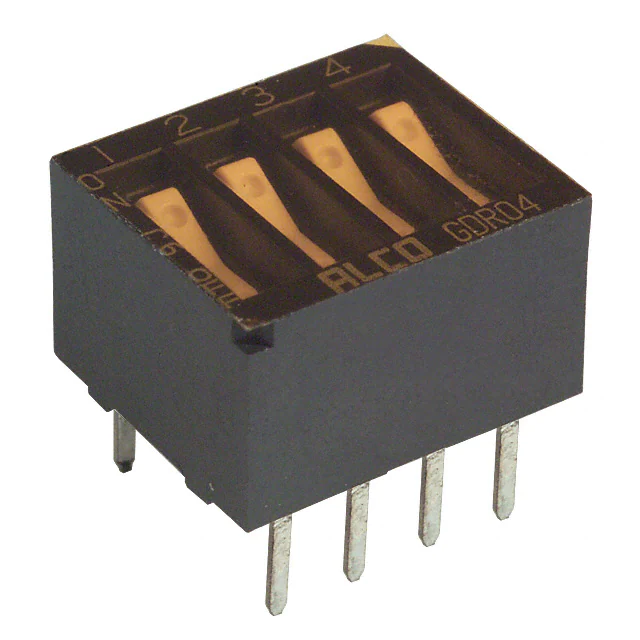

GDR04SW ROCKER DIP SPST 0.025A 24V |
0 |
|
- |
GDR | Tube | Obsolete | SPST | 4 | 25mA | 24VDC | Rocker | Flush, Recessed | Copper Alloy | Gold | 0.270" (6.85mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -30°C ~ 85°C |
|
|
SMRR8110C-1ESW ROTARY DIP BCD COMP 0.03A 15V |
0 |
|
- |
SMR | Tape & Reel (TR) | Active | BCD Complement | 10 | 30mA | 15VDC | Rotary with Shaft | Raised | - | Gold | 0.319" (8.10mm) | Surface Mount, Right Angle | Gull Wing | 0.050" (1.27mm), Half | Yes | - | -25°C ~ 85°C |
|
|
SMRR8116C-1ESW ROTARY DIP HEX COMP 0.03A 15V |
0 |
|
- |
SMR | Tape & Reel (TR) | Active | Hexadecimal Complement | 16 | 30mA | 15VDC | Rotary with Shaft | Raised | - | Gold | 0.319" (8.10mm) | Surface Mount, Right Angle | Gull Wing | 0.050" (1.27mm), Half | Yes | - | -25°C ~ 85°C |
|
|
SMRR8016C-1ESWITCH ROTARY DIP HEX 0.03A 15V |
0 |
|
- |
SMR | Tape & Reel (TR) | Active | Hexadecimal | 16 | 30mA | 15VDC | Rotary with Shaft | Raised | - | Gold | 0.319" (8.10mm) | Surface Mount, Right Angle | Gull Wing | 0.050" (1.27mm), Half | Yes | - | -25°C ~ 85°C |
|
|
SMRR8010C-1ESWITCH ROTARY DIP BCD 0.03A 15V |
0 |
|
- |
SMR | Tape & Reel (TR) | Active | BCD | 10 | 30mA | 15VDC | Rotary with Shaft | Raised | - | Gold | 0.319" (8.10mm) | Surface Mount, Right Angle | Gull Wing | 0.050" (1.27mm), Half | Yes | - | -25°C ~ 85°C |
|
|
RTF16R2JRSWITCH ROTARY DIP HEX 100MA 5VDC |
0 |
|
Datasheet |
RTF | Tape & Reel (TR) | Active | Hexadecimal | 16 | 100mA | 5VDC | Rotary for Tool | Flush, Recessed | Phosphor Bronze | Gold | 0.118" (3.00mm) | Surface Mount | J Lead | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
RTF16C2JRSW ROTARY DIP HEX COMP 0.1A 5VDC |
0 |
|
Datasheet |
RTF | Tape & Reel (TR) | Active | Hexadecimal Complement | 16 | 100mA | 5VDC | Rotary for Tool | Flush, Recessed | Phosphor Bronze | Gold | 0.118" (3.00mm) | Surface Mount | J Lead | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
RTF16R0SRSWITCH ROTARY DIP HEX 100MA 5VDC |
0 |
|
Datasheet |
RTF | Tape & Reel (TR) | Active | Hexadecimal | 16 | 100mA | 5VDC | Rotary for Tool | Flush, Recessed | Phosphor Bronze | Gold | 0.118" (3.00mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
RTF16R2SRSWITCH ROTARY DIP HEX 100MA 5VDC |
0 |
|
Datasheet |
RTF | Tape & Reel (TR) | Active | Hexadecimal | 16 | 100mA | 5VDC | Rotary for Tool | Flush, Recessed | Phosphor Bronze | Gold | 0.118" (3.00mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
RTF16C2SRSW ROTARY DIP HEX COMP 0.1A 5VDC |
0 |
|
Datasheet |
RTF | Tape & Reel (TR) | Active | Hexadecimal Complement | 16 | 100mA | 5VDC | Rotary for Tool | Flush, Recessed | Phosphor Bronze | Gold | 0.118" (3.00mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
RTF16C0JRSW ROTARY DIP HEX COMP 0.1A 5VDC |
0 |
|
Datasheet |
RTF | Tape & Reel (TR) | Active | Hexadecimal Complement | 16 | 100mA | 5VDC | Rotary for Tool | Flush, Recessed | Phosphor Bronze | Gold | 0.118" (3.00mm) | Surface Mount | J Lead | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
97C10SRTSWITCH SLIDE DIP SPST 0.025A 24V |
0 |
|
Datasheet |
97 | Tape & Reel (TR) | Active | SPST | 10 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.063" (1.60mm) | Surface Mount | Gull Wing | 0.050" (1.27mm), Half | Yes | Tape Seal | -40°C ~ 85°C |
|
|
97R10SRTSWITCH SLIDE DIP SPST 0.025A 24V |
0 |
|
Datasheet |
97 | Bulk | Active | SPST | 10 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.061" (1.55mm) | Surface Mount | Gull Wing | 0.050" (1.27mm), Half | Yes | Tape Seal | -40°C ~ 85°C |
|
|
TDA06H0JB1SWITCH SLIDE DIP SPST 25MA 24VDC |
0 |
|
Datasheet |
TDA | Bulk | Active | SPST | 6 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.087" (2.20mm) | Surface Mount | J Lead | 0.050" (1.27mm), Half | Yes | - | -40°C ~ 85°C |
|
|
1977105-2SWITCH SLIDE DIP SPST 0.01A 5V |
0 |
|
Datasheet |
STR | Tube | Active | SPST | 4 | 10mA | 5VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.244" (6.20mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | - | -30°C ~ 85°C |
|
|
CHS-10TA1SWITCH SLIDE DIP SPST 0.1A 6V |
0 |
|
Datasheet |
CHS | Tape & Reel (TR) | Active | SPST | 10 | 100mA | 6VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.098" (2.50mm) | Surface Mount | J Lead | 0.050" (1.27mm), Half | No | - | -40°C ~ 85°C |
|
|
CHS-10TB1SWITCH SLIDE DIP SPST 0.1A 6V |
0 |
|
Datasheet |
CHS | Tape & Reel (TR) | Active | SPST | 10 | 100mA | 6VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.098" (2.50mm) | Surface Mount | Gull Wing | 0.050" (1.27mm), Half | No | - | -40°C ~ 85°C |
|
|
ADP10SSWITCH PIANO DIP SPST 0.025A 24V |
0 |
|
Datasheet |
ADP | Tube | Obsolete | SPST | 10 | 25mA | 24VDC | Piano | Raised | Copper Alloy | Gold | 0.303" (7.70mm) | Surface Mount, Right Angle | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -30°C ~ 85°C |
|
|
RDTAR08R2TSW ROTARY DIP OCTAL 0.15A 42V |
0 |
|
Datasheet |
RDT | Tube | Active | Octal | 8 | 150mA | 42VDC | Rotary for Tool | Flush, Recessed | - | Gold | 0.394" (10.01mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
