DIP Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Number of Positions | Current Rating (Amps) | Voltage Rating | Actuator Type | Actuator Level | Contact Material | Contact Finish | Height Above Board | Mounting Type | Termination Style | Pitch | Washable | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IKD0104101DIP SWITCH IKD 24VDC |
0 |
|
Datasheet |
IKD | Bulk | Active | SPST | 1 | 25mA | 24VDC | Slide (Standard) | Raised | Phosphor Bronze | Gold | 0.118" (3.00mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -20°C ~ 85°C |
|
|
ADP06SASWITCH PIANO DIP SPST 0.025A 24V |
0 |
|
Datasheet |
ADP | Tube | Obsolete | SPST | 6 | 25mA | 24VDC | Piano | Raised | Copper Alloy | Gold | 0.301" (7.65mm) | Surface Mount, Right Angle | J Lead | 0.100" (2.54mm), Full | Yes | - | -30°C ~ 85°C |
|
|
ADPA06SASWITCH PIANO DIP SPST 0.025A 24V |
0 |
|
Datasheet |
ADPA | Tube | Obsolete | SPST | 6 | 25mA | 24VDC | Piano | Raised | Copper Alloy | Gold | 0.301" (7.65mm) | Surface Mount, Right Angle | J Lead | 0.100" (2.54mm), Full | Yes | - | -30°C ~ 85°C |
|
TDA08H0SK1RSWITCH SLIDE DIP SPST 0.025A 24V |
0 |
|
Datasheet |
TDA | Tape & Reel (TR) | Obsolete | SPST | 8 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.091" (2.30mm) | Surface Mount | Gull Wing | 0.050" (1.27mm), Half | Yes | Tape Seal | -20°C ~ 85°C |
|
|
CRE04RRDP0SSW ROTARY DIP BCD 150MA 42VDC |
0 |
|
Datasheet |
CRE | Tube | Active | BCD | 4 | 150mA | 42VDC | Rotary for Tool | Raised | Brass | Gold | 0.307" (7.80mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -20°C ~ 85°C |
|
BPA12BSWITCH PIANO DIP SPST 0.1A 5V |
0 |
|
Datasheet |
BPA | Bulk | Active | SPST | 12 | 100mA | 5VDC | Piano | Raised | Beryllium Copper | Gold | 0.287" (7.30mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -20°C ~ 85°C |
|
|
RDTDR04S1RSWITCH ROTARY DIP BCD 0.15A 42V |
0 |
|
Datasheet |
RDT | Tape & Reel (TR) | Active | BCD | 4 | 150mA | 42VDC | Rotary for Tool | Raised | - | Gold | 0.256" (6.50mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -60°C ~ 125°C |
|
|
RDTDR06S1RSWITCH ROTARY DIP BCD 0.15A 42V |
0 |
|
Datasheet |
RDT | Tape & Reel (TR) | Active | BCD | 6 | 150mA | 42VDC | Rotary for Tool | Raised | - | Gold | 0.256" (6.50mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -60°C ~ 125°C |
|
|
RDTDR10S1RSWITCH ROTARY DIP BCD 0.15A 42V |
0 |
|
Datasheet |
RDT | Tape & Reel (TR) | Active | BCD | 10 | 150mA | 42VDC | Rotary for Tool | Raised | - | Gold | 0.256" (6.50mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -60°C ~ 125°C |
|
TDS09SGRSTR04SWITCH SLIDE DIP SPST 0.025A 24V |
0 |
|
- |
TDS | Tape & Reel (TR) | Active | SPST | 9 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.146" (3.70mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -20°C ~ 85°C |
|
|
GDS02SWITCH SLIDE DIP SPST 0.025A 24V |
0 |
|
Datasheet |
GDS | Tube | Obsolete | SPST | 2 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.114" (2.90mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -30°C ~ 85°C |
|
|
MGDH04SWITCH SLIDE DIP SPST 0.025A 24V |
0 |
|
Datasheet |
MGDH | Tube | Obsolete | SPST | 4 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.067" (1.70mm) | Surface Mount | Gull Wing | 0.050" (1.27mm), Half | No | Tape Seal | -30°C ~ 85°C |
|
GDS06SSWITCH SLIDE DIP SPST 0.025A 24V |
0 |
|
- |
GDS | Tube | Obsolete | SPST | 6 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.114" (2.90mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Tape Seal | -30°C ~ 85°C |
|
|
KAC02LGGRSWITCH PIANO DIP SPST 0.025A 24V |
0 |
|
Datasheet |
KAC | Tape & Reel (TR) | Active | SPST | 2 | 25mA | 24VDC | Piano | Raised | - | Gold | 0.201" (5.10mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -20°C ~ 85°C |
|
RDS-10S-7229-R-SMT-TRSWITCH ROTARY DIP BCD 0.1A 50V |
0 |
|
Datasheet |
RDS-7229-SMT | Tape & Reel (TR) | Active | BCD | 10 | 100mA | 50VDC | Rotary with Shaft | Raised | Copper Alloy | Gold | 0.236" (6.00mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | IP67 - Dust Tight, Waterproof | -40°C ~ 85°C |
|
RDS-10S-7229-S-SMT-TRSWITCH ROTARY DIP BCD 0.1A 50V |
0 |
|
Datasheet |
RDS-7229-SMT | Tape & Reel (TR) | Active | BCD | 10 | 100mA | 50VDC | Rotary with Shaft | Raised | Copper Alloy | Gold | 0.236" (6.00mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | IP67 - Dust Tight, Waterproof | -40°C ~ 85°C |
|

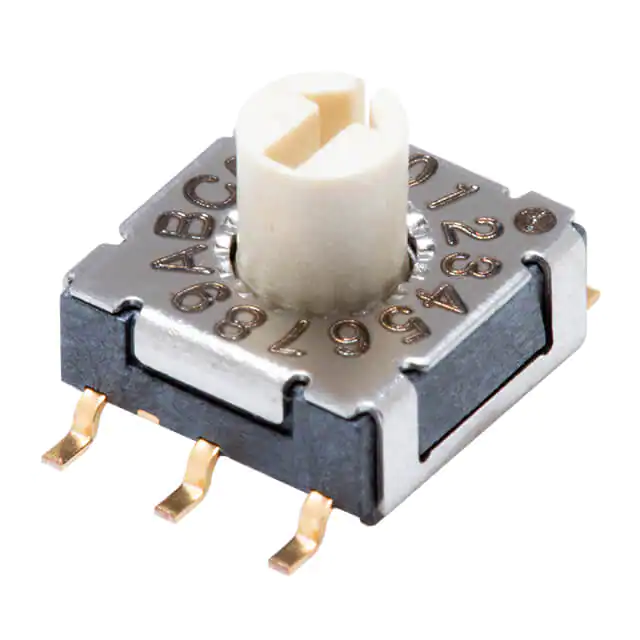

RDS-16S-7229-R-SMT-TRSWITCH ROTARY DIP HEX 0.1A 50V |
0 |
|
Datasheet |
RDS-7229-SMT | Tape & Reel (TR) | Active | Hexadecimal | 16 | 100mA | 50VDC | Rotary with Shaft | Raised | Copper Alloy | Gold | 0.236" (6.00mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | IP67 - Dust Tight, Waterproof | -40°C ~ 85°C |
|
RDS-4S-7229-S-SMT-TRSWITCH ROTARY DIP BCD 0.1A 50V |
0 |
|
Datasheet |
RDS-7229-SMT | Tape & Reel (TR) | Active | BCD | 4 | 100mA | 50VDC | Rotary with Shaft | Raised | Copper Alloy | Gold | 0.236" (6.00mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | IP67 - Dust Tight, Waterproof | -40°C ~ 85°C |
|

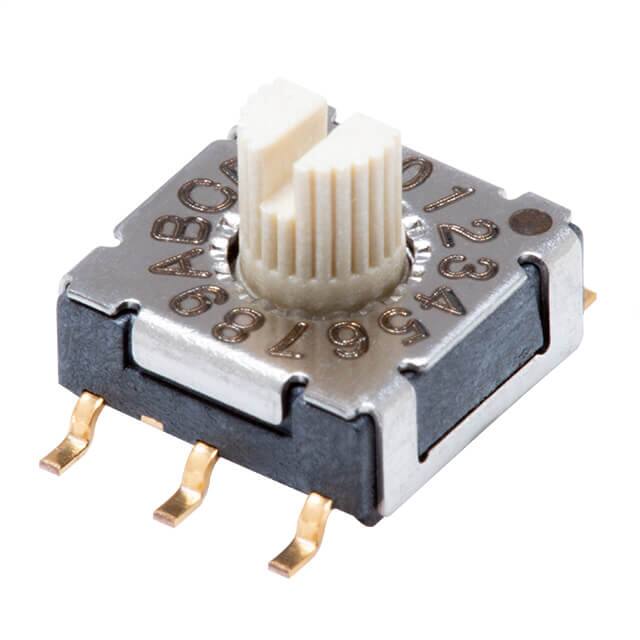

RDS-16S-7229-S-SMT-TRSWITCH ROTARY DIP HEX 0.1A 50V |
0 |
|
Datasheet |
RDS-7229-SMT | Tape & Reel (TR) | Active | Hexadecimal | 16 | 100mA | 50VDC | Rotary with Shaft | Raised | Copper Alloy | Gold | 0.236" (6.00mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | IP67 - Dust Tight, Waterproof | -40°C ~ 85°C |
|
|
DR2-10R-BSWITCH ROTARY DIP BCD 0.025A 24V |
0 |
|
Datasheet |
DR | Box | Active | BCD | 10 | 25mA | 24VDC | Rotary for Tool | Flush, Recessed | Copper | Gold | 0.177" (4.50mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -25°C ~ 80°C |
