DIP Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Number of Positions | Current Rating (Amps) | Voltage Rating | Actuator Type | Actuator Level | Contact Material | Contact Finish | Height Above Board | Mounting Type | Termination Style | Pitch | Washable | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CFP-0512TBSWITCH PIANO DIP SPST 0.1A 6V |
0 |
|
- |
CFP | Tape & Reel (TR) | Active | SPST | 5 | 100mA | 6VDC | Piano | Raised | Copper Alloy | Gold | 0.264" (6.70mm) | Surface Mount, Right Angle | Gull Wing | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
CFP-0502TBSWITCH PIANO DIP SPST 0.1A 6V |
0 |
|
- |
CFP | Tape & Reel (TR) | Active | SPST | 5 | 100mA | 6VDC | Piano | Raised | Copper Alloy | Gold | 0.264" (6.70mm) | Surface Mount, Right Angle | Gull Wing | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
1-1393546-7SWITCH DIP SPDT |
0 |
|
Datasheet |
DIP-FIX | Bulk | Obsolete | SPDT | 4 | - | - | - | Raised | - | - | 0.319" (8.10mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | - |
|
GDS04SSWITCH SLIDE DIP SPST 0.025A 24V |
0 |
|
- |
GDS | Tube | Obsolete | SPST | 4 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.114" (2.90mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Tape Seal | -30°C ~ 85°C |
|

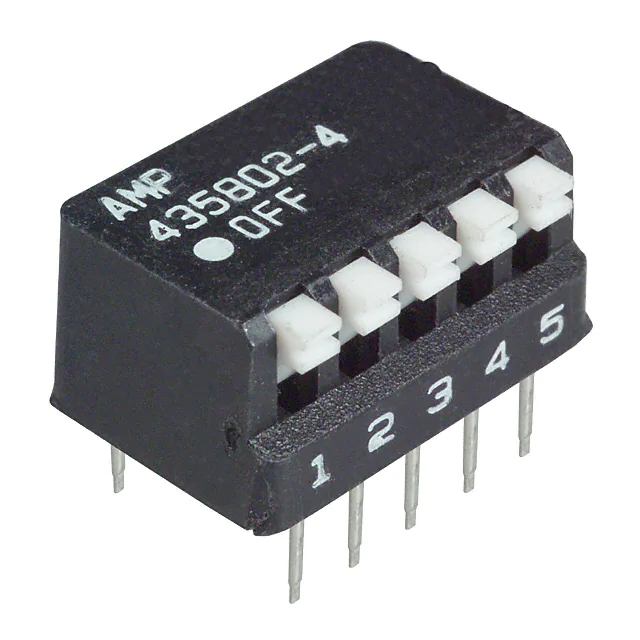

435802-4SWITCH PIANO DIP SPST 0.025A 24V |
0 |
|
Datasheet |
7000 | Tube | Obsolete | SPST | 5 | 25mA | 24VDC | Piano | Raised | Copper Alloy | Gold | 0.290" (7.37mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -55°C ~ 105°C |
|
TDA06H0SK1RSWITCH SLIDE DIP SPST 0.025A 24V |
0 |
|
Datasheet |
TDA | Tape & Reel (TR) | Obsolete | SPST | 6 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.091" (2.30mm) | Surface Mount | Gull Wing | 0.050" (1.27mm), Half | Yes | Tape Seal | -20°C ~ 85°C |
|
|
NDS10VDIP SWITCH ND STANDARD |
0 |
|
Datasheet |
NDS | Bulk | Active | SPST | 10 | 25mA | 24VDC | Slide (Standard) | Raised | - | Gold | 0.270" (6.85mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
DHN02TVDIP SWITCH IKH HALF PITCH |
0 |
|
- |
DHN | Bulk | Active | SPST | 2 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | - | Gold | 0.059" (1.50mm) | Surface Mount | Gull Wing | 0.050" (1.27mm), Half | No | - | -40°C ~ 85°C |
|
|
NDIR08STSWITCH SLIDE DIP SPST 0.025A 24V |
0 |
|
Datasheet |
NDI | Tube | Active | SPST | 8 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.173" (4.40mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -20°C ~ 85°C |
|

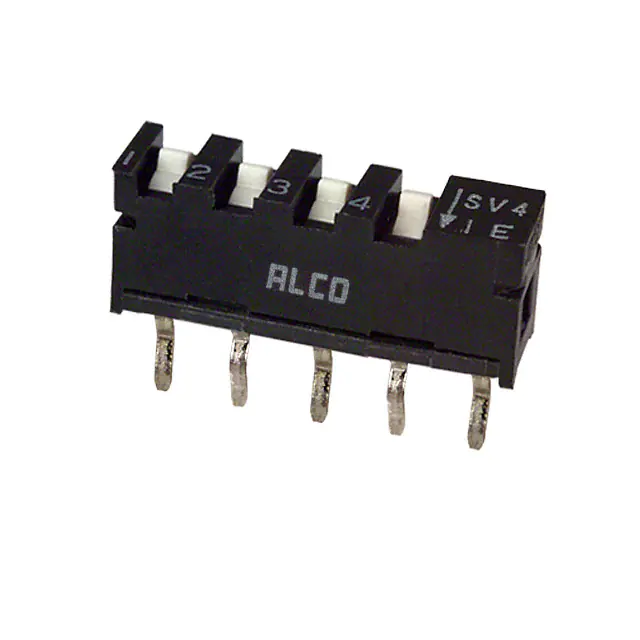

1825152-2SWITCH SLIDE DIP SPST 0.4VA 20V |
0 |
|
Datasheet |
SSV | Tube | Obsolete | SPST | 4 | 0.4VA | 20VAC/DC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.197" (5.00mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -30°C ~ 85°C |
|
|
COM-08034SWITCH SLIDE DIP SPST |
0 |
|
- |
- | Bulk | Active | SPST | 8 | - | - | Slide (Standard) | Raised | - | - | 0.280" (7.10mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | - |
|
|
ADF08SASWITCH SLIDE DIP SPST 0.025A 24V |
0 |
|
Datasheet |
ADF | Tube | Obsolete | SPST | 8 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.203" (5.15mm) | Surface Mount | J Lead | 0.100" (2.54mm), Full | Yes | - | -30°C ~ 85°C |
|
|
NDIR02SSWITCH SLIDE DIP SPST 0.025A 24V |
0 |
|
Datasheet |
NDI | Tube | Active | SPST | 2 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.173" (4.40mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -20°C ~ 85°C |
|
|
CHP-040TASWITCH PIANO DIP SPST 0.1A 6V |
0 |
|
Datasheet |
CHP | Tape & Reel (TR) | Active | SPST | 4 | 100mA | 6VDC | Piano | Raised | Copper Alloy | Gold | 0.181" (4.60mm) | Surface Mount, Right Angle | J Lead | 0.050" (1.27mm), Half | No | - | -40°C ~ 85°C |
|
CHP-040TBSWITCH PIANO DIP SPST 0.1A 6V |
0 |
|
Datasheet |
CHP | Tape & Reel (TR) | Active | SPST | 4 | 100mA | 6VDC | Piano | Raised | Copper Alloy | Gold | 0.181" (4.60mm) | Surface Mount, Right Angle | Gull Wing | 0.050" (1.27mm), Half | No | - | -40°C ~ 85°C |
|
|
DR3MS-10R-TRSWITCH ROTARY DIP BCD 0.025A 24V |
0 |
|
Datasheet |
DR | Tape & Reel (TR) | Active | BCD | 10 | 25mA | 24VDC | Rotary with Shaft | Raised | Copper | Gold | 0.303" (7.70mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -25°C ~ 80°C |
|
|
GDS02SSWITCH SLIDE DIP SPST 0.025A 24V |
0 |
|
Datasheet |
GDS | Tube | Obsolete | SPST | 2 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.114" (2.90mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Tape Seal | -30°C ~ 85°C |
|
|
KAN1104RR-ONSWITCH SLIDE DIP SPST 0.025A 24V |
0 |
|
Datasheet |
KAN | Tape & Reel (TR) | Active | SPST | 4 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.064" (1.63mm) | Surface Mount | Gull Wing | 0.050" (1.27mm), Half | Yes | - | -40°C ~ 85°C |
|
|
1-1571999-7SWITCH PIANO DIP SPST |
0 |
|
Datasheet |
ADP | Tube | Active | SPST | 6 | - | - | Piano | Raised | - | - | - | Surface Mount | - | - | Yes | - | - |
|
|
RDS3-4S-1065-SMT-TRSWITCH ROTARY DIP SPST 0.15A 42V |
0 |
|
Datasheet |
RDS3-1065-SMT | Tape & Reel (TR) | Active | SPST | - | 150mA | 42VDC | Rotary for Tool | Flush, Recessed | Phosphor Bronze | Gold | 0.268" (6.80mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
