DIP Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Number of Positions | Current Rating (Amps) | Voltage Rating | Actuator Type | Actuator Level | Contact Material | Contact Finish | Height Above Board | Mounting Type | Termination Style | Pitch | Washable | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
219-10LPSSWITCH SLIDE DIP SPST 0.1A 20V |
0 |
|
Datasheet |
219 | Tube | Active | SPST | 10 | 100mA | 20VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.160" (4.06mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -55°C ~ 85°C |
|
219-10LPSFSWITCH SLIDE DIP SPST 0.1A 20V |
0 |
|
Datasheet |
219 | Tube | Active | SPST | 10 | 100mA | 20VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.160" (4.06mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -55°C ~ 85°C |
|
219-10MSSWITCH SLIDE DIP SPST 0.1A 20V |
0 |
|
Datasheet |
219 | Tube | Active | SPST | 10 | 100mA | 20VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 0.170" (4.33mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -55°C ~ 85°C |
|
219-10MSFSWITCH SLIDE DIP SPST 0.1A 20V |
0 |
|
Datasheet |
219 | Tube | Active | SPST | 10 | 100mA | 20VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 0.170" (4.33mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -55°C ~ 85°C |
|
206-6RASWITCH SLIDE DIP SPST 0.05A 24V |
0 |
|
Datasheet |
206RA | Tube | Active | SPST | 6 | 50mA | 24VDC | Slide (Standard) | Raised | - | Gold | 0.400" (10.16mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -55°C ~ 85°C |
|
|
206-213SWITCH SLIDE DIP DPST 0.05A 24V |
0 |
|
Datasheet |
206 | Tube | Active | DPST | 3 | 50mA | 24VDC | Slide (Standard) | Raised | - | Gold | 0.299" (7.60mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -55°C ~ 85°C |
|
|
206-8ESSWITCH SLIDE DIP SPST 0.05A 24V |
0 |
|
Datasheet |
206 | Tube | Active | SPST | 8 | 50mA | 24VDC | Slide (Standard) | Raised | - | Gold | 0.434" (11.02mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -55°C ~ 85°C |
|
206-212STSWITCH SLIDE DIP DPST 0.05A 24V |
0 |
|
Datasheet |
206 | Tube | Active | DPST | 2 | 50mA | 24VDC | Slide (Standard) | Raised | - | Gold | 0.334" (8.48mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -55°C ~ 85°C |
|
|
1825058-4SWITCH SLIDE DIP SPST 0.1A 24V |
0 |
|
Datasheet |
ADE | Tube | Active | SPST | 3 | 100mA | 24VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.217" (5.50mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -30°C ~ 85°C |
|

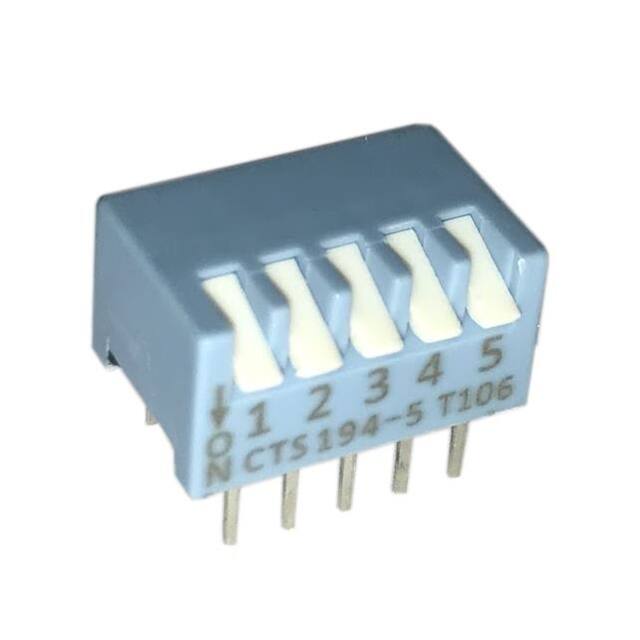

194-5MSSWITCH PIANO DIP SPST 0.05A 24V |
0 |
|
Datasheet |
194 | Tube | Active | SPST | 5 | 50mA | 24VDC | Piano | Raised | - | Gold | 0.311" (7.90mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -40°C ~ 85°C |
|
194-5MSNSWITCH PIANO DIP SPST 0.05A 24V |
0 |
|
Datasheet |
194 | Tube | Active | SPST | 5 | 50mA | 24VDC | Piano | Raised | - | Gold | 0.311" (7.90mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -40°C ~ 85°C |
|
|
CJS-1200A2SWITCH SLIDE SPDT 0.1A 6V |
0 |
|
- |
CJS | Bulk | Active | SPDT | - | 100mA | - | Flush | - | Copper Alloy | Gold | - | Surface Mount | J Lead | - | - | - | -40°C ~ 85°C |
|
|
CJS-1200B2SWITCH SLIDE SPDT 0.1A 6V |
0 |
|
- |
CJS | Bulk | Active | SPDT | - | 100mA | - | Flush | - | Copper Alloy | Gold | - | Surface Mount | Gull Wing | - | - | - | -40°C ~ 85°C |
|
|
194-6MSSWITCH PIANO DIP SPST 0.05A 24V |
0 |
|
Datasheet |
194 | Tube | Active | SPST | 6 | 50mA | 24VDC | Piano | Raised | - | Gold | 0.311" (7.90mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -40°C ~ 85°C |
|
194-6MSNSWITCH PIANO DIP SPST 0.05A 24V |
0 |
|
Datasheet |
194 | Tube | Active | SPST | 6 | 50mA | 24VDC | Piano | Raised | - | Gold | 0.311" (7.90mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -40°C ~ 85°C |
|
204-7SSWITCH SLIDE DIP SPST 0.05A 24V |
0 |
|
Datasheet |
204 | Tube | Active | SPST | 7 | 50mA | 24VDC | Slide (Standard) | Raised | - | Gold | 0.394" (10.00mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -55°C ~ 85°C |
|
ADF02SWITCH SLIDE DIP SPST 0.025A 24V |
0 |
|
- |
ADF | Tube | Obsolete | SPST | 2 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.189" (4.80mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -30°C ~ 85°C |
|
|
206-7ESSWITCH SLIDE DIP SPST 0.05A 24V |
0 |
|
Datasheet |
206 | Tube | Active | SPST | 7 | 50mA | 24VDC | Slide (Standard) | Raised | - | Gold | 0.434" (11.02mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -55°C ~ 85°C |
|
|
219-9ESRSWITCH SLIDE DIP SPST 0.1A 20V |
0 |
|
Datasheet |
219 | Tape & Reel (TR) | Active | SPST | 9 | 100mA | 20VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 0.184" (4.67mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -55°C ~ 85°C |
|
|
219-9ESRFSWITCH SLIDE DIP SPST 0.1A 20V |
0 |
|
Datasheet |
219 | Tape & Reel (TR) | Active | SPST | 9 | 100mA | 20VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 0.184" (4.67mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -55°C ~ 85°C |
DIP Switches Electronic Components
Explore DIP Switches electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
