DIP Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Number of Positions | Current Rating (Amps) | Voltage Rating | Actuator Type | Actuator Level | Contact Material | Contact Finish | Height Above Board | Mounting Type | Termination Style | Pitch | Washable | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
KF1001-08P-R0-GL-DFT-01BDIP SW, THT, 8POS, EXTRNDED |
32,000 |
|
Datasheet |
- | Tube | Active | SPST | 8 | 25mA | 24VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.258" (6.55mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
A6SN0063ESWITCH SLIDE DIP SPST 0.025A 24V |
523 |
|
Datasheet |
A6S-H | Box | Active | SPST | 10 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | - | - | 0.175" (4.45mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -30°C ~ 85°C |
|
|
KF1027A-06P-LG-DFT-01BDIP SW, LOW PROFILE THT, 6POS, E |
30,000 |
|
Datasheet |
- | Tube | Active | SPST | 6 | 25mA | 24VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.166" (4.21mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
A6DR0132GDIP SWITCH |
276 |
|
Datasheet |
A6D | Bulk | Active | - | - | 30mA | 30VDC | Piano | - | - | - | - | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -20°C ~ 70°C |
|
|
A6K 0027FSWITCH DIP 0.025A 24V |
416 |
|
Datasheet |
A6K | Box | Active | - | - | 25mA | 24VDC | - | - | - | - | - | - | - | - | No | - | -30°C ~ 80°C |
|
|
A6HR0001ESWITCH SLIDE DIP 0.025A 24V |
173 |
|
Datasheet |
A6H | Box | Active | - | - | 25mA | 24VDC | Slide (Standard) | - | - | - | - | Surface Mount | Gull Wing | 0.050" (1.27mm), Half | No | - | -20°C ~ 70°C |
|
|
KF1028-06P-TR-DFT-02ADIP SW, HALF PITCH SMD, 6POS, FL |
300 |
|
Datasheet |
- | Tape & Reel (TR) | Active | SPST | 6 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.094" (2.40mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
KF1037A-04P-S-ON-01BDIP SW, LOW PROFILE PIANO THT, 4 |
3,000 |
|
Datasheet |
- | Tube | Active | SPST | 4 | 25mA | 24VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.280" (7.10mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
KF1002-04P-R0-FGL-DFT-02BDIP SW, PIANO TYPE, 4POS, LONG A |
200 |
|
Datasheet |
- | Tube | Active | SPST | 4 | 25mA | 24VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.378" (9.60mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
KF1027A-08P-LG-DFT-01BDIP SW, LOW PROFILE THT, 8POS, E |
39,000 |
|
Datasheet |
- | Tube | Active | SPST | 8 | 25mA | 24VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.166" (4.21mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
A6R 2002GROTARY DIP SWITCH |
144 |
|
Datasheet |
A6R | - | Active | - | - | 25mA | 24VDC | - | - | - | - | - | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -25°C ~ 80°C |
|
|
A6C 0010ESWITCH DIP 0.1A 30V |
436 |
|
Datasheet |
A6C | Bulk | Active | - | - | 100mA | 30VDC | - | - | - | - | - | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -20°C ~ 70°C |
|
|
A6EN0017BSWITCH SLIDE DIP 0.025A 24V |
304 |
|
Datasheet |
A6E | Box | Active | - | - | 25mA | 24VDC | Slide (Standard) | - | - | - | - | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -20°C ~ 70°C |
|
|
A6A 1602MROTARY DIP SWITCH |
230 |
|
Datasheet |
A6A | Bulk | Active | - | - | 100mA | 28VDC | - | - | - | - | - | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -10°C ~ 70°C |
|
|
A6C 0010ESWITCH DIP 0.1A 30V |
600 |
|
Datasheet |
A6C | Box | Active | - | - | 100mA | 30VDC | - | - | - | - | - | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -20°C ~ 70°C |
|
|
A6K 0003RSWITCH DIP 0.025A 24V |
124 |
|
Datasheet |
A6K | Box | Active | - | - | 25mA | 24VDC | - | - | - | - | - | - | - | - | No | - | -30°C ~ 80°C |
|
|
KF1037B-08P-00-ON-01BDIP SW, LOW PROFILE PIANO SMD, 8 |
2,000 |
|
Datasheet |
- | Tube | Active | SPST | 8 | 25mA | 24VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.260" (6.60mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
218-12LPSTSWITCH SLIDE DIP SPST 0.025A 24V |
38 |
|
Datasheet |
218 | Tube | Active | SPST | 12 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.104" (2.65mm) | Surface Mount | Gull Wing | 0.050" (1.27mm), Half | Yes | Epoxy Sealed Terminals, Tape Seal | -55°C ~ 85°C |
|

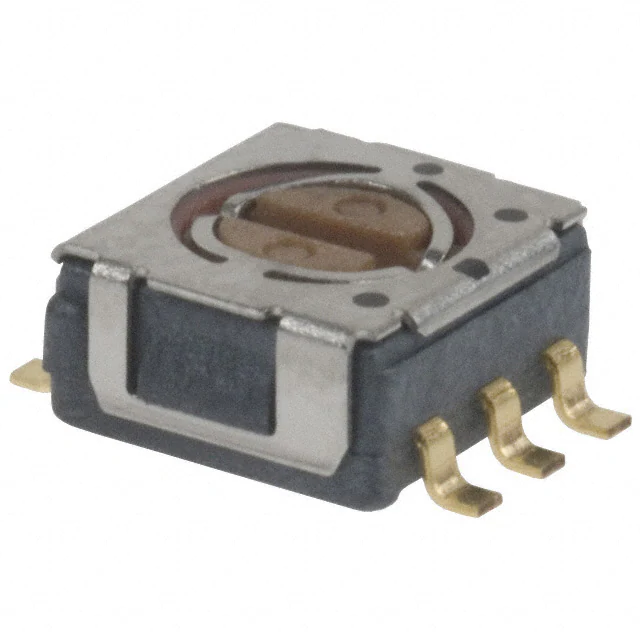

CS-4-14NTBSWITCH ROTARY DIP SP4T 0.1A 16V |
31 |
|
Datasheet |
CS-4 | Tape & Reel (TR) | Active | SP4T | 4 | 100mA | 16VDC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.091" (2.30mm) | Surface Mount | Gull Wing | 0.051" (1.30mm) | Yes | - | -25°C ~ 70°C |
|
DS01C-254-L-03BESWITCH SLIDE DIP SPST 0.025A 24V |
468 |
|
Datasheet |
DS01-254 | Tube | Active | SPST | 3 | 25mA | 24VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.264" (6.70mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
DIP Switches Electronic Components
Explore DIP Switches electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
