RF Diodes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Diode Type | Voltage - Peak Reverse (Max) | Current - Max | Capacitance @ Vr, F | Resistance @ If, F | Power Dissipation (Max) | Operating Temperature | Grade | Qualification | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HSMS-281E-TR2GRF DIODE SCHOTTKY 20V SOT323 |
6,707 |
|
Datasheet |
- | SC-70, SOT-323 | Tape & Reel (TR) | Obsolete | Schottky - 1 Pair Common Anode | 20V | 1 A | 1.2pF @ 0V, 1MHz | 15Ohm @ 5mA, 1MHz | - | 150°C (TJ) | - | - | SOT-323 |
|
HSMP-3895-TR2GRF DIODE PIN 100V SOT143-4 |
9,504 |
|
Datasheet |
- | TO-253-4, TO-253AA | Tape & Reel (TR) | Obsolete | PIN - 2 Independent | 100V | 1 A | 0.3pF @ 5V, 1MHz | 2.5Ohm @ 5mA, 100MHz | - | 150°C (TJ) | - | - | SOT-143-4 |
|
HBAT-5402-TR2GDIODE SCHOTTKY 30V 250MW SOT23-3 |
9,399 |
|
Datasheet |
HBAT-540x | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Obsolete | Schottky - 1 Pair Series Connection | 30V | 220 mA | - | - | 250 mW | 150°C (TJ) | - | - | SOT-23-3 |
|

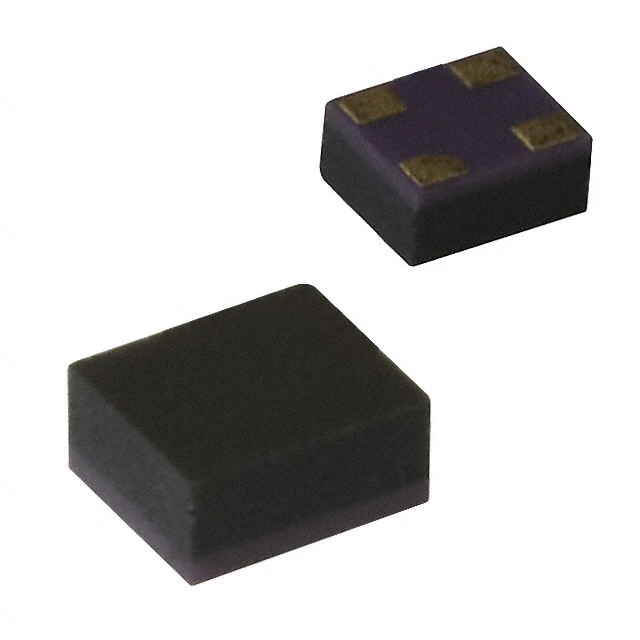

HMPP-389T-TR2RF DIODE PIN 100V MINIPAK |
8,486 |
|
Datasheet |
- | 0505 (1412 Metric) | Tape & Reel (TR) | Obsolete | PIN - Single | 100V | 1 A | 0.3pF @ 5V, 1MHz | 2.5Ohm @ 5mA, 100MHz | - | 150°C (TJ) | - | - | MiniPak 1412 |
|
|
HSMS-2805-TR2GRF DIODE SCHOTTKY 70V SOT143-4 |
4,230 |
|
Datasheet |
- | TO-253-4, TO-253AA | Tape & Reel (TR) | Obsolete | Schottky - 2 Independent | 70V | 1 A | 2pF @ 0V, 1MHz | 35Ohm @ 5mA, 1MHz | - | 150°C (TJ) | - | - | SOT-143-4 |
|
|
HSMP-389B-TR2GRF DIODE PIN 100V SOT323 |
9,694 |
|
Datasheet |
- | SC-70, SOT-323 | Tape & Reel (TR) | Obsolete | PIN - Single | 100V | 1 A | 0.3pF @ 5V, 1MHz | 2.5Ohm @ 5mA, 100MHz | - | 150°C (TJ) | - | - | SOT-323 |
|
HSMS-282R-TR2GRF DIODE SCHOTTKY 15V SOT363 |
9,783 |
|
Datasheet |
- | 6-TSSOP, SC-88, SOT-363 | Tape & Reel (TR) | Obsolete | Schottky - 2 Pair Series Connection | 15V | 1 A | 1pF @ 0V, 1MHz | 12Ohm @ 5mA, 1MHz | - | 150°C (TJ) | - | - | SOT-363 |
|
|
HSMS-282P-TR2GRF DIODE SCHOTTKY 15V SOT363 |
9,830 |
|
Datasheet |
- | 6-TSSOP, SC-88, SOT-363 | Tape & Reel (TR) | Obsolete | Schottky - 2 Pair Series Connection | 15V | 1 A | 1pF @ 0V, 1MHz | 12Ohm @ 5mA, 1MHz | - | 150°C (TJ) | - | - | SOT-363 |
|
|
HSMS-282N-TR2GRF DIODE SCHOTTKY 15V SOT363 |
9,803 |
|
Datasheet |
- | 6-TSSOP, SC-88, SOT-363 | Tape & Reel (TR) | Obsolete | Schottky - 2 Pair Common Anode | 15V | 1 A | 1pF @ 0V, 1MHz | 12Ohm @ 5mA, 1MHz | - | 150°C (TJ) | - | - | SOT-363 |
|
|
HSMS-2820-TR2GRF DIODE SCHOTTKY 15V SOT23-3 |
9,525 |
|
Datasheet |
- | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Obsolete | Schottky - Single | 15V | 1 A | 1pF @ 0V, 1MHz | 12Ohm @ 5mA, 1MHz | - | 150°C (TJ) | - | - | SOT-23-3 |
|
|
HSMP-3890-TR2GRF DIODE PIN 100V SOT23-3 |
8,215 |
|
Datasheet |
- | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Obsolete | PIN - Single | 100V | 1 A | 0.3pF @ 5V, 1MHz | 2.5Ohm @ 5mA, 100MHz | - | 150°C (TJ) | - | - | SOT-23-3 |
|
|
HSMS-281L-TR2GRF DIODE SCHOTTKY 20V SOT363 |
2,503 |
|
Datasheet |
- | 6-TSSOP, SC-88, SOT-363 | Tape & Reel (TR) | Obsolete | Schottky - 3 Independent | 20V | 1 A | 1.2pF @ 0V, 1MHz | 15Ohm @ 5mA, 1MHz | - | 150°C (TJ) | - | - | SOT-363 |
|
|
HSMS-270C-TR2GDIODE SCHOTTKY 15V 825MW SOT323 |
9,870 |
|
- |
- | SC-70, SOT-323 | Tape & Reel (TR) | Obsolete | Schottky - 1 Pair Series Connection | 15V | 750 mA | 6.7pF @ 0V, 1MHz | 650mOhm @ 100mA, 1MHz | 825 mW | 150°C (TJ) | - | - | SOT-323 |
|
|
HSMS-2817-TR2GRF DIODE SCHOTTKY 20V SOT143-4 |
7,842 |
|
Datasheet |
- | TO-253-4, TO-253AA | Tape & Reel (TR) | Obsolete | Schottky - Ring | 20V | 1 A | 1.2pF @ 0V, 1MHz | 15Ohm @ 5mA, 1MHz | - | 150°C (TJ) | - | - | SOT-143-4 |
|
|
HSMS-2818-TR2GRF DIODE SCHOTTKY 20V SOT143-4 |
7,602 |
|
Datasheet |
- | TO-253-4, TO-253AA | Tape & Reel (TR) | Obsolete | Schottky - 1 Bridge | 20V | 1 A | 1.2pF @ 0V, 1MHz | 15Ohm @ 5mA, 1MHz | - | 150°C (TJ) | - | - | SOT-143-4 |
|
|
HSMS-280B-TR2GRF DIODE SCHOTTKY 70V SOT323 |
4,483 |
|
Datasheet |
- | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Obsolete | Schottky - Single | 70V | 1 A | 2pF @ 0V, 1MHz | 35Ohm @ 5mA, 1MHz | - | 150°C (TJ) | - | - | SOT-323 |
|
|
HSMP-3860-TR2GRF DIODE PIN 50V SOT23-3 |
5,608 |
|
Datasheet |
- | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Obsolete | PIN - Single | 50V | 1 A | 0.2pF @ 50V, 1MHz | 1.5Ohm @ 100mA, 100MHz | - | 150°C (TJ) | - | - | SOT-23-3 |
|
|
HSMS-8202-TR2GRF DIODE SCHOTTKY 4V 75MW SOT23 |
4,591 |
|
Datasheet |
- | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Obsolete | Schottky - 1 Pair Series Connection | 4V | - | 0.26pF @ 0V, 1MHz | 14Ohm @ 5mA, 1MHz | 75 mW | 150°C (TJ) | - | - | SOT-23-3 |
|
|
HSMS-2808-TR2GRF DIODE SCHOTTKY 70V SOT143-4 |
4,132 |
|
Datasheet |
- | TO-253-4, TO-253AA | Tape & Reel (TR) | Obsolete | Schottky - 1 Bridge | 70V | 1 A | 2pF @ 0V, 1MHz | 35Ohm @ 5mA, 1MHz | - | 150°C (TJ) | - | - | SOT-143-4 |
|
|
HSMS-2827-TR2GRF DIODE SCHOTTKY 15V SOT143-4 |
4,889 |
|
Datasheet |
- | TO-253-4, TO-253AA | Tape & Reel (TR) | Obsolete | Schottky - Ring | 15V | 1 A | 1pF @ 0V, 1MHz | 12Ohm @ 5mA, 1MHz | - | 150°C (TJ) | - | - | SOT-143-4 |
