RF Diodes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Diode Type | Voltage - Peak Reverse (Max) | Current - Max | Capacitance @ Vr, F | Resistance @ If, F | Power Dissipation (Max) | Operating Temperature | Grade | Qualification | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HSMS-286R-BLKGRF DIODE SCHOTTKY 4V SOT363 |
8,129 |
|
Datasheet |
- | 6-TSSOP, SC-88, SOT-363 | Strip | Obsolete | Schottky - 2 Pair Series Connection | 4V | - | 0.25pF @ 0V, 1MHz | - | - | 150°C (TJ) | - | - | SOT-363 |
|
|
HSMS-286P-BLKGRF DIODE SCHOTTKY 4V SOT363 |
5,540 |
|
Datasheet |
- | 6-TSSOP, SC-88, SOT-363 | Strip | Obsolete | Schottky - 2 Pair Series Connection | 4V | - | 0.25pF @ 0V, 1MHz | - | - | 150°C (TJ) | - | - | SOT-363 |
|
HSMP-3880-BLKGRF DIODE PIN 100V 250MW SOT23-3 |
9,316 |
|
Datasheet |
- | TO-236-3, SC-59, SOT-23-3 | Bulk | Obsolete | PIN - Single | 100V | 1 A | 0.3pF @ 50V, 100MHz | 3.8Ohm @ 1mA, 100MHz | 250 mW | 150°C (TJ) | - | - | SOT-23-3 |
|
1N5711RF DIODE SCHOTTKY 70V 250MW |
3,958 |
|
Datasheet |
- | DO-204AH, DO-35, Axial | Bulk | Obsolete | Schottky - Single | 70V | 15 mA | 2pF @ 0V, 1MHz | - | 250 mW | -65°C ~ 200°C (TJ) | - | - | - |
|
|
5082-2835RF DIODE SCHOTTKY 8V 150MW AXIAL |
5,844 |
|
Datasheet |
- | DO-204AH, DO-35, Axial | Bulk | Obsolete | Schottky - Single | 8V | 10 mA | 1pF @ 0V, 1MHz | - | 150 mW | -60°C ~ 150°C (TJ) | - | - | - |
|
HSMS-2818-BLKGRF DIODE SCHOTTKY 20V SOT143-4 |
7,347 |
|
Datasheet |
- | TO-253-4, TO-253AA | Strip | Obsolete | Schottky - 1 Bridge | 20V | 1 A | 1.2pF @ 0V, 1MHz | 15Ohm @ 5mA, 1MHz | - | 150°C (TJ) | - | - | SOT-143-4 |
|
|
5082-2800DIODE SCHOTTKY 70V 250MW AXIAL |
9,203 |
|
Datasheet |
- | DO-204AH, DO-35, Axial | Bulk | Obsolete | Schottky - Single | 70V | 15 mA | 2pF @ 0V, 1MHz | - | 250 mW | -65°C ~ 200°C (TJ) | - | - | - |
|
|
HSMS-285L-BLKGRF DIODE SCHOTTKY 2V SOT363 |
5,976 |
|
Datasheet |
- | 6-TSSOP, SC-88, SOT-363 | Bulk | Obsolete | Schottky - 3 Independent | 2V | - | 0.3pF @ 1V, 1MHz | - | - | 150°C (TJ) | - | - | SOT-363 |
|
|
HSMS-2817-BLKGRF DIODE SCHOTTKY 20V SOT143-4 |
8,269 |
|
Datasheet |
- | TO-253-4, TO-253AA | Bulk | Obsolete | Schottky - Ring | 20V | 1 A | 1.2pF @ 0V, 1MHz | 15Ohm @ 5mA, 1MHz | - | 150°C (TJ) | - | - | SOT-143-4 |
|
|
HSMS-286L-BLKGRF DIODE SCHOTTKY 4V SOT363 |
5,419 |
|
Datasheet |
- | 6-TSSOP, SC-88, SOT-363 | Strip | Obsolete | Schottky - 3 Independent | 4V | - | 0.25pF @ 0V, 1MHz | - | - | 150°C (TJ) | - | - | SOT-363 |
|
|
5082-2811DIODE SCHOTTKY 15V 250MW AXIAL |
8,288 |
|
Datasheet |
- | DO-204AH, DO-35, Axial | Bulk | Obsolete | Schottky - Single | 15V | 20 mA | 1.2pF @ 0V, 1MHz | - | 250 mW | -65°C ~ 200°C (TJ) | - | - | - |
|
|
5082-3081RF DIODE PIN 100V 250MW AXIAL |
7,183 |
|
Datasheet |
- | DO-204AH, DO-35, Axial | Bulk | Obsolete | PIN - Single | 100V | 100 mA | 0.4pF @ 50V, 1MHz | 3.5Ohm @ 100mA, 100MHz | 250 mW | -65°C ~ 150°C (TJ) | - | - | - |
|
|
5082-2810DIODE SCHOTTKY 20V 250MW AXIAL |
9,053 |
|
Datasheet |
- | DO-204AH, DO-35, Axial | Bulk | Obsolete | Schottky - Single | 20V | 35 mA | 1.2pF @ 0V, 1MHz | - | 250 mW | -65°C ~ 200°C (TJ) | - | - | - |
|
|
5082-3080RF DIODE PIN 100V 250MW AXIAL |
5,718 |
|
Datasheet |
- | DO-204AH, DO-35, Axial | Bulk | Obsolete | PIN - Single | 100V | 100 mA | 0.4pF @ 50V, 1MHz | 2.5Ohm @ 100mA, 100MHz | 250 mW | -65°C ~ 150°C (TJ) | - | - | - |
|
HSMS-282E-TR1GRF DIODE SCHOTTKY 15V SOT323 |
7,429 |
|
Datasheet |
- | SC-70, SOT-323 | Tape & Reel (TR) | Obsolete | Schottky - 1 Pair Common Anode | 15V | 1 A | 1pF @ 0V, 1MHz | 12Ohm @ 5mA, 1MHz | - | 150°C (TJ) | - | - | SOT-323 |
|
|
5082-3039RF DIODE PIN 150V 250MW AXIAL |
9,992 |
|
Datasheet |
- | DO-204AH, DO-35, Axial | Bulk | Obsolete | PIN - Single | 150V | 100 mA | 0.25pF @ 50V, 1MHz | 1.25Ohm @ 100mA, 100MHz | 250 mW | -65°C ~ 150°C (TJ) | - | - | - |
|
|
5082-3077RF DIODE PIN 200V 250MW AXIAL |
9,672 |
|
Datasheet |
- | DO-204AH, DO-35, Axial | Bulk | Obsolete | PIN - Single | 200V | 100 mA | 0.3pF @ 50V, 1MHz | 1.5Ohm @ 100mA, 100MHz | 250 mW | -65°C ~ 150°C (TJ) | - | - | - |
|
|
1N5719RF DIODE PIN 150V 250MW |
8,387 |
|
Datasheet |
- | DO-204AH, DO-35, Axial | Bulk | Obsolete | PIN - Single | 150V | 100 mA | 0.3pF @ 100V, 1MHz | 1.25Ohm @ 100mA, 100MHz | 250 mW | -65°C ~ 150°C (TJ) | - | - | - |
|

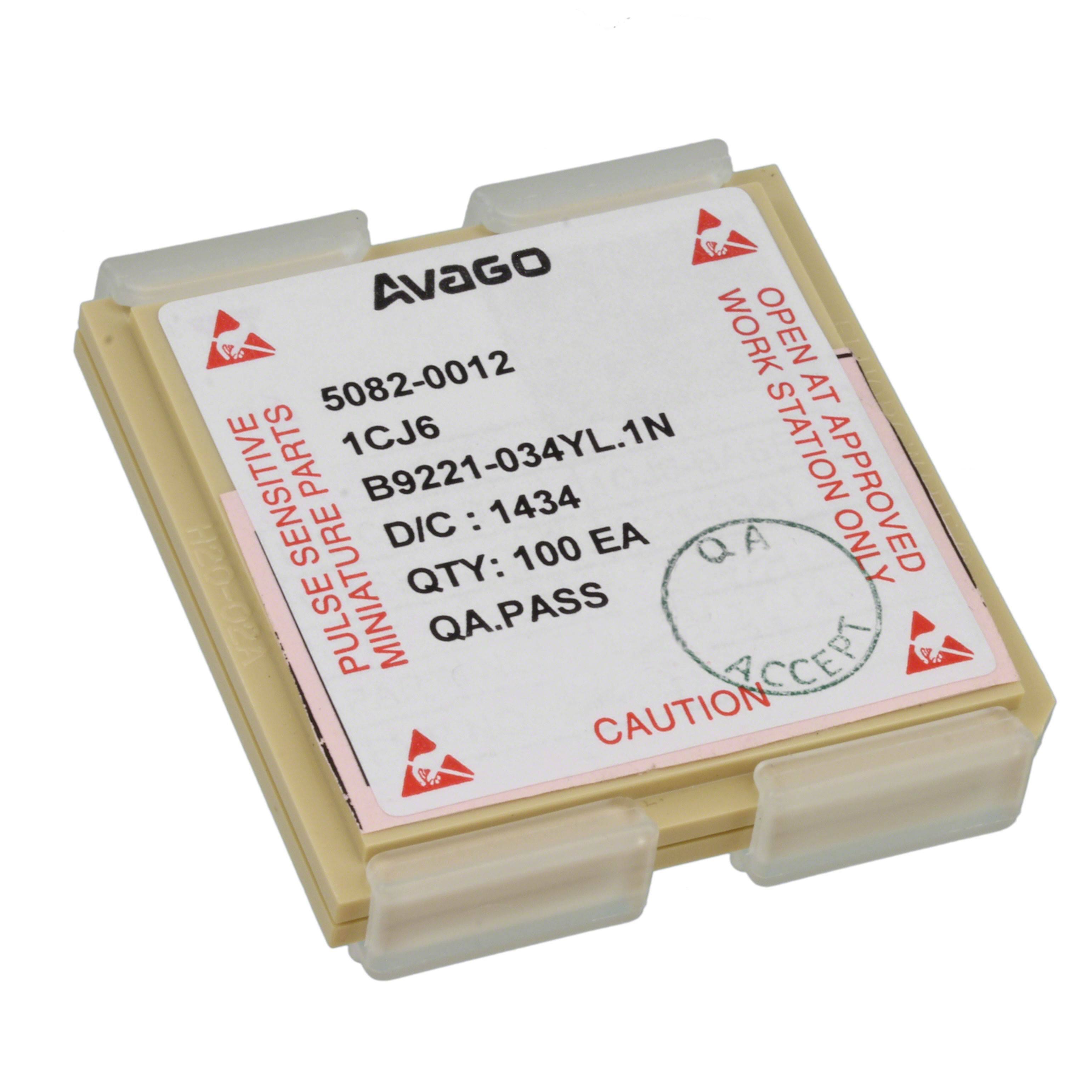

5082-0012RF DIODE PIN 150V |
2,920 |
|
Datasheet |
- | Die | Bulk | Obsolete | PIN - Single | 150V | - | 0.12pF @ 50V, 1MHz | 1Ohm @ 100mA, 100MHz | - | -65°C ~ 150°C (TJ) | - | - | - |
|
|
1N5767RF DIODE PIN 100V 250MW |
3,439 |
|
Datasheet |
- | DO-204AH, DO-35, Axial | Bulk | Obsolete | PIN - Single | 100V | 100 mA | 0.4pF @ 50V, 1MHz | 2.5Ohm @ 100mA, 100MHz | 250 mW | -65°C ~ 150°C (TJ) | - | - | - |
