RF Diodes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Diode Type | Voltage - Peak Reverse (Max) | Current - Max | Capacitance @ Vr, F | Resistance @ If, F | Power Dissipation (Max) | Operating Temperature | Grade | Qualification | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MA4E1340B1-287TSCHOTTKY PLASTIC LEAD-FREE |
3,918 |
|
Datasheet |
MA4E1340 | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Active | Schottky - 1 Pair Series Connection | 70V | 200 mA | 2pF @ 0V, 1MHz | - | 250 mW | -55°C ~ 125°C (TJ) | - | - | SOT-23 |
|
SMP1331-085LFRF DIODE PIN 200V 2.5W 3QFN |
82,579 |
|
Datasheet |
- | 2-VDFN Exposed Pad | Tape & Reel (TR) | Active | PIN - Single | 200V | 200 mA | 0.35pF @ 30V, 1MHz | 500mOhm @ 100mA, 100MHz | 2.5 W | -40°C ~ 150°C (TA) | - | - | 3-QFN (2x2) |
|
|
CLA4611-085LFRF DIODE PIN 180V 2W 3QFN |
12,771 |
|
Datasheet |
- | 2-VDFN Exposed Pad | Tape & Reel (TR) | Active | PIN - Single | 180V | 1.5 A | 0.35pF @ 38V, 1MHz | 1.2Ohm @ 10mA, 500MHz | 2 W | 175°C (TJ) | - | - | 3-QFN (2x2) |
|
|
CLA4607-085LFRF DIODE PIN 180V 13W 3QFN |
9,500 |
|
Datasheet |
- | 2-VDFN Exposed Pad | Tape & Reel (TR) | Active | PIN - Single | 180V | 1.5 A | 0.35pF @ 38V, 1MHz | 2Ohm @ 10mA, 500MHz | 13 W | 175°C (TJ) | - | - | 3-QFN (2x2) |
|

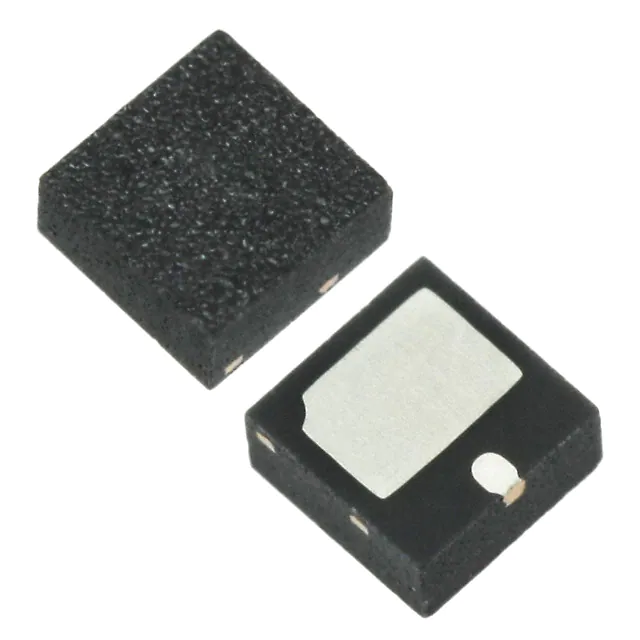

SMP1324-087LFRF DIODE PIN 2W 2QFN |
32,973 |
|
Datasheet |
- | 2-VSFN Exposed Pad | Tape & Reel (TR) | Active | PIN - Single | - | 200 mA | 1.5pF @ 30V, 1MHz | 750mOhm @ 50mA, 100MHz | 2 W | -55°C ~ 175°C (TJ) | - | - | 2-QFN (2x2) |
|
MA4P7455-1225TRF DIODE PIN SOT25 |
3,965 |
|
Datasheet |
- | SC-74A, SOT-753 | Tape & Reel (TR) | Active | PIN - PI Element | - | 75 mA | - | - | - | -65°C ~ 125°C (TJ) | - | - | SOT-25-5 |
|
MA4E2502L-1246RF DIODE SCHOTTKY 5V 50MW DIE |
800 |
|
Datasheet |
- | Die | Bulk | Active | Schottky | 5V | 20 mA | 0.12pF @ 0V, 18GHz | - | 50 mW | -40°C ~ 125°C (TJ) | - | - | Die |
|
|
SMP1334-084LFRF DIODE PIN 200V 1W 2QFN |
1,600 |
|
Datasheet |
- | 2-VSFN Exposed Pad | Tape & Reel (TR) | Active | PIN - Single | 200V | 200 mA | 0.45pF @ 30V, 1MHz | 2.5Ohm @ 10mA, 100MHz | 1 W | -55°C ~ 175°C (TJ) | - | - | 2-QFN (2x2) |
|
|
SMP1331-087LFRF DIODE PIN 200V 750MW 2QFN |
5,916 |
|
Datasheet |
- | 2-VSFN Exposed Pad | Tape & Reel (TR) | Active | PIN - Single | 200V | 200 mA | 0.35pF @ 30V, 1MHz | 500mOhm @ 100mA, 100MHz | 750 mW | -55°C ~ 175°C (TJ) | - | - | 2-QFN (2x2) |
|
MADL-011023-14150TRF DIODE PIN 6TDFN |
6,262 |
|
Datasheet |
- | 6-WFDFN Exposed Pad | Tape & Reel (TR) | Active | PIN - Single | - | - | - | - | - | 175°C (TJ) | - | - | 6-TDFN (1.5x1.2) |
|
MADL-011008-14120TRF DIODE PIN 6DFN |
7,106 |
|
Datasheet |
- | 6-VFDFN Exposed Pad | Tape & Reel (TR) | Active | PIN - Single | - | - | - | - | - | -40°C ~ 85°C (TA) | - | - | 6-DFN (1.6x1.2) |
|
MADP-042305-130600DIODE,HMIC,PIN,SURMOUNT,VERTICAL |
2,000 |
|
Datasheet |
- | Die | Tray | Active | PIN - Single | 80V | 250 mA | 0.22pF @ 40V, 1MHz | 1.18Ohm @ 50mA, 1GHz | 1 W | -55°C ~ 125°C (TJ) | - | - | Die |
|
|
MADL-011021-14150TRF DIODE PIN 6TDFN |
5,166 |
|
Datasheet |
- | 6-WFDFN Exposed Pad | Tape & Reel (TR) | Active | Pin + Schottky 1 Pair Series Connection | - | - | - | - | - | 175°C (TJ) | - | - | 6-TDFN (1.5x1.2) |
|
DSM8100-000RF DIODE PIN 60V 250MW |
9,300 |
|
Datasheet |
- | - | Tray | Active | PIN - Single | 60V | - | 0.025pF @ 10V, 1MHz | 3.5Ohm @ 10mA, 100MHz | 250 mW | -65°C ~ 150°C (TA) | - | - | - |
|
MA4AGP9075 % ALGAAS FLIP CHIP PIN |
500 |
|
Datasheet |
- | Die | Tray | Active | PIN - Single | 50V | - | 0.02pF @ 5V, 10GHz | 7Ohm @ 10mA, 1MHz | 50 mW | -55°C ~ 125°C (TJ) | - | - | Chip |
|
|
MADP-011029-14150TRF DIODE PIN 400V 7.5W 6TDFN |
2,539 |
|
Datasheet |
- | 6-WFDFN Exposed Pad | Tape & Reel (TR) | Active | PIN - Single | 400V | 250 mA | 0.4pF @ 50V, 1GHz | 1.9Ohm @ 10mA, 1GHz | 7.5 W | 175°C (TJ) | - | - | 6-TDFN (1.5x1.2) |
|
MADP-000907-14020PDIODE,SOLDERABLE ALGAAS FC PIN |
145 |
|
Datasheet |
- | Die | Tape & Reel (TR) | Active | PIN - Single | 45V | - | 0.03pF @ 10V, 1MHz | 7Ohm @ 10mA, 1GHz | 100 mW | 175°C (TJ) | - | - | Die |
|
MADS-002502-1246LPLOW BAR POCKET TAPE SURMOUNT CHI |
15,153 |
|
Datasheet |
MA4E2502 Surmount™ | Die | Tape & Reel (TR) | Active | Schottky - Single | 5V | 20 mA | 0.12pF @ 0V, 18GHz | - | 50 mW | 175°C (TJ) | - | - | Die |
|
MA4AGFCP910RF DIODE PIN 75V 50MW 2-FLIPCHIP |
1,200 |
|
Datasheet |
- | 2-SMD, No Lead | Tray | Active | PIN - Single | 75V | - | 0.021pF @ 10V, 1MHz | 6Ohm @ 10mA, 10GHz | 50 mW | -55°C ~ 125°C (TJ) | - | - | 2-FlipChip |
|
|
MA4SPS502HMIC,SURMOUNT,PIN |
1,000 |
|
Datasheet |
MA4SPS502 Surmount™ | 0603 (1608 Metric) | Tray | Active | PIN - Single | 275V | 600 mA | 0.2pF @ 40V, 1MHz | 2.2Ohm @ 100mA, 100MHz | 3 W | 175°C (TJ) | - | - | - |
